1. Introducció
Thank you for choosing the Generic Remote Control Duck Decoy. This electric duck decoy is designed to enhance your duck hunting experience by providing realistic motion and appearance, effectively attracting waterfowl. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal performance of your decoy.
The Remote Control Duck Decoy features realistic coloring and spinning wings, designed to attract waterfowl.
2. Informació de seguretat
- Always handle the decoy and its components with care.
- Keep batteries out of reach of children and pets. Do not mix old and new batteries, or different types of batteries.
- Ensure the decoy is securely placed to prevent it from falling or being carried away by wind or water currents.
- Do not attempt to modify or disassemble the internal components of the decoy or remote control, as this may void the warranty and cause malfunction.
- Avoid exposing the decoy to extreme temperatures or prolonged direct sunlight when not in use.
3. Contingut del paquet
Si us plau, verifiqueu que tots els elements següents estiguin inclosos al vostre paquet:
- 1 x Electric Duck Decoy Body
- 2 x Detachable Spinning Wings
- 1 x comandament a distància
- 1 x Estaca de terra
Note: 4 AA batteries for the decoy and batteries for the remote control are not included and must be purchased separately.
4. Configuració
4.1. Muntatge
- Carefully attach the two spinning wings to the designated slots on the decoy body. Ensure they are securely fastened but can rotate freely.
- Insert the ground stake into the bottom of the decoy body. The decoy is designed for quick and easy assembly, typically within 30 seconds.
The detachable wings are designed for easy assembly and provide realistic motion.
4.2. Instal·lació de la bateria
- Locate the battery compartment on the decoy body, typically on the underside or within a removable section.
- Open the compartment and insert 4 AA batteries, ensuring correct polarity (+/-).
- Tanqueu el compartiment de la bateria de manera segura.
- For the remote control, open its battery compartment and insert the required batteries (refer to the remote's markings, usually a small button cell or AAA batteries).
This image illustrates the battery compartment located within the decoy's body, where 4 AA batteries are inserted, and the compact remote control used for operation.
5. Instruccions de funcionament
5.1. Col·locació
Choose a suitable location for the decoy, ideally near water bodies or in open fields where ducks are likely to be present. Insert the ground stake firmly into the soil to ensure stability.

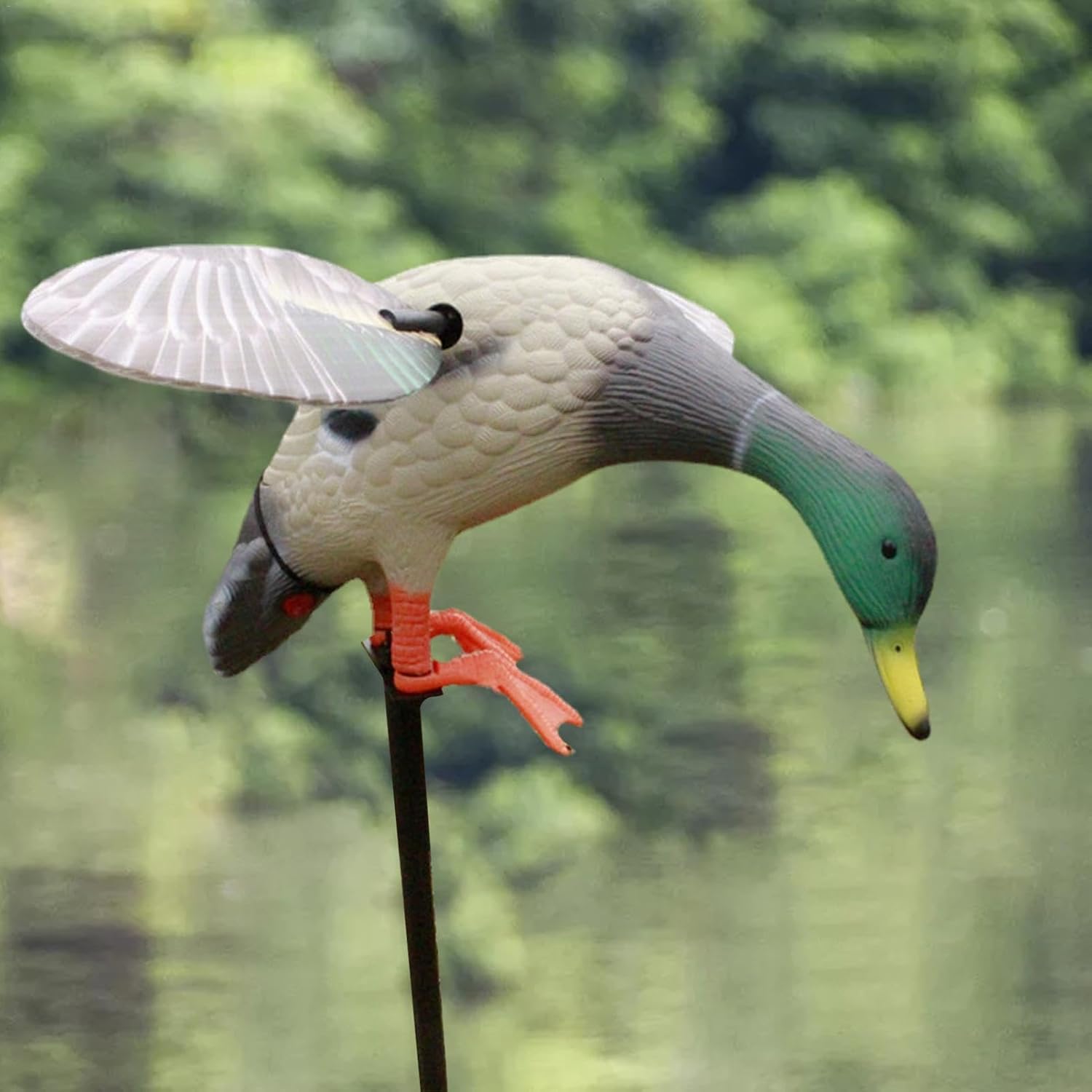

The decoy is designed for effective placement near water bodies to simulate a live duck.
Observe the decoy's realistic appearance and wing motion in its intended environment.
5.2. Operació de control remot
Use the provided remote control to activate the decoy's spinning wings. The upgraded motor provides smoother, quieter, and faster wing rotation, mimicking the natural movement of a duck. This remote functionality allows for realistic motion, making the decoy much more effective than static bait ducks.
The decoy is stable on its ground stake, ready for deployment in various terrains.
A comparison image highlighting the realistic size and appearance of the decoy next to a live duck.
6. Manteniment
6.1. Neteja
After each use, especially in muddy or wet conditions, wipe down the decoy body and wings with a damp cloth to remove dirt and debris. Ensure all parts are dry before storage.
6.2. Emmagatzematge
When not in use for extended periods, remove all batteries from both the decoy and the remote control to prevent leakage and corrosion. Store the decoy in a cool, dry place, away from direct sunlight and extreme temperatures. The detachable design allows for easy disassembly and compact storage.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Decoy does not turn on or wings do not spin. | Piles gastades o instal·lades incorrectament. | Check battery polarity. Replace all 4 AA batteries in the decoy and batteries in the remote control with fresh ones. |
| Wings spin slowly or inconsistently. | Low battery power; obstruction in wing mechanism. | Replace batteries. Check for any debris (mud, leaves) obstructing the wing rotation and clear it. |
| El comandament a distància no funciona. | Dead remote batteries; out of range. | Replace remote control batteries. Ensure you are within the effective range of the remote. |
8. Especificacions
| Característica | Detall |
|---|---|
| Nom del model | Generic-JIK5BH6L9L3U00ACCP |
| Dimensions del paquet de l'article (L x W x H) | 14.96 x 10.24 x 6.69 polzades |
| Pes del paquet | 1360 grams |
| Pes de l'article | 3 lliures |
| Color | Verd |
| Material | Refer to description (High-quality PE) |
| Font d'alimentació | 4 AA Batteries (not supplied) |
| Components inclosos | Decoy body, wings, remote control, ground stake |
Product dimensions: The decoy measures approximately 38cm (14.9 inches) in length, with a total height of 80cm (31.4 inches) including the ground stake.
9. Garantia i Suport
9.1. Informació de la garantia
For warranty details, please refer to the product description or contact the seller directly. Keep your purchase receipt as proof of purchase.
9.2. Atenció al client
If you encounter any issues or have questions not covered in this manual, please contact the seller or manufacturer for assistance.
