HUAREW Drain Auger Instruction Manual

1. Producte acabatview

The HUAREW Drain Auger is a professional spiral drain cleaner designed to effectively remove debris and residues from sinks and drains. Made from high-quality carbon steel, it features a flexible spiral and a plastic handle for easy manipulation, making it ideal for most household and outdoor plumbing.

Característiques principals:

• Neteja eficaç: Designed to eliminate debris and residues from sinks and drains.
• Material durador: Constructed from high-quality carbon steel wire, ensuring high hardness and anti-oxidation properties.
• Flexible Spiral: Extra-long 3-meter spiral (118 inches) ideal for removing contaminants like hair and coarse dirt.
• Fàcil d'utilitzar: Features a plastic handle for simple operation.
• Aplicació versàtil: Suitable for most household and outdoor plumbing.

Figure 1: Product Dimensions. The drain auger measures 3 meters (118 inches) in length with a 10mm diameter at the end. The handle is approximately 80mm (3.14 inches) wide, and the crank arm is 165mm (6.49 inches) long.

Figure 2: Product Details. Features an olive-shaped head design for effective snagging, durable carbon steel material, and a flexible spring spiral for navigating pipes.

2. Muntatge i muntatge

The HUAREW Drain Auger is designed for straightforward use. No complex assembly is required for basic operation. Ensure the handle is securely attached to the spiral before use.

Optional: Electric Drill Mode (if applicable to your model)

Some models may support attachment to an electric drill for enhanced power. If your model includes an electric drill connector, follow these steps:

1. Ensure the electric drill is unplugged or its battery is removed.
2. Insert the end of the drain auger's spiral into the drill chuck.
3. Tighten the drill chuck securely around the spiral.
4. Ensure the connection is firm before operating.

3. Instruccions de funcionament

Follow these steps for effective drain cleaning:

1. Insert the Spiral: Slowly insert the spiral end of the drain auger into the clogged drain opening.
2. Reach the Blockage: Continue pushing the spiral until you feel resistance, indicating you've reached the blockage.
3. Rotate the Handle: Once at the blockage, rotate the handle clockwise to allow the spiral to grip and break up the obstruction. If using an electric drill, operate it at a low speed.
4. Extract the Blockage: Carefully pull the drain auger back, extracting the debris. Repeat the process if necessary until the drain is clear.

Figure 3: Step-by-step guide on using the drain auger. This visual sequence demonstrates how to insert the tool, rotate the handle, inspect for blockages, and complete the cleaning process.

Effective for Various Blockages:

The flexible spiral is designed to tackle common drain obstructions efficiently.

Figure 4: Types of blockages removed. The flexible spiral effectively removes hair, toilet paper, gravel, and rotten leaves from pipelines.

Applicable Pipe Types:

This tool is suitable for various pipe configurations, including those with bends.

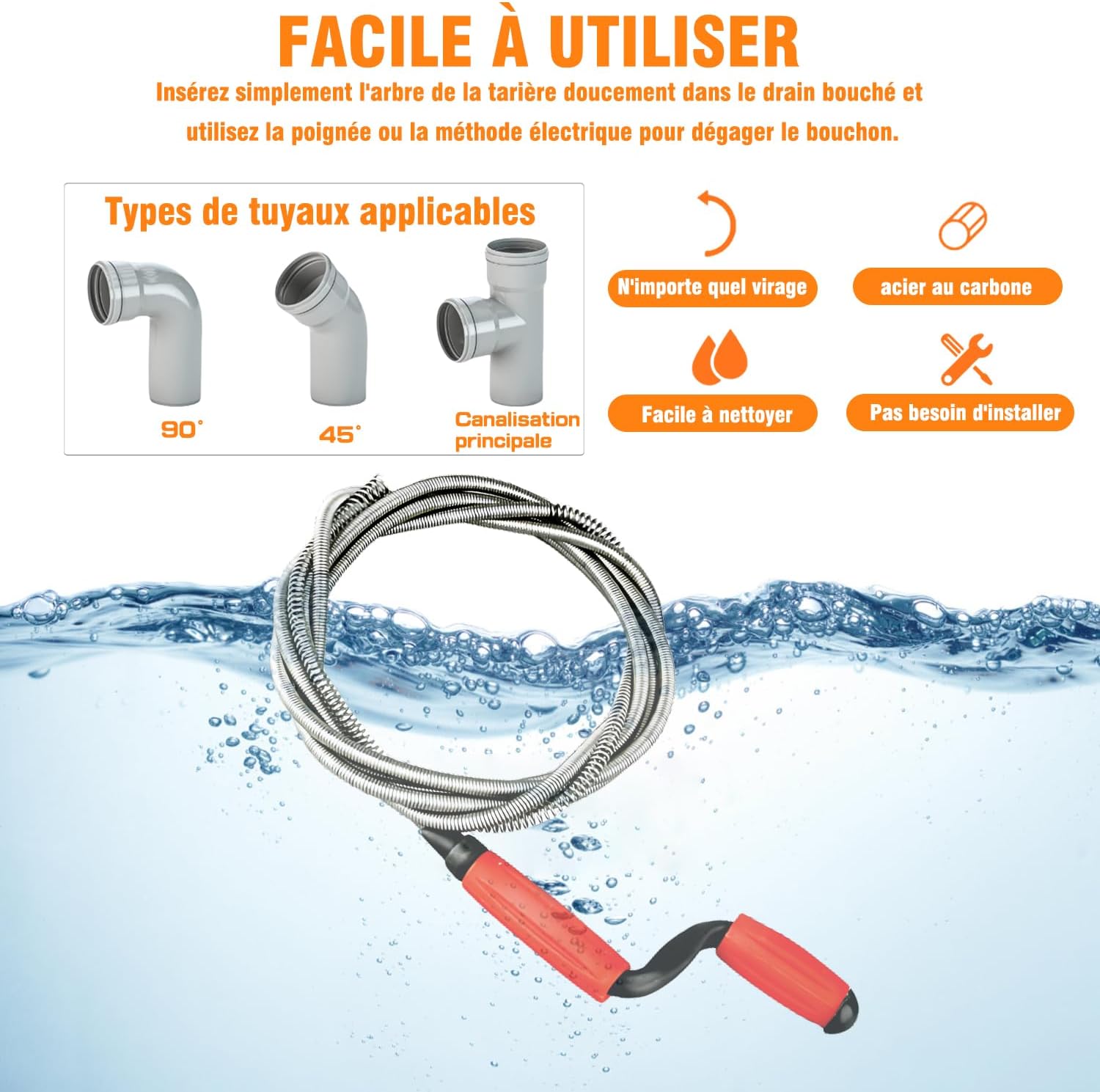

Figure 5: Versatility across pipe types. The auger can navigate various pipe angles (e.g., 90° and 45° bends) and main lines, offering easy cleaning without complex installation.

Àrees d'aplicació:

The drain auger can be used in multiple locations around your home.

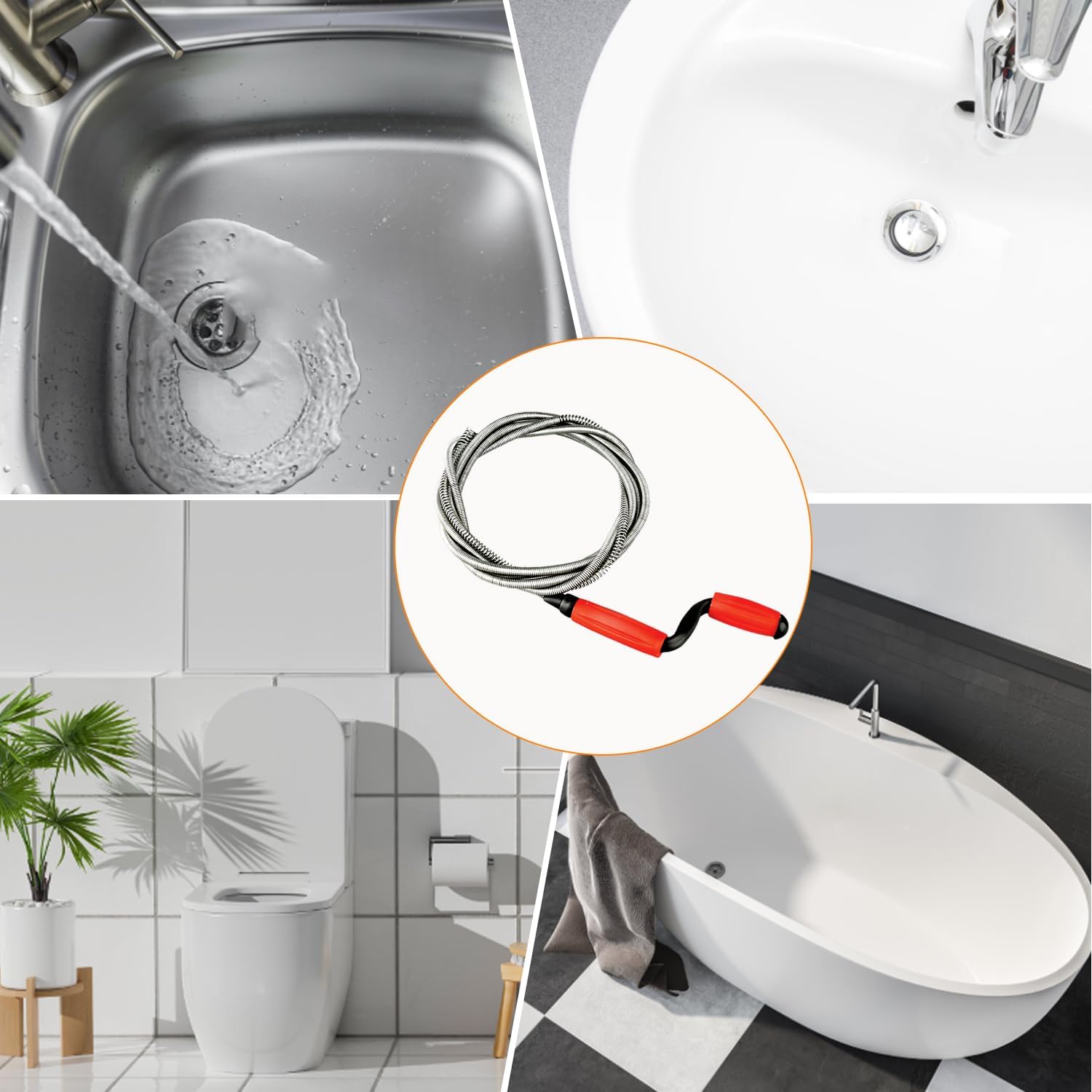

Figure 6: Common application areas. The drain auger is effective for clearing blockages in kitchen sinks, toilets, and bathtubs.

4. Manteniment i cura

To ensure the longevity and effectiveness of your HUAREW Drain Auger, please observe the following care instructions:

• Neteja: After each use, clean the spiral thoroughly to remove any remaining debris and prevent corrosion.
• Emmagatzematge: Store the drain auger in a dry place to prevent rust.
• Caution with Ceramic Surfaces: Please note that the spiral cleaner should not be placed directly into ceramic sinks or bathtubs, as the steel spiral can scratch ceramic surfaces.

5. Solució De Problemes

If you encounter issues while using the HUAREW Drain Auger, consider the following:

• Spiral Not Advancing: Ensure the spiral is not bent or kinked. If using an electric drill, check that the chuck is tightened correctly and the drill is operating in the correct direction.
• Blockage Not Clearing: The blockage might be too dense or too far down the pipe. Try rotating the handle more vigorously or using the electric drill mode if available. For very stubborn blockages, professional assistance may be required.
• Difficulty Retrieving Debris: Ensure the spiral head has properly gripped the blockage. Sometimes multiple attempts are needed to fully extract the material.

6. Especificacions

7. Garantia i Suport

For information regarding warranty coverage, returns, or technical support, please refer to the retailer's policy or contact HUAREW customer service directly. Specific warranty details are not provided in this manual.
