Introducció
Thank you for choosing the Generic Vanity Mirror with Lights. This manual provides essential information for the safe and efficient use of your new mirror. Please read these instructions carefully before use and retain them for future reference.
Informació important de seguretat
Per la vostra seguretat, si us plau, observeu les precaucions següents:
- Always secure the mirror on a stable surface to prevent tipping or accidental breakage.
- Avoid placing the mirror in direct sunlight or in areas with high humidity.
- Do not immerse the mirror or its power cord in water or other liquids.
- Mantenir fora de l'abast dels nens.
- Unplug the mirror from the power outlet before cleaning or when not in use for extended periods.
Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- Mirall de tocador amb llums
- Detachable 10x Magnifying Mirror
- Adaptador d'alimentació
- Manual d'instruccions (aquest document)
Figure 1: Unboxing the Vanity Mirror. The mirror is securely packaged in protective foam within a cardboard box.
Instruccions de configuració
- Desempaquetar el mirall: Traieu amb cura tots els components de l'embalatge. Assegureu-vos que hi hagi totes les peces que figuren a la secció "Contingut de l'embalatge".
- Muntar el suport: The mirror comes with a tabletop stand. Ensure the mirror is securely attached to its base. Some models may require screwing the mirror frame to the stand.
- Connectar l'alimentació: Locate the power input port on the back or side of the mirror. Insert the power adapter cable into the port, then plug the adapter into a standard electrical outlet.
- Col·loca el mirall: Place the mirror on a stable, flat surface. The mirror can be tilted up or down to achieve the desired viewangle de ing.
Figure 2: Assembling the mirror stand. The mirror frame is attached to the base using screws for stability.
Video 1: Unboxing and initial setup of the Vanity Mirror with Lights. This short video demonstrates removing the mirror from its packaging and preparing it for use.
Vídeo 2: Acabatview of the Vanity Mirror's features. This video shows the mirror being plugged in, demonstrating the touch controls for power, light modes, and brightness, and attaching the magnifying mirror.
Instruccions de funcionament
Toqueu Tauler de control
The mirror features a touch-sensitive control panel located at the bottom center of the mirror surface. It includes three buttons:
- Botó d'engegada (centre): Touch to turn the mirror lights ON or OFF.
- Mode Button (M, Left): Touch to cycle through the 3 color lighting modes.
- Brightness Button (P, Right): Manteniu premut per ajustar el nivell de brillantor.
Adjusting Light Modes and Brightness
- Activar/Desactivar: Briefly touch the Power button to switch the lights on or off.
- Canvia el mode de color: With the lights on, briefly touch the 'M' button to switch between Cool Light, Neutral Light, and Warm Light modes. The mirror has a smart memory function that recalls the last used light setting.
- Ajusta la brillantor: With the lights on, press and hold the 'P' button. The brightness will gradually increase or decrease. Release the button when the desired brightness is reached.
Figure 3: Demonstrating the three color lighting modes: Cool, Neutral, and Warm.
Figure 4: Adjusting brightness using the 'P' touch button. Press and hold to dim or brighten the lights.
Using the Detachable 10x Magnifying Mirror
The mirror includes a detachable 10x magnifying mirror for detailed tasks such as applying mascara, eyeliner, or tweezing eyebrows. This small mirror attaches to the main mirror surface via suction cups.
- To attach: Press the magnifying mirror firmly onto any smooth part of the main mirror surface.
- To remove: Gently lift the edge of the magnifying mirror to release the suction.
Figure 5: The detachable 10x magnifying mirror, ideal for precise makeup application.
Manteniment
- Neteja del mirall: Use a soft, lint-free cloth and a non-abrasive glass cleaner to wipe the mirror surface. Avoid spraying cleaner directly onto the mirror; instead, apply it to the cloth first.
- Neteja del marc: Wipe the mirror frame with a soft, damp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
- Substitució de bombetes: The 9 frosted LED globe bulbs are designed for continuous use with a lifespan of 50,000 hours and do not require replacement.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums no s'encenen. | El cable d'alimentació no està connectat correctament o no hi ha alimentació a la presa de corrent. | Ensure the power adapter is securely plugged into both the mirror and a working electrical outlet. Test the outlet with another device. |
| Els controls tàctils no responen. | Finger is wet or dirty, or a temporary software glitch. | Ensure your finger is clean and dry. Unplug the mirror for 30 seconds, then plug it back in to reset the system. |
| Els llums són massa tènues o massa brillants. | Cal ajustar la configuració de la brillantor. | Press and hold the 'P' button to adjust the brightness to your preference. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Genèric |
| Número de model | 2530 |
| Dimensions del producte | Approx. 9.8"L x 14.1"W (25cm x 36cm) - Note: Product listing dimensions 3"L x 2"W appear to be incorrect. |
| Material del marc | Ferro |
| Tipus de muntatge | Muntatge de taula |
| Característiques especials | 360 Degree Rotation, Adjustable Brightness, Detachable 10x Magnification, Lighted, Touch-Sensitive Control |
| Color | Blanc |
| Nombre de llums | 9 Dimmable Bulbs |
| Modes d'il·luminació | 3 Color Modes (Cool, Neutral, Warm) |
| Ampliació | 10x (detachable) |
| Font d'alimentació | Corded Electric (Type-C interface) |
| Pes de l'article | 3.23 lliures |

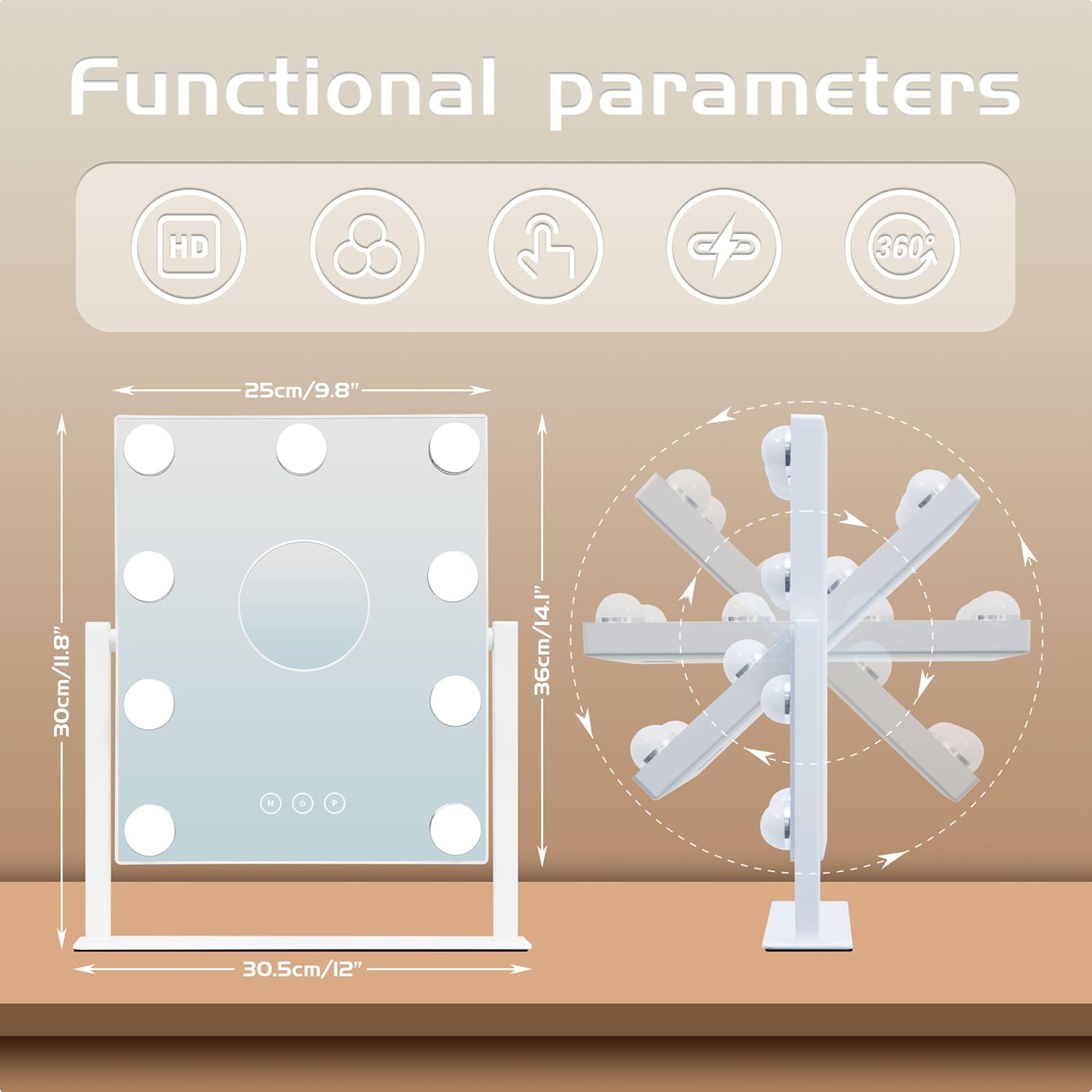

Figure 6: Functional parameters and dimensions of the vanity mirror, including its 360-degree rotation capability.
Garantia i Suport
The Generic Vanity Mirror with Lights comes with a Lifetime Exchange or Money Back Warranty. If you encounter any product problems or require support, please contact the seller directly through your purchase platform for assistance.
