OOWOLF QC 3.0 Car Charger Adapter User Manual

1. Introducció

Thank you for choosing the OOWOLF QC 3.0 Car Charger Adapter. This device is designed to expand your vehicle's charging capabilities, providing multiple USB ports and cigarette lighter sockets for various electronic devices. It features Quick Charge 3.0 technology for rapid charging and includes essential safety features to protect your devices and vehicle. Please read this manual thoroughly before use to ensure proper operation and safety.

2. Característiques del producte

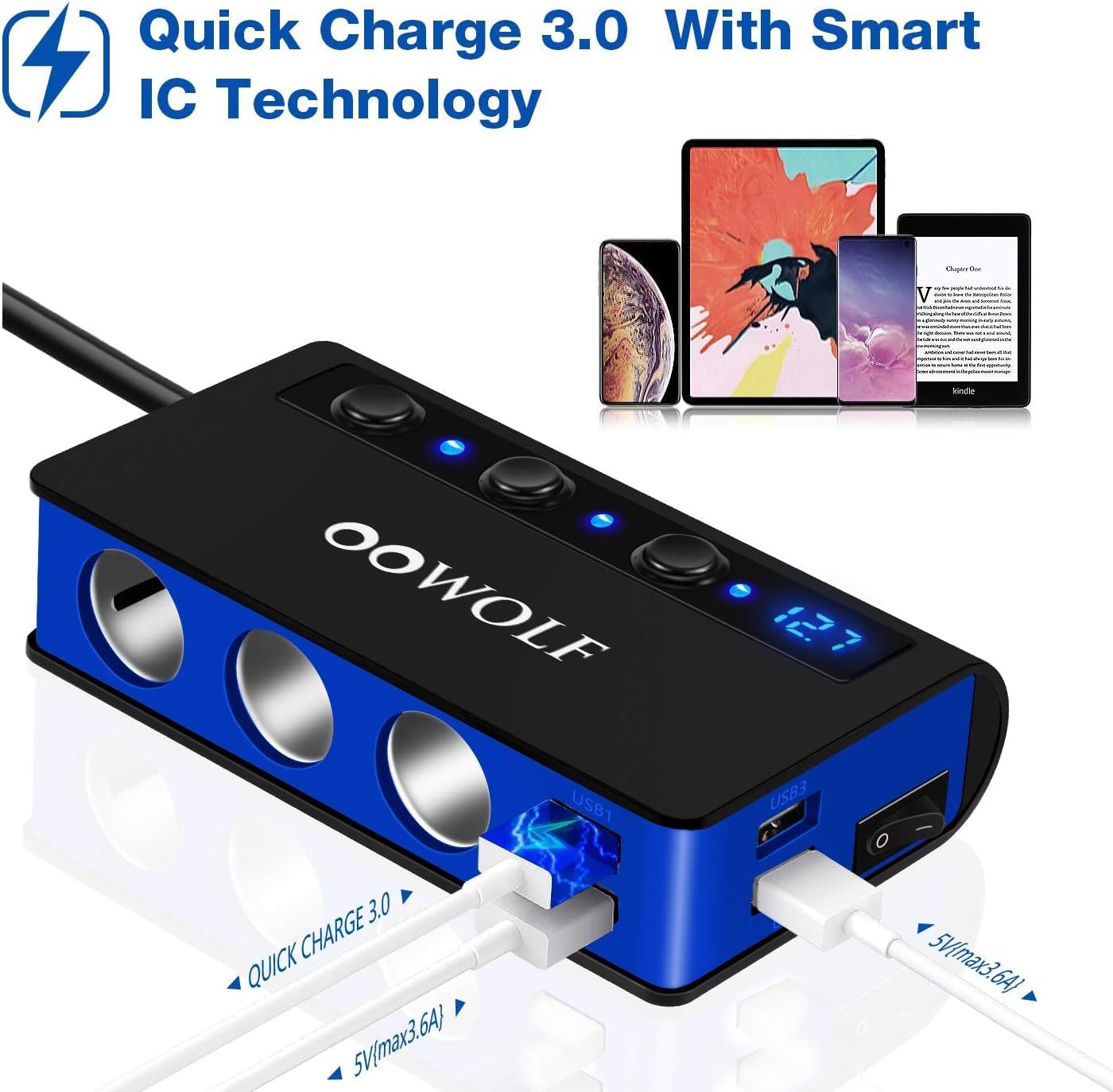

• Enhanced Charging Ports: Equipped with 4 USB ports, including one Quick Charge 3.0 port for up to 4x faster charging and three 3.6A USB-A ports.
• Triple Cigarette Lighter Sockets: Expands one car cigarette lighter socket into three 12V/24V sockets, supporting a total output of up to 180W (100W max per socket).
• Protecció de seguretat integral: Features a built-in replaceable 10A fuse and advanced circuitry to prevent over-current, over-voltage, over-heating, and short-circuiting.
• Independent Power Switches & LED Voltmeter: Includes a master power switch for the entire unit and individual switches for each cigarette lighter socket. A blue LED display shows your car battery's real-time voltage.
• Àmplia compatibilitat: Suitable for 12V/24V vehicles (cars, vans, trucks, buses) and compatible with a broad range of devices such as mobile phones, tablets, GPS, dash cameras, car vacuums, and seat heaters.
• Longitud del cable estès: A 65cm (25.6 inch) cable allows for flexible placement and convenient access for rear-seat passengers.

3. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• 1 x OOWOLF QC 3.0 Car Charger Adapter
• 1 x cable USB
• 2 x Spare 10A Fuses
• 1 x manual d'instruccions

4. Configuració i instal·lació

1. Inseriu a la presa del cotxe: Plug the OOWOLF car charger adapter's main plug firmly into your vehicle's 12V/24V cigarette lighter socket.
2. Encès: Once connected, the blue LED voltmeter will illuminate, displaying your car battery's current voltage. Press the master power switch to activate the unit.
3. Connexió de dispositius: You can now connect your devices to the USB ports or plug car appliances into the 3 cigarette lighter sockets.

5. Instruccions de funcionament

5.1 Ús dels ports de càrrega USB

• Connect your USB-powered devices (e.g., smartphones, tablets) to any of the four USB ports.
• The port labeled "QC 3.0" provides Quick Charge functionality for compatible devices.
• The other three USB ports provide standard 3.6A charging.

5.2 Using Cigarette Lighter Sockets

• Plug your 12V/24V car appliances (e.g., dash cam, GPS, car vacuum) into any of the three cigarette lighter sockets.
• Each socket has an independent power switch. Press the corresponding switch to turn the power on or off for that specific socket. This helps conserve power and extend the lifespan of your devices.

5.3 voltage Seguiment

• The blue LED display continuously shows the real-time voltage de la bateria del teu cotxe.
• A stable voltage reading indicates normal battery health. If the voltage drops significantly, it may indicate a low car battery or an issue with your vehicle's electrical system.

6. Safety Information and Maintenance

6.1 Precaucions de seguretat

• No desmunteu ni modifiqueu el producte.
• Keep the product away from water, fire, and extreme temperatures.
• Ensure the total power consumption of connected devices does not exceed 180W.
• Unplug the adapter when not in use or when leaving the vehicle for extended periods.
• The built-in 10A fuse protects against overloads. If the adapter stops working, the fuse may have blown.

6.2 Canvi de fusibles

If the adapter ceases to function, the internal 10A fuse may need replacement. To replace the fuse:

1. Unplug the adapter from the car's cigarette lighter socket.
2. Unscrew the tip of the adapter's main plug.
3. Carefully remove the old fuse and replace it with a new 10A fuse (two spare fuses are included in the package).
4. Torneu a enroscar la punta de manera segura.

6.3 Neteja

Wipe the adapter with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.

7. Solució De Problemes

• Sense alimentació/LED apagat:
  • Ensure the adapter is fully inserted into the car's cigarette lighter socket.
  • Check if the car's cigarette lighter socket is functional (test with another device).
  • Check and replace the internal 10A fuse if blown (refer to Section 6.2).
  • Ensure the master power switch on the adapter is turned ON.
• Dispositius que no es carreguen:
  • For USB ports, ensure the USB cable is properly connected to both the device and the adapter.
  • For cigarette lighter sockets, ensure the individual switch for that socket is turned ON.
  • Verify that your device is compatible with the charging output (voltage/actual).
  • Check if the total power consumption of all connected devices exceeds 180W. Disconnect some devices if necessary.
• Càrrega lenta:
  • Ensure your device supports Quick Charge 3.0 if using the QC 3.0 port.
  • Utilitzeu cables de càrrega d'alta qualitat.
  • Charging speed can be affected by the number of devices connected and their power requirements.

8. Especificacions

9. Garantia i Suport

This OOWOLF product comes with a 1 any de garantia del fabricant des de la data de compra. Aquesta garantia cobreix els defectes de fabricació i la mà d'obra en condicions d'ús normal.

La garantia no cobreix:

• Danys causats per mal ús, abús, accident o negligència.
• Reparació o modificació no autoritzada.
• Desgast normal.

For warranty claims or technical support, please contact OOWOLF customer service through the retailer where you purchased the product or visit the official OOWOLF weblloc per obtenir informació de contacte.
