Generic 2-in-1 Wet Dry Vacuum Cleaner and Upholstery Carpet Cleaner User Manual

1. Introducció

Thank you for choosing the Generic 2-in-1 Wet Dry Vacuum Cleaner and Upholstery Carpet Cleaner. This versatile appliance is designed to handle a wide range of cleaning tasks, from vacuuming dry debris and liquids to deep cleaning carpets and upholstery. Please read this manual thoroughly before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.

2. Instruccions de seguretat importants

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and personal injury.

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• No deixeu l'aparell sense vigilància quan estigui endollat. Desconnecteu-lo de la presa de corrent quan no l'utilitzeu i abans de fer-ne el servei.
• No l'utilitzeu a l'aire lliure ni sobre superfícies humides.
• No permetre que s'utilitzi com a joguina. Cal prestar molta atenció quan l'utilitzen nens o a prop dels nens.
• Utilitzeu només com es descriu en aquest manual. Utilitzeu només els accessoris recomanats pel fabricant.
• No l'utilitzeu amb un cable o un endoll danyats. Si l'aparell no funciona com hauria, s'ha caigut, s'ha fet malbé, s'ha deixat a l'exterior o ha caigut a l'aigua, torneu-lo a un centre de servei.
• No estireu ni porteu el cable, no utilitzeu el cable com a nansa, no tanqueu una porta al cable ni estireu el cable per vores o cantonades afilades. No feu passar l'aparell per sobre del cable. Mantingueu el cable lluny de les superfícies escalfades.
• No desconnecteu estirant del cable. Per desconnectar, agafa l'endoll, no el cable.
• No manipuleu l'endoll o l'aparell amb les mans mullades.
• No introduïu cap objecte a les obertures. No utilitzar amb cap obertura bloquejada; mantenir lliure de pols, pelusa, cabells i qualsevol cosa que pugui reduir el flux d'aire.
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
• No agafeu res que estigui cremant o fumant, com ara cigarrets, llumins o cendres calentes.
• Tingueu molta cura quan netegeu les escales.
• No l'utilitzeu per recollir líquids inflamables o combustibles, com ara la gasolina, ni l'utilitzeu en zones on puguin estar presents.
• No recolliu materials tòxics, com ara lleixiu amb clor, amoníac o netejadors de desguassos.
• No utilitzeu sense filtres al seu lloc.
• Apagueu sempre aquest aparell abans de connectar o desconnectar la mànega.
• Emmagatzemeu l’aparell a l’interior.

3. Contingut del paquet

Desembaleu amb cura tots els components i comproveu-los amb la llista següent. Si falta algun element o hi ha algun dany, poseu-vos en contacte amb el vostre distribuïdor.

• Main Unit (Host) x1
• Remote Control Water Spray Hose Assembly x1
• Filter Element x1 (for dry vacuuming)
• Water Receiving Aluminum Tube x1
• Sofa Suction Head with Water Spray x1
• Absorbent Sponge x1 (for wet vacuuming)
• Dust Collection Bag x1 (for dry vacuuming)
• Small Flat Suction Nozzle x1
• Carpet Brush with Water Spray x1

Figura 3.1: Included accessories. From top left: Remote control water spray hose assembly, spray sofa suction head, small flat suction, filter element, absorbent sponge, spray carpet brush, water receiving aluminum pipe, dust collection bag.

4. Producte acabatview

The vacuum cleaner features a robust design with separated tanks for clean and dirty water, ensuring efficient operation.

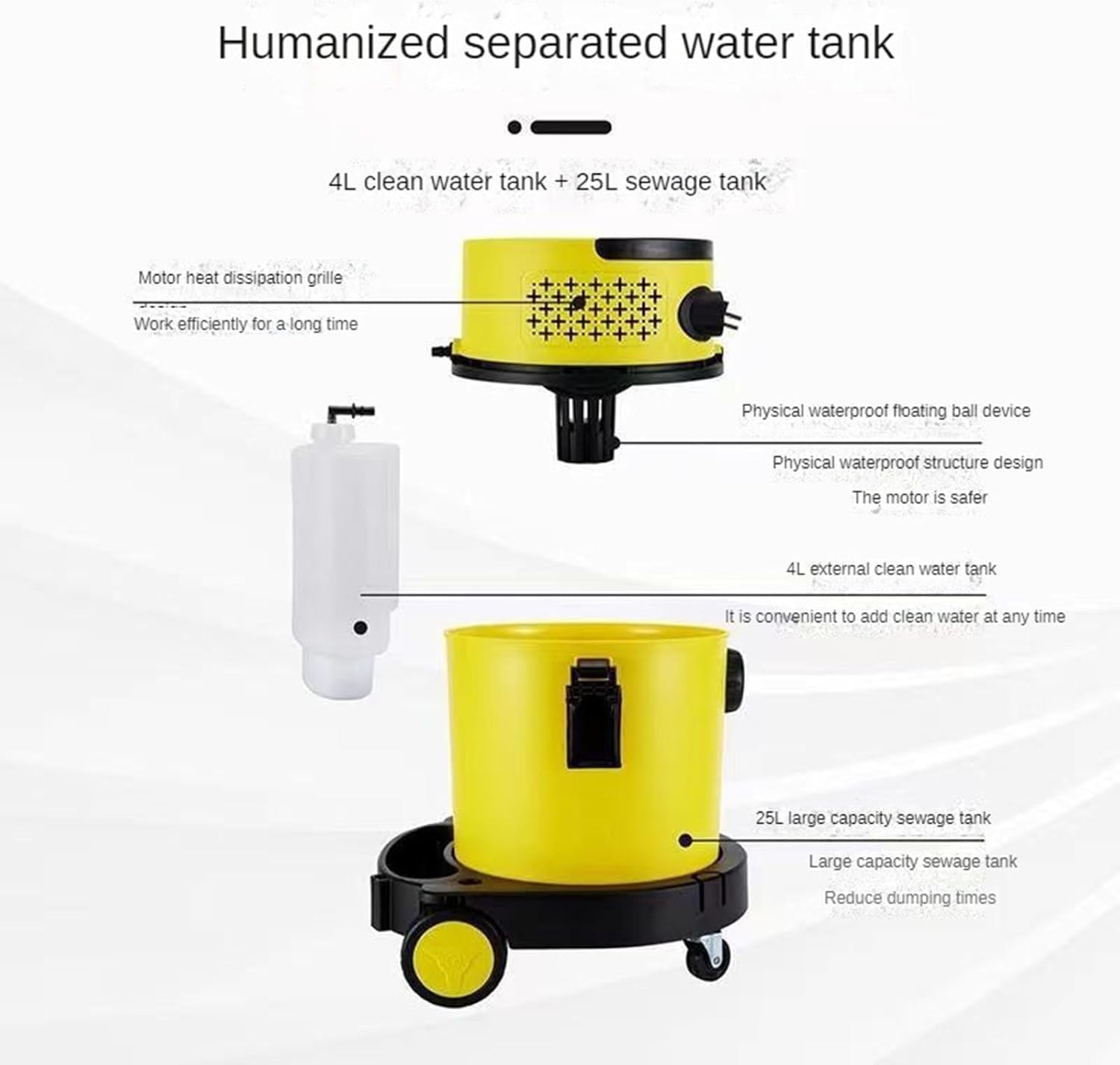

Figura 4.1: Humanized separated water tank system. Features a 4L clean water tank for easy refilling and a 25L large capacity sewage tank to reduce emptying frequency. Includes a motor heat dissipation grille and a physical waterproof floating ball device for motor protection.

Els components clau inclouen:

• Water Spray/Water Absorption Jack: Easy to install connections for the hose.
• Tauler de control: Intuitive icons for operation.
• High-Power Air Vent: Provides both suction and blowing functions.
• Directional Support Wheels: Per a una fàcil maniobrabilitat.
• Fixed Buckle: Secures the top unit to the main tank.
• Water Tank Pump Interface: Connects the machine with the water tank.
• Multi-Function Head: For spray pumping, suction, and moisture absorption.

Figura 4.2: Quality details of the vacuum cleaner components.

5. Configuració

1. Desembalar: Remove all components from the packaging. Ensure all parts listed in Section 3 are present and undamaged.
2. Col·loca les rodes: If not pre-attached, securely insert the directional support wheels into the base of the main unit.
3. Instal·leu el filtre:
   • Per aspirar en sec, install the Filter Element (paper filter) into the motor head.
   • Per wet vacuuming or carpet/upholstery cleaning, install the Absorbent Sponge (foam filter) into the motor head.
4. Connect Hose Assembly: Attach the remote control water spray hose assembly to the water spray/water absorption jack on the main unit. Ensure a secure connection.
5. Connect Water Receiving Tube: Connect the water receiving aluminum tube to the hose assembly.
6. Connecteu el capçal de neteja: Select the appropriate cleaning head (e.g., sofa suction head, carpet brush, small flat suction nozzle) and attach it to the water receiving aluminum tube.
7. Fill Clean Water Tank (for wet cleaning): For wet vacuuming or carpet/upholstery cleaning, fill the 4L external clean water tank with clean water (and appropriate cleaning solution if desired, following solution manufacturer's instructions). Insert the clean water tank into its designated slot on the main unit.
8. Secure Top Unit: Place the motor head (top unit) onto the 25L sewage tank and secure it using the fixed buckles. Ensure the water outlet on the top unit is aligned with the suction tube inside the main tank.

6. Instruccions de funcionament

This appliance offers both dry and wet cleaning functionalities. Always ensure the correct filter is installed for the task.

6.1. Aspiració en sec

1. Ensure the Filter Element (paper filter) is installed.
2. Attach the desired dry vacuuming nozzle (e.g., small flat suction nozzle).
3. Connecteu el cable d'alimentació a una presa de corrent adequada de 220 V.
4. Turn on the vacuum cleaner using the power switch on the control panel.
5. Vacuum dry debris as needed.
6. After use, turn off the power, unplug, and empty the dust collection bag and clean the filter.

6.2. Aspiració en humits

1. Ensure the Absorbent Sponge (foam filter) is installed.
2. Attach a suitable wet vacuuming nozzle.
3. Connecteu el cable d'alimentació a una presa de corrent adequada de 220 V.
4. Enceneu l'aspiradora amb l'interruptor.
5. Vacuum liquids. The machine will automatically stop when the 25L sewage tank is full.
6. After use, turn off the power, unplug, and empty the sewage tank.

6.3. Upholstery and Carpet Cleaning

This function utilizes water spray and powerful suction for deep cleaning.

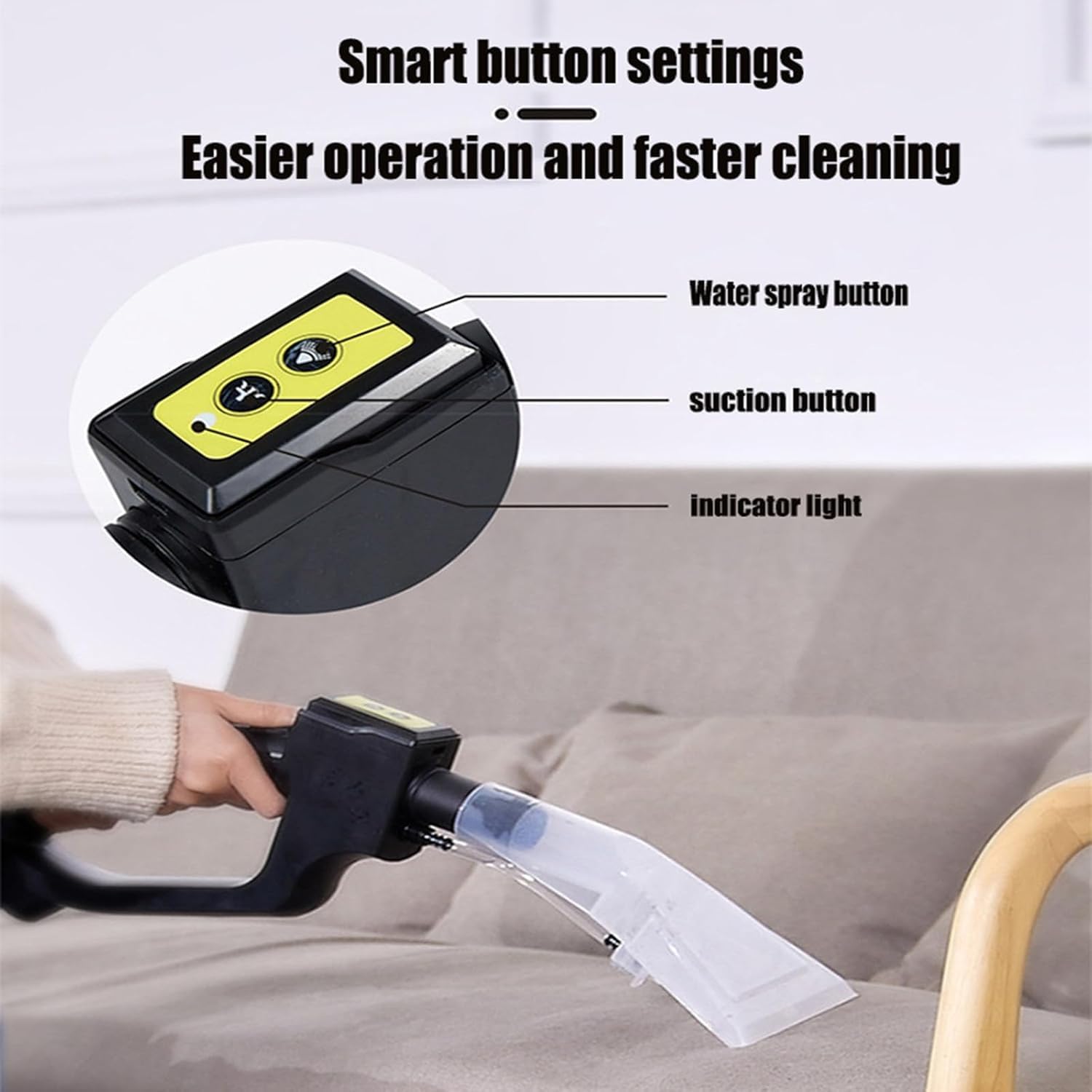

Figura 6.1: Smart button settings on the remote control handle, showing water spray button, suction button, and indicator light.

Figura 6.2: Demonstration of brush, spray, and suck functions for effective cleaning.

1. Ensure the Absorbent Sponge (foam filter) is installed.
2. Fill the 4L clean water tank with clean water and a suitable carpet/upholstery cleaning solution (follow solution manufacturer's instructions).
3. Attach the Sofa Suction Head with Water Spray or the Carpet Brush with Water Spray to the hose assembly.
4. Connecteu el cable d'alimentació a una presa de corrent adequada de 220 V.
5. Enceneu l'aspiradora amb l'interruptor.
6. Premeu el botó Water Spray button on the remote control handle to apply cleaning solution to the surface.
7. Allow the solution to penetrate for a short period (refer to cleaning solution instructions).
8. Premeu el botó Botó d'aspiració on the remote control handle while moving the cleaning head over the treated area to extract the dirty solution.
9. Repeat spraying and sucking as necessary until the area is clean.
10. The machine will automatically stop when the 25L sewage tank is full.
11. After use, turn off the power, unplug, and empty the sewage tank. Rinse the clean water tank and cleaning heads thoroughly.

7. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil del vostre electrodomèstic.

7.1. Buidatge i neteja de dipòsits

1. Always unplug the appliance before emptying tanks.
2. Unlatch the fixed buckles and remove the motor head from the 25L sewage tank.
3. Carefully pour out the dirty water from the sewage tank. Rinse the tank with clean water.
4. Empty any remaining clean water from the 4L clean water tank and rinse it.
5. Deixeu que els dos dipòsits s'assequin a l'aire abans de tornar-los a muntar.

7.2. Manteniment del filtre

The appliance uses different filters for wet and dry operation. Ensure they are cleaned or replaced as needed.

Figura 7.1: Washable PTFE filter, waterproof and resistant to weak acid and alkali, for efficient fine dust filtration.

• Filter Element (Dry Use): For dry vacuuming, the paper filter element should be regularly cleaned by tapping out dust or gently brushing. Replace if damaged or if suction power decreases significantly.
• Absorbent Sponge (Wet Use): For wet vacuuming and carpet cleaning, the foam filter should be rinsed thoroughly with clean water after each use. Squeeze out excess water and allow it to air dry completely before storage or next use.

7.3. Accessoris de neteja

Rinse all cleaning heads and the hose assembly with clean water after each wet use to prevent clogging and odor buildup. Allow them to air dry.

7.4. Emmagatzematge

Store the appliance and its accessories in a dry, cool place, away from direct sunlight and extreme temperatures.

8. Solució De Problemes

Si teniu problemes amb l'aspiradora, consulteu la taula següent per veure els problemes i les solucions més habituals.

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

9. Especificacions

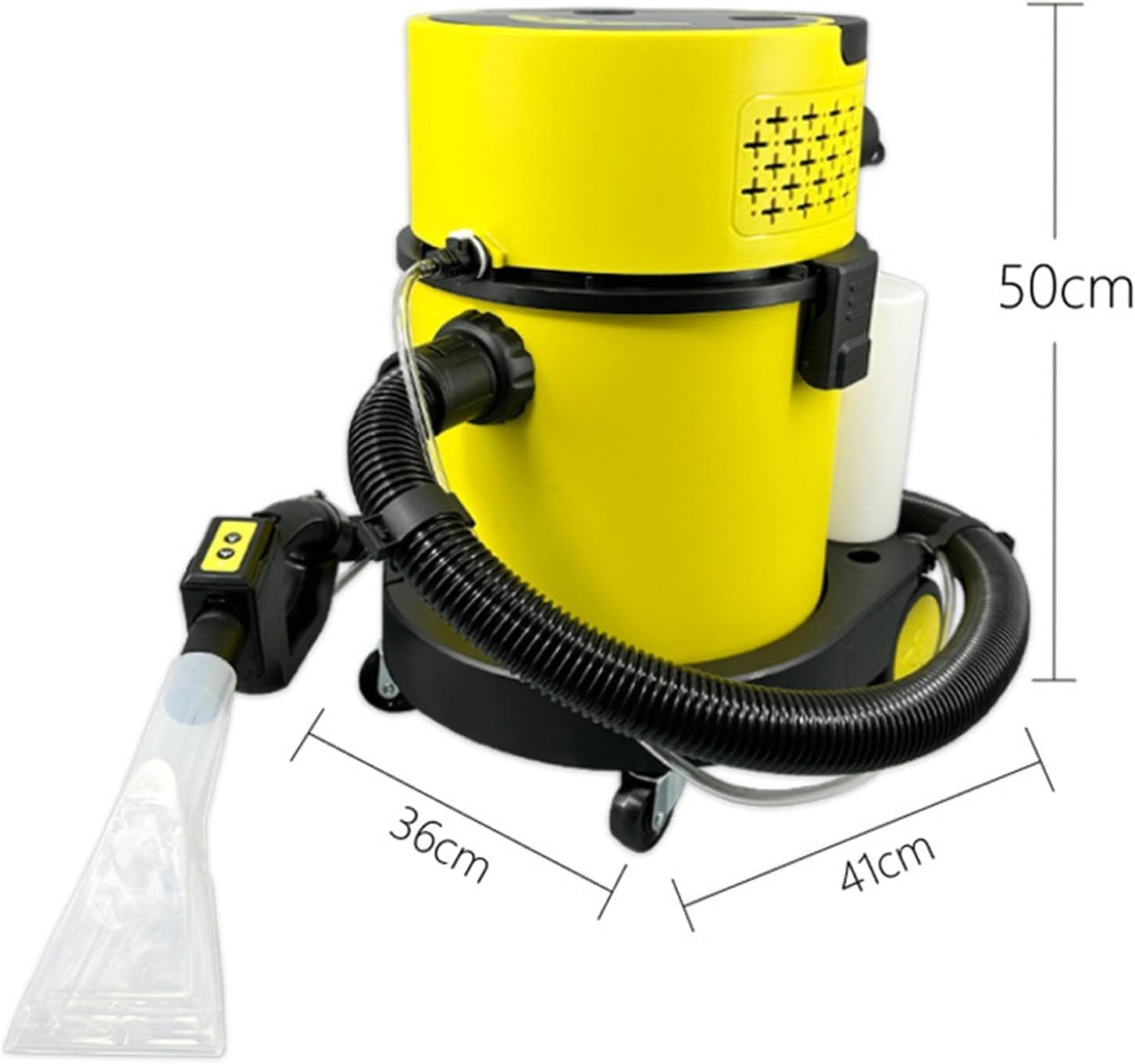

Figura 9.1: Approximate dimensions of the vacuum cleaner.

10. Garantia i Suport

This product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the documentation provided at the time of purchase or contact your retailer. If you have any questions, require technical assistance, or need to report a defect, please contact the seller or manufacturer's customer support. Please have your purchase information readily available when contacting support.
