Bewinner BM150 Tiny Mini Mobile Phone User Manual

1. Introducció

This manual provides essential instructions for the setup, operation, and maintenance of your Bewinner BM150 Tiny Mini Mobile Phone. Please read this guide carefully to ensure proper use and to maximize the device's functionality.

Imatge 1.1: Davant i darrere view of the Bewinner BM150 Tiny Mini Mobile Phone. The phone is red with a grey screen and silver navigation buttons. The back shows a textured surface and speaker grille.

2. Configuració

2.1 Contingut del paquet

• Bewinner BM150 Tiny Mini Mobile Phone
• Cable de càrrega (Micro USB)
• Manual d'usuari (aquest document)

Image 2.1: The Bewinner BM150 phone displayed next to its white Micro USB charging cable.

2.2 Instal·lació de la targeta SIM i la bateria

1. Traieu la coberta posterior: Gently pry off the back cover of the phone.
2. Inseriu la targeta(es) SIM: The phone supports dual Nano SIM cards or one Nano SIM card and one small memory card (up to 64GB). Carefully insert the SIM card(s) into the designated slots. Ensure the metal contacts face downwards.
3. Insereix la bateria: Place the provided Lithium-ion battery (380mAh) into the battery compartment, aligning the gold contacts.
4. Substituïu la coberta posterior: Securely attach the back cover until it clicks into place.

Image 2.2: The Bewinner BM150 phone with its back cover removed, revealing the battery compartment and slots for SIM cards and a small memory card. The battery is shown separately.

2.3 Càrrega del dispositiu

Connect the charging cable to the phone's Micro USB port and the other end to a compatible USB power adapter (not included). The battery indicator on the screen will show charging status. A full charge typically takes approximately 2-3 hours.

2.4 Engegada/apagada

• Per encendre: Premeu i manteniu premut el botó d'engegada/finalització de trucada (botó vermell) fins que la pantalla s'il·lumini.
• Per apagar: Press and hold the Power/End Call button until the power-off option appears, then confirm.

3. Instruccions de funcionament

3.1 Basic Phone Functions

• Fer trucades: Enter the phone number using the keypad and press the Call button (green button).
• Contestar trucades: Press the Call button when the phone rings.
• Finalització de trucades: Premeu el botó d'engegada/finalització de trucada.
• Enviament d'SMS: Navigate to the 'Messages' menu, select 'Write Message', enter your text, and send to the desired recipient.

3.2 Connectivitat Bluetooth

The BM150 can function as a Bluetooth music player and connect to other Bluetooth-enabled devices like smartphones and tablets. To activate Bluetooth:

1. Navegueu fins al menú "Configuració".
2. Select 'Bluetooth' and turn it 'On'.
3. Cerca dispositius disponibles i emparella'ls amb el dispositiu desitjat.

3.3 Voice Changer Feature

The phone includes a voice changer feature that allows you to alter your voice during calls. This feature requires a SIM card to be active. Consult the phone's menu for specific voice changer options and activation steps.

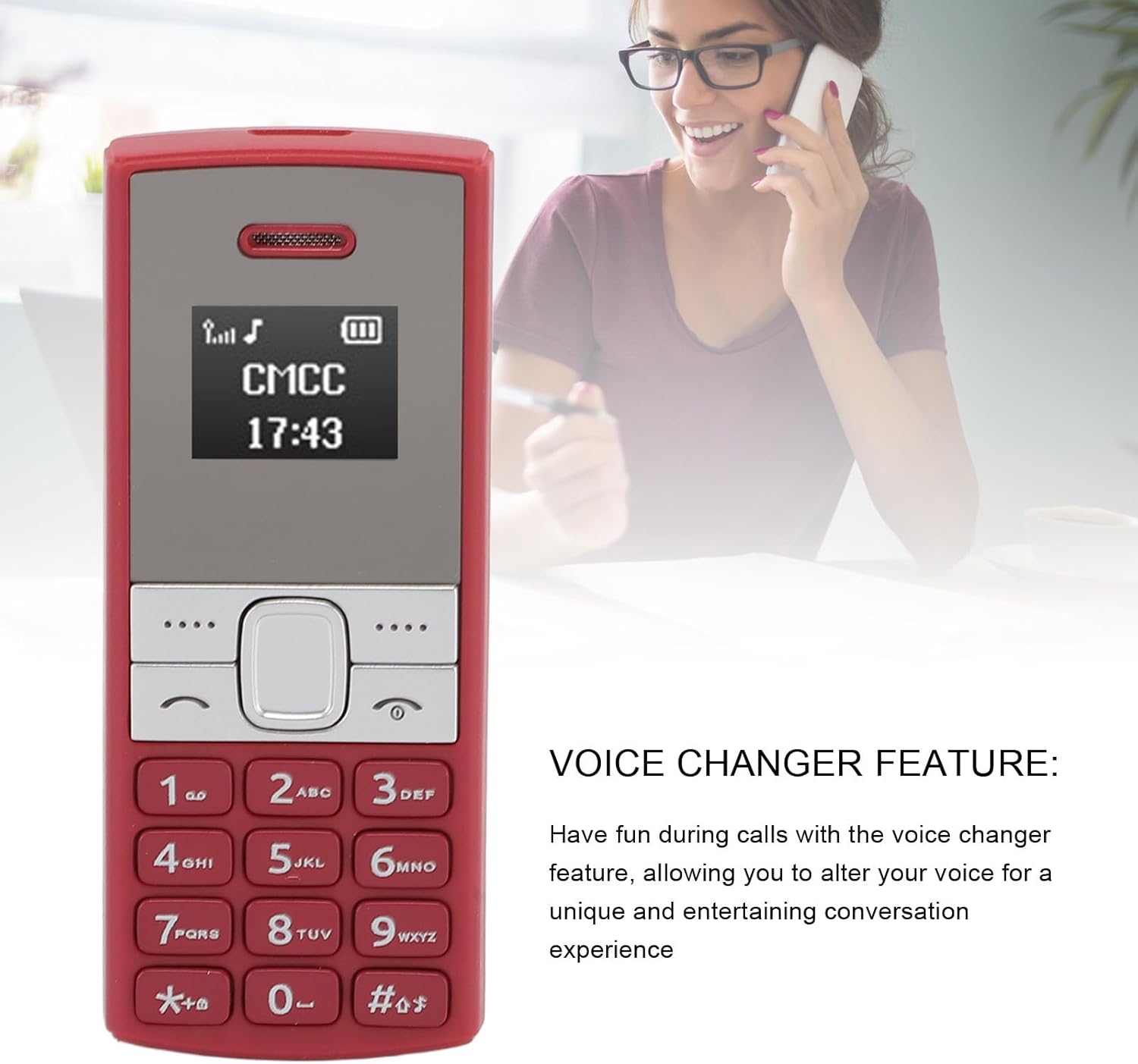

Image 3.1: The Bewinner BM150 phone displayed alongside text highlighting its voice changer feature. A person is shown in the background using a phone, illustrating the feature's use.

3.4 Compatibilitat de xarxa

The Bewinner BM150 operates on 2G GSM frequencies: 850/900/1800/1900MHz. While 4G and 5G SIM cards can be used, they must support these specific 2G GSM frequencies for the phone to function as a standalone device. Please verify with your SIM card operator that 2G networks are still supported in your area, as some operators have phased out 2G services.

Image 3.2: The Bewinner BM150 phone with text indicating 'BAND (2G) COMPATIBILITY'. An ear graphic with sound waves emanating from it illustrates the phone's communication capabilities.

4. Manteniment

• Neteja: Use a soft, dry cloth to clean the phone's exterior. Avoid liquid cleaners.
• Emmagatzematge: Guardeu el telèfon en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el telèfon regularment.
• Evitar l'impacte: Protect the phone from drops and impacts to prevent damage.

5. Solució De Problemes

• El telèfon no s'encén:
  • Assegureu-vos que la bateria estigui instal·lada i carregada correctament.
  • Try charging the phone for at least 30 minutes before attempting to power on again.
• Sense senyal de xarxa:
  • Verify that the SIM card is properly inserted.
  • Confirm that your SIM card supports 2G GSM networks (850/900/1800/1900MHz).
  • Check if 2G network coverage is available in your current location.
• Bluetooth no connectat:
  • Ensure Bluetooth is enabled on both the BM150 and the target device.
  • Make sure both devices are within close proximity.
  • Prova de reiniciar els dos dispositius.
• Qualitat de trucada baixa:
  • Move to an area with better network reception.
  • Check for any obstructions around the phone's microphone or speaker.

6. Especificacions
