Radtel RT-20M Dual Band Mobile Radio Instruction Manual

1. Introducció

Thank you for choosing the Radtel RT-20M Dual Band Mobile Radio. This high-performance transceiver is designed for reliable communication across various frequencies, including UHF, VHF, and aviation bands. With its robust features and durable construction, the RT-20M is suitable for professionals and enthusiasts alike. This manual provides essential information for the proper setup, operation, and maintenance of your device.

2. Producte acabatview

2.1 Característiques clau

• Expansive Channel Capacity: Features 999 programmable channels for seamless communication across diverse frequencies.
• Ampli rang de freqüències: Transmits and receives signals between 144-148MHz (VHF) and 420-450MHz (UHF), ensuring reliable coverage. Also receives 108-520 MHz, including 108-136 MHz AM (Aviation Band).
• Sortida potent: Delivers an impressive 25W RF power output for enhanced signal strength and clarity.
• Alertes meteorològiques de la NOAA: Stay informed about impending weather conditions with integrated NOAA weather alert functionality.
• Construcció duradora: Built to withstand demanding environments with a rugged and long-lasting design.
• Dual Display, Dual Standby: Permet la monitorització de dues freqüències diferents simultàniament.
• Record Supported Real-Time Playback: Ability to record and play back communications.

Figura 2.1.1: The Radtel RT-20M radio and microphone, illustrating its capability for strong signal penetration and high power output.

2.2 Components inclosos

The Radtel RT-20M package typically includes the following components:

• 1 x Radtel RT-20M Mobile Radio Unit
• 1 x micròfon de mà
• 1 x cable d'alimentació
• 1 x Kit de suport de muntatge
• 1 x Manual d'usuari (aquest document)

Figura 2.2.1: Radtel RT-20M Mobile Radio unit with handheld microphone and various views of the radio's sides, showing the speaker, antenna connector, and power input.

3. Configuració

3.1 Muntatge de la ràdio

Choose a secure and accessible location in your vehicle or operating area for mounting the radio. Ensure it does not obstruct airbags or driver visibility. Use the provided mounting bracket and hardware to firmly secure the unit.

3.2 Connexió de l'antena

Connect a suitable dual-band antenna (not included) to the antenna connector on the rear of the radio. Ensure the connection is tight and secure to prevent signal loss and damage.

3.3 Connexió d'alimentació

Connect the supplied power cable to the radio's power input. Connect the other end of the power cable directly to your vehicle's 12V DC power source (e.g., battery) ensuring proper polarity (red to positive, black to negative). It is recommended to connect directly to the battery to avoid electrical noise and ensure stable power delivery. Install an appropriate fuse in the positive line.

3.4 Connexió del micròfon

Plug the handheld microphone into the designated microphone port on the front of the radio.

Figura 3.4.1: The Radtel RT-20M radio unit connected to its microphone, displaying frequency information and indicating record/playback capabilities.

4. Instruccions de funcionament

4.1 Engegada/apagada

Press and hold the power button (usually integrated with the volume knob) to turn the radio on or off.

4.2 Ajust de volum

Rotate the volume knob clockwise to increase volume and counter-clockwise to decrease it.

4.3 Selecció de canal/freqüència

The RT-20M supports 999 channels. Use the up/down arrow buttons on the radio or microphone to navigate through channels or adjust frequencies. The display will show the current channel number or frequency.

Figura 4.3.1: The Radtel RT-20M's clear big screen demonstrating dual display and dual standby functionality, showing two active frequencies.

4.4 Transmissió (PTT)

To transmit, press and hold the Push-To-Talk (PTT) button on the side of the microphone. Speak clearly into the microphone. Release the PTT button to stop transmitting and return to receive mode.

4.5 Dual Band / Dual Standby Operation

The radio can monitor two different frequencies simultaneously. Refer to the on-screen indicators for which frequency is currently active for transmission. Use the appropriate function button (e.g., A/B switch) to toggle between the primary and secondary frequency for transmission.

4.6 Alertes meteorològiques de la NOAA

To activate NOAA weather alerts, navigate to the NOAA function in the menu. The radio will scan for and alert you to severe weather broadcasts in your area. Consult the specific menu options for enabling and disabling this feature.

4.7 Funció VOX (centraleta operada per veu)

The VOX function allows hands-free transmission when enabled. The radio will automatically transmit when it detects your voice. Adjust VOX sensitivity in the menu to prevent accidental transmissions or missed voice activation.

4.8 Record and Playback

The RT-20M supports recording and real-time playback of communications. Access the recording features through the radio's menu system. Consult the menu for options to start recording, stop recording, and play back stored audio.

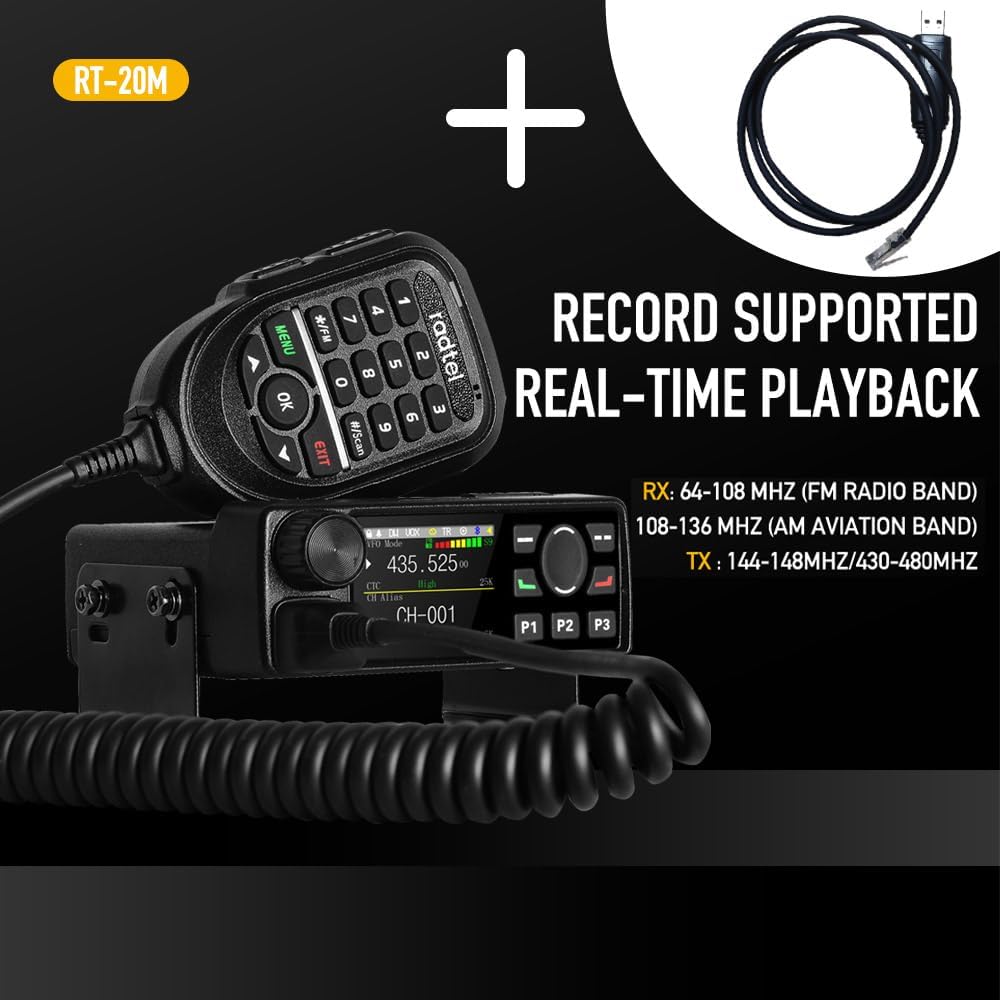

Figura 4.8.1: The Radtel RT-20M radio and microphone, shown with an optional programming cable, emphasizing its record supported real-time playback capabilities and frequency ranges.

5. Manteniment

5.1 Neteja

Netegeu regularment l'exterior de la ràdio amb un drap suau i sec.amp cloth. Avoid using harsh chemicals or abrasive cleaners. Ensure the microphone and speaker grilles are free from dust and debris.

5.2 Connexions

Periodically check all cable connections (power, antenna, microphone) to ensure they are secure and free from corrosion or damage.

5.3 Dissipació de calor

Ensure the radio's heat sink and ventilation areas are not obstructed to allow for proper heat dissipation, especially during prolonged transmission. The RT-20M features a large diameter speaker and quick heat dissipation design.

Figura 5.3.1: lateral view of the Radtel RT-20M radio, highlighting its large diameter speaker and fins designed for quick heat dissipation.

6. Solució De Problemes

7. Especificacions

8. Garantia i Suport

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Radtel customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
