NULKOMMA JH4AS5101DZXJ Electric Bicycle Controller Instruction Manual

1. Introducció

The NULKOMMA JH4AS5101DZXJ is a brushless DC motor controller designed for electric bicycles and scooters. It provides stable speed control and sensitive response for braking and direction changes. The controller features a high-quality aluminum alloy shell with a groove design for efficient heat dissipation, protecting internal circuits from thermal overload. Its wires and waterproof interfaces are engineered for durability and low failure rates, ensuring reliable long-term use in various weather conditions.

2. Què hi ha a la caixa

• 1 x NULKOMMA JH4AS5101DZXJ Electric Bicycle Controller

3. Visuals del producte

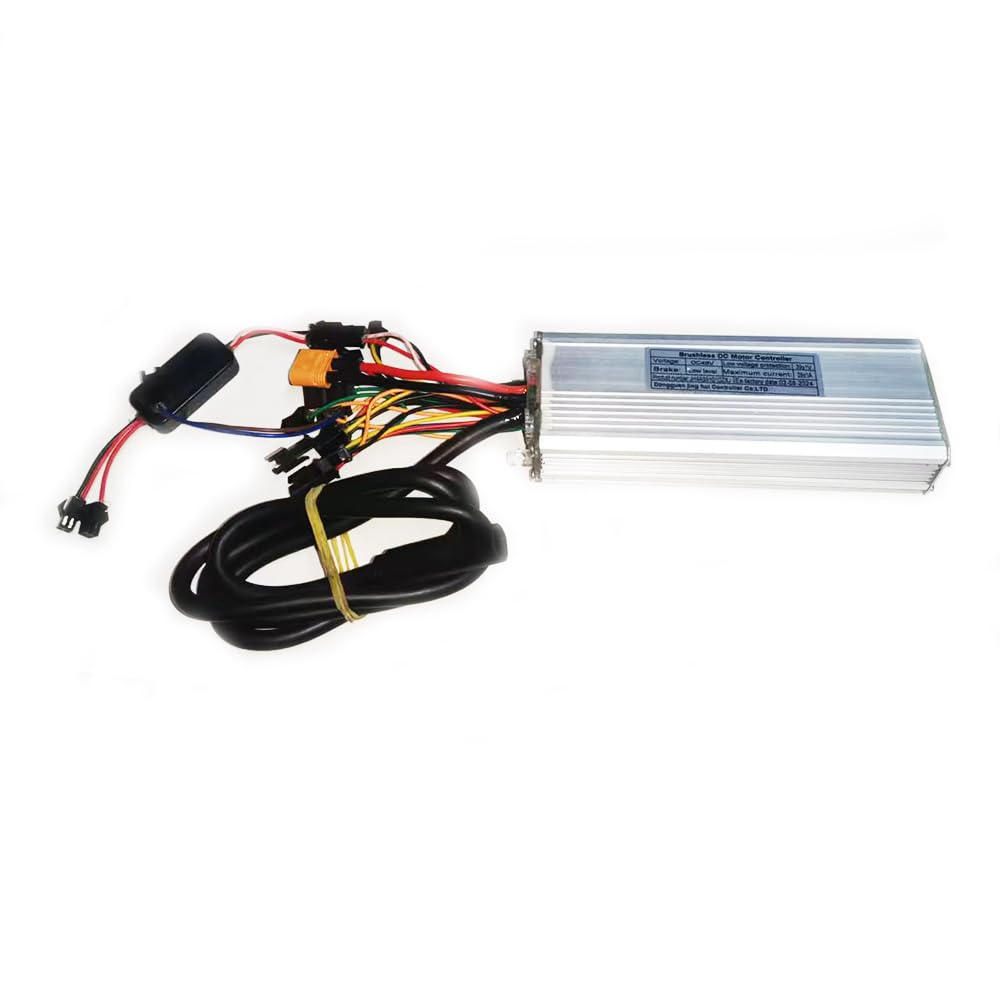

Image 1: The NULKOMMA JH4AS5101DZXJ Electric Bicycle Controller, showing the product label with specifications such as voltage (DC48V), low voltage protection (39±1V), and maximum current (28±1A).

Image 2: The NULKOMMA JH4AS5101DZXJ Electric Bicycle Controller, displaying its various colored wires and connectors for different functions, including power, motor phases, and auxiliary signals.

4. Configuració i instal·lació

1. La seguretat primer: Before installation, ensure the electric bicycle's power is completely off and the battery is disconnected to prevent electrical shock or damage.
2. Identificació de connectors: Carefully examine the JH4AS5101DZXJ controller. Each interface is labeled to guide correct connection. Refer to the labels for specific functions.
3. Connexió d'alimentació: Connect the main power cables (typically thicker red and black wires) to your e-bike's battery. Ensure correct polarity (red to positive, black to negative).
4. Motor Phase Wires: Connect the three thicker motor phase wires (commonly blue, green, and yellow) from the controller to the corresponding motor wires.
5. Cables del sensor Hall: Connect the five thinner Hall sensor wires from the controller to the motor's Hall sensor port.
6. Throttle/Accelerator: Connect the throttle or accelerator cable to its designated port on the controller.
7. Palanques de fre: Connect the brake lever cables. This controller supports low-level brake signals, which cut motor power when brakes are applied.
8. Display Meter: If your e-bike uses a display meter, connect its cable to the appropriate port on the controller.
9. Connexions auxiliars: Connect any other auxiliary cables such as pedal assist sensor (PAS), speed sensor, or light connections as required by your e-bike's specific configuration.
10. Assegurar i muntar: Secure all connections firmly, ensuring no exposed wires. Mount the controller in a protected location on your e-bike, allowing for adequate airflow to facilitate heat dissipation.

5. Funcionament

1. Comprovació prèvia al funcionament: After installation, double-check that all connections are secure and correctly made.
2. Encès: Turn on the electric bicycle's main power switch. The display meter (if connected) should illuminate, indicating the system is active.
3. Throttle Test: Gently engage the throttle/accelerator. The motor should respond smoothly and provide power.
4. Prova de fre: Test both brake levers. Engaging the brakes should immediately cut power to the motor.
5. Verificació de la funció: Verify that all other connected functions, such as pedal assist, lights, and horn (if applicable), are working correctly.
6. Comprovació de seguretat: Always perform a comprehensive safety check before riding, ensuring brakes, throttle, and steering are fully functional and responsive.

6. Manteniment

• Inspecció de connexió: Regularly inspect all wire connections for any signs of looseness, corrosion, or damage. Tighten loose connections or replace damaged wires as necessary.
• Neteja: Keep the controller clean and free from dust, dirt, and moisture. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals or abrasive materials.
• Protecció del medi ambient: Avoid exposing the controller to extreme temperatures, direct sunlight, or heavy rain for prolonged periods.
• Sense desmuntatge: Do not attempt to open the controller casing. Doing so may void the warranty and can expose sensitive internal components to damage.
• Exposició a la humitat: If the controller becomes wet, immediately disconnect power and allow it to dry completely in a well-ventilated area before re-applying power.

7. Solució De Problemes

• El motor no respon:
  Possibles causes: Disconnected battery, loose throttle connection, incorrect motor phase/Hall sensor wiring, discharged battery.
  Solucions: Check all relevant connections, ensure battery is charged, verify wiring according to the setup instructions.
• Potència intermitent:
  Possibles causes: Loose power connections, damaged wires.
  Solucions: Inspect all power connections for a secure fit. Check for any frayed or damaged wires and replace if necessary.
• Controller Overheating:
  Possibles causes: Insufficient airflow, continuous high-load operation.
  Solucions: Ensure the controller is mounted in a location with sufficient airflow. Reduce continuous high-load operation if possible.
• Brakes Not Cutting Power:
  Possibles causes: Incorrect or loose brake lever connections.
  Solucions: Verify brake lever connections and ensure they are properly engaged.
• La pantalla no funciona:
  Possibles causes: Loose display cable connection.
  Solucions: Comproveu la connexió del cable de la pantalla al controlador.

For persistent issues or problems not listed here, it is recommended to consult a qualified e-bike technician or contact NULKOMMA customer support for assistance.

8. Especificacions

9. Garantia i Suport

NULKOMMA offers a 180-day unconditional return and refund policy for products received. If you are not satisfied with your purchase, you may apply for a return and refund within this period.

For any product-related issues, technical assistance, or support inquiries, please contact NULKOMMA customer service via email. We are committed to providing timely and helpful assistance to ensure your satisfaction.
