Cecotec Conga Rockstar 5500 Hurricane Station Flex Cordless Vacuum Cleaner User Manual

1. Producte acabatview

The Cecotec Conga Rockstar 5500 Hurricane Station Flex is a powerful cordless stick vacuum cleaner designed for efficient home cleaning. It features an auto-emptying base for convenient dust disposal, high suction power, and a long-lasting battery. Its flexible design and specialized brush ensure thorough cleaning across various surfaces.

Image 1.1: The Cecotec Conga Rockstar 5500 Hurricane Station Flex cordless vacuum cleaner.

Característiques principals:

• Auto-emptying Base: Automatically empties the vacuum's dust tank into a larger bag in the base, minimizing contact with dirt.
• Alta potència de succió: Delivers up to 220 AW (Air Watts) for effective cleaning.
• Motor potent: Equipped with a 700 W motor for consistent performance.
• Autonomia ampliada: Provides up to 90 minutes of cleaning time on a single charge.
• HairLess Brush Technology: Designed to cut and remove tangled hairs from the brush.
• Tub flexible: Permet una fàcil neteja sota els mobles i en zones de difícil accés.
• Mode automàtic: Adjusts suction power automatically based on the detected dirt level.

2. Instruccions de seguretat

Before using the appliance, please read these instructions carefully and keep them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Assegureu-vos que la font d'alimentació voltage coincideix amb el voltage indicated on the appliance's rating label.
• No submergiu l'aparell, el cable ni l'endoll en aigua ni en cap altre líquid.
• No feu servir l'aspiradora per recollir líquids inflamables o combustibles, cendres calentes o objectes punxeguts.
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
• Always turn off the appliance and disconnect it from the power outlet before cleaning or performing maintenance.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat. .
• Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
• Utilitzeu només accessoris i accessoris recomanats pel fabricant.
• Do not use the appliance if any part is damaged. Contact authorized technical support.

3. Components del producte

The Cecotec Conga Rockstar 5500 Hurricane Station Flex includes the following components:

• Cordless stick vacuum cleaner unit
• Auto-emptying base
• 2-in-1 accessory (crevice tool and brush)
• Accessori de cantonada
• 2 dust bags for the auto-emptying base
• Manual d'usuari

Image 3.1: The 2-in-1 accessory for versatile cleaning.

4. Configuració

4.1 Muntatge

1. Desembaleu tots els components i assegureu-vos que no falti res ni quedi res malmès.
2. Attach the main vacuum body to the extension tube.
3. Connect the floor brush head to the other end of the extension tube. Ensure all connections click securely into place.
4. Place the auto-emptying base in a suitable location near a power outlet.
5. Insert a dust bag into the auto-emptying base if not already installed.

4.2 Càrrega inicial

Abans del primer ús, carregueu completament la bateria de l'aspiradora.

1. Place the assembled vacuum cleaner onto the auto-emptying base.
2. Connect the power adapter to the auto-emptying base and then to a power outlet.
3. The charging indicator on the vacuum or base will illuminate, indicating that charging has begun.
4. Allow the vacuum to charge until the indicator shows a full charge (approximately 3-4 hours).

Image 4.1: The vacuum cleaner docked on its auto-emptying and charging base.

5. Instruccions de funcionament

5.1 Engegada/apagada

Premeu el botó d'engegada situat a la unitat principal per encendre o apagar l'aspiradora.

5.2 modes d'aspiració

The vacuum cleaner offers multiple suction modes to suit different cleaning needs:

• Mode Eco: Per a una neteja lleugera i una durada màxima de la bateria.
• Mode diari: Potència estàndard per a la neteja diària.
• Mode turbo: Maximum suction for stubborn dirt and deep cleaning.
• Mode automàtic: The vacuum automatically detects the type and amount of dirt and adjusts the suction power accordingly. This mode optimizes cleaning efficiency and battery usage.

Image 5.1: The vacuum cleaner automatically adjusting power in Auto Mode.

5.3 Using the Flexible Tube and LED Light

The flexible tube allows the main unit to bend, making it easier to clean under low furniture without excessive bending. The integrated LED lights on the brush head illuminate dark areas, revealing hidden dust and debris.

Image 5.2: The flexible tube and LED lights enhance cleaning visibility and reach.

5.4 Ús d'accessoris

Attach the 2-in-1 accessory or corner accessory directly to the main unit or the extension tube for cleaning upholstery, crevices, and tight spaces.

6. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de l'aspiradora.

6.1 Auto-emptying Base Dust Bag Replacement

The auto-emptying base collects dust from the vacuum's tank. Replace the dust bag when the indicator on the base signals it is full.

1. Ensure the vacuum cleaner is not docked on the base and the base is unplugged.
2. Open the dust bag compartment on the auto-emptying base.
3. Traieu amb cura la bossa de pols plena, assegurant-vos que l'obertura estigui segellada per evitar fuites de pols.
4. Insert a new dust bag, making sure it is properly seated.
5. Tanqueu el compartiment de manera segura.

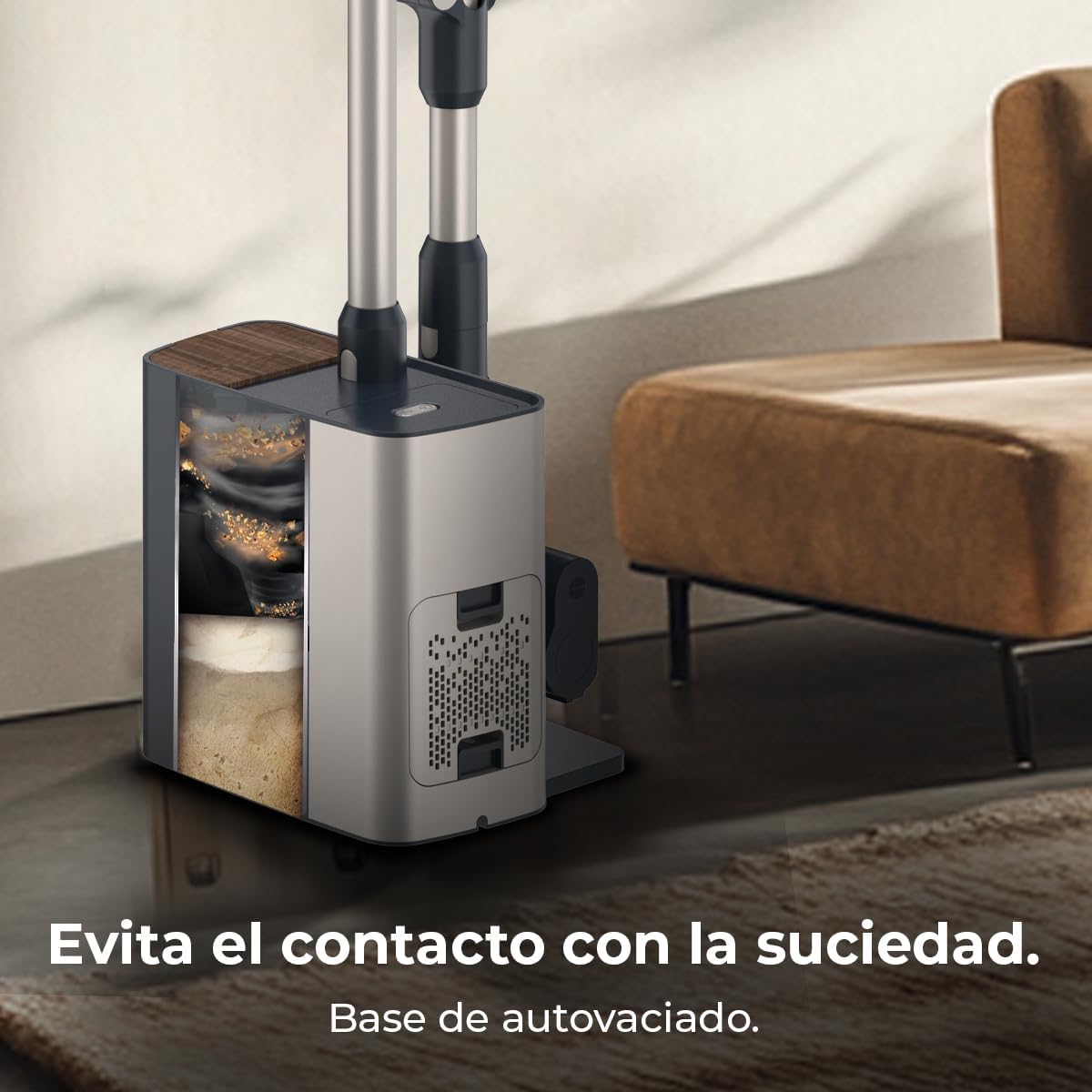

Imatge 6.1: Interna view of the auto-emptying base, illustrating the dust collection mechanism.

6.2 Cleaning the Anti-Tangle Brush

The HairLess Brush technology helps prevent hair tangles, but periodic inspection and cleaning are recommended.

1. Turn off the vacuum cleaner and detach the floor brush head.
2. Locate the brush roll and remove it from the brush head.
3. Use scissors or a cleaning tool to remove any remaining tangled hair or debris from the brush roll.
4. Clean the brush head interior and reinsert the brush roll.

Image 6.2: The HairLess Brush technology designed to prevent hair tangles.

6.3 Neteja del filtre

The HEPA filter should be cleaned regularly to maintain suction performance.

1. Remove the dust tank from the main vacuum unit.
2. Extract the HEPA filter.
3. Colpegeu suaument el filtre per eliminar la pols solta. Si està molt brut, esbandiu-lo amb aigua corrent.
4. Ensure the filter is completely dry before reinserting it into the dust tank.

7. Solució De Problemes

8. Especificacions

• Número de model: A01_EU01_102267
• Marca: Cecotec
• Potència: 700 W
• Potència d'aspiració: MAX 220 AW
• Bateria: 1 Lithium Ion (included), 33.6 V
• Autonomia: Fins a 90 minuts
• Tipus de filtre: Filtre HEPA
• Característica especial: Cordless, Auto-emptying Base, Flexible Tube, Anti-tangle Brush
• Dimensions del producte: 31.5 x 24.1 x 133.5 cm
• Pes del producte: 1.3 kg
• Superfície recomanada: All floors (carpets, hardwood, stairs)

9. Garantia i Suport

This product comes with a manufacturer's warranty. For detailed information regarding warranty terms and conditions, please refer to the warranty card included in the product packaging or visit the official Cecotec weblloc.

For technical assistance, spare parts, or any inquiries regarding your Cecotec Conga Rockstar 5500 Hurricane Station Flex, please contact Cecotec customer support through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.

Oficial de Cecotec Weblloc: www.cecotec.com
