1. Introducció
This manual provides essential information for the proper installation, function, and care of your BuleVina Generator Carburetor. Please read these instructions carefully before proceeding with installation or maintenance to ensure safe and effective use.
2. Compatibilitat del producte
This carburetor is designed for specific generator models. Verify your generator's compatibility before installation.
- Compatible with Predator 4000 and 4375 watt Portable Gas Generators.
- Compatible with Generac 3500, 4000, 3000, GX120, and GX160 models.
- Nota: This carburetor may not be compatible with all GX series models. Always cross-reference with your generator's specifications.
Image: The BuleVina carburetor positioned alongside a yellow Predator 4000 watt portable gas generator, illustrating its intended use and compatibility.
Image: The BuleVina carburetor displayed with an orange Predator 4000 watt portable gas generator, confirming its compatibility with various generator colors/models.
Image: The BuleVina carburetor presented alongside a green Predator 4000 watt portable gas generator, further demonstrating its broad compatibility.
3. Configuració i instal·lació
Installation of a carburetor requires mechanical aptitude. If you are unsure about any steps, it is recommended to seek professional assistance.
3.1 Contingut del paquet
- 1 x BuleVina Generator Carburetor
- 1 x Fuel Line
- Nota important: Gaskets are not included with this package and must be purchased separately for proper installation.
3.2 General Installation Steps (Consult your generator's service manual for specific instructions)
- La seguretat primer: Ensure the generator is turned off, cooled down, and disconnected from any fuel source. Disconnect the spark plug wire to prevent accidental starting.
- Drenar combustible: Drain any remaining fuel from the fuel tank and carburetor bowl.
- Treure el conjunt del filtre d'aire: Traieu amb cura la carcassa del filtre d'aire i l'element filtrant per accedir al carburador.
- Disconnect Linkages and Hoses: Disconnect the fuel line, choke linkage, and throttle linkage from the old carburetor. Note their positions for reassembly.
- Treure el carburador vell: Unbolt the old carburetor from the engine. Be mindful of any gaskets between the carburetor and the engine/intake manifold.
- Instal·lar un carburador nou:
- Ensure new gaskets (not included) are properly seated between the engine, carburetor, and air filter housing.
- Mount the new BuleVina carburetor, ensuring it is securely bolted.
- Reconnect the fuel line, choke linkage, and throttle linkage. Double-check that all connections are secure and move freely.
- Torneu a muntar el filtre d'aire: Reinstall the air filter element and housing.
- Refuel and Test: Refill the fuel tank with fresh, appropriate fuel. Reconnect the spark plug wire. Start the generator and check for leaks or abnormal operation. Adjust idle speed if necessary.
Image: The BuleVina carburetor, including the main body, fuel line, and choke lever, as supplied in the package.
Imatge: Una imatge detallada view of the carburetor's fuel inlet, highlighting the brass fitting where the fuel line connects.
4. Principis de funcionament
The carburetor's primary function is to mix air and fuel in the correct ratio for combustion in the engine. It controls the engine's speed and power output based on throttle input.
- Asfixia: Used for cold starts, enriching the fuel mixture.
- Acceleració: Regulates the amount of air-fuel mixture entering the engine, controlling engine speed.
- Bol flotant: Stores a small reservoir of fuel, maintained by a float valve.
- Jets: Precisely meter fuel into the airflow.
5. Manteniment
Regular maintenance ensures optimal performance and longevity of your carburetor.
- Qualitat del combustible: Always use fresh, clean fuel. Stale or contaminated fuel is a common cause of carburetor issues. Consider using a fuel stabilizer if the generator will be stored for extended periods.
- Filtre de combustible: Ensure your generator's fuel filter is clean and replaced regularly to prevent debris from entering the carburetor.
- Neteja: If performance issues arise, the carburetor may need cleaning. This involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing any worn gaskets or O-rings.
- Emmagatzematge: Before long-term storage, run the generator until it runs out of fuel, or drain the fuel system completely to prevent fuel varnish buildup in the carburetor.
6. Resolució de problemes comuns
Here are some common carburetor-related issues and potential solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrenca | Clogged fuel jet, no fuel, stale fuel, faulty choke. | Check fuel level and freshness. Clean carburetor jets. Ensure choke operates correctly. |
| El motor funciona de manera irregular/sobrecarregada | Partially clogged jet, air leak, incorrect fuel mixture. | Clean carburetor. Check for loose connections or damaged gaskets. |
| Fuites de combustible | Damaged float, worn O-rings/gaskets, loose fuel line. | Inspect float and float valve. Replace gaskets/O-rings. Tighten fuel line connections. |
| Falta de poder | Clogged main jet, restricted air filter. | Clean main jet. Replace or clean air filter. |
If troubleshooting steps do not resolve the issue, consult a qualified service technician.
7. Especificacions
Key dimensions and features of the BuleVina Generator Carburetor:
- Mounting Hole Center-to-Center: 1.69 polzades (43 mm)
- Core Hole Diameter: 3/4 de polzada (19 mm)
- Choke Hole Diameter: 15/16 de polzada (24 mm)
- Pes de l'article: Aproximadament 8.1 unces
- Dimensions del producte: Aproximadament 3.54 x 2.55 x 3.54 polzades
- Característiques especials: Fuel Efficient design
Image: A detailed diagram illustrating the critical dimensions of the carburetor, such as the 1.69-inch (43mm) mounting hole spacing and 0.74-inch (19mm) core hole diameter.

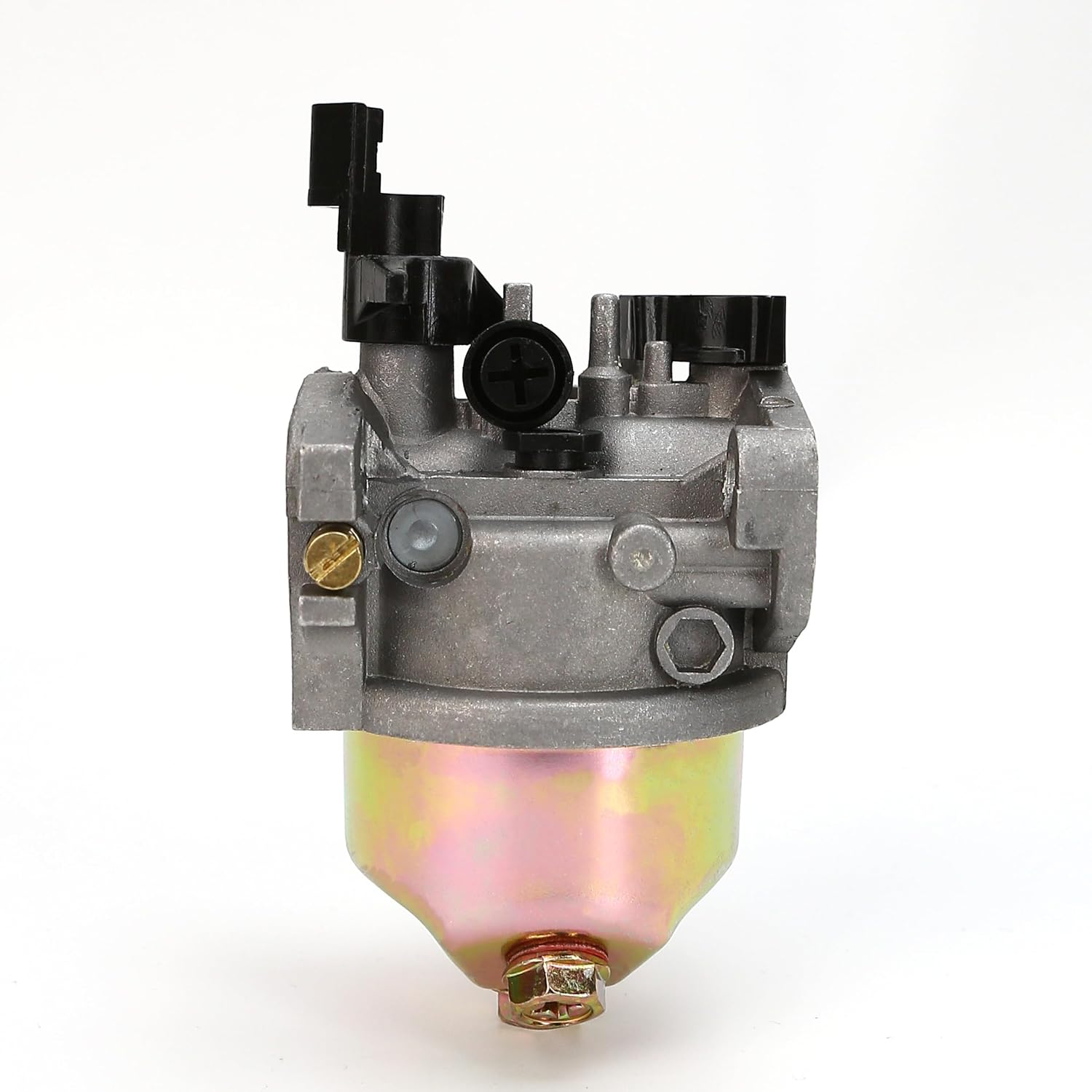

Imatge: Un professional lateralfile view of the carburetor, providing a clear perspective of its construction and various components.
Imatge: Vista de dalt a baix view of the carburetor, showcasing the air intake area and the points for connecting control linkages.
Imatge: A view from the bottom of the carburetor, displaying the fuel bowl and the drain screw for maintenance.
8. Garantia i Suport
8.1 Política de devolució
This product is subject to a 30-day return policy for refund or replacement. Please refer to your purchase platform's specific return guidelines for detailed information.
8.2 Atenció al client
For further assistance, technical questions, or to report issues, please contact BuleVina customer support through the retailer where the product was purchased.
