Alpicool TSL35

Manual d'usuari de la nevera portàtil per a cotxe Alpicool TSL35

Model: TSL35 | Brand: Alpicool

1. Informació de seguretat

Si us plau, llegiu atentament tots els avisos i instruccions de seguretat abans d'utilitzar aquest aparell per evitar lesions o danys.

No feu servir l'aparell si està visiblement danyat.
Assegureu-vos que el voltagEl voltatge indicat a l'etiqueta de classificació coincideix amb la vostra font d'alimentació.
No submergiu l'aparell en aigua o altres líquids.
Mantenir les obertures de ventilació lliures d'obstruccions.
No feu servir aparells elèctrics dins de la nevera si no ho recomana el fabricant.
Eviteu tocar els cables exposats amb les mans nues.
Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut supervisió o instrucció.

2. Producte acabatview

The Alpicool TSL35 is a portable car refrigerator designed for efficient cooling and freezing, ideal for outdoor activities, camping, and vehicle use, especially tailored for the Tesla Model Y's sub-trunk space.

Característiques clau

Disseny portàtil: Compacte i lleuger per a un fàcil transport.
Refrigeració eficient: Capable of cooling from -4°F to 68°F (-20°C to 20°C).
Interior espaiós: 35 Liters (37 Quarts) capacity.
Controls fàcils d'utilitzar: Simple control panel for temperature adjustment.
Construcció duradora: Sturdy exterior and insulated walls.
Funcionament de baix soroll: Operates quietly, as low as 45dB.

Contingut del paquet

En desembalar, assegureu-vos que tots els elements que s'enumeren a continuació hi siguin presents i no estiguin danyats:

Alpicool TSL35 Car Refrigerator
Cable d'alimentació de CC (12/24 V)
Manual d'usuari

Contents of the Alpicool TSL35 package including the refrigerator, DC cord, and user manual.

Image: What's in the Box - Alpicool TSL35 Car Freezer, DC Cord, and User Manual.

Product Dimensions and Capacity

Diagram showing the external dimensions of the TSL35 refrigerator (31.02 x 18.03 x 14.13 inches) and inner dimensions (17.8 x 13.9 x 10.1 inches), along with capacity examples for 12oz cola, 16.9oz water, and 25oz red wine bottles.

Image: TSL35 Large Capacity - External and internal dimensions, showing capacity for 44 cans of 12oz cola, 24 bottles of 16.9oz water, or 12 bottles of 25oz red wine.

The TSL35 offers a generous 35-liter (37-quart) capacity, suitable for various items. Its external dimensions are approximately 31.02 inches (L) x 18.03 inches (W) x 14.13 inches (H).

3. Configuració

Col·locació

Place the refrigerator on a stable, level surface. Ensure adequate ventilation around the unit, especially around the air inlets and outlets. For Tesla Model Y owners, the TSL35 is designed to fit perfectly in the sunken trunk space.

Alpicool TSL35 refrigerator placed perfectly in the sunken trunk of a Tesla Model Y, filled with drinks and food.

Image: Perfect fit for Tesla Model Y sunken trunk, demonstrating the refrigerator's placement and capacity.

Connexió d'alimentació

The TSL35 can be powered by 12V/24V DC from your vehicle or a portable power station, and also supports 100-240V AC for home use (AC adapter not included, typically). Connect the DC power cord to the refrigerator's DC input port and then to your vehicle's 12V/24V outlet.

Diagram showing charging options for the TSL35, including 12V DC use with a car, 24V DC use with solar panel and power station for outdoor camping, and battery protection settings.

Image: Charging Options - Illustrates connecting the refrigerator to a car's 12V DC outlet or to a solar panel and power station for outdoor use.

4. Instruccions de funcionament

Tauler de control acabatview

The control panel is located on the front of the unit and includes buttons for power, temperature adjustment, and mode selection, along with a digital display.

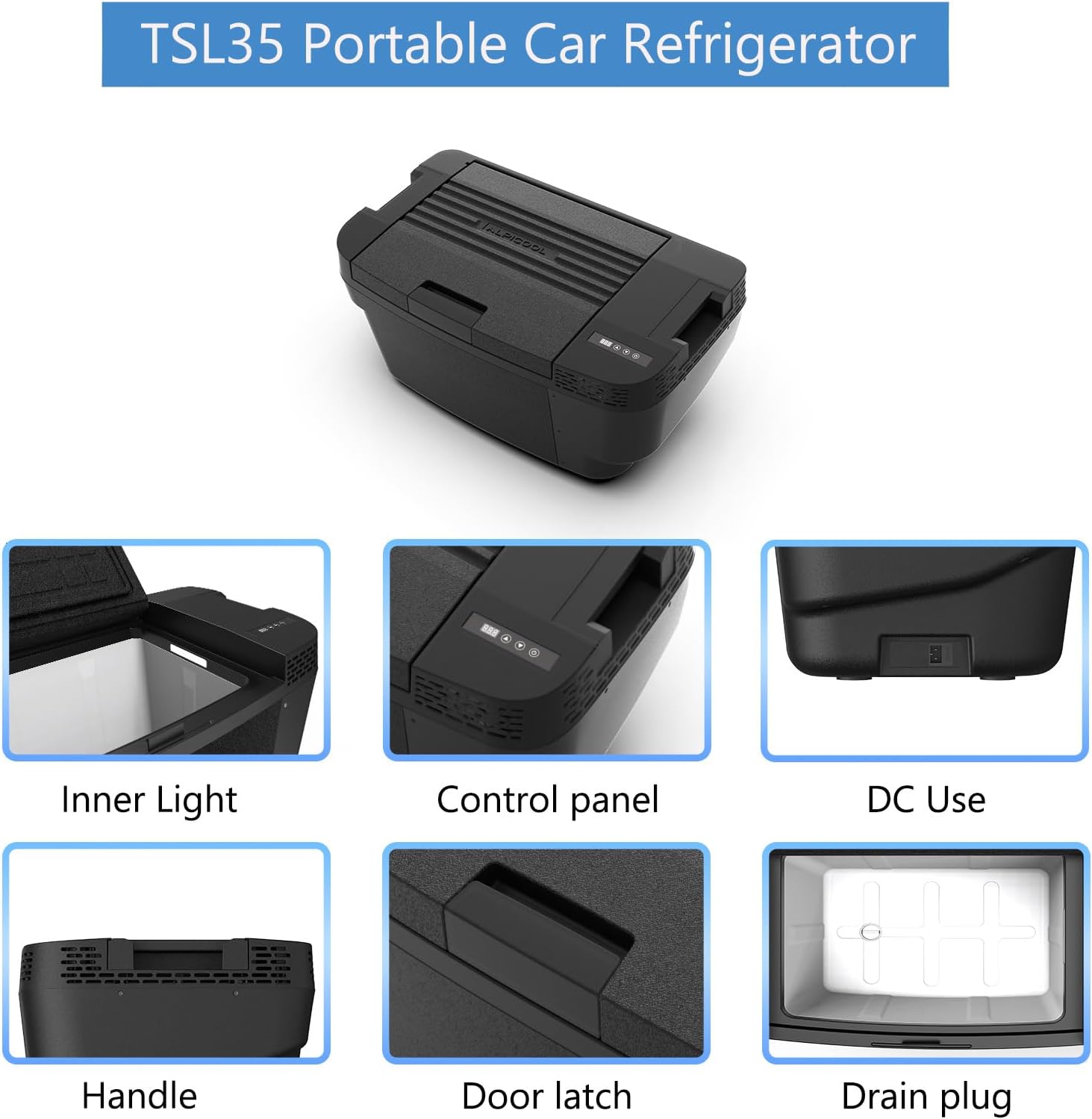

Close-up images of the Alpicool TSL35's inner light, control panel, DC power input, handle, door latch, and drain plug.

Image: TSL35 Portable Car Refrigerator Features - Shows the control panel with its display and buttons.

Ajust de temperatura

Press the 'SET' button to enter temperature setting mode. Use the '+' and '-' buttons to adjust the desired temperature. The display will show the current internal temperature.

Modes de funcionament

The TSL35 can operate as a refrigerator or a freezer, with an adjustable temperature range from -4°F to 68°F (-20°C to 20°C).

Image showing various food items (ice cream, beef, fruit, skin care products, drinks) with their ideal storage temperatures in Fahrenheit, demonstrating the refrigerator's versatility.

Image: Keep Food Fresh All The Way - Illustrates ideal temperatures for different items: Ice cream at -4°F, Beef at 0°F, Fruit at 32°F, Skin care at 42°F, and Drinks at 50°F.

Diagram showing the Alpicool TSL35 and a chart indicating its adjustable temperature range from -20°C to 20°C (-4°F to 68°F), with examples for fridge (32°F-68°F) and freezer (-4°F-32°F) settings.

Image: Powerful Quiet Compressor - Shows the adjustable temperature range for both fridge and freezer functions, highlighting low noise operation.

5. Manteniment

Neteja

Netegeu regularment l'interior i l'exterior de la nevera amb anuncis.amp cloth and mild detergent. Do not use abrasive cleaners or solvents. Ensure the unit is unplugged before cleaning.

Descongelació

If a layer of frost forms inside, turn off the unit and allow the frost to melt naturally. Use the drain plug located at the bottom of the unit to remove melted water. Wipe the interior dry before restarting.

Emmagatzematge

When storing the refrigerator for an extended period, ensure it is clean, dry, and the lid is slightly ajar to prevent odors and mold growth.

6. Solució De Problemes

If you encounter issues with your Alpicool TSL35, refer to the table below for common problems and solutions.

Problema	Causa possible	Solució
La unitat no s'encén	No power supply; Faulty power cord; Blown fuse.	Check power connection; Test with another power source; Replace fuse if necessary.
Mal rendiment de refrigeració	Insufficient ventilation; Too much content; Door not sealed properly; High ambient temperature.	Ensure clear vents; Do not overfill; Check door seal; Operate in cooler environment if possible.
La pantalla mostra el codi d'error	Error intern específic.	Consulteu el manual d'usuari complet per obtenir els significats específics dels codis d'error o poseu-vos en contacte amb el servei d'atenció al client.
La unitat és sorollosa	Unitat no anivellada; obstrucció del ventilador.	Place on a level surface; Check for any obstructions around the fan.

7. Especificacions

Detailed technical specifications for the Alpicool TSL35 Portable Car Refrigerator.

Especificació	Valor
Nom del model	TSL35
Capacitat	35 litres (37 quarts)
Gamma de refrigeració	-4 °F a 68 °F (-20 °C a 20 °C)
Font d'alimentació	12V/24V DC \| 100-240V AC
Dimensions del producte (L x A x A)	31.02 x 18.03 x 14.13 polzades (78.8 x 45.8 x 35.9 cm)
Pes net	30.9 lliures (14 kg)
Material	Plàstic
Color	Gris
Sistema de descongelació	Manual

Image displaying the specification table for the Alpicool TSL35, including model name, capacity, cooling range, power source, dimensions, and net weight.

Image: Specification Table - Detailed technical data for the TSL35 model.

8. Garantia i Suport

Alpicool products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Alpicool weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

For further assistance, you may contact Alpicool customer service through the contact information provided in your product documentation or on the Alpicool brand store page.
