Introducció
This manual provides detailed instructions for the assembly, operation, and maintenance of your FABATO Bunk Bed, Model AE-20KM-FL. Please read all instructions carefully before assembly and use to ensure safe and proper operation. Keep this manual for future reference.
Informació de seguretat
- Assegureu-vos que totes les peces estiguin presents i sense danys abans del muntatge.
- Follow assembly steps precisely. Do not overtighten screws.
- Reviseu regularment totes les connexions per assegurar-vos que romanen ben ajustades.
- The bunk bed is designed for a maximum weight of 113 kilograms (250 lbs) per bunk.
- Always use the integrated ladder for access to the upper bunk.
- Full-length guardrails are provided for safety on the upper bunk. Do not remove them.
- Do not allow children to play unsupervised on or around the bunk bed.
- Only use mattresses that fit the bed frame dimensions to prevent gaps.
Muntatge i muntatge
The FABATO Bunk Bed AE-20KM-FL is designed for straightforward home assembly. All necessary parts and clear instructions are included in a single shipping package. No spring box is required; mattresses can be placed directly on the bed base.
Desembalatge i identificació de peces
Carefully unpack all components and verify against the included parts list. Each part is labeled for easy identification.
Imatge: Explosió view showing various components of the bunk bed for assembly.
Passos de muntatge
- Begin by assembling the main frame sections according to the provided diagram.
- Attach the bed slats securely to both the upper and lower bunk frames.
- Install the integrated ladder on the designated side. The bed frame is reversible, allowing the ladder to be mounted on either side for placement flexibility.
- Securely attach the full-length guardrails to the upper bunk.
- Ensure all bolts and screws are tightened, but do not overtighten.
Disseny convertible
This bunk bed can be separated into two individual bed frames. To convert, carefully disassemble the connecting elements between the upper and lower bunks, then reassemble the headboards and footboards for each individual bed as instructed in the manual.
Image: The bunk bed shown configured as two separate individual bed frames.
Funcionament
Estació de càrrega
The bunk bed includes a movable charging station with 2 AC outlets, 1 USB port, and 2 Type-C ports, connected via a 3-meter cable. Position the charging station conveniently on either bunk. Ensure the power cable is routed safely to avoid tripping hazards.
Imatge: Detallada view of the charging station, highlighting its 2 AC outlets, 1 USB port, and 2 Type-C ports.
Ús del llit
Place your mattress directly onto the sturdy metal slats. The distance between the bottom bunk and the floor is approximately 31 cm (12.2 inches), providing space for under-bed storage.

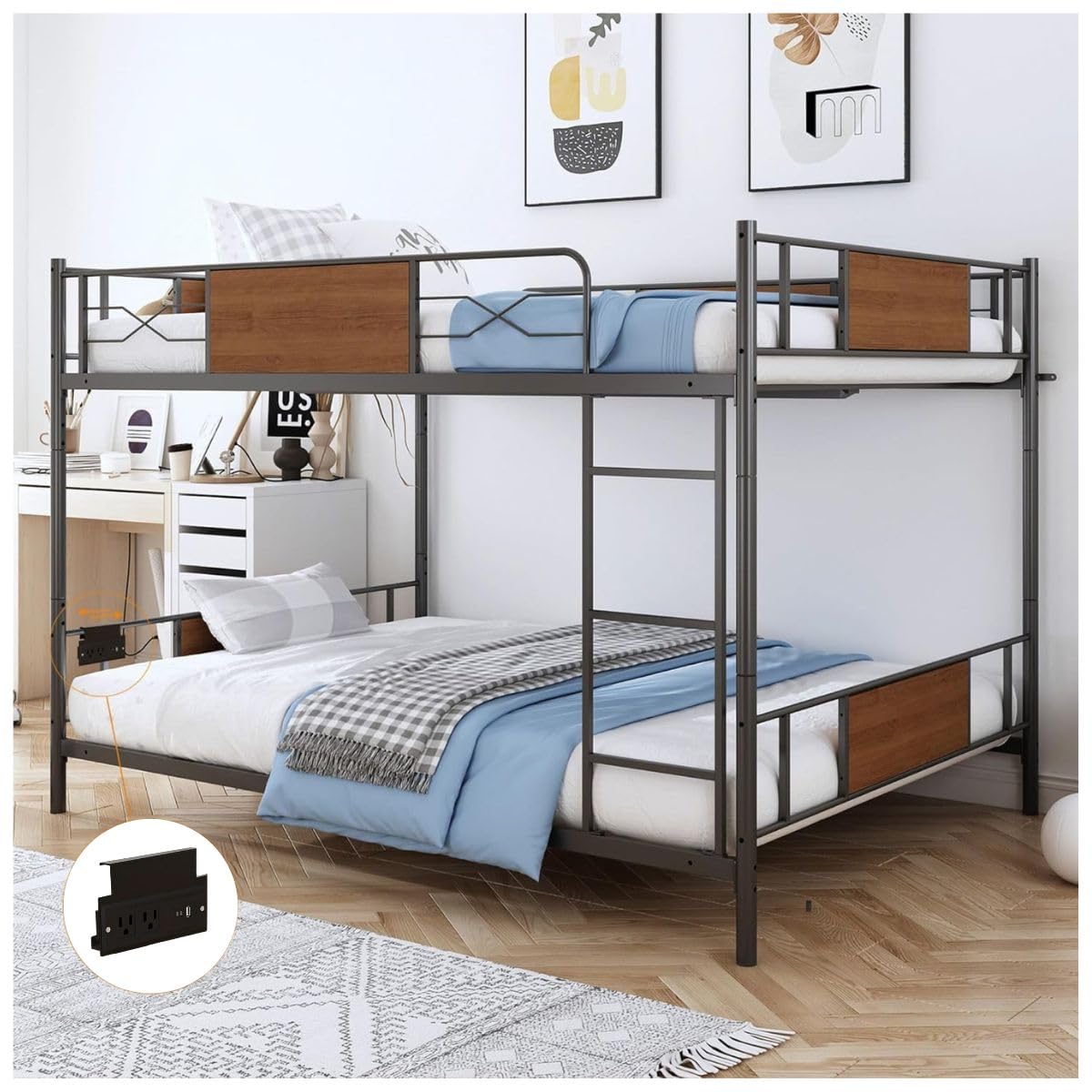

Image: The FABATO Bunk Bed with mattresses and bedding, showcasing its design and functionality in a room.
Manteniment
Neteja
To clean the bed frame, wipe with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which may damage the finish.
Comprovacions periòdiques
Periodically inspect all bolts, screws, and connections to ensure they are tight. Retighten if necessary to maintain stability and safety.
Resolució de problemes
- Sorolls de grinyols: Check all connections and tighten any loose bolts. Ensure the bed is on a level surface.
- Inestabilitat: Verify that all components are correctly assembled and all fasteners are securely tightened.
- Peces que falten o danyades: If you find any parts missing or damaged upon unpacking, please contact customer support immediately. Do not attempt to assemble the bed with missing or damaged components.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | AE-20KM-FL |
| Marca | FABATO |
| Mida | Individual (Twin) |
| Material | Acer d'aliatge, fusta |
| Dimensions del producte (L x A x A) | 77.95" x 41.34" x 53.94" (198 cm x 105 cm x 137 cm) |
| Pes de l'article | 45 quilos (99.2 lliures) |
| Maximum Weight Recommendation (per bunk) | 113 quilos (250 lliures) |
| Ground to Item Distance (Lower Bunk) | 15 centímetres (5.9 polzades) |
| Under-bed Storage Clearance (Lower Bunk) | Approximately 31 Centimeters (12.2 inches) |
| Característiques especials | Movable Charging Station (2 AC, 1 USB, 2 Type-C ports), Convertible to 2 Single Beds, Integrated Ladder |
| Components inclosos | Ladder, Charging Station |
| Muntatge obligatori | Sí |
| Instruccions de cura | Netegeu amb un drap sec |
Image: Technical drawing displaying the overall dimensions and key measurements of the bunk bed.
Imatge: Primer pla views illustrating the rustic board accents, iron tube construction, and easy assembly design features.
Informació de la garantia
Specific warranty details for the FABATO Bunk Bed AE-20KM-FL are not provided within this manual. For information regarding product warranty, please refer to the purchase documentation or contact FABATO customer support directly.
Atenció al client
If you have any questions, require assistance with assembly, or encounter issues with your FABATO Bunk Bed, please contact the seller or manufacturer. Ensure you have your model number (AE-20KM-FL) and purchase details available when contacting support.
"Customers' satisfaction is our top priority, please feel free to contact us if parts are missing or damaged."
