ACEFAST H2 Wireless Headset User Manual

Introducció

This manual provides detailed instructions for the proper use and maintenance of your ACEFAST H2 Wireless Headset. Designed with advanced Active Noise Cancelling (ANC) technology and Bluetooth 5.3 connectivity, these headphones offer a high-quality audio experience. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Contingut del paquet

• ACEFAST H2 Wireless Headset
• Cable de càrrega USB-C
• Cable auxiliar de 3.5 mm
• Manual d'usuari (aquest document)

Producte acabatview

Familiarize yourself with the components and controls of your ACEFAST H2 headset.

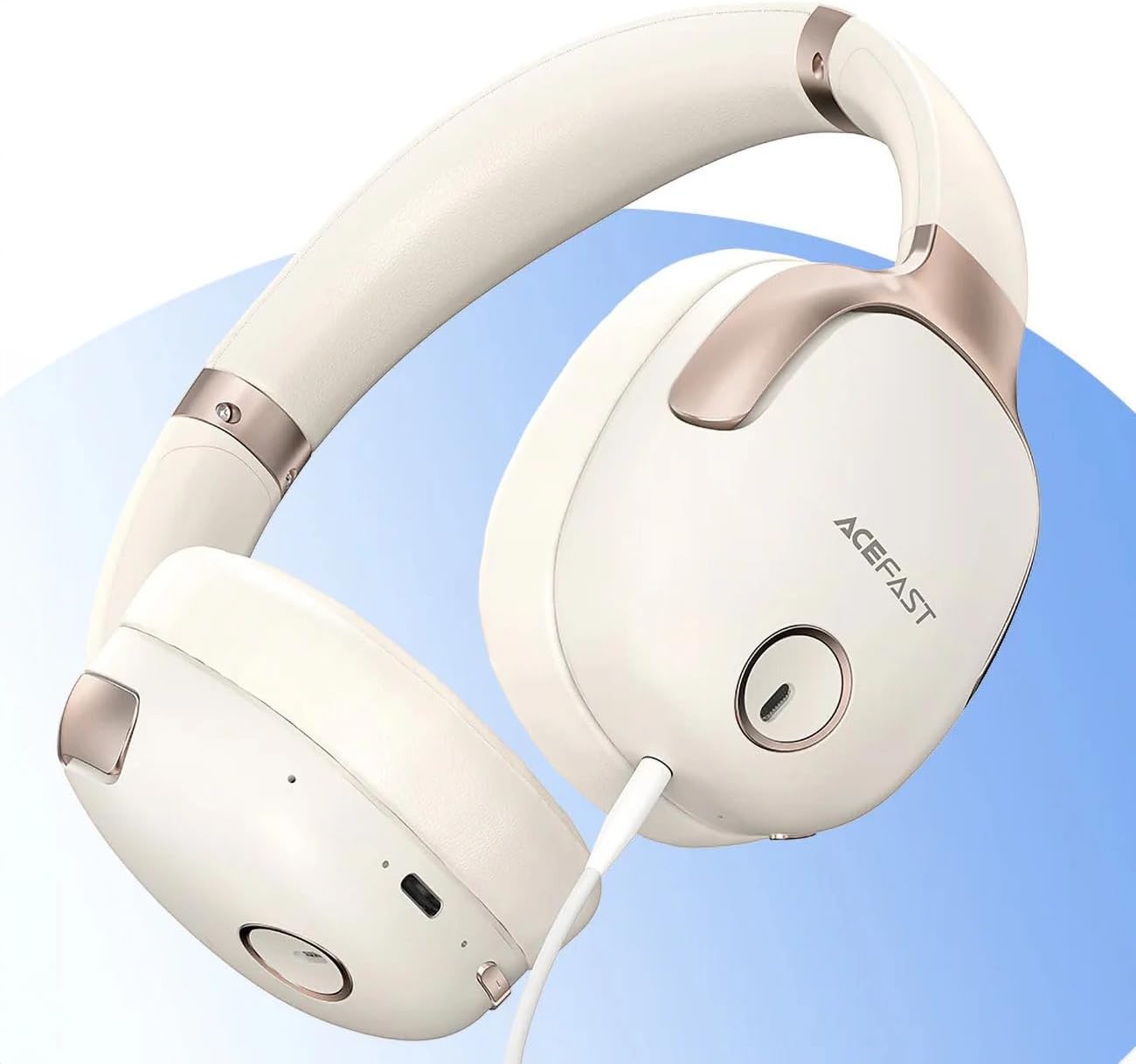

Figura 1: ACEFAST H2 Headset showing USB-C charging port, 3.5mm audio jack, and control buttons.

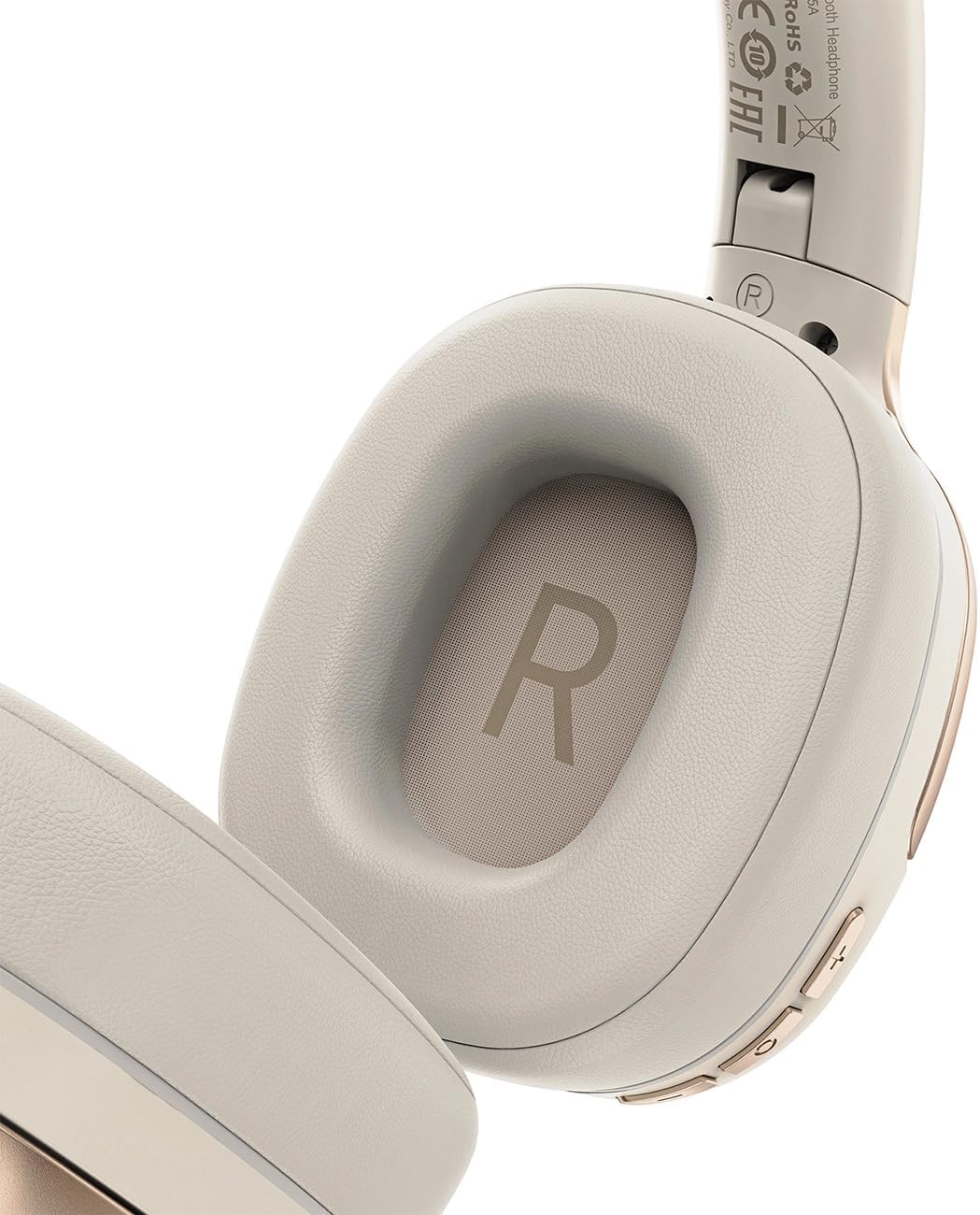

Figura 2: Interior of the right earcup, indicating proper orientation for wearing.

Figura 3: Headband adjustment mechanism and ear cup swivel for comfortable fit.

Figura 4: The foldable design of the headset for easy storage and transport.

Components clau:

• Botó d'engegada/multifunció: S'utilitza per encendre/apagar, reproduir/pausar i respondre/finalitzar trucades.
• Botó Pujar volum/Pista següent: Premeu per pujar el volum, manteniu premut per a la pista següent.
• Botó per baixar el volum/pista anterior: Premeu per baixar el volum, manteniu premut per a la pista anterior.
• Botó ANC: Activates or deactivates Active Noise Cancellation.
• Port de càrrega USB-C: Per carregar els auriculars.
• Conector d'àudio de 3.5 mm: For wired connection using the Aux cable.
• Micròfon: Built-in for calls.
• Indicador LED: Mostra l'estat de l'energia, la càrrega i l'emparellament.

Configuració

1. Càrrega dels auriculars

1. Connect the provided USB-C charging cable to the headset's USB-C port.
2. Connecteu l'altre extrem del cable a un adaptador de corrent USB (no inclòs) o al port USB d'un ordinador.
3. L'indicador LED mostrarà l'estat de càrrega (per exemple, vermell mentre es carrega, blau quan està completament carregat).
4. A full charge takes approximately 2 hours and provides up to 80 hours of music playback.

2. Encès / apagat

• Per encendre: Press and hold the Power/Multi-function button for approximately 3 seconds until the LED indicator flashes.
• Per apagar: Press and hold the Power/Multi-function button for approximately 5 seconds until the LED indicator turns off.

3. Emparellament Bluetooth

1. Assegureu-vos que els auriculars estan apagats.
2. Press and hold the Power/Multi-function button for about 5-7 seconds until the LED indicator flashes red and blue alternately, indicating pairing mode.
3. Al dispositiu (telèfon intel·ligent, tauleta, ordinador), activeu el Bluetooth i cerqueu els dispositius disponibles.
4. Select "ACEFAST H2" from the list of found devices.
5. Un cop emparellat, l'indicador LED parpellejarà lentament en blau.
6. The headset will automatically connect to the last paired device when powered on, if within range.

4. Connexió per cable (mode auxiliar)

• Connect one end of the 3.5mm Aux cable to the headset's 3.5mm audio jack.
• Connecteu l'altre extrem a la sortida d'àudio de 3.5 mm de la font d'àudio.
• In wired mode, the headset functions passively, and Bluetooth features are disabled. ANC may still be active if powered on.

Instruccions de funcionament

Reproducció de música

• Reproduir/pausa: Premeu breument el botó d'engegada/multifunció.
• Pujar el volum: Premeu breument el botó de pujar el volum.
• Baixar el volum: Premeu breument el botó per baixar el volum.
• Pista següent: Premeu llargament el botó de pujar el volum.
• Pista anterior: Premeu llargament el botó per baixar el volum.

Trucades telefòniques

• Respondre/Finalitzar la trucada: Premeu breument el botó d'engegada/multifunció.
• Rebutja la trucada: Premeu llargament el botó d'engegada/multifunció.
• Assistent de veu: Premeu dues vegades el botó d'engegada/multifunció (si el dispositiu és compatible).

Cancel·lació activa de soroll (ANC)

• Activar/Desactivar ANC: Press the dedicated ANC button. The LED indicator will change to confirm status.
• ANC reduces ambient noise up to -40dB, providing a quieter listening environment.

Manteniment

• Neteja: Use a soft, dry cloth to clean the headset. Do not use abrasive cleaners or solvents.
• Emmagatzematge: Store the headset in a cool, dry place away from direct sunlight and extreme temperatures. When not in use, it is recommended to fold the headset for compact storage.
• Resistència a l'aigua: The headset is IPX4 water-resistant, meaning it is protected against splashing water from any direction. It is not designed for submersion or exposure to heavy rain. Avoid exposing the charging port and audio jack to moisture.
• Cura de la bateria: To preserve battery life, charge the headset fully before long periods of storage and recharge it at least once every three months.

Resolució de problemes

Especificacions

Figura 5: Illustration of the dynamic HiFi audio driver components.

Informació de la garantia

The ACEFAST H2 Wireless Headset comes with a Garantia del fabricant de 6 mesos from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

Suport

For further assistance, technical support, or warranty inquiries, please refer to the contact information provided by your retailer or visit the official ACEFAST website. Ensure you have your product model number (H2) and proof of purchase ready when contacting support.
