V310 OBD2 EOBD + CAN Car Engine Scanner Code Reader Auto Diagnostic Tool User Manual

1. Introducció

The V310 OBD II / EOBD code reader is specifically designed for all OBD II compliant vehicles, including those equipped with Next Generation Protocol - Control Area Network (CAN). The US Environmental Protection Agency mandates that all cars and light trucks sold in the US from 1996 onwards must comply with the OBD II standard. This includes all domestic, Asian, and European vehicles. A small number of 1994 and 1995 model year gasoline vehicles are also OBD II compliant. To verify compliance for 1994 or 1995 vehicles, check the Vehicle Emissions Control Information (VECI) Label located under the hood or by the radiator. If the vehicle is OBD II compliant, the label will state "OBD II Certified". Additionally, all OBD II compliant vehicles must have a standard sixteen-pin Data Link Connector (DLC) under the dash.

2. Què hi ha a la caixa

Upon opening your V310 package, please verify that all components are present and in good condition:

• 1pc x V310 OBD2 Scanner Unit
• 1pc x manual d'usuari

Figure 2.1: The V310 package contents, including the scanner unit and user manual.

3. Configuració

To begin using your V310 OBD2 scanner, follow these simple steps:

1. Locate the Data Link Connector (DLC): The 16-pin DLC is typically found under the vehicle's dashboard, often on the driver's side. Refer to your vehicle's service manual if you have difficulty locating it.
2. Connect the V310: Plug the V310's integrated OBDII connector cable firmly into the vehicle's DLC. Ensure a secure connection. The device will power on automatically once connected to the vehicle's battery.
3. Engegada inicial: The V310 display will light up, indicating it is ready for use.

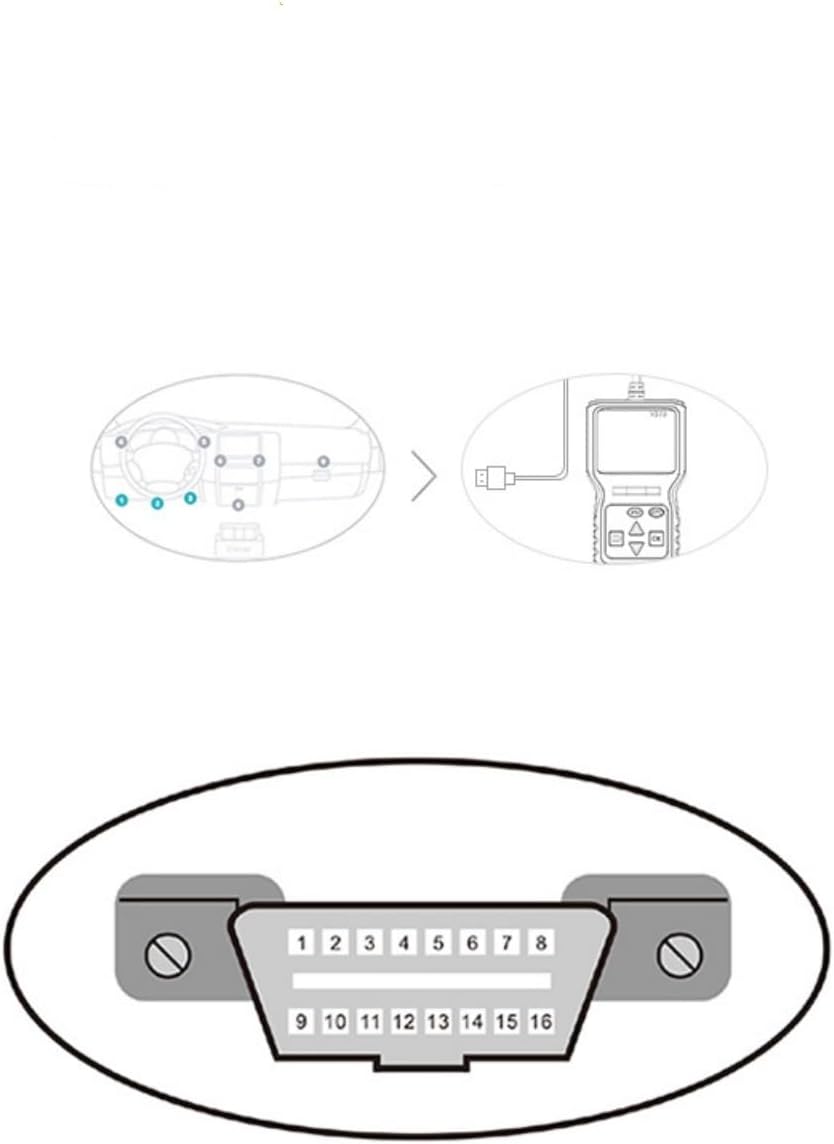

Figure 3.1: Illustration of a typical OBD-II Data Link Connector (DLC) location and pinout.

4. Instruccions de funcionament

The V310 OBD2 scanner offers a range of diagnostic functions. Use the navigation buttons (UP, DOWN, OK, RETURN) to navigate through the menus.

4.1. Interfície principal i navegació

Figura 4.1: Frontal view of the V310 scanner, highlighting the display and control buttons.

The main screen displays icons for various functions. Use the UP/DOWN arrows to highlight an option and OK to select it. The RETURN button typically takes you back to the previous screen.

4.2. Diagnostic Menu Functions

The diagnostic menu provides access to the core functions of the V310:

• Llegir codis: Recupera els codis de diagnòstic d'errors (DTC) de l'ordinador del vehicle.
• Esborra codis: Esborra els DTC de l'ordinador del vehicle i apaga l'indicador de fallades Lamp (MIL, "Check Engine" light).
• View Congelar fotograma: Displays a snapshot of sensor data recorded when a fault code was set.
• Preparació I/M: Comprova l'estat dels sistemes de monitorització relacionats amb les emissions.
• Informació del vehicle: Retrieves vehicle information such as VIN (Vehicle Identification Number), CID (Calibration ID), and CVN (Calibration Verification Number).
• Flux de dades: Displays live sensor data in numerical format.
• Realtime Curve: Displays live sensor data in a graphical format for easier analysis.

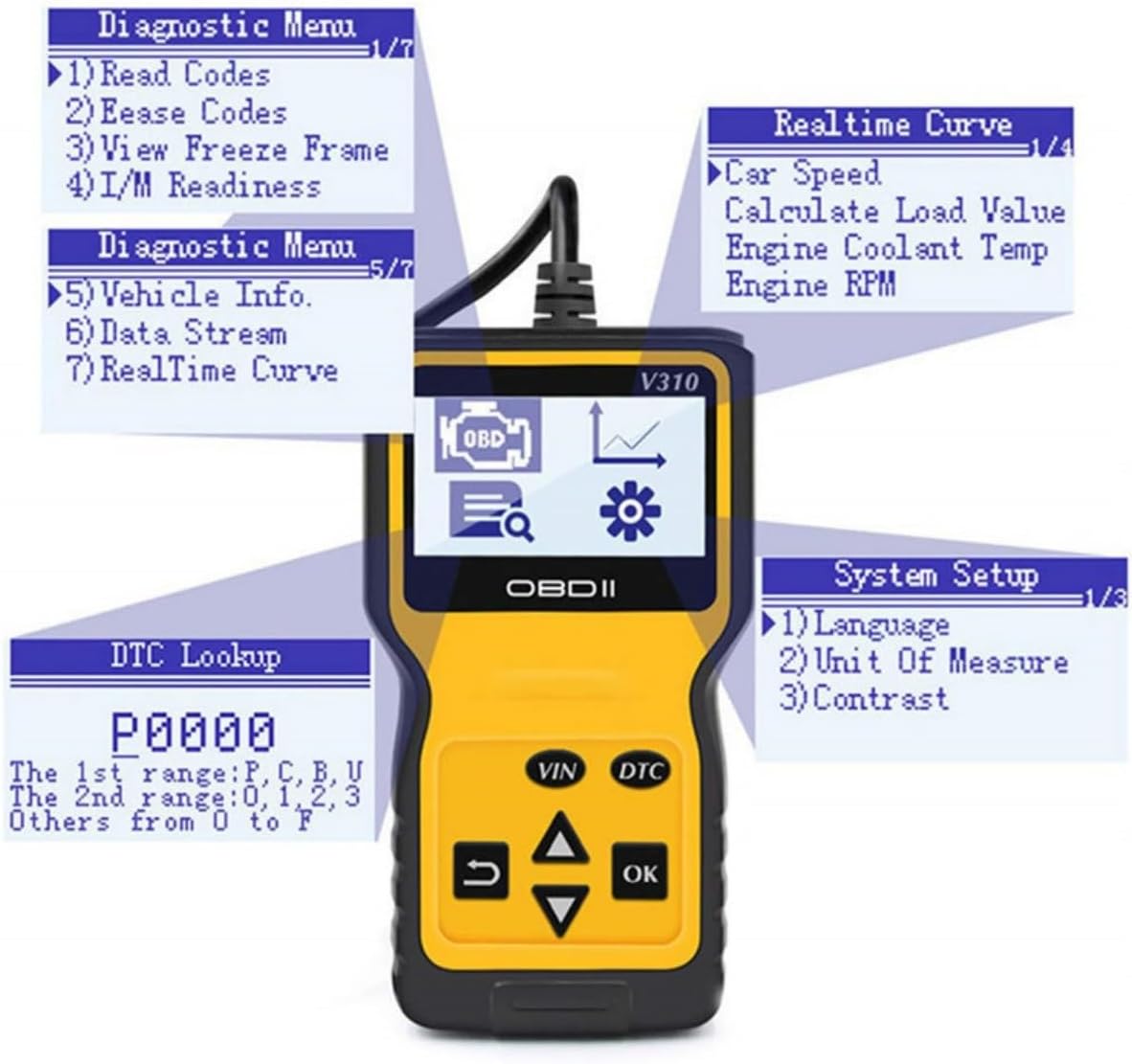

Figura 4.2: Mésview of the V310's diagnostic menu options.

Figure 4.3: The Realtime Curve function allows monitoring of live sensor data such as Car Speed, Calculated Load Value, Engine Coolant Temperature, and Engine RPM.

4.3. Supported Sensor Data

The V310 can display a wide range of current sensor data, including but not limited to:

• RPM del motor
• Valor de càrrega calculat
• Temperatura del refrigerant
• Estat del sistema de combustible
• Velocitat del vehicle
• Short Term Fuel Trim
• Long Term Fuel Trim
• Pressió del col·lector d'admissió
• Avanç de temps
• Temperatura d’aire d’administració
• Caudal d'aire
• Posició absoluta de l'accelerador
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Pressió del combustible

4.4. Multi-Language Support

The V310 supports multiple languages for user convenience. You can select from:

• Anglès
• francès
• italià
• espanyol
• alemany
• holandès

Figure 4.4: The V310 supports multiple languages for a global user base.

Figure 4.5: Navigate to the System Setup menu to change the display language.

5. Manteniment

To ensure the longevity and optimal performance of your V310 OBD2 scanner, please adhere to the following maintenance guidelines:

• Neteja: Use a soft, dry cloth to clean the device. Avoid using abrasive cleaners or solvents that could damage the casing o pantalla.
• Emmagatzematge: Store the scanner in a cool, dry place away from direct sunlight and extreme temperatures. When not in use, it is recommended to store it in its original packaging or a protective case.
• Cura del cable: Do not bend or crimp the OBDII cable excessively. Always grasp the connector when plugging or unplugging it from the vehicle's DLC.
• Eviteu les gotes: Protect the device from physical shocks and drops, which can damage internal components.

6. Solució De Problemes

If you encounter issues while using your V310 OBD2 scanner, consider the following common troubleshooting steps:

• Sense alimentació/pantalla: Ensure the OBDII connector is securely plugged into the vehicle's DLC. Verify that the vehicle's ignition is in the ON position (engine off or running, depending on the test). Check the vehicle's battery voltage; the scanner requires 8.0 to 15.0 Volts.
• "Linking to Vehicle" Error: This message indicates the scanner is attempting to establish communication. Ensure the vehicle is OBD II compliant (1996 and newer for most US vehicles). Check for loose connections.
• No s'han trobat codis: If the scanner reports "No Codes Found" but you suspect an issue, ensure the Malfunction Indicator Lamp (MIL) is illuminated. Some issues may not trigger a DTC.
• Incorrect Data Readings: Verify that the correct vehicle protocol is being used (though the V310 auto-detects). Ensure the engine is running for live data streams.

For persistent issues or specific error codes not covered here, please refer to the detailed sections of this user manual or contact customer support.

7. Especificacions

Detailed technical specifications for the V310 OBD2 scanner:

7.1. Multi-Protocol Support

The V310 supports a wide range of OBDII protocols, ensuring compatibility with various vehicles:

• VEURE J1850 PWM (41.6 KB)
• VEURE J1850 VPW (10.4Kbaud)
• ISO9141-2 (inici de 5 bauds, 10.4 Kbaud)
• ISO14230-4 KWP (init baud 5, 10.4 Kbaud)
• ISO14230-4 KWP (iniciació ràpida, 10.4 Kbaud)
• CAN ISO15765-4 (11bit ID, 500 Kbaud)
• CAN ISO15765-4 (29bit ID, 500 Kbaud)
• CAN ISO15765-4 (11bit ID, 250 Kbaud)
• CAN ISO15765-4 (29bit ID, 250 Kbaud)

Figure 7.1: Physical dimensions of the V310 OBD2 scanner.

8. Garantia i assistència

For information regarding the product warranty, please refer to the warranty card included with your purchase or contact the retailer. Extended protection plans may also be available for purchase to provide additional coverage beyond the standard warranty period.

For technical support, product inquiries, or assistance with troubleshooting, please contact Skycityworld customer service through the contact information provided on the product packaging or the official Skycityworld weblloc.
