Mepplzian 16x31 Black Arched Medicine Cabinet Instruction Manual

Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Mepplzian 16x31 Black Arched Medicine Cabinet. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Informació de seguretat

ADVERTIMENT:

• Potential hazard when opening the door due to left hinges. Ensure adequate clearance.
• Handle with care during shipping and installation to prevent injury or damage to the product.
• Always wear appropriate safety gear during installation.
• Ensure the mounting surface can support the weight of the cabinet and its contents.

Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

• Botiquí x1
• Tempered Glass Shelves x2
• Hardware Accessories x1 (for mounting)
• Manual d'usuari x1

Figure 1: Included components upon unboxing.

Especificacions del producte

Instal·lació

The Mepplzian Arched Medicine Cabinet offers both recessed (in-wall) and wall-mounted installation options. The cabinet is 95% pre-assembled, requiring minimal setup.

1. Pre-Installation Measurements

Before installation, carefully measure your space to ensure proper fit and clearance. Consider the location of existing light fixtures and faucets.

• For Height (H): If you have a bathroom pendant light, measure the distance from the bottom of the light to the faucet. The suitable height range for the mirror cabinet is H minus 2 to 6 inches.
• For Width (W): If you have bathroom wall lights, measure the distance between the two wall lights. The suitable width range for the mirror cabinet is W minus 2 to 6 inches.
• Ensure a distance of 1 to 3 inches between the cabinet and any light fixture, or between the cabinet and the faucet.

2. Opcions de muntatge

The cabinet can be installed as a surface mount or a recess mount. Refer to the provided hardware accessories and the installation guide for detailed steps specific to your chosen method.

Figure 2: Illustration of wall-mounted and recessed installation options.

Nota: For recessed installation, a wall cut-out is required. Consult the detailed installation guide included in your package for precise dimensions and instructions.

Configuració

Your medicine cabinet comes 95% assembled. The only setup required is placing the two tempered glass shelves inside the cabinet.

1. Carefully unpackage the two tempered glass shelves.
2. Locate the shelf support pins inside the cabinet.
3. Insert the glass shelves onto the support pins at your desired height. The spacing between the layers is fixed, so ensure they are placed securely.

Figura 3: Interior view showing shelf support pins for glass shelves.

Instruccions de funcionament

This Mepplzian 16x31 No LED Matte Black Arched Medicine Cabinet functions as a mirror and a storage unit. It does not include integrated LED lighting or a defogger feature.

• Funcionament de la porta: The cabinet door opens from right to left, utilizing left-side hinges. A magnetic buckle ensures the door remains securely closed.
• Emmagatzematge: The interior features two tempered glass shelves, creating three distinct storage layers for your bathroom essentials.

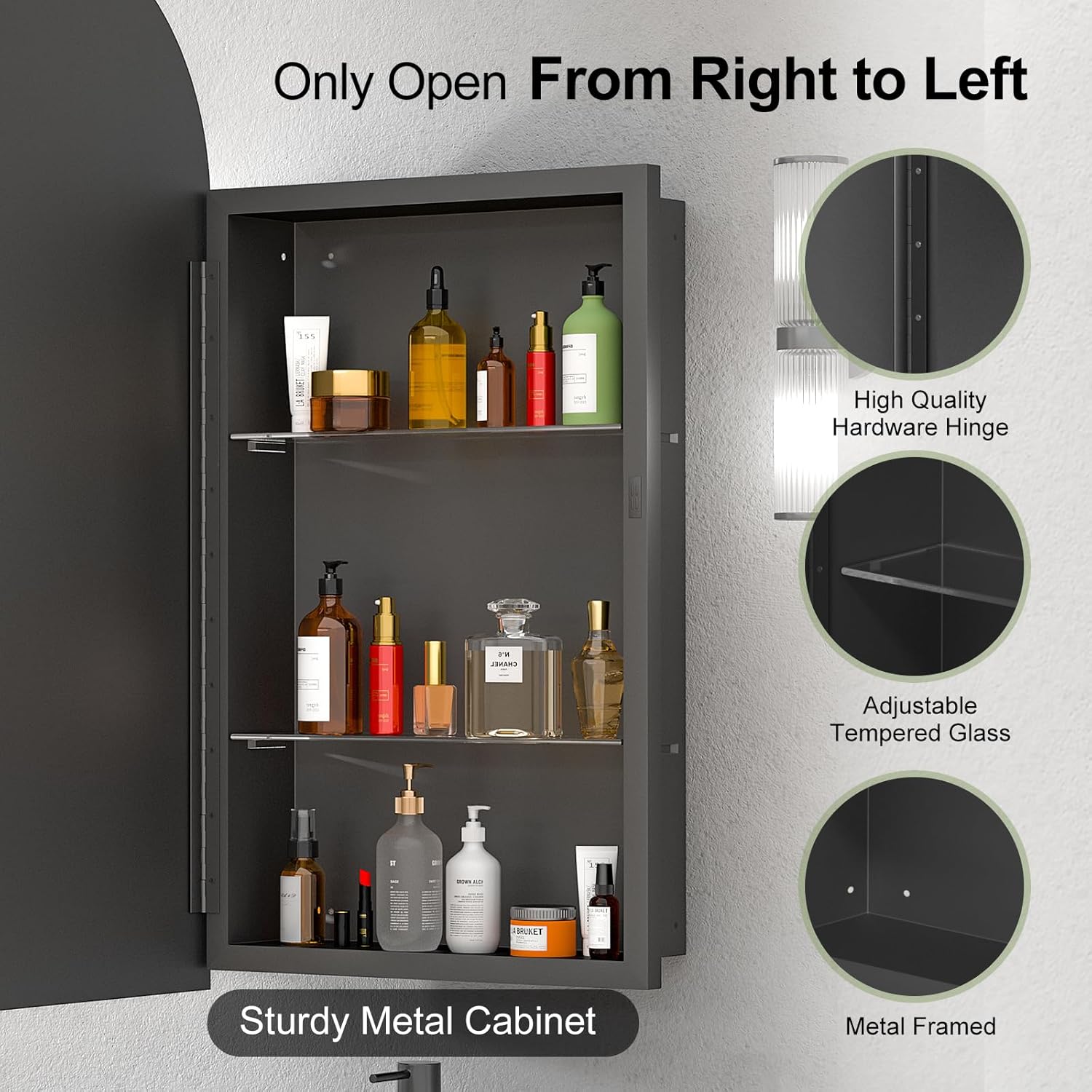

Figure 4: Cabinet interior with door open, showing storage space and tempered glass shelves.

Manteniment

• Neteja del mirall: Feu servir un drap suau i sense borrissol i un netejador de vidres no abrasiu. Ruixeu el netejador sobre el drap, no directament sobre el mirall, per evitar que el líquid s'infiltri per les vores.
• Neteja de l'armari: Wipe the metal frame and interior surfaces with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by drying thoroughly. Avoid harsh chemicals or abrasive cleaners.
• Inspecting Hinges: Periodically check the door hinges for any signs of loosening. Tighten screws if necessary to ensure smooth operation and prevent misalignment.
• Eviteu l'excés d'humitat: While the cabinet is waterproof, prolonged exposure to excessive moisture should be avoided to maintain its finish and structural integrity.

Resolució de problemes

Aquesta secció tracta els problemes habituals que podeu trobar amb el vostre armari de medicaments.

Door Does Not Close Securely:

• Check if the magnetic buckle is aligned properly with the metal plate on the cabinet frame.
• Ensure there are no obstructions preventing the door from closing fully.
• Inspect hinges for damage or looseness. Tighten any loose screws.

Mirror Appears Wobbly After Installation:

• Verify that all mounting hardware is securely fastened to both the wall and the cabinet.
• Ensure the wall surface is flat and stable. If the wall is uneven, this could affect stability.

Scratches or Damage During Installation:

• Minor scratches on the metal frame can sometimes be touched up with a matte black paint suitable for metal.
• En cas de danys importants, contacteu amb el servei d'atenció al client per obtenir ajuda.

Informació de la garantia

Specific warranty details for the Mepplzian 16x31 Black Arched Medicine Cabinet are typically provided at the point of purchase or within the product packaging. Please retain your proof of purchase for any warranty claims.

Generally, products are covered against manufacturing defects for a limited period. For detailed terms and conditions, please refer to the warranty card included with your product or contact Mepplzian customer service.

Atenció al client

If you have any questions, require assistance with installation, or need to report a damaged or missing part, please contact Mepplzian customer support.

• Assistència en línia: Visita el Mepplzian Store on Amazon per a preguntes freqüents i opcions de contacte.
• Contacte del venedor: For issues related to your purchase, you may also contact the seller, Kencosy, directly through your Amazon order history.
