10L0L 48V Golf Cart Battery Charger User Manual

1. Introducció i finalview

This manual provides essential instructions for the safe and efficient operation of your 10L0L 48V Golf Cart Battery Charger. This charger is specifically designed for 48V Club Car DS and Precedent models, featuring a direct-connect 3-pin round plug. It offers efficient 15-Amp smart charging for various battery types, including Lead-Acid, AGM, and LiFePO4 (LFP) batteries, with an automatic shut-off function upon full charge. The charger is built with an IP67 waterproof rating and a durable die-cast aluminum alloy case, ensuring resistance to dust, moisture, and impacts. For enhanced monitoring and diagnostics, a Bluetooth-enabled app is available.

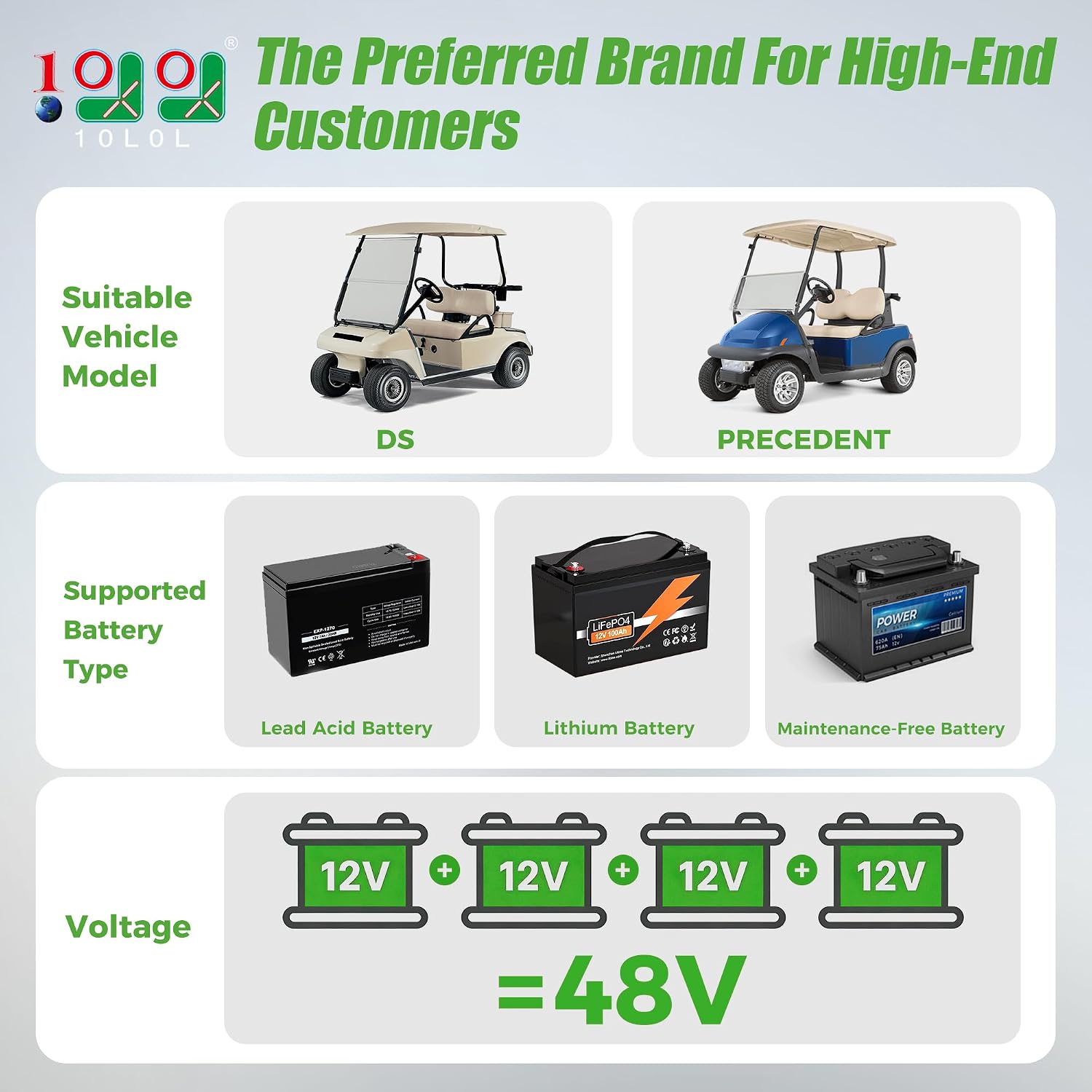

Figure 1: Compatible Golf Cart Models and Battery Types

This image illustrates the charger's compatibility with Club Car DS and Precedent golf carts, and its ability to charge Lead Acid, Lithium (LiFePO4), and Maintenance-Free (AGM) 48V battery systems.

2. Informació de seguretat

Please read all safety instructions before using the charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Seguretat elèctrica: Ensure the charger is connected to a grounded outlet. Do not operate the charger with damaged cords or plugs. Avoid contact with water or wet surfaces during operation.
• Compatibilitat de la bateria: Only use this charger with 48V Lead-Acid, AGM, or LiFePO4 batteries. Using it with incompatible battery types or voltages may cause damage to the battery or charger.
• Ventilació: Ensure adequate ventilation around the charger during operation, especially when charging lead-acid batteries which can emit gases.
• Protecció de sobrecàrrega: The charger features an advanced safety system with overcharge protection. However, always monitor the charging process.
• Nens i animals de companyia: Keep the charger and golf cart out of reach of children and pets.
• Condicions ambientals: While the charger is IP67 waterproof, avoid submerging it. Operate within recommended temperature ranges.

Figure 2: Smart Charging Cycle Overview

This image depicts the charger's 9-stage smart charging process, which includes battery recovery capabilities and ensures safe, optimized charging by managing current and voltage through different phases until a full charge is achieved.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• 1x 10L0L 48V Golf Cart Battery Charger
• 1x Power Cable with 3-Pin Round Plug
• 1x Dedicated Club Car OBC Cable
• 1x Manual d'usuari (Aquest document)

4. Especificacions

Figure 3: High-Power Charging Performance

This image illustrates the charger's high-power output, enabling a quick-charge time of approximately 7 hours for a 48V golf cart battery.

Figura 4: Disseny compacte i portàtil

This image demonstrates the charger's compact size and lightweight nature, making it easy to transport and store.

5. Configuració

1. Desembalar: Carefully remove the charger and all accessories from the packaging. Inspect for any signs of damage.
2. OBC Cable Connection: For Club Car models with an On-Board Computer (OBC), connect the provided dedicated Club Car OBC cable to the charger. This cable is essential to activate charging.
3. Col·locació del carregador: Place the charger on a stable, dry, and well-ventilated surface. Ensure it is not exposed to direct sunlight or excessive heat.
4. Golf Cart Connection: Insert the 3-pin round plug of the charger into the charging port of your 48V Club Car DS or Precedent golf cart. Ensure a secure connection.
5. Connexió d'alimentació: Plug the charger's power cable into a standard 110V AC grounded electrical outlet.

6. Instruccions de funcionament

1. Iniciar la càrrega: Once the charger is connected to both the golf cart and the power outlet, the charging process will begin automatically. The charger's indicator lights will show the charging status.
2. Càrrega del monitor: The charger will automatically adjust its output based on the battery's needs. It will transition through various charging stages (e.g., constant current, constant voltage, trickle charge).
3. Indicació de càrrega completa: When the battery is fully charged, the charger will automatically shut off, and a solid green light will illuminate, indicating completion.
4. Desconnexió: Once charging is complete, first unplug the charger from the AC power outlet, then disconnect the 3-pin round plug from the golf cart's charging port.
5. App Control (Optional): For advanced monitoring, download the dedicated Bluetooth-enabled app. This app allows you to track charging progress, view detailed metrics, and diagnose potential charging issues in real-time. Refer to the app's instructions for pairing and usage.

7. Manteniment

Un manteniment adequat garanteix la longevitat i el rendiment òptim del carregador.

• Neteja: Regularly wipe the charger's exterior with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the cooling fan (if visible) is free from dust and debris.
• Emmagatzematge: When not in use, store the charger in a cool, dry place, away from direct sunlight and extreme temperatures. Coil cables neatly to prevent damage.
• Inspecció del cable: Periodically inspect the power cord and charging cables for any signs of wear, cuts, or damage. Replace damaged cables immediately.
• Classificació impermeable: The IP67 waterproof rating protects against dust and temporary immersion in water. However, avoid prolonged exposure to heavy rain or submersion to prevent potential damage.

Figura 5: Disseny impermeable IP67

This image highlights the charger's IP67 waterproof capability, allowing it to operate reliably in various weather conditions, including heavy rain.

Figure 6: Smart Cooling System

This image details the built-in circulating fan system designed to cool the charger, prevent overheating, and ensure quiet operation.

Figure 7: Durable Aerospace-Grade Aluminum Alloy Casing

This image demonstrates the robust construction of the charger, featuring an aerospace-grade aluminum alloy shell designed to resist impacts and harsh environments.

8. Solució De Problemes

Si teniu problemes amb el carregador, consulteu els següents problemes i solucions habituals:

• El carregador no s'activa:
  • Ensure the dedicated Club Car OBC cable is correctly connected to the charger and the golf cart.
  • Verify that the 3-pin round plug is securely inserted into the golf cart's charging port.
  • Check if the power cable is firmly plugged into a working 110V AC grounded outlet.
• No Indicator Lights:
  • Confirm the power outlet is functional by testing it with another device.
  • Inspeccioneu el cable d'alimentació per veure si hi ha danys visibles.
• Charging Stops Prematurely:
  • The charger has built-in safeguards (e.g., overcharge, short-circuit protection). If an issue is detected, it may stop charging. Disconnect and reconnect to reset.
  • Check the battery for any signs of damage or overheating.
  • Use the Bluetooth app to diagnose specific error codes or issues.
• Càrrega lenta:
  • Ensure the battery type selected (if applicable via app) matches the battery being charged.
  • Verify that the charger is operating in a well-ventilated area to prevent thermal throttling.

Si els passos de resolució de problemes no resolen el problema, poseu-vos en contacte amb l'atenció al client.

9. Garantia i Suport

The 10L0L 48V Golf Cart Battery Charger comes with a 3 any de garantia, as indicated by product information. This warranty covers manufacturing defects and ensures reliable operation under normal use.

Our dedicated customer service team is available to provide expert technical assistance and support. If you have any questions regarding installation, operation, maintenance, or require troubleshooting assistance, please do not hesitate to contact us. We are committed to ensuring a smooth experience with your 10L0L product.

For support, please refer to the contact information provided on the product packaging or the official 10L0L weblloc.
