Tilta Pyxis 6K/12K Camera Cage Pro Kit Instruction Manual

1. Introducció

This manual provides detailed instructions for the assembly, operation, and maintenance of your Tilta Pyxis 6K/12K Camera Cage Pro Kit. Please read this manual thoroughly before using the product to ensure proper function and longevity. Keep this manual for future reference.

2. Producte acabatview

The Tilta Pyxis 6K/12K Camera Cage Pro Kit is custom-designed to enhance the functionality and protection of your Blackmagic Design PYXIS 6K/12K camera. It offers multiple mounting points for accessories and supports various shooting configurations.

• Disseny personalitzat: Specifically tailored for the BMD PYXIS 6K/12K camera body.
• Muntatge versàtil: Features NATO rails, Arri Rosette, Cold Shoe, 1/4"-20, and 3/8"-16 threads with locating pins for extensive accessory attachment.
• Side Plate Functionality: Supports vertical shooting configurations and includes an integrated SSD mounting slot. Compatible with hard drives 52mm to 60mm wide and less than 12mm thick.
• LWS Base Plate: Accommodates 15mm rods and mounts to standard Tilta dovetails for expanded rigging options.
• NATO Top Handle: Provides enhanced flexibility and stability during camera operation and transport.

3. Què hi ha a la caixa

The Tilta Pyxis 6K/12K Camera Cage Pro Kit (ES-T21-B-V TX) includes the following components:

1. Full Camera Cage for PYXIS 6K (ES-T21-FCC)
2. Battery Plate for PYXIS 6K - V-Mount (ES-T21-BP-V) x 1
3. Tilta Xeno Top Handle (NATO) - Black (TA-XTH3-B) x 1
4. Tilta Universal 15mm LWS Manfrotto Baseplate - Black (ESR-T08-BSP) x 1
5. 15 x 200mm Aluminum Rod, 2 pieces - Black (R15-200-B)

4. Instruccions de configuració

Follow these steps to assemble your Tilta Pyxis 6K/12K Camera Cage Pro Kit:

4.1. Attaching the Full Camera Cage

1. Carefully place your Blackmagic Design PYXIS 6K/12K camera into the Full Camera Cage (ES-T21-FCC).
2. Secure the camera using the designated screws on the bottom and sides of the cage. Ensure all connections are firm but do not overtighten.

4.2. Installing the V-Mount Battery Plate

1. Attach the V-Mount Battery Plate (ES-T21-BP-V) to the designated mounting points on the rear of the camera cage.
2. Secure it with the provided screws. This plate allows for external power solutions.

4.3. Mounting the Tilta Xeno Top Handle

1. Slide the Tilta Xeno Top Handle (TA-XTH3-B) onto the NATO rail located on the top of the camera cage.
2. Estrenyeu el mecanisme de bloqueig per fixar la nansa al seu lloc.

4.4. Attaching the 15mm LWS Manfrotto Baseplate and Rods

1. Connect the Tilta Universal 15mm LWS Manfrotto Baseplate (ESR-T08-BSP) to the bottom of the camera cage.
2. Insert the two 15 x 200mm Aluminum Rods (R15-200-B) into the rod clamps on the baseplate. Adjust their position as needed and tighten the clamps.

5. Instruccions de funcionament

5.1. Muntatge d'accessoris

Utilize the various mounting points on the cage to attach accessories such as monitors, microphones, and wireless video transmitters:

• Ferrocarrils de l'OTAN: For quick-release accessories like top handles, side handles, and monitor mounts.
• Roseta ARRI: Provides a secure connection for handles or extension arms.
• Suports de sabata freda: Ideal for attaching small accessories like microphones or LED lights.
• 1/4"-20 and 3/8"-16 Threads: Standard mounting points for a wide range of camera accessories.

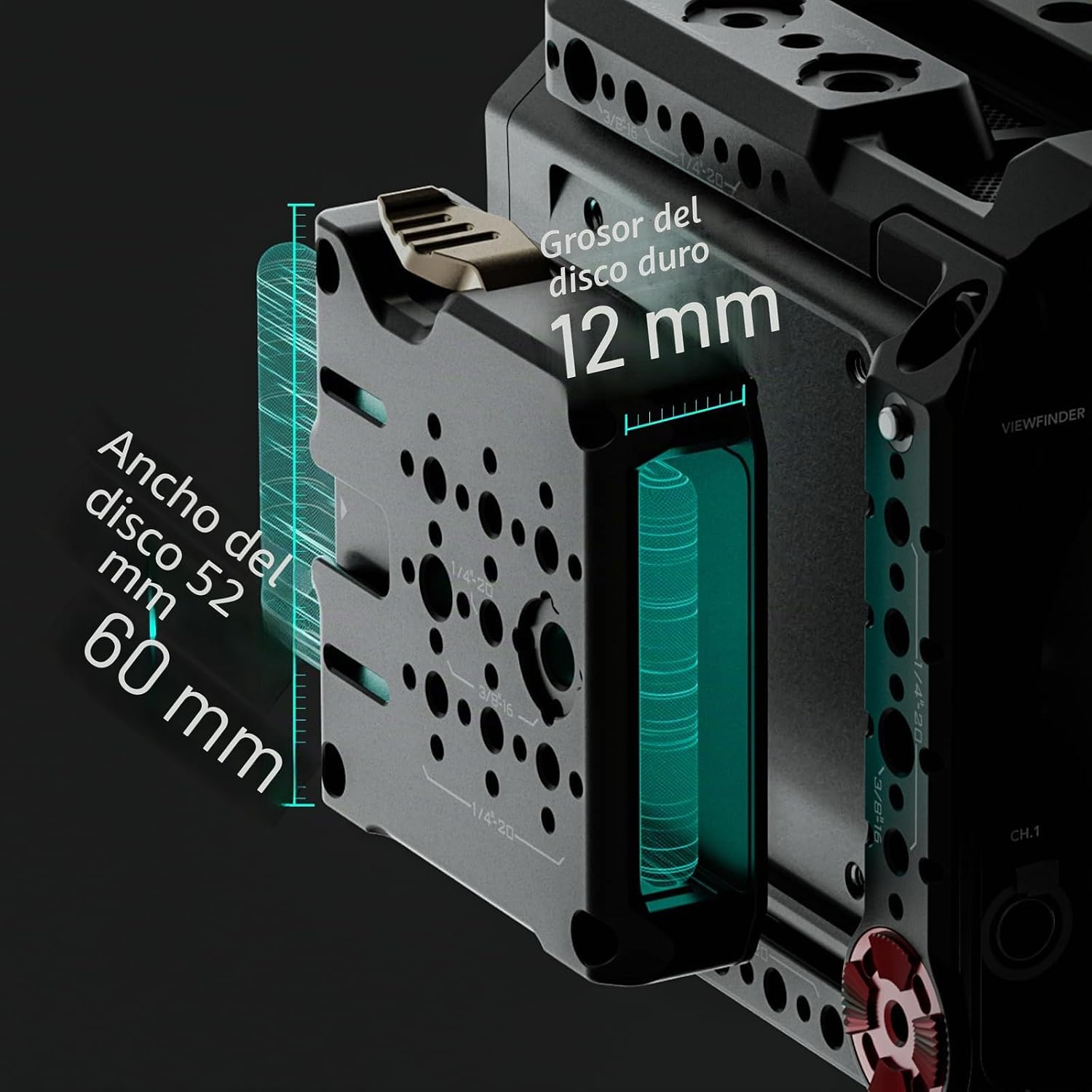

5.2. SSD Mounting

The multi-functional side plate includes a dedicated slot for SSD drives. To install an SSD:

1. Open the SSD unlock lever on the side plate.
2. Slide your compatible SSD (52mm-60mm width, <12mm thickness) into the slot.
3. Close the unlock lever to secure the SSD.

5.3. Horizontal and Vertical Shooting

The cage design supports both horizontal and vertical camera orientations. For vertical shooting, the side plate can be reconfigured to act as a bottom plate, providing ample space for rods and accessories.

6. Manteniment

To ensure the longevity and optimal performance of your Tilta Pyxis 6K/12K Camera Cage Pro Kit, follow these maintenance guidelines:

• Neteja: Use a soft, dry cloth to wipe down the cage and its components. For stubborn dirt, a slightly damp es pot fer servir un drap i assecar-lo immediatament. Eviteu netejadors o dissolvents abrasius.
• Inspecció: Regularly check all screws and mounting points for tightness. Re-tighten any loose connections to prevent accidental detachment of equipment.
• Emmagatzematge: Store the camera cage in a clean, dry environment away from extreme temperatures and humidity when not in use.
• Eviteu apretar massa: While securing components, ensure they are firm but do not overtighten screws, as this can strip threads or damage the equipment.

7. Solució De Problemes

If you encounter any issues with your Tilta Pyxis 6K/12K Camera Cage Pro Kit, consider the following common solutions:

• Components solts: If any part of your rig feels unstable, check all connection points and ensure screws are properly tightened.
• Compatibilitat d'accessoris: Verify that any third-party accessories you are attempting to mount are compatible with the cage's mounting standards (NATO, Arri Rosette, Cold Shoe, 1/4"-20, 3/8"-16).
• SSD no compatible: Ensure your SSD meets the specified dimensions (52mm-60mm width, <12mm thickness) for the side plate slot.
• Dificultat de muntatge: Refer back to the 'Setup Instructions' section and the provided diagrams to ensure all components are being assembled in the correct order and orientation.

For persistent issues not covered here, please contact Tilta customer support.

8. Especificacions

9. Garantia i assistència

This Tilta product comes with a Garantia del fabricant de 2 anysSi us plau, conserveu el comprovant de compra per a reclamacions de garantia.

For technical support, warranty service, or additional product information, please visit the official Tilta store or contact their customer service department.

Official Tilta Store: Tilta on Amazon.es
