Generic Wireless Food Chopper 100ml User Manual

1. Introducció

Thank you for choosing the Generic Wireless Food Chopper. This compact and portable device is designed to simplify your food preparation tasks, allowing you to quickly chop garlic, ginger, chili, fruits, meat, and spices. Please read this manual carefully before use to ensure safe and optimal operation.

2. Informació de seguretat

• Always keep the chopper out of reach of children.
• The blades are extremely sharp. Handle with care during assembly, disassembly, and cleaning.
• Do not immerse the motor unit in water or any other liquid. The motor unit is waterproof for rinsing, but not for submersion.
• Ensure the charging port is dry before connecting the USB charging cable.
• Do not operate the chopper if any part is damaged. Contact support for assistance.
• Avoid overfilling the chopping bowl.
• No utilitzeu l'aparell per a fins diferents a l'ús previst.

3. Contingut del paquet

El paquet inclou els articles següents:

• 1 x Electric Mini Garlic Food Chopper (Motor Unit, Chopping Bowl, Blade Assembly)
• 1 x cable de càrrega USB

4. Característiques del producte

• Funcionament sense fil: Enjoy the convenience of cordless chopping.
• USB recarregable: Easy charging via USB, perfect for portability.
• Picació eficient: Equipped with advanced 45-degree stainless steel blades for precise results.
• Disseny impermeable: Allows for easy cleaning of the chopping bowl and blades.
• Bloqueig de seguretat: Ensures safe operation by preventing the motor from running if not properly assembled.
• Compacte i portàtil: Lightweight design ideal for travel, camping o cuines petites.

Image: Product details highlighting the three-blade knife, safety lock, charging indicator, and waterproof design.

5. Configuració

5.1 Càrrega inicial

1. Abans del primer ús, carregueu completament el dispositiu.
2. Connect the USB charging cable to the charging port on the motor unit.
3. Plug the other end of the USB cable into a suitable USB power source (e.g., wall adapter, computer, power bank).
4. The charging indicator light will illuminate during charging. It typically takes about 3 hours for a full charge, providing approximately one month of use depending on frequency.
5. Un cop carregat completament, desconnecteu el cable USB.

Image: The mini electric chopper being charged via USB, illustrating its rechargeable and waterproof features.

Image: The chopper demonstrating its compact size and long battery life after a 3-hour charge.

5.2 Muntatge

1. Carefully place the blade assembly onto the central pin inside the chopping bowl.
2. Add your ingredients into the chopping bowl. Do not exceed the MAX fill line.
3. Align the motor unit with the chopping bowl and twist or press down firmly until it locks into place. The safety lock ensures the device will not operate unless properly assembled.

6. Instruccions de funcionament

1. Prepare ingredients by cutting them into smaller pieces (approximately 1-2 cm) if necessary, to ensure efficient chopping.
2. Place the prepared ingredients into the chopping bowl.
3. Ensure the motor unit is securely attached to the chopping bowl.
4. Press and hold the power button on the top of the motor unit to start chopping.
5. Release the button to stop chopping. For finer results, pulse the button in short bursts.
6. For even chopping, you may need to briefly stop, remove the motor unit, and gently shake the bowl or use a spatula to redistribute ingredients before continuing.
7. Once chopping is complete, carefully remove the motor unit, then remove the blade assembly before emptying the chopped ingredients.

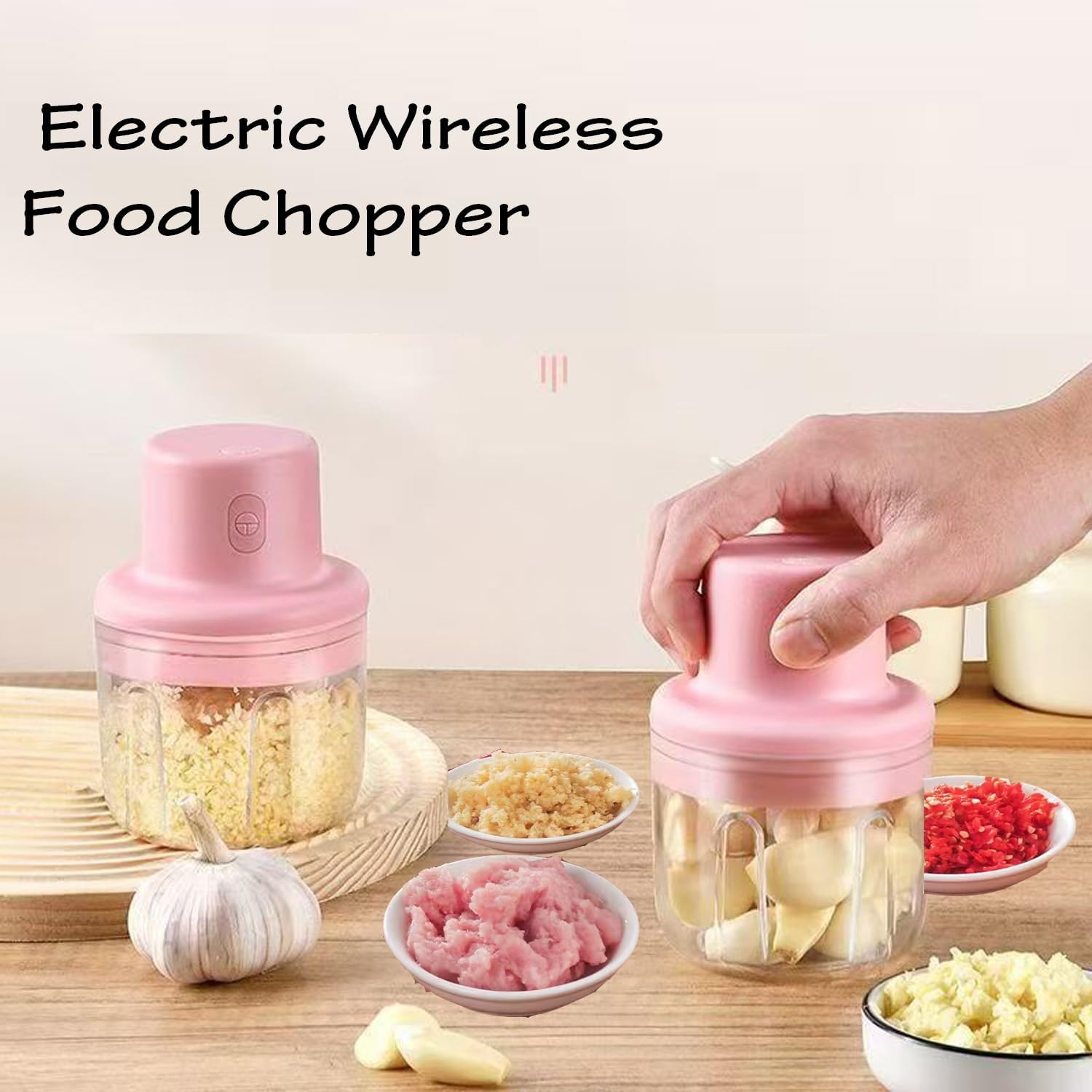

Image: The wireless food chopper actively chopping ingredients, demonstrating its use for various foods.

Image: The chopper's effectiveness in processing meat and other ingredients, highlighting its capacity.

7. Neteja i Manteniment

Regular cleaning ensures the longevity and hygiene of your food chopper.

1. Always ensure the device is turned off and disconnected from any charging cable before cleaning.
2. Disassemble the motor unit, blade assembly, and chopping bowl.
3. The chopping bowl and blade assembly are dishwasher safe or can be hand washed with warm, soapy water. Be extremely careful when handling the sharp blades.
4. The motor unit has a waterproof design, allowing it to be rinsed under running water. No submergiu la unitat del motor a l'aigua. Netegeu-lo amb l'anunciamp tela si cal.
5. Assegureu-vos que totes les peces estiguin ben seques abans de tornar-les a muntar o emmagatzemar.
6. Store the chopper in a dry place.

Product Care Instructions: Hand Wash (for blades and bowl, motor unit rinse only).

8. Solució De Problemes

If you encounter issues with your Wireless Food Chopper, please refer to the following common problems and solutions:

• El dispositiu no s'encén:
  • Ensure the battery is charged. Connect to a USB power source and charge for at least 30 minutes.
  • Verify that the motor unit is correctly assembled and locked onto the chopping bowl. The safety lock prevents operation if not properly secured.
• Ingredients are not chopping effectively:
  • Ensure ingredients are cut into small, manageable pieces before placing them in the chopper.
  • Do not overfill the chopping bowl. Reduce the quantity of ingredients.
  • The blades may be dull. If the device is new, this is unlikely. If it has been used extensively, consider replacement if available.
  • Pulse the button instead of holding it down continuously for better results with some ingredients.
• Chopper stops during operation:
  • Pot ser que la bateria estigui baixa. Torneu a carregar el dispositiu.
  • The motor might be overheating due to continuous use or tough ingredients. Allow it to cool down for a few minutes before resuming.
  • Check for any obstructions or large pieces of food jamming the blades.
• La llum indicadora de càrrega no s'encén:
  • Ensure the USB cable is securely connected to both the chopper and the power source.
  • Proveu un cable USB o un adaptador d'alimentació diferent.
  • Comproveu si el port de càrrega està net i lliure de residus.

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

9. Especificacions

Image: Dimensions of the 100ml and 250ml food chopper models.

10. Garantia i Suport

Information regarding product warranty and customer support was not provided in the product details. Please refer to your purchase documentation or contact the seller directly for warranty claims or technical assistance.
