1. Introducció
Welcome to the ANCHEER Electric Bike user manual. This guide provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new ANCHEER RoverH electric bike. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
The ANCHEER RoverH Electric Bike, featuring a robust design and fat tires for versatile terrain.
2. Informació de seguretat
Your safety is paramount. The ANCHEER RoverH Electric Bike is UL2849 Compliant (for the whole ebike) and UL2271 Compliant, ensuring high safety standards. Always wear a helmet and appropriate safety gear. Observe all local traffic laws and regulations. Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery level.
- Porteu sempre un casc homologat.
- Familiarize yourself with local e-bike regulations.
- Perform pre-ride safety checks.
- No conduïu la bicicleta sota els efectes de l'alcohol o les drogues.
3. Producte acabatview
The ANCHEER RoverH is equipped with a powerful 1000W Peak (750W Rated) motor, a 48V 15Ah removable battery, and a 7-speed gear system, designed for both daily commutes and off-road adventures.
Components clau:
- Motor: Peak 1000W (Rated 750W) motor for powerful assistance.
- Bateria: 48V 15Ah removable battery, IPX5 waterproof, with 3A fast charging.
- Visualització: Large digital display showing bike status, speed, battery indicator, and mileage.
- Frens: Professional-grade 180mm brake rotors for superior stopping power.
- Suspensió: Front suspension for a comfortable ride.
Detallada view of the 1000W peak motor, highlighting its internal components and power capabilities.
The clear digital display provides real-time information on speed, battery, and trip data.

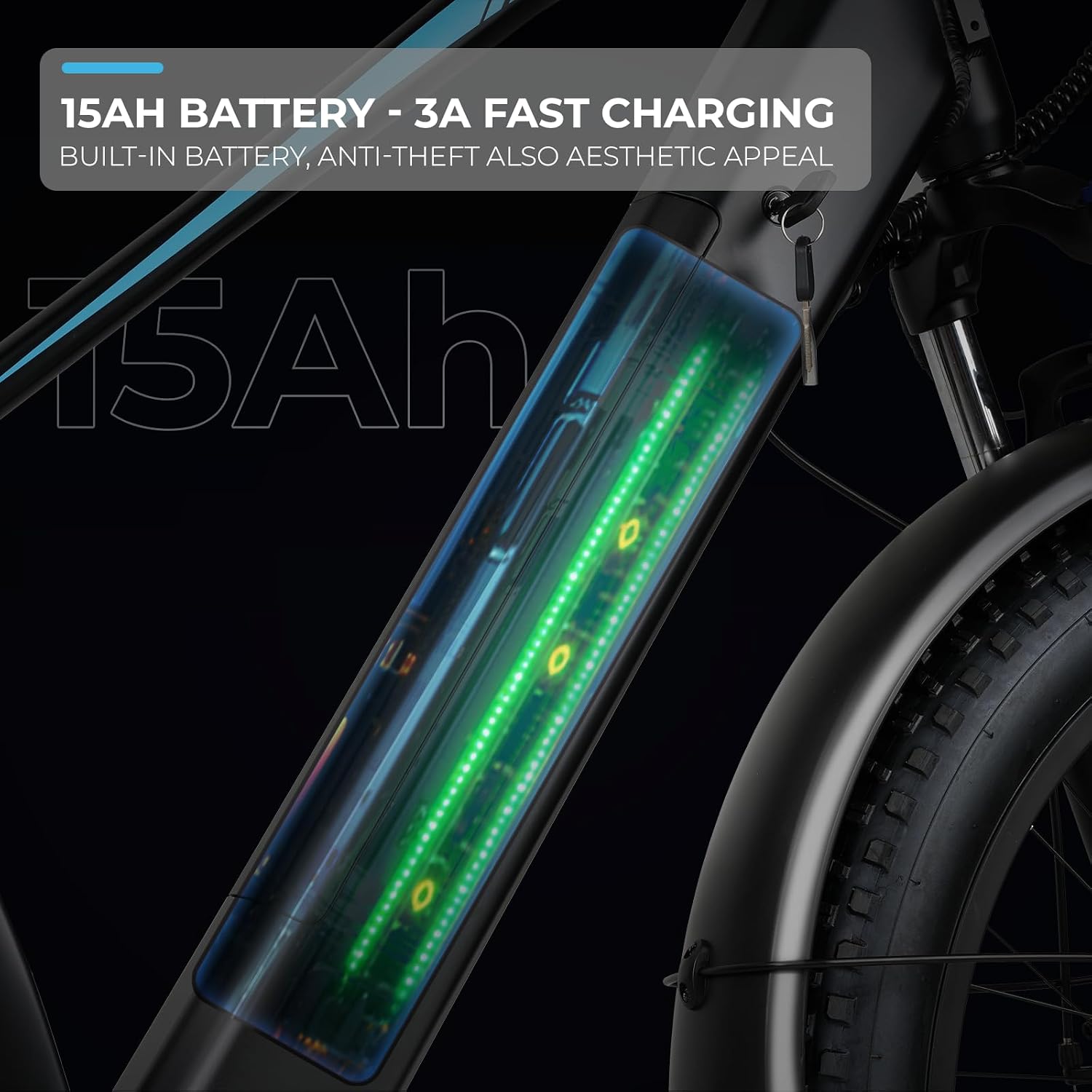

The integrated 15Ah battery offers long range and supports 3A fast charging.
Close-up of the front fork suspension, designed to absorb shocks for a smoother ride.
4. Muntatge i muntatge
Your ANCHEER Electric Bike arrives 90% pre-assembled. Final assembly typically takes 15-30 minutes. An installation video is available to guide you through the process.
Passos de l'Assemblea General:
- Enganxeu la roda davantera.
- Install the handlebars and adjust their position.
- Attach the pedals (note left and right markings).
- Insert and adjust the seat post.
- Ensure all bolts and quick releases are securely tightened.
5. Instruccions de funcionament
Encès/apagat:
Press and hold the power button on the digital display to turn the bike on or off.
Modes de conducció:
- Mode elèctric pur: Use the throttle for motor-only propulsion (up to 25 MPH).
- Mode d'assistència de pedals: The motor provides assistance as you pedal (up to 28 MPH). Adjust assistance levels via the display.
- Mode manual: Conduir com una bicicleta tradicional sense assistència motora.
Control de velocitat:
The default speed is 20 mph. Refer to the operation video for instructions on how to change the maximum speed settings.
Càrrega de la bateria:
Connect the 3A quick charger to the bike's charging port. A full charge takes approximately 5 hours. Ensure the battery is securely locked in place before riding.
Official video demonstrating the ANCHEER RoverH Electric Bike in various riding conditions, showcasing its performance and features.
6. Manteniment
Atenció general:
- Regularly check tire pressure (refer to tire sidewall for recommended PSI).
- Inspect brake pads and rotors for wear.
- Mantingueu la cadena neta i lubricada.
- Assegureu-vos que tots els elements de fixació estiguin ben ajustats.
Cura de la bateria:
- Carregueu la bateria regularment, fins i tot si no l'utilitzeu, per mantenir-ne la vida útil.
- Guardeu la bateria en un lloc fresc i sec.
- Eviteu descarregar completament la bateria.
Neteja:
Utilitza l'anunciamp cloth to wipe down the frame and components. Avoid high-pressure washing directly on electrical components.
7. Solució De Problemes
If you encounter issues with your ANCHEER Electric Bike, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La bicicleta no s'encén | Battery low or not connected; power button issue | Charge battery; ensure battery is fully inserted; contact support if issue persists. |
| El motor no ajuda | Pedal-assist level too low; sensor issue; motor connection | Increase pedal-assist level; check sensor connections; contact support. |
| Curt abast de la bateria | Improper charging; extreme temperatures; heavy load | Ensure full charge; avoid extreme temperatures; reduce load if possible. |
For more complex issues, please contact ANCHEER customer support.
8. Especificacions
| Característica | Detall |
|---|---|
| Tipus de bicicleta | Electric Bike, Fat Tire Electric Bike |
| Franja d'edat | Adult |
| Marca | ANCHEER |
| Nombre de velocitats | 7 |
| Color | Negre |
| Mida de la roda | 26 polzades |
| Material del marc | Alumini |
| Tipus de suspensió | Davant |
| Característica especial | Adjustable Seat, Digital Display, Dual Disc Brake, Fenders |
| Components inclosos | Bell, Kickstand, Tool Kit |
| Estil de fre | Disc |
| Amplada de la roda | 4 polzades |
| Nom del model | RoverH |
| Font d'alimentació | Motor elèctric (bateria recarregable) |
| Wattage | 750 watts |
| Contingut d'energia de la bateria de liti | 720 watts-hora |
| Alçada mínima de l'usuari | 63 polzades |
9. Garantia i Suport
ANCHEER provides a One-Year GUARANTEE for all parts of your electric bike, ensuring comprehensive support for your complete satisfaction.
Atenció al client:
- Suport telefònic: +1 877 652 5005 (Monday-Friday, 9:00 AM - 12:00 PM PST / 2:00 PM - 6:00 PM PST)
- Suport per correu electrònic: Please refer to the QR code provided in your product packaging for email contact.
