GROWNEER Hydroponics Growing System Tower User Manual

1. Introducció

The GROWNEER Hydroponics Growing System Tower is an innovative indoor garden solution designed for efficient and sustainable plant cultivation. This upgraded version features 35 plant sites across 7 layers, allowing for a diverse range of herbs, vegetables, fruits, and flowers to be grown year-round. Its compact vertical design makes it suitable for various indoor spaces, from kitchens to offices, promoting a fresh and healthy lifestyle without the mess of traditional gardening.

The system incorporates state-of-the-art components, including an upgraded quiet pump and an advanced programmable timer, ensuring optimal water circulation and nutrient delivery for robust plant growth.

2. Components mésview

Your GROWNEER Hydroponics Growing System includes the following parts:

• 1 x dipòsit d'aigua
• 1 x 4-Story Tower Section
• 1 x 3-Story Tower Section
• 1 x Seedling Tray
• 5 x Plant Holders
• 1 x PH Meter
• 64 x Cultivating Sponges
• 1 x Foldable Funnel
• 20 etiquetes per a plantes
• 1 x Water Level Meter
• 1 x Water Hose Sprayer
• 1 x adaptador de corrent
• 1 x DC 12V Brushless Water Pump
• 1 x Upgraded Digital Timer

3. Instruccions de configuració

3.1. Assembling the Tower

1. Align the notches on each tower section and gently stack them. Ensure a secure fit to prevent water leakage.
2. Insert the water pipe through the center of the stacked tower sections.
3. Place the assembled tower onto the water tank base, ensuring the water pipe extends into the tank.

3.2. Instal·lació de la bomba

1. Attach the suction cups to the bottom of the DC 12V brushless water pump.
2. Connect the water hose from the tower to the pump's outlet.
3. Place the pump at the bottom of the water tank, ensuring it is securely attached with the suction cups.
4. Route the pump's power cord through the designated opening on the water tank lid and secure it with the provided cap.

3.3. Omplir el dipòsit d'aigua

1. Insert the water level meter into its designated slot on the tank lid.
2. Use the foldable funnel to fill the water tank with clean water. Ensure the water level is sufficient for the pump to operate effectively, but do not overfill.
3. Add appropriate hydroponic nutrients to the water according to the nutrient solution's instructions.

3.4. Preparing Seedlings

1. Place seeds into the cultivating sponges.
2. Place the sponges in the seedling tray with a small amount of water to initiate germination.
3. Once seedlings have developed roots, gently transfer the sponges with seedlings into the plant sites on the hydroponic tower.

4. Instruccions de funcionament

4.1. Timer Operation

The upgraded digital timer allows for precise control over the pump's operation, ensuring plants receive water and nutrients at optimal intervals. The timer features an oversized LCD screen and can set the clock and up to 3 daily timers. It supports loop modes with intervals as short as 1 second. Refer to the timer's dedicated manual for detailed programming instructions.

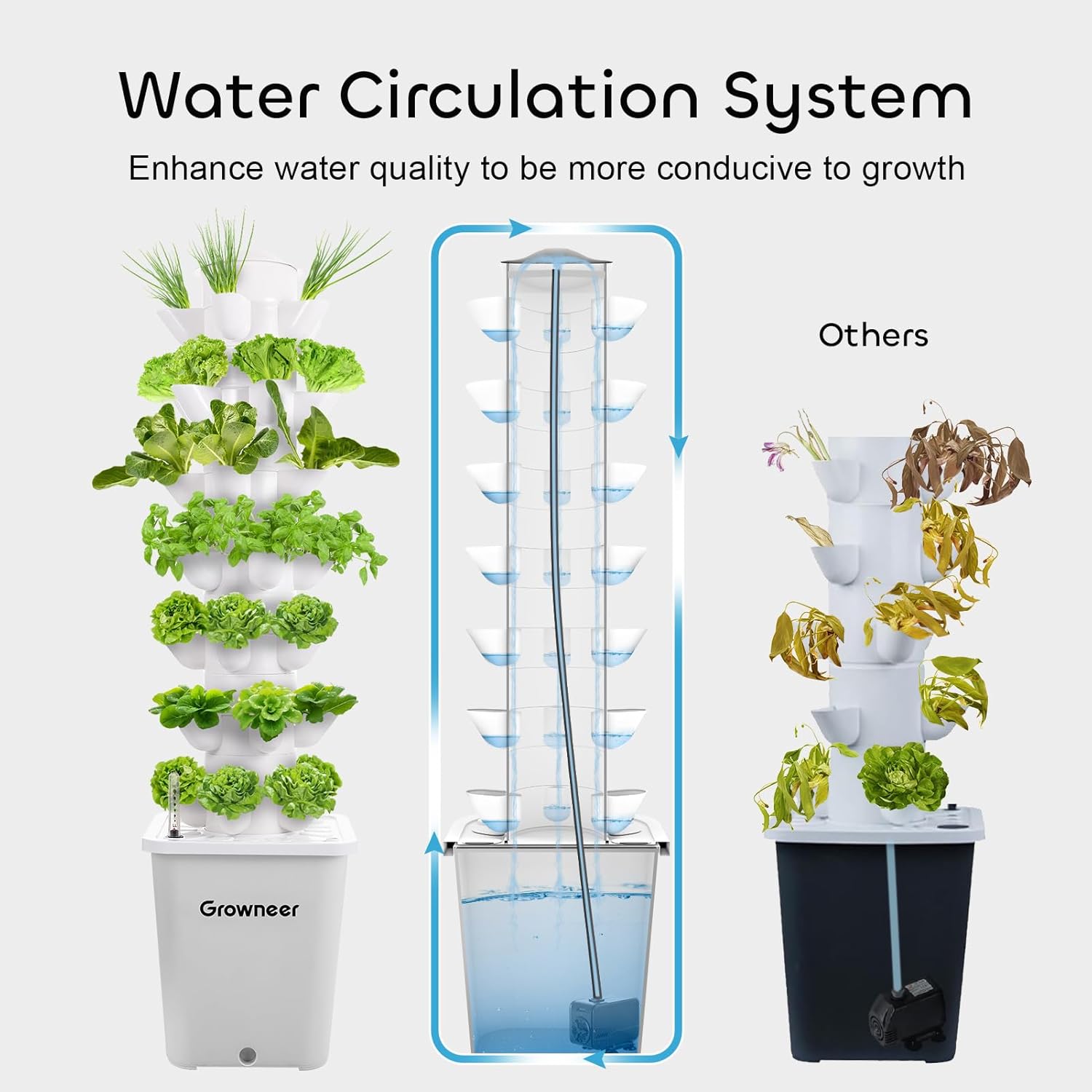

4.2. Water Circulation System

The system utilizes a high-quality DC 12V brushless pump with an adjustable flow rate (up to 500L/H) to circulate water from the tank to the top of the tower. Water then flows down through each plant site, providing continuous hydration and nutrient delivery to the roots. This efficient circulation enhances water quality and promotes healthy growth.

5. Manteniment

5.1. Water and Nutrient Management

• Weekly Water Top-Up: Check the water level regularly using the water level meter and top up as needed.
• Canvis en la solució de nutrients: It is recommended to completely change the nutrient solution every 1-2 weeks to prevent nutrient imbalances and algae growth.
• pH Monitoring: Use the included PH meter to regularly check the pH level of your nutrient solution. Adjust as necessary to maintain the optimal range for your specific plants.

5.2. Neteja del sistema

• Neteja de tancs: Periodically clean the water tank to remove any residue or algae buildup. Disconnect the pump and empty the tank before cleaning.
• Neteja de la bomba: The pump is designed for easy disassembly. Regularly clean the pump's impeller and filter to ensure optimal performance and longevity.
• Tower Sections: Clean the plant sites and tower sections as needed, especially between growing cycles, to prevent disease and pest issues.

6. Solució De Problemes

• La bomba no funciona:
  • Ensure the pump is properly connected to the power adapter and the timer is set correctly.
  • Check for any blockages in the pump's intake or the water hose.
  • Disassemble and clean the pump to ensure the impeller is free from debris.
• Fuga d'aigua:
  • Verify that all tower sections are securely stacked and aligned.
  • Ensure the water pipe is correctly inserted and sealed.
• Creixement deficient de les plantes:
  • Check the nutrient solution concentration and pH levels. Adjust as needed.
  • Ensure adequate light exposure for your plants.
  • Verify that the water circulation is consistent to all plant sites.

7. Especificacions

8. Garantia i Suport

GROWNEER products are designed for quality and durability. For any questions, technical support, or warranty claims, please contact GROWNEER customer service. We are committed to providing excellent support to ensure your satisfaction.

Contacte d'atenció al client: 1(855)626-9888

Please have your model number (GN029-20241210FX) and purchase information ready when contacting support.
