Retekess TR606 Tape Recorder Cassette Player User Manual

Introducció

This manual provides detailed instructions for the operation and maintenance of your Retekess TR606 Tape Recorder Cassette Player. Please read this manual thoroughly before using the device to ensure proper function and longevity.

Producte acabatview

The Retekess TR606 is a versatile portable audio device featuring a cassette player, AM/FM radio, and recording capabilities. It supports multiple modes for flexible listening and recording needs.

Image: The Retekess TR606 device highlighting its multi-mode capabilities including Cassette, AM, and FM radio functions.

The compact design makes it easy to carry. Its dimensions are approximately 4.72 inches (L) x 1.65 inches (W) x 3.58 inches (H), and it weighs about 0.55 pounds.

Image: The Retekess TR606 with its physical dimensions (120mm length, 91mm height, 42mm width) and weight (215g) indicated.

Contingut del paquet

En desempaquetar, assegureu-vos que hi hagi tots els elements que s'enumeren a continuació:

• 1 x TR606 radio
• 1 x cable de càrrega USB
• 1 x manual d'usuari

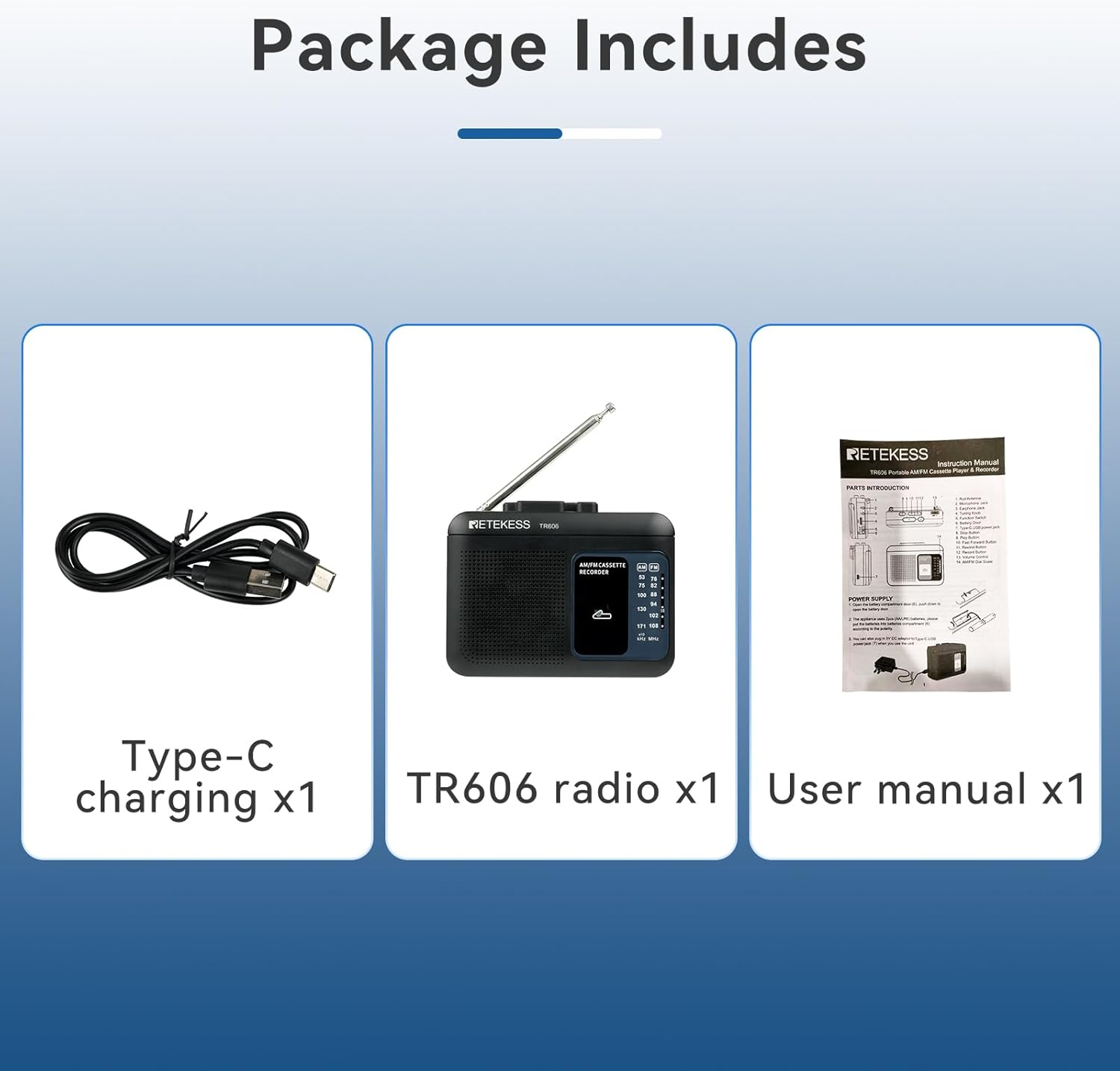

Image: The complete package contents, showing the TR606 radio, a Type-C charging cable, and the user manual.

Configuració

Font d'alimentació

The Retekess TR606 offers two convenient power options:

• Potència de la bateria: For portable use, insert 2 AA batteries (not included) into the battery compartment located on the back of the device.
• Alimentació tipus C: For continuous use or charging, connect the provided USB Type-C cable to the device and a compatible 5V power source.

Image: The Retekess TR606 illustrating its two power supply methods: AA batteries and a Type-C charging port.

Instruccions de funcionament

Reproducció de cassets

1. Obriu la porta del compartiment del casset.
2. Inseriu una cinta de casset amb la part exposada de la cinta cap amunt.
3. Close the cassette compartment door securely.
4. Slide the function switch to 'TAPE'.
5. Premeu el botó JUGAR per iniciar la reproducció.
6. Utilitza el STOP, REW (Rewind), and FF (Fast Forward) buttons to control playback.
7. Ajusteu el volum amb el botó de volum.

Funcionament de ràdio (AM/FM)

1. Extend the telescopic antenna for optimal FM reception. For AM, the internal antenna is usually sufficient.
2. Slide the function switch to 'AM' or 'FM' to select your desired band.
3. Gira el SINTONIA botó per cercar emissores de ràdio.
4. Ajusteu el volum amb el botó de volum.

Image: The Retekess TR606 displaying its radio frequency dial for AM and FM bands.

Image: A hand demonstrating the precise tuning of the Retekess TR606 using its rotary dial controls.

Funció de gravació

The TR606 allows recording from various sources onto a blank cassette tape.

• Voice Recording (Built-in Microphone): Insert a blank cassette tape. Press the REGISTRAR button (usually red) along with the JUGAR button. The built-in microphone will capture ambient sound.
• AUX Line-in Recording: Connect an external audio source (e.g., PC, MP3 player) to the AUX-in port using a 3.5mm audio cable. Insert a blank cassette tape. Press REGISTRAR i JUGAR simultàniament.
• External Microphone Recording: Connect an external microphone to the MIC jack. Insert a blank cassette tape. Press REGISTRAR i JUGAR simultàniament.

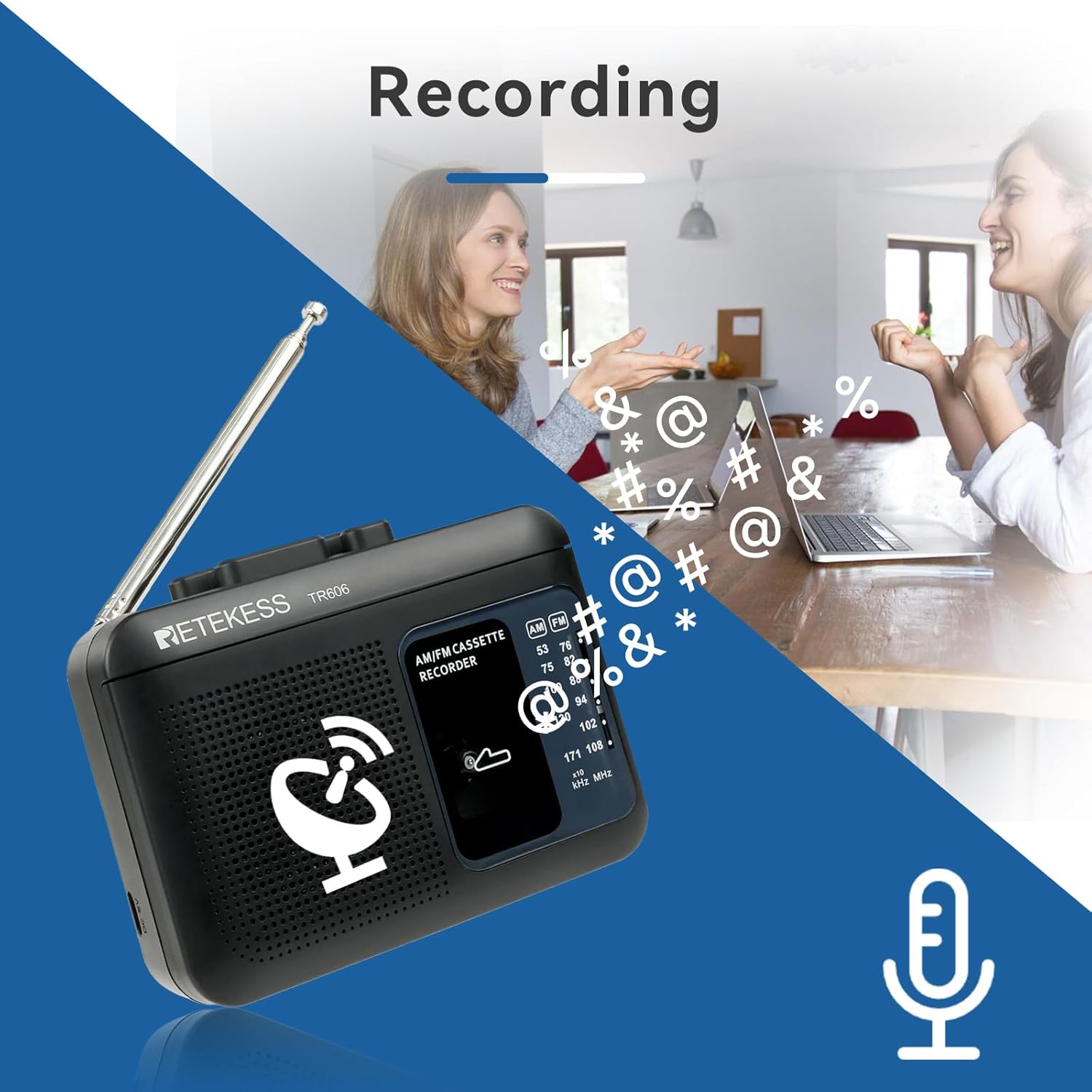

Image: The Retekess TR606 illustrating its recording capabilities from voice and AUX line-in sources to a cassette tape or PC.

Image: The Retekess TR606 showing an external microphone connected to its dedicated MIC jack for enhanced recording options.

Sortida d'àudio

• Altaveu integrat: The device features an 8Ω 0.5W built-in speaker for direct audio playback.
• Presa d'auriculars de 3.5 mm: For private listening, connect standard 3.5mm earphones (not included) to the earphone jack.

Image: The Retekess TR606 highlighting its built-in 8Ω 0.5W speaker for clear audio output.

Image: The Retekess TR606 with headphones connected to its 3.5mm earphone jack for private listening.

Manteniment

To ensure the longevity and optimal performance of your Retekess TR606, follow these maintenance guidelines:

• Mantingueu el dispositiu net netejant-lo amb un drap suau i sec. Eviteu utilitzar netejadors líquids o dissolvents.
• Netegeu regularment el capçal de la cinta i el rodet de pinça amb un bastonet de cotó suaument.ampened with isopropyl alcohol to prevent sound distortion and tape damage.
• Guardeu el dispositiu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Traieu les piles si no heu d'utilitzar el dispositiu durant un període prolongat per evitar fuites.

Resolució de problemes

If you encounter any issues with your TR606, refer to the following common solutions:

• Sense energia: Ensure batteries are correctly inserted and not depleted, or that the Type-C cable is securely connected to a working power source.
• Mala recepció de ràdio: Extend the telescopic antenna fully and try repositioning the device. For AM, rotate the device for better signal.
• Cassette Playback Issues (e.g., muffled sound, tape jamming): Clean the tape head and pinch roller. Ensure the tape is not damaged or tangled.
• Problemes de gravació: Verify a blank tape is inserted and the REGISTRAR i JUGAR buttons are pressed simultaneously. Check microphone connection if using an external mic.
• No Sound from Speaker/Headphones: Check volume level. Ensure headphones are fully plugged in.

Especificacions

Garantia i Suport

Informació de la garantia

The Retekess TR606 comes with a 1 any de garantiaA més, un Política de devolució sense motiu de 30 dies is provided for your convenience. Please retain your proof of purchase for warranty claims.

Atenció al client

For further assistance, technical support, or warranty inquiries, please contact Retekess customer service through their official weblloc web o el venedor on es va comprar el producte.
