DATOUBOSS 2200W Pure Sine Wave Power Inverter User Manual

1. Introducció

This user manual provides detailed instructions for the safe and efficient operation of your DATOUBOSS 2200W Pure Sine Wave Power Inverter. This device converts 12V DC power from a battery into stable 120V AC power, suitable for a wide range of electronic devices and appliances. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Instruccions de seguretat

Always observe the following safety precautions to prevent injury or damage to the inverter and connected devices:

• Ventilació: Assegureu-vos que hi hagi una ventilació adequada al voltant de l'inversor. No bloquegeu les reixetes de refrigeració.
• Medi ambient: Instal·leu l'inversor en una zona seca, fresca i ben ventilada, allunyada de la llum solar directa, fonts de calor i materials inflamables. Eviteu l'exposició a l'aigua o a la humitat excessiva.
• Connexions: Ensure all DC and AC connections are secure and correctly polarized. Loose connections can cause overheating and damage.
• Posada a terra: L'inversor ha d'estar correctament connectat a terra.
• Capacitat de càrrega: Do not exceed the inverter's rated continuous power output (2200W) or peak power (4400W). Overloading can damage the inverter and connected appliances.
• Compatibilitat de la bateria: This inverter is designed for 12V DC input. Ensure your battery system matches this voltage. It is compatible with Lithium (LI), Sealed Lead Acid (SLA), Gel, Flooded (FLD), and Absorbent Glass Mat (AGM) batteries.
• Manteniment: No intenteu obrir ni fer el manteniment de l'inversor vosaltres mateixos. Encarregueu totes les tasques de manteniment a personal qualificat.
• Nens: Mantingueu l'inversor fora de l'abast dels nens.
• Emergència: In case of smoke, unusual odors, or abnormal operation, immediately disconnect the inverter from the power source and contact support.

3. Contingut del paquet

Upon opening the package, verify that all items listed below are present and undamaged:

• DATOUBOSS 2200W Pure Sine Wave Power Inverter
• Comandament a distància amb cable (cable de 19.58 m)
• Battery Cables (Red for positive, Black for negative)
• Manual d'usuari

Image: The DATOUBOSS 2200W Pure Sine Wave Power Inverter shown with its included wired remote control and battery connection cables.

4. Producte acabatview

The DATOUBOSS 2200W Pure Sine Wave Power Inverter is designed for reliable power conversion, featuring advanced technology and multiple protection mechanisms.

4.1 Característiques clau

• Sortida d'ona sinusoïdal pura: Proporciona energia neta i estable, adequada per a electrònica sensible.
• Sortida d'alta potència: Delivers continuous 2200W and peak 4400W power.
• Múltiples punts de venda: Equipped with 2 AC outlets, 1 USB port, and 1 Type-C port.
• Àmplia compatibilitat de bateries: Supports Lithium (LI), Sealed Lead Acid (SLA), Gel, Flooded (FLD), and Absorbent Glass Mat (AGM) 12V batteries.
• Protecció avançada: Includes short circuit, input over-voltage/sub-voltage, output short-circuit, overload, over-current, and over-temperature protection.
• Monitorització en temps real: LED screen and indicator lights display voltage, output power, and fault codes.
• Comandament a distància: 19.58 ft wired remote for convenient on/off operation.
• Construcció duradora: Robust aluminum housing for protection against drops and bumps.
• Refrigeració eficient: Built-in cooling fan ensures silent operation and prevents overheating.

4.2 Identificació de components

Imatge: Detallada view of the inverter's side panel, highlighting the Negative Terminal, Cooling Fan, Positive Terminal, LCD display, Type-C port, USB interface, Ground terminal, Remote Switch Connection, Frequency Adjustment, and AC Outlets.

Image: Illustration of the inverter's pure sine wave output and various protection features including energy efficient, fast heat dissipation, under-voltage protecció, sobrevoltage protection, overload protection, short-circuit protection, overheating protection, and reverse protection.

Image: The inverter connected to various devices, illustrating its comprehensive protection features such as reverse connection protection, over temperature protection, overload protection, over voltage protecció, baix voltage protecció i protecció contra curtcircuits.

5. Configuració

5.1 Selecció d'una ubicació

Select a location for the inverter that is:

• Sec i protegit de la humitat.
• Cool and well-ventilated.
• Allunyat de la llum solar directa i de fonts de calor.
• Fixat de manera segura per evitar moviments.

5.2 Connecting the Inverter

1. Preparació de la bateria: Ensure the 12V battery is fully charged and in good condition.
2. Connect DC Cables:
   • Connecteu el vermell cable de la bateria a la positiu (+) terminal of the inverter and then to the positive terminal of the battery.
   • Connecteu el negre cable de la bateria a la negatiu (-) terminal of the inverter and then to the negative terminal of the battery.
   • Assegureu-vos que totes les connexions estiguin ben ajustades i segures per evitar arcs elèctrics i sobreescalfament.
3. Posada a terra: Connect the inverter's grounding terminal to a proper earth ground.
4. Comandament a distància (opcional): Plug the wired remote control into the designated "REMOTE" port on the inverter for convenient power control.

Important: Always connect the battery cables to the inverter first, then to the battery. When disconnecting, disconnect from the battery first, then from the inverter.

6. Instruccions de funcionament

6.1 Engegada/apagada

• Per encendre: Press the "ON" button on the inverter's front panel or the wired remote control. The LED screen will illuminate, and indicator lights will show the status.
• Per apagar: Press the "OFF" button on the inverter's front panel or the wired remote control. The LED screen and indicator lights will turn off.

6.2 Connexió d'aparells de corrent altern

Once the inverter is powered on, you can connect your AC appliances to the AC outlets. For USB and Type-C devices, use the respective ports.

• Assegureu-vos el wat totaltage of all connected appliances does not exceed 2200W.
• For appliances with high starting current (e.g., motors, compressors), ensure their surge wattage is within the inverter's 4400W peak capacity.

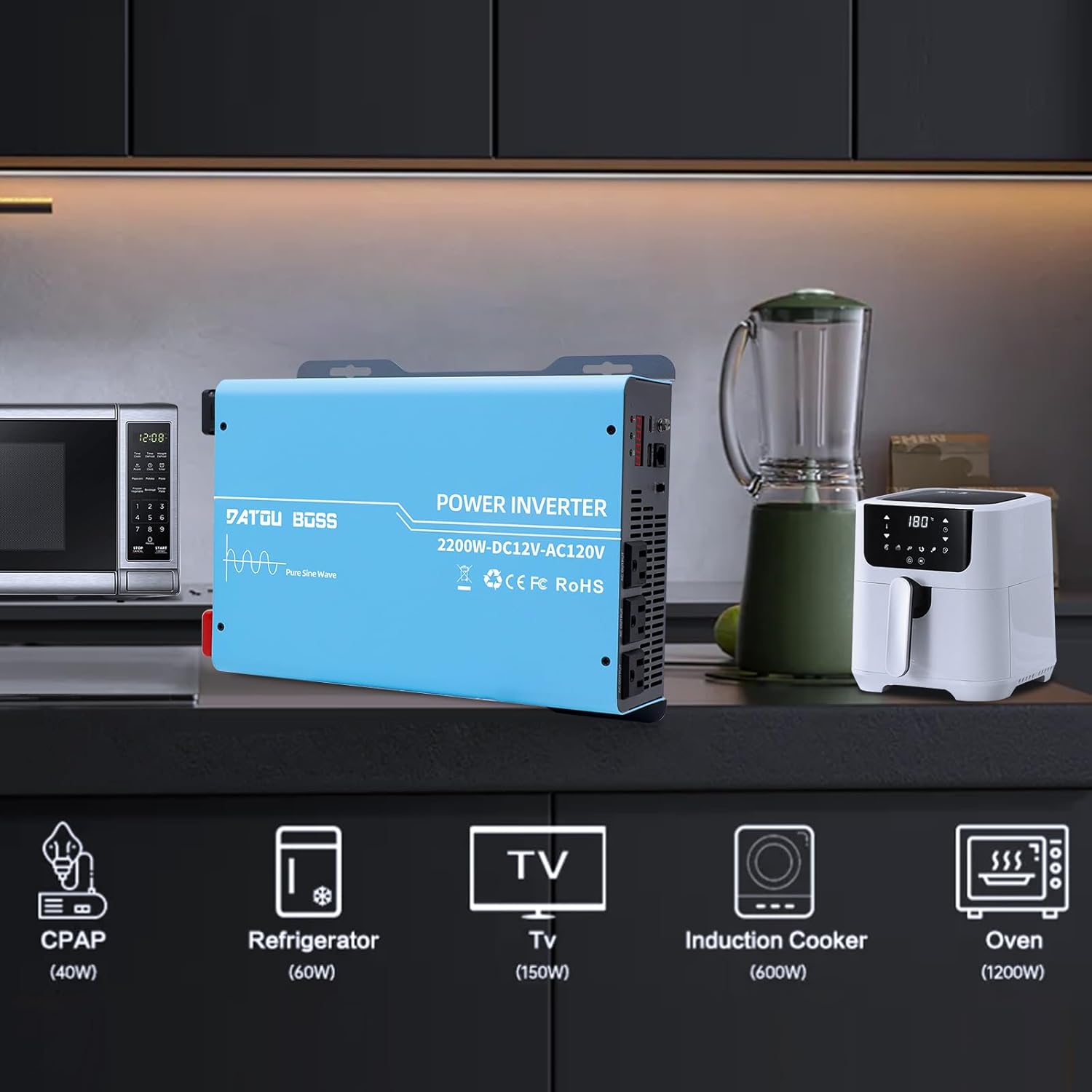

Image: The inverter connected to and powering common household appliances such as a microwave, refrigerator, TV, induction cooker, and oven, with their approximate wattagés indicat.

6.3 Monitorització en temps real

The LED screen provides real-time information:

• Voltage Visualització: Shows the input DC voltage de la bateria.
• Output Power Display: Indicates the current AC power being drawn by connected devices.
• Codis d'error: Displays specific codes in case of an error or protection activation. Refer to the Troubleshooting section for code meanings.

7. Manteniment

• Neteja: Regularly clean the exterior of the inverter with a dry, soft cloth. Do not use liquid cleaners or solvents. Ensure cooling vents are free from dust and debris.
• Connexions: Reviseu periòdicament totes les connexions elèctriques per assegurar-vos que estiguin ben ajustades i que no presentin corrosió.
• Emmagatzematge: Si guardeu l'inversor durant un període prolongat, desconnecteu-lo de la bateria i guardeu-lo en un lloc fresc i sec.

8. Solució De Problemes

This section addresses common issues you might encounter with your inverter. For problems not listed here, please contact customer support.

9. Especificacions

Image: Diagram showing the physical dimensions of the inverter: 32.5cm/12.79in length, 22.8cm/8.97in width, and 7.8cm/3.07in height.

10. Garantia i Suport

10.1 Informació de la garantia

DATOUBOSS provides a comprehensive 1-year warranty covering quality issues for this product. Please retain your proof of purchase for warranty claims.

10.2 Atenció al client

For technical assistance, troubleshooting, or warranty inquiries, please contact DATOUBOSS customer support. Refer to the product packaging or the official DATOUBOSS weblloc web per obtenir la informació de contacte més actualitzada.

Our brand is sold in over 200 countries worldwide, offering professional products and precision instruments. We are committed to providing excellent service.

Image: A customer service representative wearing a headset, symbolizing professional after-sales service and 24-hour online support.
