DATOUBOSS 1600W Pure Sine Wave Power Inverter

1. Introducció i finalview

Thank you for choosing the DATOUBOSS 1600W Pure Sine Wave Power Inverter. This device is designed to convert 12V DC power from your battery into stable 110/120V AC power, suitable for a wide range of electronic devices and appliances. With its advanced pure sine wave technology, it provides clean and reliable power, making it ideal for use in vehicles, RVs, homes, trucks, and off-grid solar systems. This manual provides essential information for safe installation, operation, and maintenance of your inverter.

Figure 1.1: The DATOUBOSS 1600W Pure Sine Wave Power Inverter, showing the main unit, wired remote control, and battery connection cables.

2. Informació de seguretat

Si us plau, llegiu i comprengui totes les instruccions de seguretat abans d'instal·lar o fer funcionar l'inversor. Si no segueix aquestes instruccions, es poden produir descàrregues elèctriques, incendis o lesions greus.

• Ventilació: Assegureu-vos que hi hagi una ventilació adequada al voltant de l'inversor. No bloquegeu les reixetes de refrigeració.
• Medi ambient: Install the inverter in a cool, dry, and well-ventilated area, away from direct sunlight, heat sources, and flammable materials. Avoid exposure to water or excessive humidity.
• Connexions: Always connect the inverter to a 12V DC power source. Ensure all connections are tight and secure to prevent loose connections and overheating.
• Polaritat: Observe correct polarity when connecting to the battery (positive to positive, negative to negative). Incorrect connection can damage the inverter and battery.
• Posada a terra: Connecteu correctament a terra l'inversor d'acord amb les normes elèctriques locals.
• Capacitat de càrrega: Do not exceed the inverter's continuous power rating (1600W) or peak surge rating (3200W). Overloading can cause damage and pose a fire hazard.
• Característiques de protecció: The inverter includes built-in protections for short circuit, over-voltage/sub-voltage, overload, over-current, and over-temperature. These features are designed to protect the unit and connected devices.
• Manteniment: No intenteu desmuntar ni modificar l'inversor. Encarregueu tot el manteniment a personal qualificat.

Figure 2.1: The inverter's comprehensive protection features, including short circuit, over-voltage, baix voltage, overload, over-current, and over-temperature protection.

3. Contingut del paquet

En obrir el paquet, comproveu que tots els elements que s'enumeren a continuació hi són presents i que es troben en bon estat:

• 1 x DATOUBOSS 1600W Pure Sine Wave Power Inverter
• 1 x Comandament a distància amb cable (cable de 19.58 m)
• 1 x Pair of Battery Connection Cables (Red for Positive, Black for Negative)
• 1 x Manual d'usuari

4. Característiques del producte

The DATOUBOSS 1600W Pure Sine Wave Power Inverter is equipped with several features for optimal performance and user convenience:

• Potència contínua: Delivers continuous 1600W DC 12V to AC 120V power.
• Peak Surge Power: Capable of handling up to 3200W peak surge for starting high-power appliances.
• Sortides múltiples: Features 2 AC outlets, 1 USB port, and 1 Type-C port for versatile charging and power needs.
• Compatibilitat de la bateria: Works seamlessly with various battery types including Lithium (LI), Sealed Lead Acid (SLA), Gel, Flooded (FLD), and Absorbent Glass Mat (AGM) batteries.
• Protecció avançada: Comprehensive safety features including short circuit, input over-voltage/sub-voltage, output short-circuit, overload, over-current, and over-temperature protection.
• Construcció duradora: Robust aluminum housing protects against drops and bumps.
• Refrigeració eficient: Built-in cooling fan ensures silent operation and prevents overheating.
• Monitorització en temps real: LED screen and three indicator lights display voltage, output power, and fault codes.
• Comandament a distància: Includes a 19.58 ft wired remote control for convenient on/off operation from a distance.
• Apagat automàtic: Features an automatic shutdown in case of incorrect power connection or short circuit.

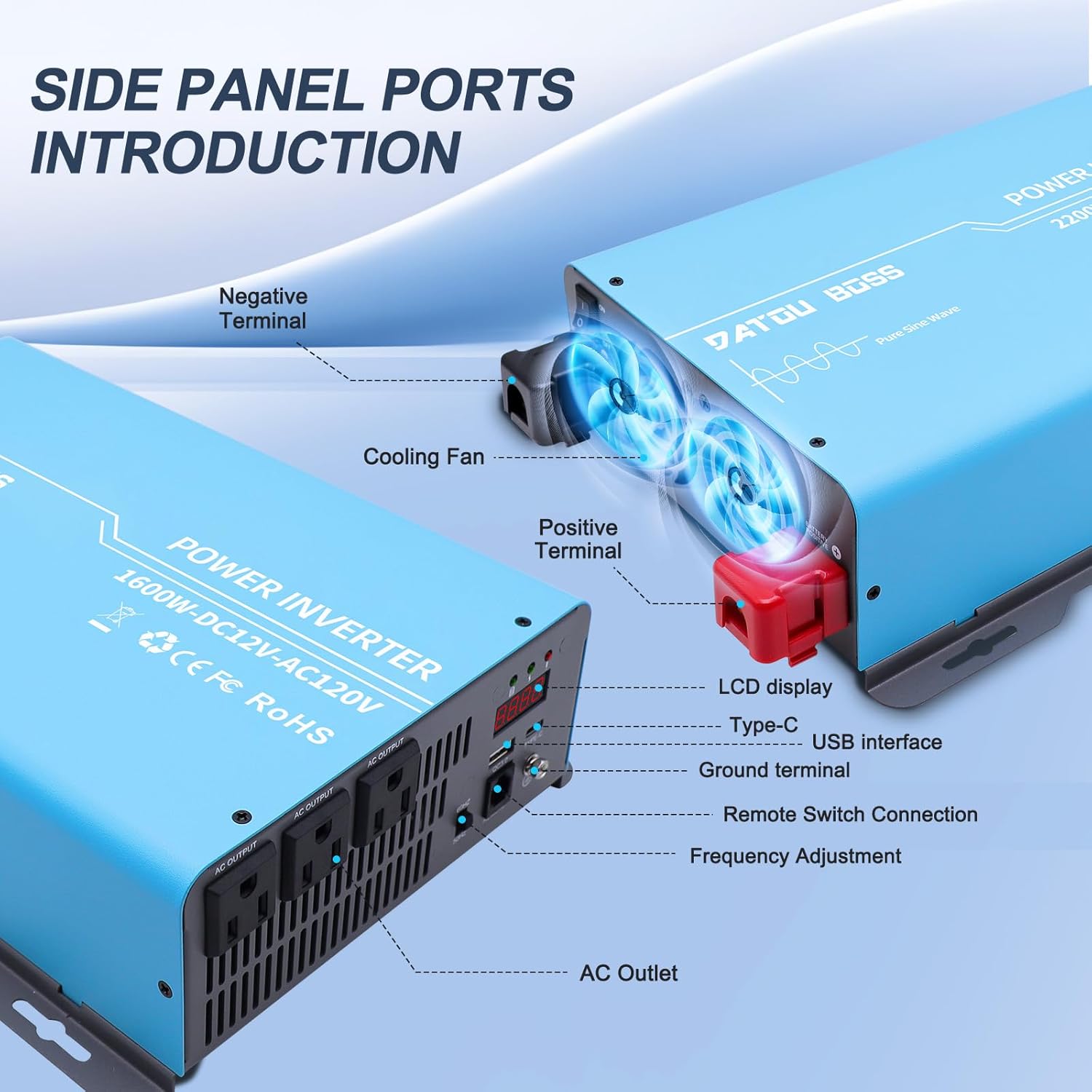

Figura 4.1: Detallada view of the inverter's side panel, showing the negative terminal, cooling fan, positive terminal, LCD display, Type-C port, USB interface, ground terminal, remote switch connection, frequency adjustment, and AC outlets.

Figure 4.2: Illustration of pure sine wave technology, highlighting its ability to withstand strong loads and high conversion efficiency.

5. Configuració

Follow these steps to set up your DATOUBOSS Power Inverter:

1. Trieu una ubicació: Select a dry, cool, and well-ventilated area for installation. Ensure there is sufficient space around the inverter for proper airflow and cooling. Avoid areas with direct sunlight, high temperatures, or excessive dust.
2. Muntatge (opcional): The inverter can be mounted using its integrated mounting brackets. Secure it to a stable surface using appropriate fasteners.
3. Connecteu els cables de la bateria:
   • Ensure the inverter's power switch is in the "OFF" position.
   • Connecteu el vermell cable de la bateria a la positiu (+) terminal de l'inversor i després al positiu (+) terminal de la bateria de 12 V.
   • Connecteu el negre cable de la bateria a la negatiu (-) terminal de l'inversor i després al negatiu (-) terminal de la bateria de 12 V.
   • Assegureu-vos que totes les connexions estiguin ben ajustades i segures. Les connexions soltes poden causar un excés de calor i danys.
4. Connecteu el cable de terra: Connect a ground wire from the inverter's ground terminal to a suitable ground point (e.g., vehicle chassis or earth ground).
5. Connecteu el control remot: Plug the wired remote control cable into the designated "REMOTE" port on the inverter's front panel.

Figura 5.1: Example of the inverter integrated into a solar power setup.

6. Instruccions de funcionament

Once the inverter is properly set up, follow these steps for operation:

1. Encès:
   • Assegureu-vos que totes les connexions siguin segures.
   • Turn on the main power switch located on the inverter unit.
   • Alternatively, if the main switch is OFF, you can use the wired remote control to turn the inverter ON/OFF.
2. Pantalla del monitor: The LED screen will display the input voltage and output power. The three indicator lights will show the status (e.g., normal operation, fault).
3. Connexió de dispositius: Plug your AC-powered devices into the AC outlets. For USB-powered devices, use the USB or Type-C ports.
4. Apagar: When finished, turn off the inverter using either the main power switch or the remote control. Disconnect devices before powering down the inverter.

Nota important: The inverter's cooling fan will activate automatically when needed to maintain optimal operating temperature. It may produce some noise during operation, which is normal.

Figure 6.1: The inverter can power various essentials, including CPAP machines, refrigerators, TVs, induction cookers, and ovens.

Figure 6.2: The inverter provides power for electronics during road trips and outdoor adventures, such as in an RV.

7. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim del vostre inversor:

• Neteja: Periodically clean the exterior of the inverter with a soft, dry cloth. Do not use liquid cleaners or solvents.
• Ventilació: Ensure the cooling vents are free from dust and debris. Use compressed air to clear any blockages if necessary.
• Connexions: Regularly check battery cable connections for tightness. Loose connections can lead to voltaggotes de líquids i sobreescalfament.
• Emmagatzematge: If storing the inverter for an extended period, ensure it is clean, dry, and stored in a cool environment. Disconnect it from the battery.

Figure 7.1: The inverter's efficient heat dissipation system, crucial for maintaining optimal performance and preventing overheating.

8. Solució De Problemes

If you encounter issues with your inverter, refer to the table below for common problems and their solutions:

9. Especificacions

Key technical specifications for the DATOUBOSS 1600W Pure Sine Wave Power Inverter:

Figure 9.1: Physical dimensions of the DATOUBOSS 1600W Pure Sine Wave Power Inverter.

10. Garantia i Suport

DATOUBOSS stands behind the quality of its products. Your 1600W Pure Sine Wave Power Inverter comes with a comprehensive 1 any de garantia covering quality issues from the date of purchase.

For any questions, technical assistance, or warranty claims, please contact our professional after-sales service team. We offer 24-hour online service to ensure you receive prompt and effective support.

Si us plau, conserveu el comprovant de compra per validar la garantia.

Figure 10.1: Our dedicated customer support team is available to assist you.
