Generic Gas Grill L & R Burner Kit Instruction Manual

1. Introducció

Thank you for choosing the Generic Gas Grill L & R Burner Kit. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new replacement burners. This kit is designed for specific Ducane gas grill models, including the 1202, 1204, 1205, 2002, 2004, and 4002 Series.

Please read this manual thoroughly before attempting any installation or use. Keep this manual for future reference.

2. Informació de seguretat

ADVERTÈNCIA: Si no es segueixen aquestes instruccions de seguretat, es poden produir incendis, explosions o lesions greus.

• Always ensure the gas supply to the grill is turned off and disconnected before beginning any installation or maintenance.
• Allow the grill to cool completely before handling any components.
• Utilitzeu l'equip de seguretat adequat, com ara guants i protecció ocular, durant la instal·lació.
• Perform a leak test after installation to check for gas leaks. Apply a soapy water solution to all gas connections. Bubbles indicate a leak.
• Do not operate the grill if a gas leak is detected.
• Assegureu-vos que hi hagi una ventilació adequada quan feu servir la graella.
• Si teniu dubtes sobre alguna part del procés d'instal·lació, consulteu un professional qualificat.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents i no estiguin danyats abans de continuar amb la instal·lació.

• 1 x Left Hand P-Shaped Burner (Stainless Steel)
• 1 x Right Hand P-Shaped Burner (Stainless Steel)
• 2 x Ignitors with Wires (Pre-attached to burners)

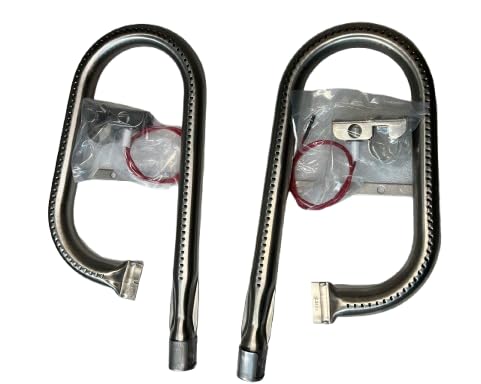

Figure 1: Included Left and Right P-shaped stainless steel burners with ignitors.

4. Configuració i instal·lació

This section outlines the steps for replacing your old grill burners with the new Generic L & R Burner Kit. Refer to your original grill manual for specific disassembly instructions if needed.

4.1 Passos previs a la instal·lació

1. Turn off Gas Supply: Ensure the gas supply to your grill is completely shut off and the gas tank is disconnected (for propane grills) or the main gas valve is closed (for natural gas grills).
2. Refredament: Allow the grill to cool down completely before touching any components.
3. Remove Grates and Heat Plates: Carefully remove the cooking grates and heat distribution plates (flame tamers) from your grill.
4. Disconnect Old Burners: Disconnect the ignitor wires from the old burners. Carefully remove the old burners from their mounting points and gas valve orifices. Note their orientation (left/right) for proper replacement.
5. Neteja l'interior de la graella: Clean any debris, grease, or rust from the grill's firebox before installing new burners.

4.2 Burner Installation

1. Position New Burners: Carefully insert the new P-shaped burners into the grill firebox, ensuring the gas inlet end of each burner aligns with the gas valve orifice. The ignitor probe should face the front of the grill.
2. Secure Burners: Ensure the burners are properly seated over the gas valve orifices and secured in their mounting brackets. The burners are designed to fit snugly.
3. Connect Ignitor Wires: Connect the ignitor wires from the new burners to the corresponding terminals on the grill's ignitor module. Ensure a secure connection.
4. Replace Heat Plates and Grates: Once burners are securely installed and ignitor wires connected, replace the heat distribution plates and cooking grates.

4.3 Prova de fuites

After installation, it is crucial to perform a leak test before operating the grill.

1. Preparació de la solució: Mix a solution of equal parts liquid dish soap and water in a spray bottle.
2. Aplicar la solució: Turn on the gas supply to the grill. Spray the soapy solution generously over all gas connections, including where the burners connect to the gas valves and any other gas lines.
3. Check for Bubbles: Observe for bubbles forming at any connection points. Bubbles indicate a gas leak.
4. Resolve Leaks: If a leak is detected, immediately turn off the gas supply. Tighten the connection or replace the faulty part. Repeat the leak test until no bubbles appear.
5. Do Not Operate: Never operate the grill if a gas leak is present.

5. Instruccions de funcionament

Once the burners are installed and a leak test has been successfully performed, you can operate your grill. Refer to your specific Ducane grill's original instruction manual for detailed operating procedures, including lighting instructions and temperature control.

To test the new burners:

• Assegureu-vos que la tapa de la graella estigui oberta.
• Enceneu el subministrament de gas.
• Turn one burner control knob to the "HIGH" position.
• Press and hold the ignitor button (if applicable) or use a long lighter to ignite the burner.
• Observe the flame. It should be primarily blue with yellow tips, indicating proper gas flow and combustion.
• Repeat for all burners.

6. Manteniment

Regular maintenance will extend the life of your burners and ensure optimal grill performance.

• Neteja del cremador: Periodically remove the burners and clean any food debris or blockages from the burner ports using a wire brush or a stiff wire. Ensure the ignitor probe is clean and free of residue.
• Gestió de greixos: Regularly clean the grill's firebox and grease tray to prevent flare-ups and maintain hygiene.
• Inspecció: Before each grilling season, inspect the burners for signs of corrosion, cracks, or excessive wear. Replace burners if they are significantly damaged or if flame distribution becomes uneven.
• Ignitor Wires: Check ignitor wires for fraying or damage. Ensure connections are secure.

7. Solució De Problemes

If you encounter issues with your new burners, refer to the following common problems and solutions:

8. Especificacions

• Tipus de producte: Gas Grill L & R Burner Kit
• Compatibilitat: Ducane 1202, 1204, 1205, 2002, 2004, 4002 Series Gas Grills
• Material: Acer inoxidable
• Burner Dimensions (Each): Approximately 13 5/8 inches (L) x 6 5/8 inches (W)
• Inclou: Left Hand P-Shaped Burner, Right Hand P-Shaped Burner, Ignitors with Wires
• Números de model: 13011, 13021 (Burners)

9. Informació de la garantia

For specific warranty details regarding this Generic Gas Grill L & R Burner Kit, please refer to the product listing or contact the seller directly. Warranty terms may vary.

10. Suport

If you require further assistance or have questions not covered in this manual, please contact the seller through the platform where the purchase was made. Provide your order number and a detailed description of your inquiry for prompt support.
