Generic Pet Grooming Dryer User Manual

1. Introducció

This manual provides instructions for the safe and effective use of your Generic Pet Grooming Dryer. Please read this manual thoroughly before operating the device and retain it for future reference.

Característiques principals:

• Adjustable Temperature & Airflow: Features a 2800W pure copper motor with adjustable temperature control from 95 to 140°F and 5-speed wind settings from 15 to 75 m/s.
• Blow and Vacuum Combo: Offers both blow and vacuum modes for efficient drying and hair collection.
• Noise Reduction & Insulation: Designed for reduced noise levels (down to 50dB) and includes an ABS integrated shell with thickened insulation brackets for safety.
• Protecció contra el sobreescalfament: Automatic shut-off system to prevent overheating.
• Versatile Nozzles & Hose: Includes four different nozzles and a flexible, expandable hose (2.5-7.5 ft) for various grooming needs.

Figure 1: Generic Pet Grooming Dryer with accessories.

2. Precaucions de seguretat

Per garantir un funcionament segur i evitar lesions o danys, si us plau, seguiu les següents pautes de seguretat:

• Assegureu-vos sempre que la font d'alimentació coincideixi amb el volumtagS'ha especificat al dispositiu.
• No feu servir l'assecadora amb les mans mullades ni a prop de l'aigua.
• Mantingueu el cable d'alimentació lluny de superfícies escalfades.
• No bloquegeu les entrades o sortides d'aire durant el funcionament.
• Unplug the device when not in use and before cleaning or maintenance.
• No permeteu que els nens o les persones sense formació facin servir l'assecadora.
• Si el dispositiu mostra signes de danys o mal funcionament, deixeu d'utilitzar-lo immediatament i poseu-vos en contacte amb el servei d'atenció al client.
• The dryer is equipped with an overheat protection device that automatically shuts off the unit if the temperature becomes too high. Allow it to cool before resuming use.

Figure 2: Safety features including fan protection, overheat protection, and base silicone gasket.

3. Components del producte

Contingut del paquet:

• 1 x Pet Grooming Dryer Unit
• 1 x mànega flexible
• 4 x Nozzles (Finger, Wide-Flat, Flat, Circular)
• 1 x Manual d'usuari

Tipus de broquets:

• Finger Nozzle: Ideal for detangling and drying thick coats.
• Wide-Flat Nozzle: For fast drying of large areas.
• Broquet pla: For concentrated airflow on specific areas.
• Circular Nozzle: General purpose drying.

Figure 3: Pet Grooming Dryer with included hose and four nozzle attachments.

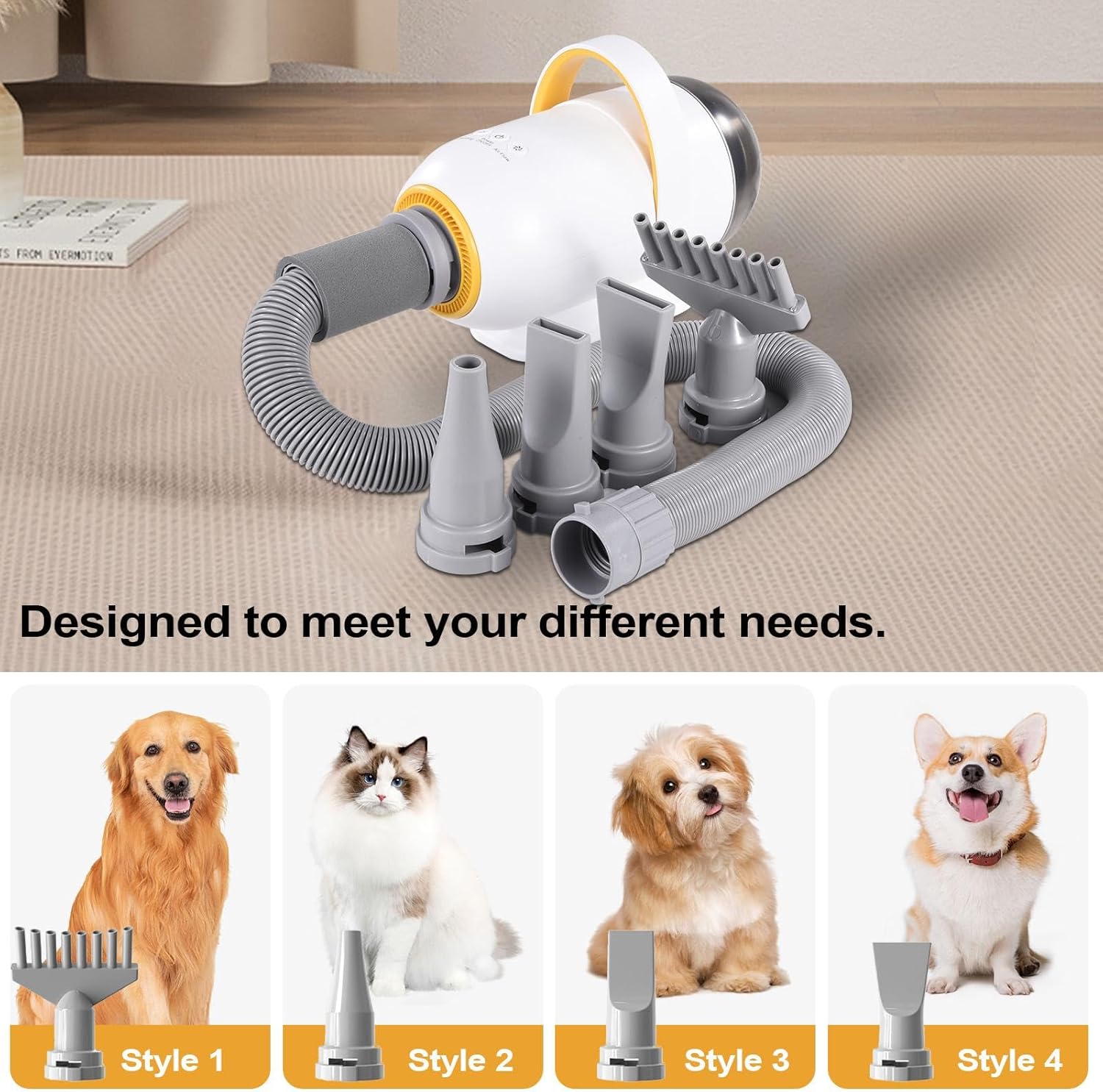

Figure 4: Different nozzle styles for varied grooming requirements.

4. Muntatge i muntatge

Connectant la mànega:

1. Align the hose connector with the air outlet on the main dryer unit.
2. Twist the connector clockwise until it is securely locked in place.

Col·locació de broquets:

1. Select the desired nozzle for your grooming task.
2. Push the nozzle firmly onto the end of the flexible hose until it clicks into place.
3. To remove, pull the nozzle off while gently twisting.

Video 1: Demonstration of assembling the pet grooming dryer and attaching nozzles.

5. Instruccions de funcionament

Encès/apagat:

Plug the power cord into a suitable electrical outlet. Press the power button to turn the unit on. Press it again to turn off.

Adjusting Airflow and Temperature:

Use the designated control knobs or buttons on the unit to adjust the wind speed and temperature. Start with lower settings and gradually increase as needed, observing your pet's comfort.

Using Blow Mode:

Ensure the hose is connected to the air outlet. Select the appropriate nozzle and direct the airflow towards your pet's coat, maintaining a safe distance to avoid discomfort or overheating.

Using Vacuum Mode:

To activate vacuum mode, attach the hose to the vacuum port on the dryer unit. This mode is designed to collect loose hair and debris, helping to keep your grooming area clean.

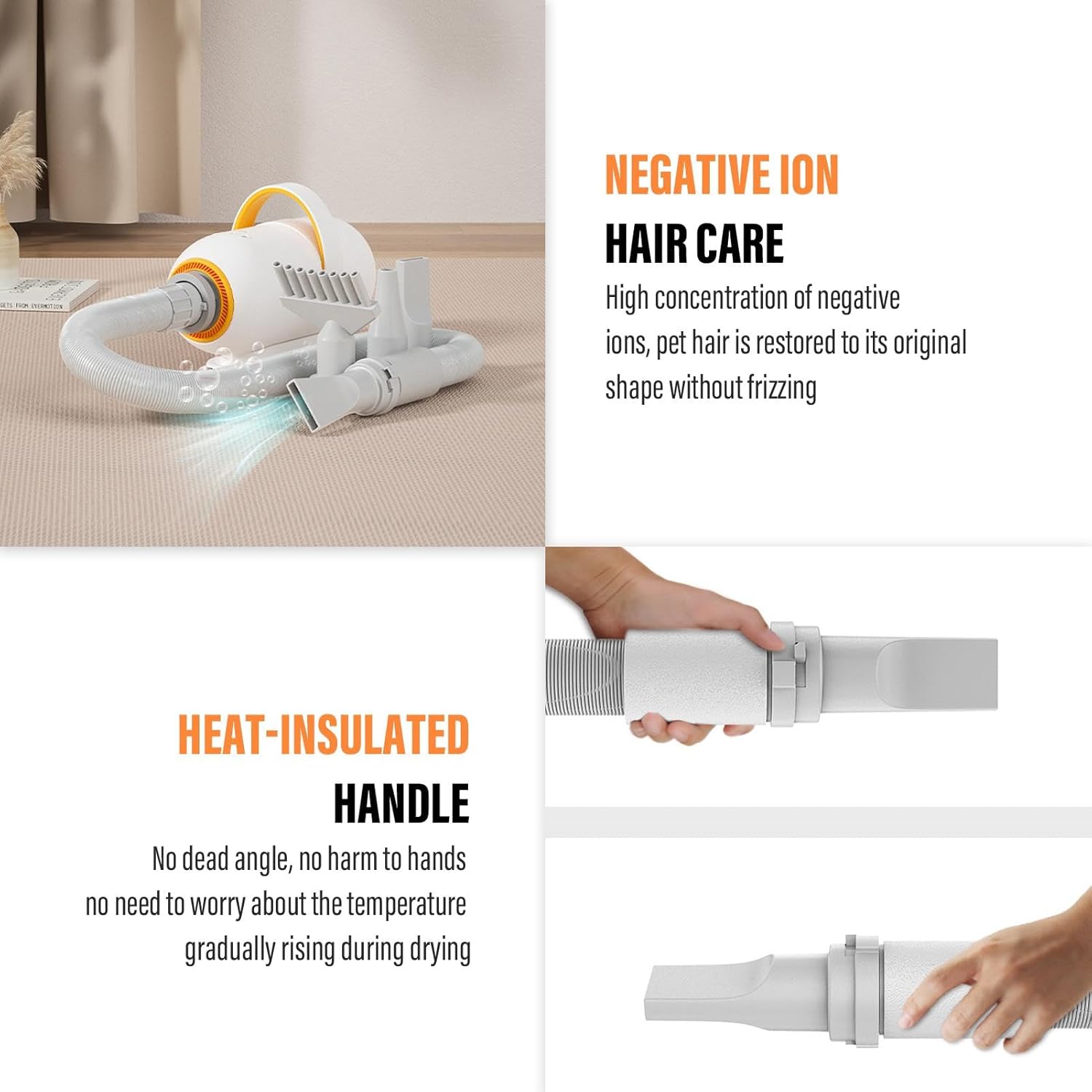

Figure 5: Features such as negative ion hair care and a heat-insulated handle for user comfort.

Figure 6: Pet grooming in progress using the dryer.

6. Cura i Manteniment

Neteja del filtre:

Regularly check and clean the air intake filter to maintain optimal performance. Unplug the unit, remove the filter cover, and clean any accumulated hair or debris. Reinstall the filter and cover securely.

Cleaning the Hose and Nozzles:

After each use, remove the hose and nozzles and clean them of any pet hair or residue. A damp cloth can be used for external cleaning. Ensure all parts are dry before reassembly or storage.

Emmagatzematge:

Store the dryer in a cool, dry place, away from direct sunlight and moisture. Ensure the power cord is neatly wrapped and not kinked.

7. Guia de resolució de problemes

8. Especificacions del producte

Figura 7: Especificacions detallades del producte.

9. Garantia i atenció al client

Informació de la garantia:

Specific warranty details may vary. Please refer to your purchase documentation or contact the retailer for information regarding the warranty period and terms for this product.

Atenció al client:

For any questions, technical assistance, or service inquiries, please contact the seller or manufacturer through the platform where the product was purchased.
