1. Introducció i presentació del producteview
This manual provides essential instructions for the safe and effective use of your AZZUNO 14AK MIG Welding Gun. Please read this manual thoroughly before operation to ensure proper setup, usage, and maintenance.
The AZZUNO 14AK MIG Welding Gun is designed for use with AZZUNO MIG-155F and MIG-155L welding machines. It features a 10-ft cable and an integrated gas hose, providing a reliable connection for MIG welding applications.

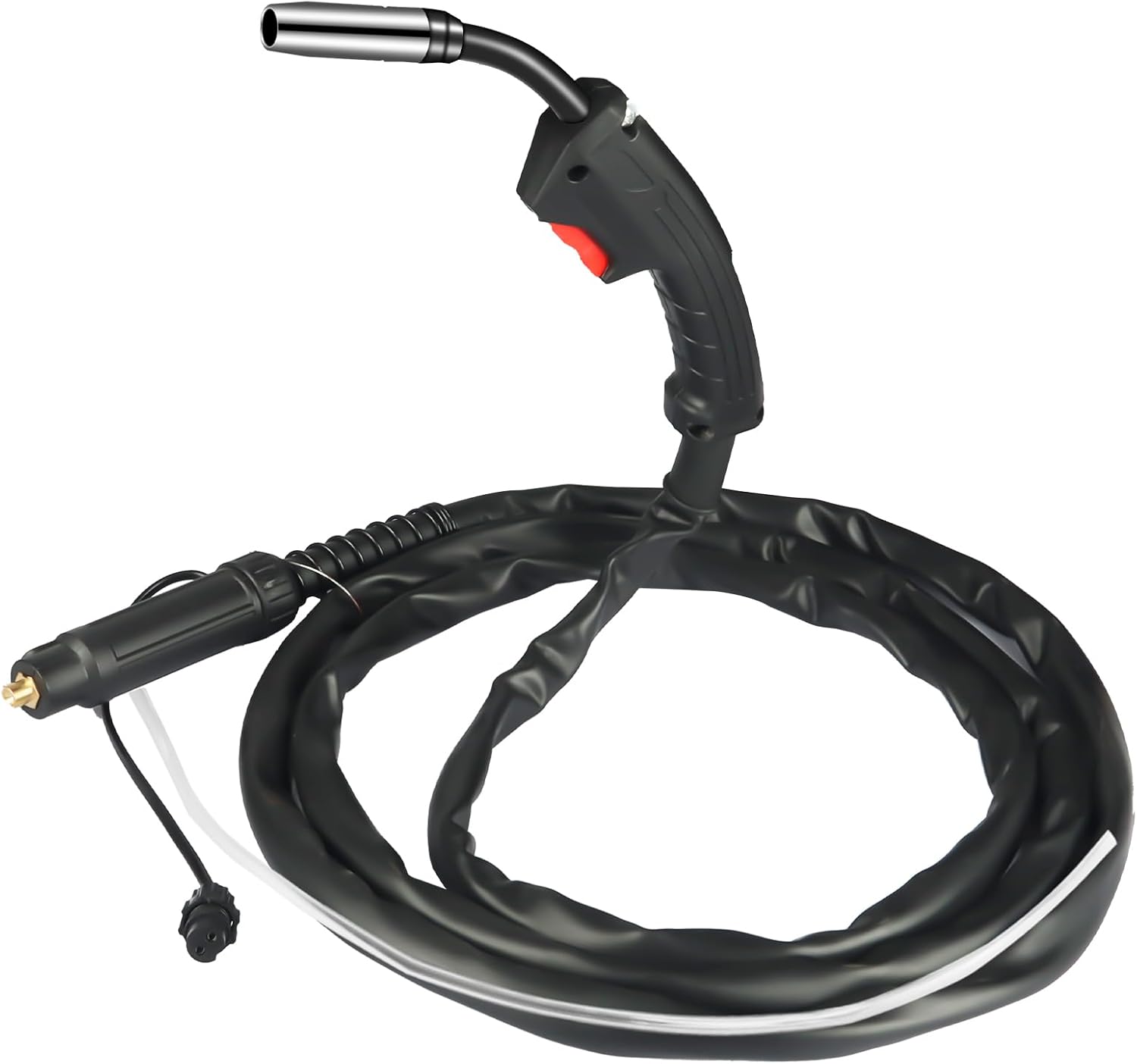

Figura 1: Mésview of the AZZUNO 14AK MIG Welding Gun, showing the torch, cable, and gas hose connection.
Característiques principals:
- Compatibilitat: Specifically designed for seamless integration with AZZUNO MIG-155F and MIG-155L welders.
- Construcció duradora: Manufactured with high-quality stainless steel for extended service life and consistent performance.
- Disseny ergonòmic: Features a comfortable grip to minimize operator fatigue during prolonged welding tasks, enhancing control and precision.
- Consistent Wire Feed: Engineered to provide a stable and uniform wire feed, contributing to cleaner welds with reduced spatter.
2. Configuració i instal·lació
Before beginning installation, ensure your welding machine is powered off and disconnected from the main power supply.
- Connect the Quick Connector: Insert the quick connector of the MIG welding gun cable into the corresponding receptacle on your AZZUNO MIG-155F or MIG-155L welding machine. Ensure it is securely fastened.
- Connect the 2-Pin Plug: Attach the 2-pin control plug from the welding gun to the designated control port on the welding machine. This connection enables trigger functionality.
- Connect the Gas Hose: Securely connect the gas hose from the welding gun to the gas outlet on your welding machine. Ensure all connections are leak-free to maintain proper gas shielding.
- Install Consumables:
- Unscrew the gas nozzle from the torch head.
- Screw in the appropriate contact tip for your welding wire diameter.
- Re-attach the gas nozzle, ensuring it is finger-tight.
Figure 2: Details of the 10-ft cable, 2-pin control plug, and quick connector for machine attachment.
Figura 3: Explotat view demonstrating the easy assembly of the nozzle and contact tip components.
Figure 4: The 14AK MIG torch properly connected to an AZZUNO MIG-155F welding machine.
3. Instruccions de funcionament
Always wear appropriate personal protective equipment (PPE) including a welding helmet, gloves, and protective clothing before operating any welding equipment.
- Encès: Once all connections are secure, power on your AZZUNO welding machine.
- Set Welding Parameters: Ajusteu el voltage, wire feed speed, and gas flow rate on your welding machine according to the material thickness and type of welding wire being used. Refer to your welding machine's manual for specific parameter guidelines.
- Iniciar l'arc: Position the welding gun over the workpiece. Press the trigger on the ergonomic handle to initiate the wire feed and arc.
- Mantenir l'arc: Guide the welding gun along the joint, maintaining a consistent travel speed and arc length for optimal weld quality.
- Allibera el disparador: Release the trigger to stop the wire feed and extinguish the arc.
Figure 5: The ergonomic handle design provides a comfortable grip, with the trigger clearly indicated for operation.
Figure 6: Demonstrating stable welding with the AZZUNO 14AK MIG torch, highlighting its consistent performance.
4. Manteniment
Regular maintenance ensures the longevity and optimal performance of your MIG welding gun.
- Neteja de broquets: Periodically clean spatter from the gas nozzle. Excessive spatter can obstruct gas flow and affect weld quality.
- Contact Tip Inspection: Inspect the contact tip for wear or enlargement of the bore. Replace worn tips to ensure proper electrical contact and consistent wire feeding.
- Neteja del difusor: Clean or replace the gas diffuser if it becomes clogged with spatter or debris.
- Inspecció del cable: Regularly check the welding cable and gas hose for any signs of damage, cuts, or kinks. Damaged cables can compromise safety and performance.
- Emmagatzematge: Store the welding gun in a clean, dry environment when not in use to prevent damage and corrosion.
5. Solució De Problemes
Aquesta secció tracta els problemes habituals que podeu trobar durant el funcionament.
| Problema | Causa possible | Solució |
|---|---|---|
| Inconsistent Wire Feed | Worn contact tip, incorrect wire tension, clogged liner, wrong drive roll size. | Replace contact tip, adjust wire tension, clean or replace liner, ensure correct drive rolls are installed. |
| Esquitxades excessives | Vol incorrectetage/wire speed, insufficient gas flow, dirty workpiece, worn contact tip. | Adjust welding parameters, check gas supply and flow rate, clean workpiece, replace contact tip. |
| Sense arc | Poor ground connection, power supply issue, trigger malfunction, no wire feed. | Comprovar terra clamp, verify power to welder, inspect trigger connection, ensure wire is feeding. |
| Fuga de gas | Loose gas hose connection, damaged hose. | Tighten all gas connections, inspect hose for damage and replace if necessary. |
6. Especificacions
| Atribut | Detall |
|---|---|
| Número de model | 14AK-Gas Hose |
| Marca | AZZÚN |
| Compatibilitat | AZZUNO MIG-155F, AZZUNO MIG-155L |
| Longitud del cable | 10 peus (aproximadament 3 metres) |
| Material | Acer inoxidable |
| Pes de l'article | 2.2 lliures |
| Dimensions del paquet | 12 x 11.5 x 2.9 polzades |
| Tipus de connector | 2-pin plug, Quick Connector (10-25mm²) |
7. Garantia i Suport
For warranty information or technical assistance, please contact AZZUNO customer support. You can find more information and contact details on the official AZZUNO store page:
