Manual d'instruccions de la marquesina metàl·lica resistent Outsunny de 10' x 15'
Model: 84C-565V00CG

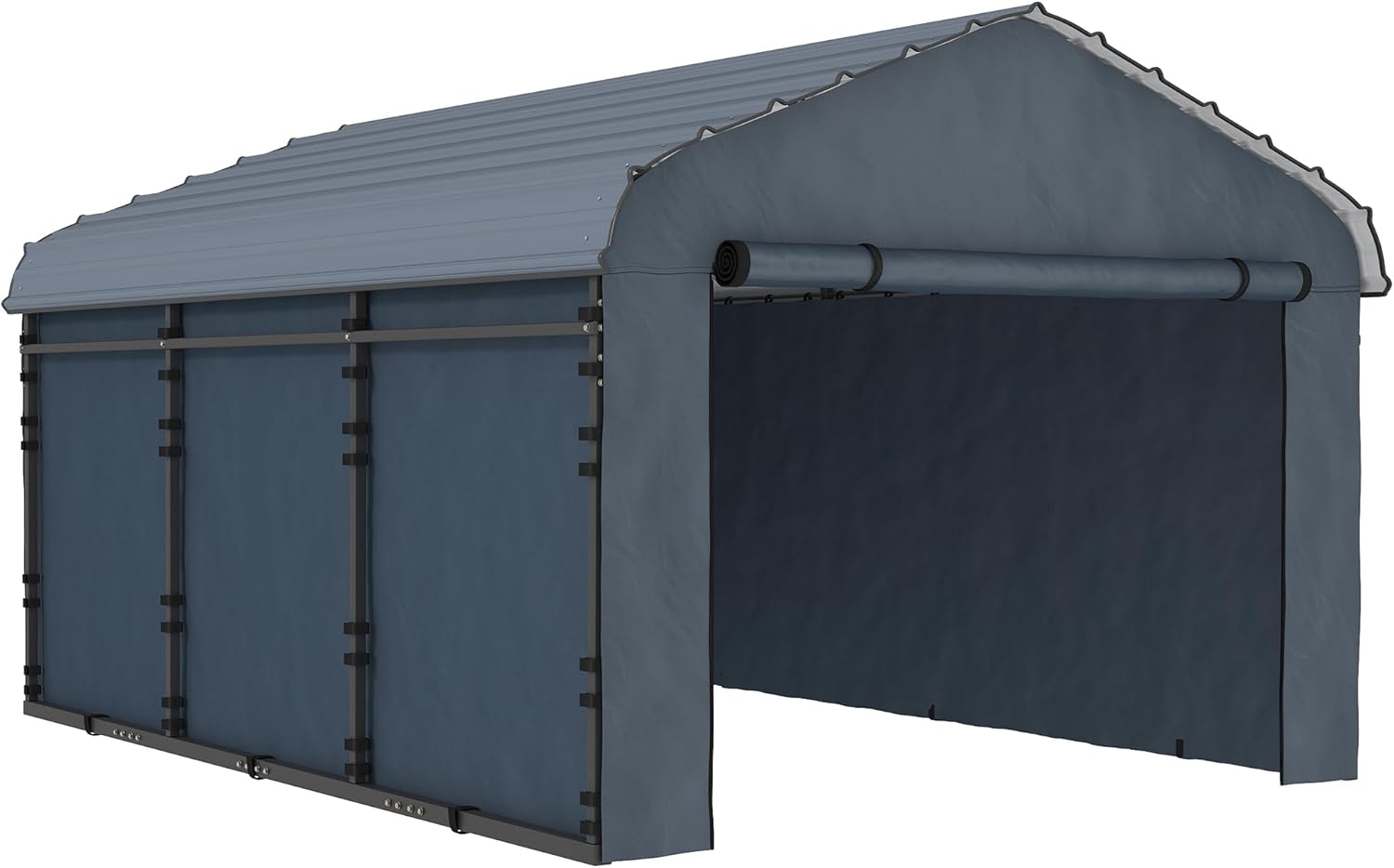

The Outsunny 10' x 15' Heavy Duty Metal Carport, designed for robust vehicle protection.
Introducció
This manual provides detailed instructions for the assembly, operation, and maintenance of your Outsunny 10' x 15' Heavy Duty Metal Carport. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation. Retain this manual for future reference.
Informació de seguretat
Advertències importants de seguretat:
- Always ensure the carport is properly anchored to the ground using the provided ground stakes or expansion screws to prevent it from tipping over in windy conditions.
- Do not use the carport in winds exceeding 38.5 MPH. Disassemble or secure the structure if severe weather is anticipated.
- To minimize risk during assembly, the outdoor carport can be safely installed with the roof on the ground first, surrounded by a soft-edged, non-abrasive rubber edge.
- Mantingueu els nens i les mascotes allunyats de la zona de reunió.
- Wear appropriate personal protective equipment (PPE) during assembly, such as gloves and eye protection.
Ensure the carport is securely anchored using expansion screws or ground stakes for maximum stability.
Característiques del producte
- Disseny resistent a la intempèrie: Equipped with a metal roof and waterproof sealing, this metal car port is 100% waterproof and built to withstand winds up to 38.5 MPH and snow loads of 12 psf, ensuring reliable shelter for your vehicle.
- Versatile Structure: Featuring removable 160g PE sidewalls, this carport kit transforms quickly from a secure closed carport to an open metal garage for your car, a shed for tools, or a party tent for barbecues, parties, and outdoor activities.
- Construcció robusta: Constructed with a solid all-metal frame, reinforced with four top reinforcement bars, eight sidebars, and ground bars, and anchored with ground stakes or expansion screws, this steel carport offers enhanced stability and longevity.
- Safe and Easy Setup: To minimize risk during assembly, the outdoor carport can be safely installed with the roof on the ground first, surrounded by a soft-edged, non-abrasive rubber edge.
- Dimensions totals: 181.1" L x 120.9" W x 98.4" H. Door Size: 92.9" W x 71.7" H.
The carport features an all-weather roof with waterproof sealing and galvanized metal for superior protection.
Muntatge i muntatge
This carport requires assembly. It is recommended to have at least two adults for safe and efficient installation.
Abans de començar
- Verify all parts are present against the packing list provided with your product.
- Choose a level, stable location for installation, away from overhead power lines or other obstructions.
- Netegeu la zona de qualsevol residu o objecte punxegut.
- Ensure you have the necessary tools, such as a wrench, ladder, and safety gloves.
Passos de muntatge
- Begin by assembling the roof structure on the ground. Ensure all connections are secure and follow the diagram in your specific assembly guide.
- Attach the galvanized metal roof panels to the assembled roof frame, ensuring proper overlap and waterproof sealing.
- Carefully lift and secure the roof assembly onto the main support frame. This step may require multiple people.
- Install the main support frame, including top reinforcement bars, sidebars, and ground bars, as per the instructions.
- Attach the removable 160g PE sidewalls. These can be rolled up or removed as needed for versatility.
- Securely anchor the carport to the ground using the provided ground stakes or expansion screws. This is crucial for stability and safety.
- Ensure all connections are tightened and the structure is stable before placing any vehicle or items inside.
The heavy-duty structure features top reinforcement bars and ground bars for enhanced stability.
For safe assembly, the roof can be set up on the ground first, with a protective edge to prevent cuts.
Instruccions de funcionament
Using the Removable Sidewalls
The carport features removable 160g PE sidewalls, allowing for versatile use as a fully enclosed shelter or an open canopy.
- To open the carport and create an open canopy, unfasten the sidewalls and roll them up or detach them completely.
- To close the carport and provide full enclosure, unroll or reattach the sidewalls and secure them firmly to the frame using the integrated fasteners.
Vehicle Parking
Drive vehicles slowly and carefully into the carport, ensuring adequate clearance on all sides to prevent damage to the structure or the vehicle.
The removable sidewalls allow the carport to be used in both open and closed configurations.
Official product video demonstrating the features and functionality of the Outsunny Carport, including the operation of the sidewalls.
Manteniment
- Inspecció del marc: Regularly inspect the metal frame for any signs of rust, corrosion, or damage. Clean with a mild detergent and water, then dry thoroughly. Apply rust-inhibiting paint if necessary.
- Comprovació de la connexió: Periodically check all bolts, screws, and connections. Tighten any loose fasteners to maintain structural integrity and prevent instability.
- Sidewall Cleaning: Clean the PE sidewalls with a soft cloth and mild soap. Avoid using abrasive cleaners, harsh chemicals, or stiff brushes, as these can damage the material. Rinse thoroughly and allow to air dry.
- Snow and Wind Management: In areas prone to heavy snow, regularly remove snow accumulation from the roof to prevent excessive load. If strong winds are anticipated (exceeding 38.5 MPH), consider temporarily disassembling the carport or reinforcing its anchoring.
- Ancoratge a terra: Re-check the ground stakes or expansion screws periodically to ensure they remain firmly secured, especially after heavy rain or strong winds.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Carport instability or swaying | Insufficient anchoring; loose connections; uneven ground | Ensure all ground stakes/expansion screws are firmly in place. Tighten all bolts and connections. Relocate to a more level surface if possible. |
| Fuita d'aigua del sostre | Improper roof panel installation; damaged sealing | Re-check roof panel overlap and ensure all waterproof sealing is intact. Apply additional waterproof sealant if needed. |
| Sidewalls not rolling smoothly or sticking | Obstruction in tracks; dirty tracks; material creasing | Clear any debris from the rolling mechanism or tracks. Clean tracks with a damp cloth. Gently straighten any creases in the PE material. |
| Frame components do not align during assembly | Incorrect orientation of parts; manufacturing tolerance | Double-check part numbers and orientation against the assembly diagrams. Loosen adjacent connections slightly to allow for adjustment, then re-tighten. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Outsunny |
| Número de model | 84C-565V00CG |
| Material | Metall, Polietilè (PE) |
| Color | Gris fosc |
| Pes de l'article | 225 lliures |
| Dimensions del producte (L x A x A) | 181.1" x 120.9" x 98.4" |
| Mida de la porta (amplada x alçada) | 92.9 cm x 71.7 cm |
| Protecció contra la llum ultraviolada | Sí |
| Material del marc | Acer d'aliatge |
| Nivell de resistència a l'aigua | Resistent a l'aigua |
| Coverage / Floor Area | 152 peus quadrats |
| Muntatge obligatori | Sí |
| Resistència al vent | Fins a 38.5 MPH |
| Capacitat de càrrega de neu | 12 psf |
Detailed dimensions of the Outsunny Carport, including length, width, height, and door opening measurements.
Garantia i Suport
For warranty information, technical support, or to inquire about replacement parts, please refer to the contact details provided by Outsunny at the point of purchase or visit the official Outsunny weblloc.
També podeu visitar el Botiga Outsunny a Amazon per a més informació i opcions d'atenció al client.
