Winado 4 Wheel Mobility Scooter User Manual

1. Introducció

This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Winado 4 Wheel Mobility Scooter. Please read this manual thoroughly before operating the scooter to ensure proper usage and to maximize its lifespan. This scooter is designed to provide reliable and comfortable mobility for adults and seniors, featuring a foldable design for convenient transport and storage.

2. Informació de seguretat

Your safety is paramount. Adhere to all safety guidelines to prevent injury or damage to the scooter.

Precaucions generals de seguretat:

• Always wear appropriate safety gear, such as a helmet, if local regulations require or if desired for personal safety.
• No feu servir el patinet sota els efectes de l'alcohol o les drogues.
• Ensure the scooter is fully charged before long trips.
• Avoid sudden stops or turns, especially at high speeds.
• Estigueu atents al vostre entorn i a altres vianants o vehicles.
• No supereu la capacitat de càrrega màxima de 300 lliures.

Seguretat de la bateria:

• Use only the charger provided by Winado.
• No exposeu la bateria a temperatures extremes.
• Carregueu la bateria en una zona ben ventilada.
• If the battery shows signs of damage or overheating, discontinue use immediately and contact support.

Entorn de funcionament:

• The scooter is designed for various terrains including slopes (up to 15°), speed bumps, lawns, and gravel roads. However, exercise caution on uneven surfaces.
• Avoid operating in heavy rain or through deep puddles to prevent damage to electrical components.
• Ensure clear visibility, especially when using the scooter at night.

3. Producte acabatview

Familiarize yourself with the main components of your Winado Mobility Scooter.

Figura 3.1: global view of the Winado 4 Wheel Mobility Scooter in red, showcasing its compact design and basket.

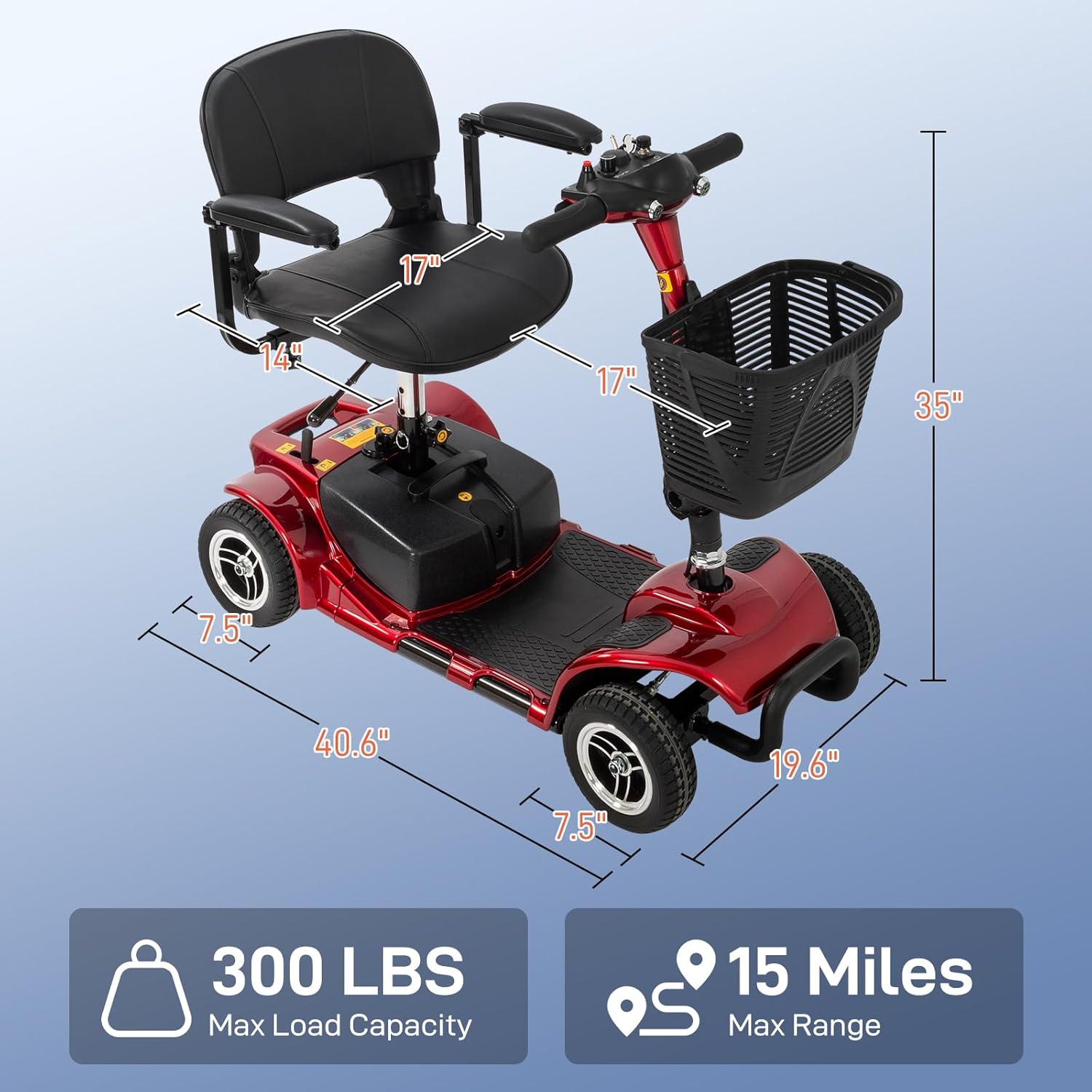

Figure 3.2: Key dimensions of the scooter (40.6"D x 19.6"W x 35"H), along with its maximum load capacity of 300 lbs and a maximum range of 15 miles.

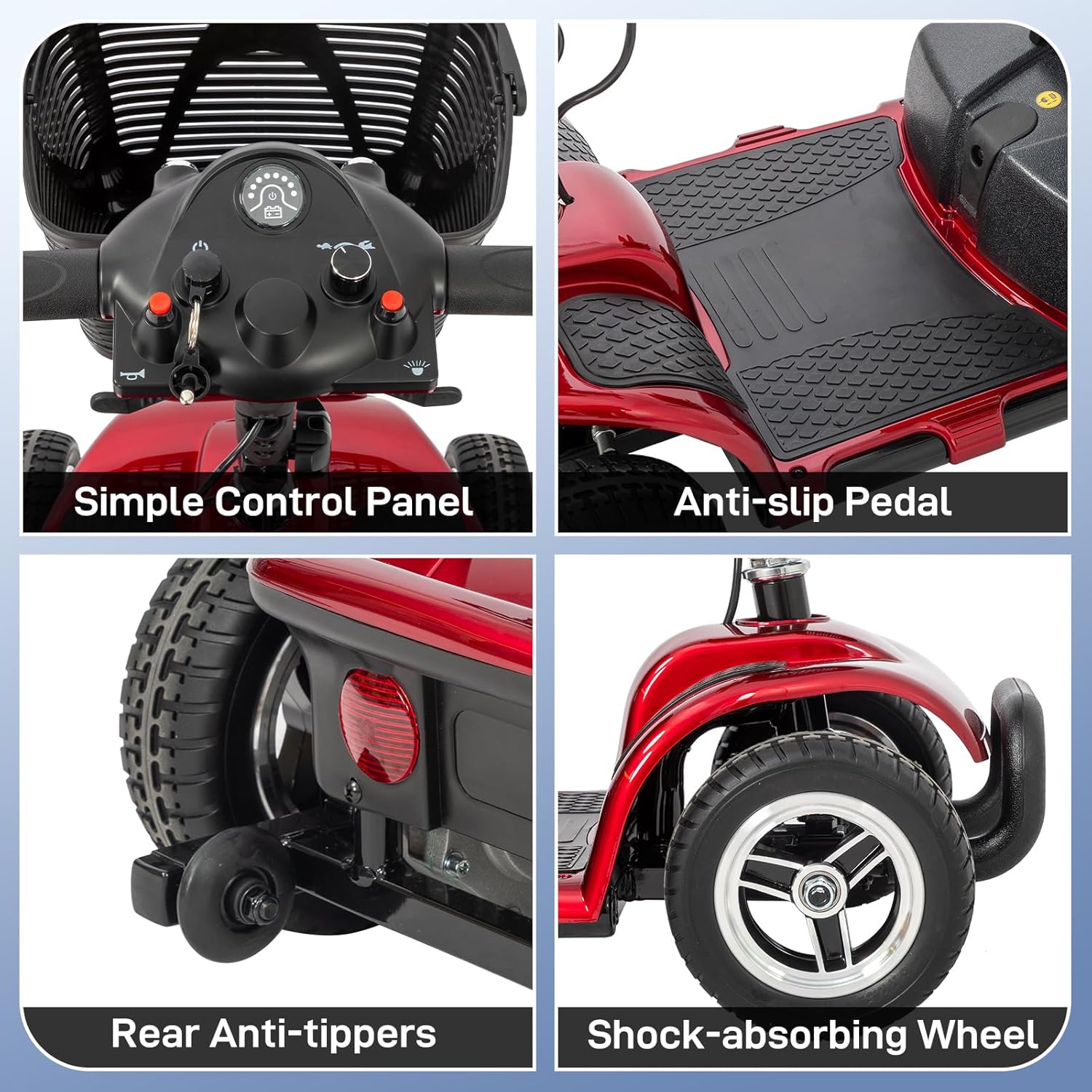

Figura 3.3: Primer pla views of the simple control panel, anti-slip pedal, rear anti-tippers for stability, and shock-absorbing wheels.

Figure 3.4: Highlights of the LED headlight, front bumper bar, adjustable armrests, and the 360° rotating seat for ease of access.

Components principals:

• Tiller/Handlebar: Contains controls for speed, headlight, and horn.
• Tauler de control: Displays battery level, power switch, adjustable speed dial, and headlight button.
• Seient: Adjustable height, 360° rotating, with adjustable armrests.
• Cistella: Front-mounted for carrying personal items.
• Rodes: Four shock-absorbing wheels for stable driving.
• Motor: 180W powerful motor.
• Bateria: Bateria de 12 V 12 Ah.
• Sistema de frenada: Intelligent Electromagnetic Brake for immediate stopping upon release.
• Anti-roll Wheel / Rear Anti-tippers: Provides additional stability and prevents tipping.
• Far LED: Per a una millor visibilitat en condicions de poca llum.
• Barra de para-xocs: Front protection.
• Pedal antilliscant: Ensures secure foot placement.

Vídeo del producteview:

4. Configuració

Desembalatge i inspecció inicial:

1. Traieu amb cura tots els components de l'embalatge.
2. Inspect the scooter for any signs of damage during transit. If damage is found, do not proceed with assembly and contact customer support immediately.
3. Assegureu-vos que tots els components enumerats siguin presents.

Muntatge:

The Winado Mobility Scooter features a foldable design, minimizing initial assembly. Typically, the main body comes pre-assembled. You may need to attach the basket and adjust the seat.

1. Desplegant el patinet:


   Figure 4.1: The scooter in its folded state, demonstrating its compact size for storage or transport in a vehicle trunk.

   Locate the folding mechanism (usually a lever or knob near the base of the tiller or seat post). Release the lock and carefully unfold the scooter until it clicks into place, ensuring all locking mechanisms are secure.

2. Attaching the Basket:

   Slide the basket onto its designated mounting bracket at the front of the tiller until it is securely in place.

3. Adjusting the Seat and Armrests:

   Adjust the seat height by loosening the adjustment knob on the seat post, setting it to a comfortable height, and then tightening the knob. The armrests can also be adjusted for width and angle to suit your preference. The seat can rotate 360 degrees for easy access.

Càrrega inicial de la bateria:

Before first use, fully charge the scooter's battery. This typically takes several hours. Refer to the charger's indicator lights for charging status.

• Connecteu el carregador al port de càrrega del patinet.
• Connecteu el carregador a una presa de corrent estàndard.
• El llum indicador del carregador canviarà (per exemple, de vermell a verd) quan la càrrega s'hagi completat.
• Desconnecteu el carregador un cop finalitzada la càrrega.

5. Instruccions de funcionament

Tauler de control acabatview:

Figure 5.1: The scooter's control panel, showing the battery level indicator, power switch, adjustable speed dial, safety horn button, and headlight button.

• Interruptor d'alimentació: Turns the scooter on/off.
• Indicador de nivell de bateria: Mostra la càrrega actual de la bateria.
• Adjustable Speed Dial: Controls the maximum speed of the scooter.
• Botó de botzina de seguretat: Activa la botzina.
• Botó de fars: Encén/apaga el far LED.
• Palanca de l'accelerador: Push forward to move forward, pull back to reverse. Releasing the lever activates the electromagnetic brake.

Arrencada i conducció:

1. Ensure the scooter is on a flat, stable surface.
2. Gireu l'interruptor d'alimentació a la posició "ON".
3. Adjust the speed dial to a comfortable setting, starting with a lower speed until you are familiar with the controls.
4. Gently press the throttle lever to begin moving. Release the lever to engage the intelligent electromagnetic brake.
5. Use the headlight button for visibility in low-light conditions.
6. Utilize the safety horn when necessary to alert others.

Plegat i desplegament:

The scooter's foldable design allows for easy storage and transport.

1. Per plegar: Ensure the scooter is turned off. Locate the folding mechanism (refer to Figure 4.1). Follow the instructions specific to your model to release the lock and fold the tiller and seat down. Ensure all parts are securely latched in the folded position.
2. Per desplegar: Reverse the folding process, ensuring all locking mechanisms click into place before use.

Navigating Different Terrains:

Figure 5.2: The scooter is capable of handling various terrains such as slopes, speed bumps, lawns, and gravel roads, providing versatile mobility.

The scooter is designed for versatility. When encountering different terrains:

• Desnivells: The scooter can handle slopes up to 15°. Approach slopes directly and maintain a steady speed.
• Speed Bumps: Reduce speed and approach speed bumps slowly and squarely to minimize impact.
• Lawn/Gravel Roads: Operate at a reduced speed. The shock-absorbing wheels help maintain comfort on these surfaces.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your scooter.

Neteja:

• Netegeu el patinet amb anunciamp cloth. Avoid using excessive water or harsh chemicals.
• Do not use a high-pressure washer directly on the scooter.

Cura de la bateria:

• Charge the battery regularly, even if the scooter is not in frequent use, to maintain battery health.
• Eviteu esgotar completament la bateria abans de tornar-la a carregar.
• Guardeu el patinet i la bateria en un lloc fresc i sec.

Inspecció de pneumàtics:

• Regularly check tire pressure (if applicable) and for any signs of wear or damage.
• Ensure tires have adequate tread for traction.

Comprovacions generals:

• Periodically check all nuts, bolts, and fasteners to ensure they are tight.
• Inspect the braking system for proper function.
• Assegureu-vos que totes les connexions elèctriques estiguin segures i lliures de corrosió.

7. Solució De Problemes

Aquesta secció tracta problemes comuns que podeu trobar amb el vostre escúter.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Winado customer support.

8. Especificacions

Detailed technical specifications for the Winado 4 Wheel Mobility Scooter.

Figure 8.1: Visual representation of the scooter's powerful 180W motor, top speed, and battery capacity.

9. Garantia i Suport

Informació de la garantia:

Winado offers a return policy for this product. Please refer to the purchase platform for specific warranty details and terms. Generally, products are eligible for a 30-day easy return.

Atenció al client:

For technical assistance, troubleshooting, or warranty claims, please contact Winado customer support through the platform where you purchased the scooter. You can also visit the official Winado store for more information and contact options:

Visit the Winado Store on Amazon
