COMHOMA Electric Height Adjustable Desk 120 x 60 cm with Drawers, Monitor Stand, and 3-Height Memory Control

1. Introducció

Thank you for choosing the COMHOMA Electric Height Adjustable Desk. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new desk. Please read these instructions carefully before use and retain them for future reference.

This desk is designed to offer a flexible and ergonomic workspace, allowing you to switch between sitting and standing positions with ease. It features a spacious desktop, integrated monitor stand, convenient drawer, and a smart control panel with memory presets.

2. Informació de seguretat

Per garantir un funcionament segur i evitar danys, observeu les següents precaucions de seguretat:

Assegureu-vos que tots els components estiguin ben subjectats abans d'utilitzar-los.
Mantingueu els nens i les mascotes allunyats de l'escriptori durant l'ajust d'alçada.
Do not place hands or other objects near moving parts during operation.
Do not overload the desk. The maximum recommended load capacity is 80 kg (176 lbs).
Eviteu vessar líquids sobre el tauler de control o els components elèctrics.
If any unusual noise or movement occurs, stop operation immediately and consult the troubleshooting section.
Only use the provided power adapter and cable.

3. Contingut del paquet

Please check that all parts are present and undamaged before beginning assembly. Assembly tools are not included.

Desktop sections
Desk frame (legs, crossbar)
Electric lifting mechanism and motor
Control panel with power cable
Calaix
Suport del monitor
Headphone hooks (set of 2)
Safata de gestió de cables
Ferramenteria de muntatge (cargols, perns, etc.)
Manual d'usuari

4. Muntatge i muntatge

Assembly of this product is required. Follow the detailed instructions provided in the separate assembly guide for step-by-step installation. Ensure you have adequate space and the necessary tools (e.g., screwdriver, wrench) before starting.

4.1 Key Components and Dimensions

Familiarize yourself with the desk's dimensions and key features before assembly.

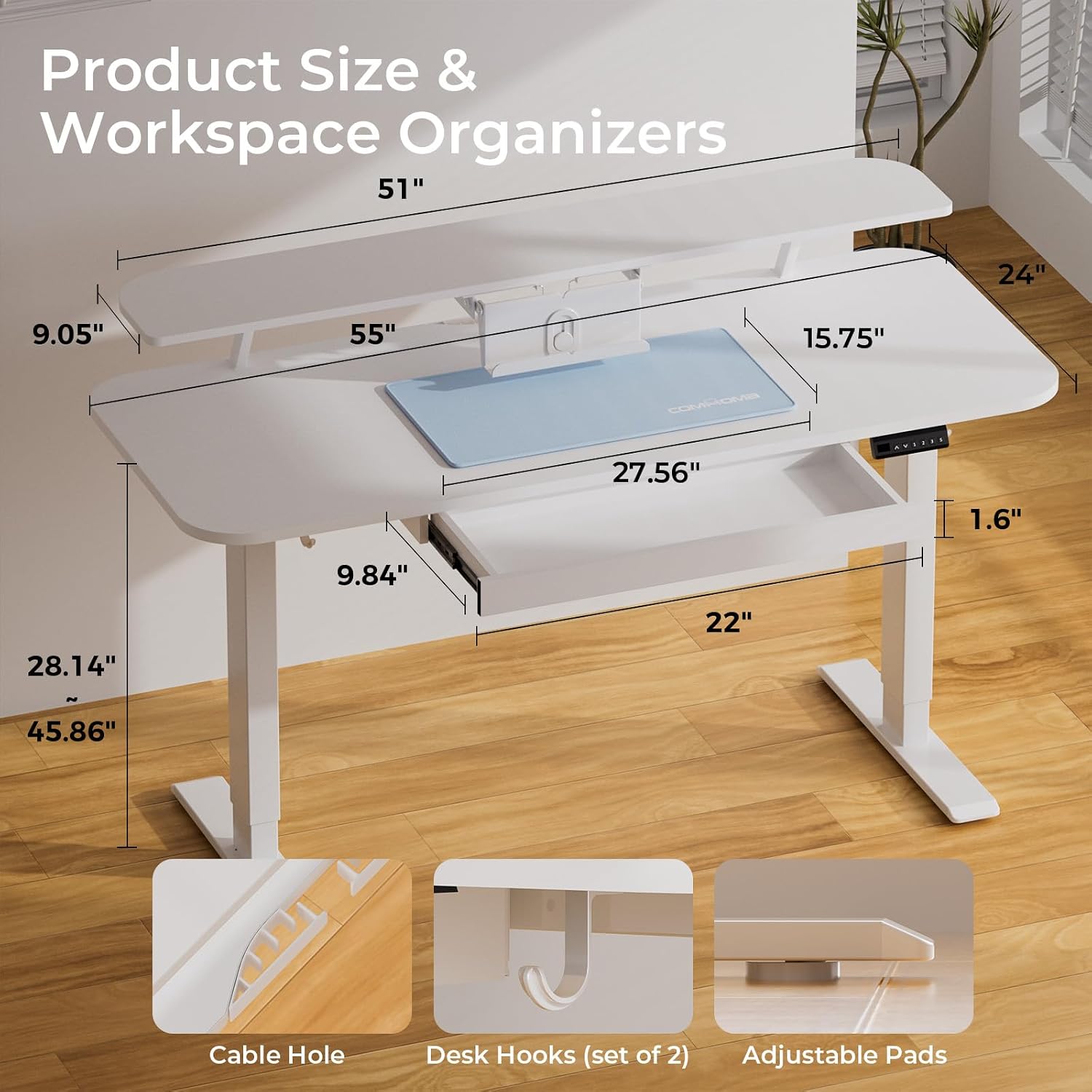

Image showing the dimensions of the COMHOMA Electric Height Adjustable Desk, including the desktop, monitor stand, and drawer. Details of the cable hole, desk hooks, and adjustable pads are also visible. — Image: Product dimensions and workspace organizers. The desk measures approximately 55 inches (140 cm) in width, with a monitor stand of 51 inches (130 cm) and a depth of 15.75 inches (40 cm). The main desktop depth is 24 inches (60 cm). The drawer is 22 inches (56 cm) wide and 9.84 inches (25 cm) deep. The desk height adjusts from 28.14 inches (71.5 cm) to 45.86 inches (116.5 cm).

4.2 Instal·lació d'accessoris

After assembling the main desk structure, attach the drawer, monitor stand, headphone hooks, and cable management tray as per the assembly guide.

Per sobre view of the COMHOMA desk showing an open drawer filled with office essentials like pens, notebooks, and a game controller, alongside a large mousepad on the desktop. — Image: Spacious desk drawer and mousepad. The integrated drawer provides convenient storage for desktop essentials, helping to keep your workspace tidy.

Three-panel image demonstrating the versatility of the integrated stand, showing it holding a tablet, a laptop, and a book at an adjustable angle. — Image: Tablet, Laptop, and Book Stand. The adjustable stand can securely hold various devices or books, enhancing multitasking capabilities and freeing up desktop space.

Image illustrating the integrated cable management features of a desk, including cable holes and a tray to keep wires organized and prevent tangles. — Image: Cable Management System. Utilize the cable holes and management tray to keep your power cords and peripheral cables neatly organized and out of sight.

5. Instruccions de funcionament

5.1 Tauler de control acabatview

The desk is operated via an intuitive control panel located on the front edge of the desktop.

Close-up image of the desk's multifunction control panel with a digital display showing '099', up/down arrow buttons for height adjustment, three numbered memory preset buttons (1, 2, 3), and an 'S' button for lock and setup. — Image: Multifunction Control Panel. Features include a clear digital display, up/down arrows for manual height adjustment, three programmable memory preset buttons, and an 'S' button for locking and settings.

5.2 Ajust d'alçada

Utilitza el Amunt (▲) i Avall (▼) arrow buttons on the control panel to manually adjust the desk height. The digital display will show the current height in centimeters.

Image illustrating the desk's wide height range, showing a user comfortably working in a sitting position at 28.14 inches and another user working in a standing position at 45.86 inches. — Image: Wide Height Range. The desk can be adjusted from a minimum height of 28.14 inches (72 cm) to a maximum height of 45.86 inches (116 cm), accommodating both sitting and standing work preferences.

5.3 Preajustos de memòria

The control panel allows you to save up to three preferred height positions:

Ajusteu l'escriptori a l'alçada desitjada amb els botons Amunt/Avall.
Premeu el botó S botó. La pantalla parpellejarà.
Premeu un dels botons de memòria numerats (1, 2, o 3) within 3 seconds. The current height is now saved to that preset.
To recall a saved height, simply press the corresponding numbered memory button. The desk will automatically adjust to the stored position.

5.4 Ergonomic Monitor Stand

The integrated monitor stand helps maintain an ergonomic posture by elevating your screen to eye level, reducing strain on your neck and eyes.

Image demonstrating the ergonomic benefits of the monitor stand, showing a user with correct eye-level alignment to the screen, and how it helps prevent head tilting, hunching, and bending for a healthy office posture. — Image: Ergonomic Monitor Stand. Achieve optimal eye-level alignment to prevent neck and eye fatigue, promoting a healthier working posture.

5.5 Funcionament silenciós

The electric lifting mechanism operates quietly, ensuring minimal disturbance in your workspace.

Image illustrating the desk's ultra-quiet operation at 45dB, with visual comparisons to other noise levels like falling leaves (10dB), normal voice (60dB), and motor noise (90dB). — Image: Ultra-Quiet Operation. The desk operates at approximately 45dB, allowing you to adjust its height without disturbing others or losing focus.

6. Manteniment

Regular maintenance helps prolong the life of your desk:

Neteja: Netegeu l'escriptori i el marc amb un drap suauamp drap. Eviteu netejadors abrasius o productes químics agressius que puguin danyar l'acabat.
Inspecció: Reviseu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats. Torneu a apretar-los si cal.
Gestió de cables: Assegureu-vos que els cables no estiguin pinçats ni enredats, especialment durant els ajustos d'alçada.
Capacitat de càrrega: Do not exceed the maximum load capacity of 80 kg (176 lbs) to prevent damage to the motor and frame.

7. Solució De Problemes

If you encounter any issues with your desk, please refer to the following table:

Problema	Causa possible	Solució
L'escriptori no es mou	Power cable disconnected; Motor overload; Control panel error.	Check power connection; Reduce load on desk; Unplug and replug power after 10 minutes.
Ajust d'alçada desigual	Uneven load; Obstruction.	Distribute weight evenly; Remove any obstructions under or around the desk.
Desk stops mid-adjustment	Overload protection activated; Overheating.	Reduce load; Allow motor to cool down for 20 minutes before resuming operation.
Codi d'error a la pantalla	Error específic del sistema.	Refer to the detailed error code list in the full assembly manual or contact customer support.

If the problem persists after attempting these solutions, please contact COMHOMA customer support.

8. Especificacions del producte

Característica	Detall
Marca	COMHOMA
Número de model	EU-DTS118-WT-NEW
Dimensions del producte (L x A x A)	120 x 60 x 116 cm (47.2 x 23.6 x 45.7 polzades)
Pes de l'article	28 quilos (61.7 lliures)
Altura mínima	72 centímetres (28.3 polzades)
Altura màxima	116 centímetres (45.7 polzades)
Càrrega màxima recomanada	80 quilos (176 lliures)
Color	Blanc
Tipus de material	Wood, Metal (Alloy Steel Frame)
Tipus de material superior	Fusta
Tipus d'acabat	Lacat
Disseny d'escriptori	Standing Desk (T-shape)
Característiques especials	Ergonomic, Height Adjustable, Integrated USB Socket, Monitor Stand, Electric
Nombre de calaixos	1
Components inclosos	Headphone Hook, Cable Management Tray
Muntatge obligatori	Yes (Assembly tools not included)
Usos recomanats	Gaming, Drafting, Work, Writing

9. Garantia i Suport

9.1 Informació de la garantia

COMHOMA products are manufactured to high-quality standards. For specific warranty details regarding your electric height adjustable desk, please refer to the warranty card included in your package or visit the official COMHOMA weblloc. La garantia normalment cobreix defectes de fabricació i avaries en condicions d'ús normal.

9.2 Atenció al client

If you have any questions, require assistance with assembly, or experience issues not covered in the troubleshooting guide, please contact COMHOMA customer support. Have your model number (EU-DTS118-WT-NEW) and purchase date ready when contacting support.

Contact information can typically be found on the COMHOMA weblloc web o a l'embalatge del producte.
