Alpicool LGMP8 Portable Refrigerator Freezer User Manual

1. Introducció i finalview

The Alpicool LGMP8 Portable Refrigerator Freezer is a versatile and compact cooling solution designed for various outdoor and travel applications. Engineered for convenience and efficiency, this unit allows you to keep food and beverages chilled or frozen, making it ideal for fishing trips, camping adventures, RV travel, and other outdoor activities. Its robust construction and wide temperature range ensure reliable performance in diverse environments.

Image: The Alpicool LGMP8 Portable Refrigerator Freezer, showcasing el seu disseny compacte i la nansa integrada.

2. Contingut del paquet

Si us plau, reviseu el paquet acuradament per assegurar-vos que tots els articles hi són i estan en bon estat:

• 1 x Alpicool LGMP8 Car Refrigerator
• 1 x 100-240V AC Adapter & Cord
• 1 x 2.5m 12/24V DC Power Cord
• 1 x Shoulder Girdle (Strap)
• 1 x Manual d'usuari

Image: Visual representation of the Alpicool LGMP8 package contents, including the refrigerator, power cords, shoulder strap, and user manual.

3. Característiques del producte

• Pantalla digital: Features an LCD screen showing precise temperature control and settings for optimal cooling performance.
• Disseny portàtil: Sturdy carrying handle and compact construction make it perfect for outdoor activities and travel. Includes shoulder straps for easy transport.
• Capacitat compacta: 8 Quart (7.2 Liter) capacity, capable of holding up to 9 cans of 12 fl oz Coke.
• Construcció duradora: Heavy-duty gray exterior shell with reinforced corners for enhanced durability and protection.
• Ampli rang de temperatures: Digital thermostat allows precise temperature adjustments for keeping contents properly chilled, from -4°F (-20°C) to 122°F (50°C) for heating.
• Doble font d'alimentació: Equipped with 12/24V DC for car use and 110~240V AC for home use, offering flexible power options.
• Llum LED incorporada: Provides convenient access to contents in the dark.
• External Bottle Opener: A convenient feature for opening beverages on the go.
• Bateria de liti opcional: Supports an optional built-in lithium battery for extended portable use without external power.
• Protecció de la bateria de 3 nivells: When powered by a car, the low voltage protection system prevents excessive car battery discharge.

Image: Close-up of the Alpicool LGMP8 control panel, USB port, and various features like the bottle opener, handle, AC/DC input, door hinge, inner light, and door latch.

Image: Illustration of the Alpicool LGMP8's wide temperature range operation, highlighting ECO mode (energy saving), MAX mode (quick cooling), and HEAT mode (up to 122°F).

4. Configuració

1. Desembalatge: Carefully remove the refrigerator from its packaging. Retain the packaging for future storage or transport.
2. Neteja inicial: Abans del primer ús, netegeu les superfícies interiors i exteriors amb aiguaamp cloth and mild detergent. Ensure the unit is completely dry before plugging it in.
3. Col·locació: Place the refrigerator on a flat, stable surface. Ensure there is adequate ventilation around the unit, especially near the air vents, to allow for proper heat dissipation. Avoid placing it in direct sunlight or near heat sources.
4. Connexió d'alimentació:
   • Alimentació de CC (cotxe): Connect the 12/24V DC power cord to the refrigerator's DC input port and then to your vehicle's cigarette lighter socket.
   • AC Power (Home): Connect the 100-240V AC adapter to the refrigerator's AC input port, then plug the AC cord into a standard wall outlet.
   • Bateria opcional: If using the optional built-in lithium battery, ensure it is properly inserted and charged according to its separate instructions.

Image: Diagram illustrating the three power connection options for the Alpicool LGMP8: car cigarette lighter (DC), home outlet (AC), and optional power station/solar panel.

5. Instruccions de funcionament

5.1 Tauler de control acabatview

The intelligent LED control panel allows for easy operation and temperature management.

• + Botó: Augmentar la temperatura
• - Botó: Disminuir la temperatura
• ⏻ Botó: Encès/Apagat
• ⚙ Botó: Setting (Mode selection)

Imatge: Detallada view of the Alpicool LGMP8's digital control panel, showing the temperature display, battery indicator, and control buttons.

5.2 Configuració de la temperatura

1. Premeu el botó ⏻ botó per encendre la unitat.
2. Utilitza el + or - buttons to adjust the desired temperature. The display will show the set temperature.
3. The unit will automatically adjust its cooling/heating to reach and maintain the set temperature.

5.3 Mode Selection (ECO/MAX/HEAT)

1. Amb la unitat engegada, premeu el botó ⚙ (Setting) button to cycle through available modes.
2. Mode ECO: Mode d'estalvi d'energia per a un funcionament eficient, adequat per mantenir la temperatura durant períodes més llargs.
3. Mode MAX: Provides quick cooling for rapid temperature reduction.
4. Mode CALEFACCIÓ: Allows the unit to function as an insulated container, keeping contents warm up to 122°F (50°C).

5.4 Recommended Temperatures for Common Food Items

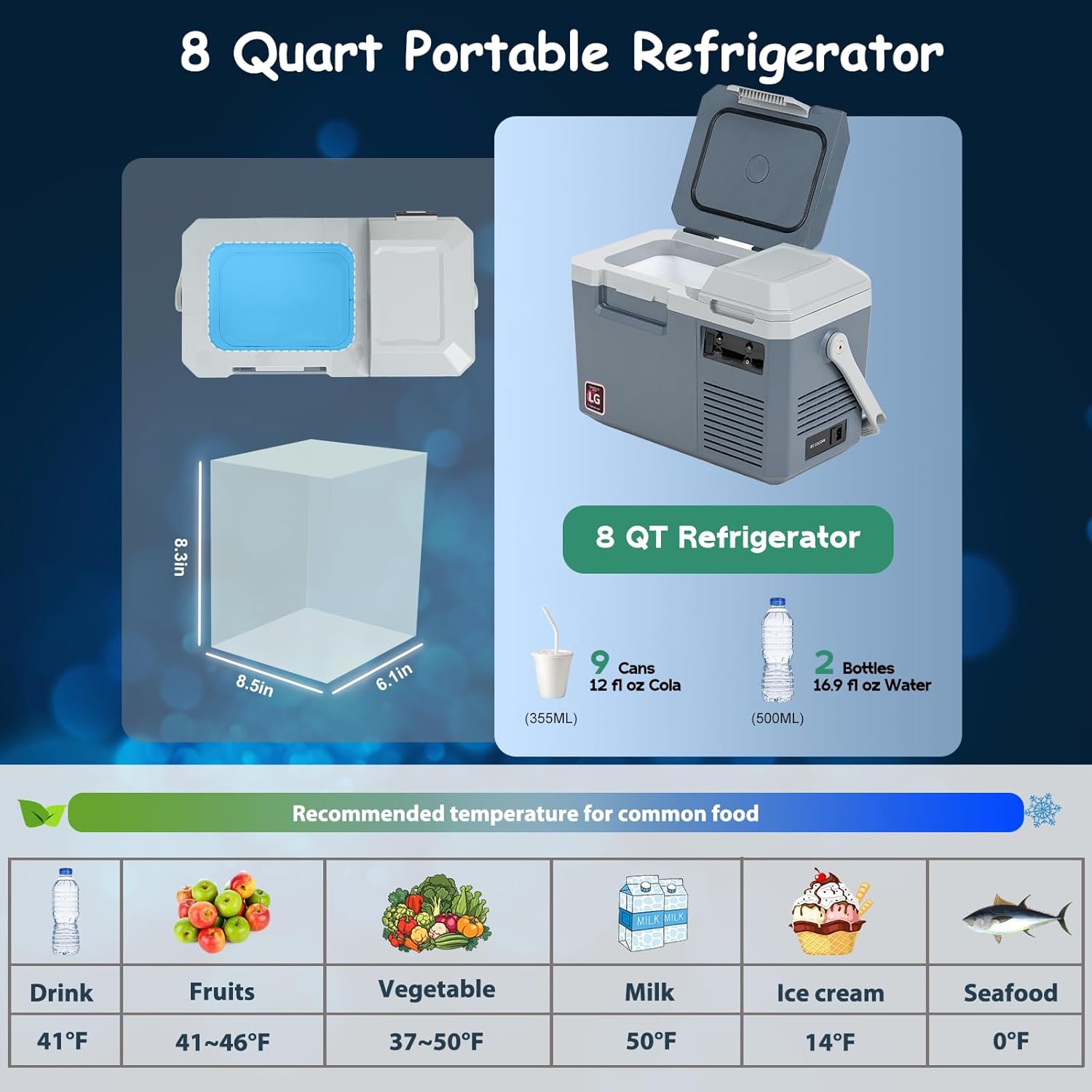

Image: Visual guide showing the internal capacity of the 8-quart refrigerator and a table of recommended temperatures for various food items.

6. Manteniment

• Neteja: Regularly clean the interior and exterior of the refrigerator with a soft cloth and mild detergent. Do not use abrasive cleaners or harsh chemicals. Ensure the unit is unplugged before cleaning.
• Descongelació: The unit features automatic defrost. If a significant layer of ice builds up, manually defrost by turning off the unit and leaving the lid open until the ice melts. Wipe away any water.
• Ventilació: Keep the ventilation openings clear of any obstructions to ensure proper airflow and efficient operation.
• Emmagatzematge: When not in use for extended periods, ensure the unit is clean, dry, and unplugged. Store it in a cool, dry place with the lid slightly ajar to prevent odors and mold growth.

7. Solució De Problemes

If you encounter issues with your Alpicool LGMP8, please refer to the following common troubleshooting steps:

For more detailed troubleshooting or issues not listed here, please consult the complete user manual or contact Alpicool customer support.

8. Especificacions

Image: Diagram showing the physical dimensions of the Alpicool LGMP8 and a table detailing voltage reference cut-in/cut-out values for DC 12V and DC 24V modes.

9. Vídeo oficial del producte

10. Garantia i Suport

Alpicool products are designed for reliability and performance. For warranty information, product registration, or technical support, please refer to the warranty card included in your package or visit the official Alpicool website. Please have your model number (LGMP8) and purchase details ready when contacting support.

Per obtenir més ajuda, podeu contactar directament amb el venedor a través de la plataforma on vau comprar el producte.
