DATOUBOSS 12V 200Ah LiFePO4 Battery Instruction Manual

1. Introducció

This manual provides essential information for the safe and efficient use of your DATOUBOSS 12V 200Ah LiFePO4 Lithium Battery. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your battery system.

Image 1.1: Four DATOUBOSS 12V 200Ah LiFePO4 batteries, showcasing their compact design and terminal connections.

2. Característiques del producte

The DATOUBOSS 12V 200Ah LiFePO4 battery offers advanced features for reliable power storage:

• Lleuger i portàtil: Weighing approximately 20kg, this battery is significantly lighter than traditional lead-acid batteries, facilitating easier transport and installation.
• Alta densitat d'energia: Each 12.8V 200Ah battery provides 2560Wh of energy, suitable for various applications.
• Cicle de vida prolongat: Designed for 4000 to 15000 deep cycles, offering a long operational lifespan.
• 100% Depth of Discharge (DoD): Allows for full utilization of the battery's capacity without compromising its lifespan.
• Integrated Battery Management System (BMS): Equipped with a 200A BMS for comprehensive protection and cell balancing.
• Sistema escalable: Supports flexible expansion with up to 4 batteries in series and 4 in parallel, allowing for configurations up to 40.96 kWh (e.g., 4P4S 51.2V 800Ah).
• Àmplia gamma d'aplicacions: Ideal for RVs, caravans, boats, electric scooters, golf carts, trolling motors, backup power, and off-grid solar systems.

Image 2.1: A comparative chart illustrating the advantages of LiFePO4 batteries over lead-acid batteries in terms of weight, size, lifespan, cycle count, and depth of discharge.

3. Configuració i instal·lació

Proper installation is crucial for the safety and performance of your battery system. Please follow these guidelines:

3.1 Desembalatge i inspecció

Upon receiving your battery, carefully unbox it and inspect for any signs of damage. The package typically includes:

• 12.8V 200Ah Deep-Cycle Lithium Iron Phosphate Battery (Core Series)
• Manual d'usuari
• Insulating Sleeves (x2)
• M8 Long Terminal Bolts (x2)

Image 3.1: An illustration detailing the components included in the battery package, such as the battery unit, user manual, insulating sleeves, and M8 terminal bolts.

3.2 Dimensions físiques i connexions

The battery measures approximately 49 x 26 x 22 centimeters (L x W x H) and features M8 terminal bolts for secure connections. The installation orientation is not restricted, and there is no risk of leakage.

Image 3.2: A diagram illustrating the physical dimensions of the DATOUBOSS 12.8V 200Ah LiFePO4 battery and highlighting the M8 terminal bolts.

3.3 Series and Parallel Connection

This LiFePO4 battery can be connected in series and/or parallel to achieve higher voltage or capacity. It supports up to 4 batteries in series and 4 in parallel, allowing for a maximum capacity of 40.96 kWh.

Image 3.3: An illustration demonstrating how multiple batteries can be connected in series and parallel to form a larger energy storage system, such as for an RV with solar panels and an inverter.

3.4 Advertències de seguretat

Adherence to these warnings is critical for safety and to prevent damage to the battery:

• Do not reverse the positive and negative poles of the battery.
• Do not hit or throw objects at the battery and do not step on it.
• Do not use metal to connect the positive and negative terminals of the battery directly.
• Do not weld the battery directly and do not pierce the battery with nails or other sharp objects.
• Do not immerse the battery in seawater or water.
• Do not use as a car starter battery, trip starter battery, or engine starter battery.
• Do not use the battery at high temperatures, otherwise it may overheat, catch fire, or become defective, which will shorten its service life.

Image 3.4: A visual representation of critical safety warnings for the battery, emphasizing precautions against misuse and environmental hazards.

4. Instruccions de funcionament

The DATOUBOSS LiFePO4 battery is designed for efficient and reliable power delivery. Here's how to operate it effectively:

4.1 mètodes de càrrega

Your LiFePO4 battery can be charged using various methods:

• Lithium Battery Charger: Feu servir un carregador dedicat compatible amb LiFePO4.
• Panell solar: Connect via an MPPT (Maximum Power Point Tracking) charge controller for solar charging.
• Generador: Can be charged using a compatible generator.

Image 4.1: An illustration depicting the three primary methods for charging the DATOUBOSS LiFePO4 battery: via a lithium battery charger, solar panels, or a generator.

4.2 Typical Applications and Power Usage

The 2560Wh energy storage capacity makes this battery suitable for powering various appliances and systems, especially in mobile or off-grid setups.

Image 4.2: A scene showing an RV setup where the battery powers various appliances like an air conditioner, coffee maker, refrigerator, and fan, with estimated runtimes for each.

Image 4.3: A collage illustrating the wide range of applications for the DATOUBOSS LiFePO4 battery, including RVs, solar home systems, home emergency power, boats, and campconfiguracions d'ingrés.

5. Manteniment

The DATOUBOSS LiFePO4 battery is designed for minimal maintenance, primarily due to its advanced Battery Management System (BMS).

5.1 Sistema de gestió de la bateria (BMS)

The integrated 200A BMS provides critical protection functions to ensure the battery's safety and longevity:

• Protecció de sobretemperatura: Prevents operation outside safe temperature ranges.
• Sobrevoltage Protecció: Safeguards against excessive charging voltage.
• Protecció de sobrecàrrega: Prevents overcharging of the battery cells.
• Protecció de sobredescàrrega: Protects against deep discharge that could damage the cells.
• Protecció contra sobreintensitat: Limita el consum de corrent a nivells segurs.
• Protecció contra curtcircuits: Es desconnecta automàticament en cas de curtcircuit.
• Balanç automàtic de cèl·lules: Continuously balances the voltage across individual battery cells, which is crucial for maintaining the overall health and extending the lifespan of the lithium batteries.

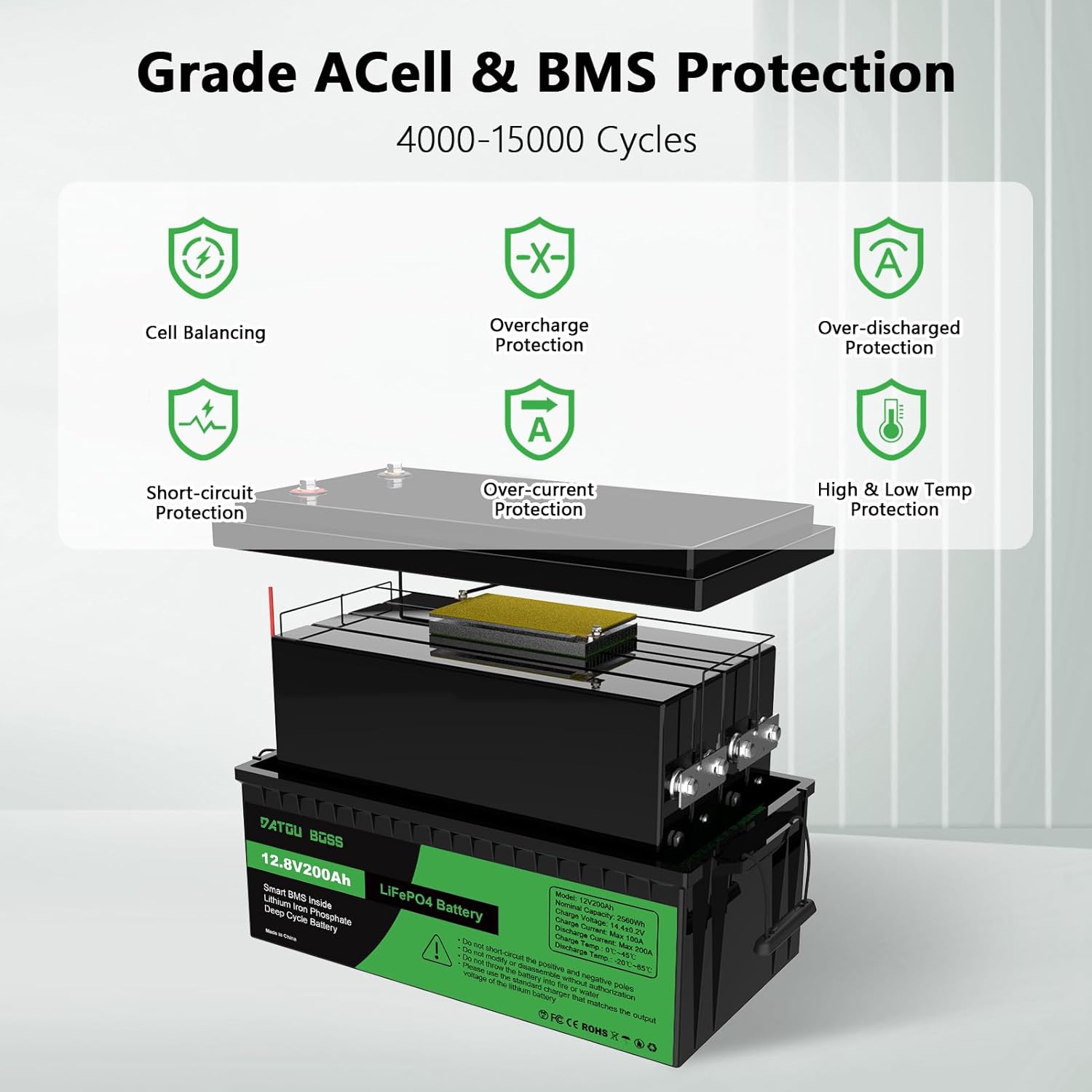

Image 5.1: A detailed diagram illustrating the various protection mechanisms provided by the integrated BMS, including cell balancing, overcharge, over-discharge, short-circuit, over-current, and high/low temperature protection.

Regularly inspect the battery terminals for cleanliness and secure connections. Ensure the battery is stored in a cool, dry place when not in use for extended periods.

6. Solució De Problemes

The integrated BMS significantly reduces the likelihood of common battery issues. However, if you encounter any problems, consider the following:

• Sense potència de sortida: Check all connections to ensure they are secure and correctly polarized. Verify that the battery is sufficiently charged. The BMS may have activated a protection mode (e.g., due to over-discharge or short-circuit); disconnect the load and allow the battery to reset or recharge.
• Problemes de càrrega: Ensure your charger is compatible with LiFePO4 batteries and is functioning correctly. Check the charging temperature; the BMS may prevent charging if the temperature is too low or too high.
• Comportament inusual: If the battery exhibits unusual heat, swelling, or odors, immediately disconnect it from all loads and charging sources and contact customer support.

For persistent issues or complex problems, refer to the Warranty and Support section for contact information.

7. Especificacions

Detailed technical specifications for the DATOUBOSS 12V 200Ah LiFePO4 Battery:

8. Garantia i Suport

DATOUBOSS is committed to providing excellent customer service and support for your product.

8.1 Garantia del fabricant

The DATOUBOSS 12V 200Ah LiFePO4 Battery comes with a Garantia del fabricant de 5 anys. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.

8.2 Atenció al client

For any questions, technical assistance, or warranty claims, please contact DATOUBOSS customer service. We provide professional technical support and aim for a quick response within 24 hours.

Please visit the official DATOUBOSS store for more information or to contact support: DATOUBOSS Store on Amazon
