CAMECHO Reverse Camera Instruction Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your CAMECHO Reverse Camera. Please read this manual thoroughly before installation and use to ensure proper function and safety. This camera is designed to enhance rear visibility for specific vehicle models, aiding in safer reversing and parking maneuvers.

2. Producte acabatview

2.1 Components inclosos

• CAMECHO Reverse Camera (integrated into brake light housing)
• 10m Video Extension Cable (RCA)
• 20cm Video Adapter
• Cable d'alimentació de 1 m
• Manual d'usuari

Image: Contents of the product package, including the camera, cables, and user manual, alongside dimensional measurements of the camera unit.

2.2 Característiques clau

• High-Mount Brake Light Integration: Designed to replace the original high-mount brake light for a seamless factory-like appearance.
• Classificació impermeable IP67: Ensures reliable operation in various weather conditions, resistant to dust and water immersion.
• Visió nocturna IR: Equipped with infrared LEDs and a photosensitive sensor for clear visibility in low-light or nighttime conditions.
• Lent gran angular de 140 graus: Ofereix una àmplia view of the area behind the vehicle, minimizing blind spots.
• AHD 720P & CVBS Image Output: Supports both Analog High Definition (AHD) 720P and Composite Video Broadcast Signal (CVBS) outputs, switchable via a control line.

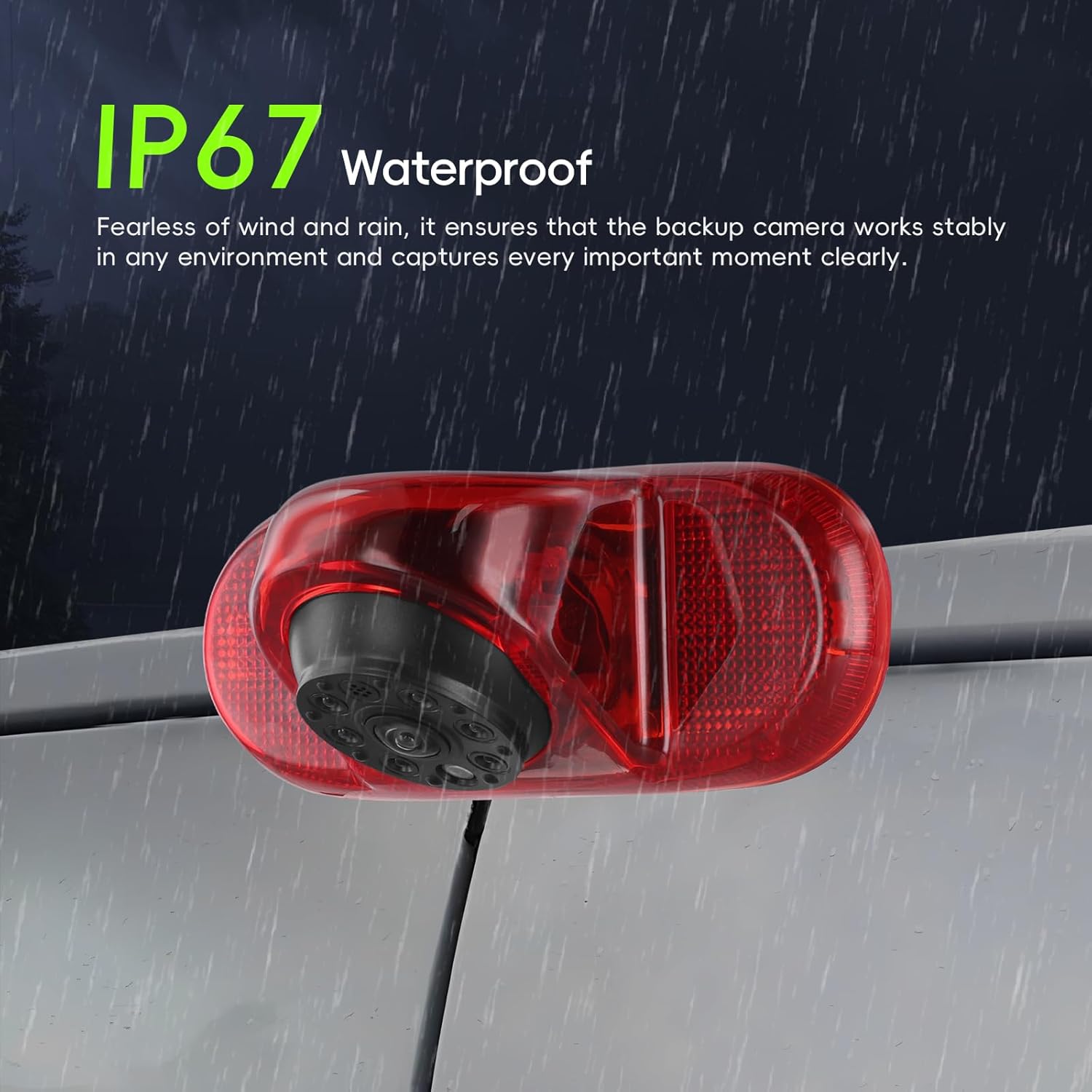

Image: The reverse camera unit shown in a rainy environment, illustrating its IP67 waterproof capability.

Image: The reverse camera highlighting its HD IR Night Vision capability with 6 infrared LEDs and a photosensitive sensor, showing a clear night view comparació.

Image: A visual representation of the 140-degree wide-angle view provided by the camera, showing an expanded panoramic perspective behind a vehicle.

3. Compatibilitat

This CAMECHO Reverse Camera is specifically designed for the following vehicle models:

• Renault Trafic: Models del 2001-2014
• Opel Vauxhall Vivaro: Models del 2001-2014
• Combos: Models del 2001-2011

Ensure your vehicle matches these specifications for proper fitment and function.

Image: Depicts the reverse camera installed on the rear of a van, with illustrations of compatible vehicles: Renault Trafic (2001-2014), Renault Combo (2001-2011), and Renault Vauxhall Vivaro (2001-2014).

4. Configuració i instal·lació

Professional installation is recommended for this product. Incorrect wiring can damage the camera or vehicle electrical system.

4.1 Esquema de cablejat

Follow the wiring diagram carefully to connect the camera to your vehicle's power supply and display monitor.

Image: A detailed wiring diagram showing connections from the camera to the monitor. The camera power cable connects to the reversing lamp (red wire to Power+, black to GND). The video signal connects via RCA to the monitor.

4.2 Passos de connexió

1. Muntar la càmera: Replace the existing high-mount brake light with the CAMECHO camera unit. Ensure a secure fit.
2. Connectar l'alimentació: Connect the camera's red power wire to the vehicle's reversing lamp positive (+) and the black ground wire to a suitable chassis ground (-). This ensures the camera activates when reverse gear is engaged.
3. Connecteu el cable de vídeo: Run the 10m video extension cable from the camera to your display monitor (e.g., car stereo with screen, dedicated monitor). Connect the yellow RCA connectors.
4. Signal Mode Selection (AHD/CVBS): The camera supports both AHD 720P and CVBS video signals. To switch between modes, locate the green control line on the camera's wiring harness.
   • For CVBS signal: Connect the green control line.
   • For AHD 720P signal: Cut off the green control line.

   Nota: Ensure your display monitor supports the selected video signal type (AHD or CVBS). If your monitor does not support AHD, use the CVBS signal.

Image: Illustrates the difference between AHD 720P and CVBS image quality, and shows how to switch between these modes by connecting or cutting the green control line.

4.3 Notes importants d'instal·lació

• Assegureu-vos que totes les connexions estiguin segures i aïllades per evitar curtcircuits.
• Route cables carefully to avoid pinching, abrasion, or interference with vehicle moving parts.
• Test the camera functionality before reassembling all vehicle panels.

5. Instruccions de funcionament

Once properly installed, the CAMECHO Reverse Camera operates automatically when the vehicle is shifted into reverse gear.

1. Encès: Turn on your vehicle's ignition.
2. Posar la marxa enrere: Shift the vehicle's transmission into reverse.
3. View Visualització: The image from the reverse camera will automatically appear on your connected display monitor.
4. Pautes d'aparcament: The camera provides parking guidelines on the display to assist with parking maneuvers.

5.1 Display Compatibility

The camera output can be displayed on various compatible monitors, including:

• Aftermarket car stereos with video input.
• Part posterior dedicadaview monitors.
• Other displays supporting CVBS PAL or AHD 720P PAL mirror image formats.

Image: Shows various types of monitors (car stereos, dedicated screens) that can display the camera feed, and reiterates the method for switching between CVBS and AHD signal modes.

6. Manteniment

To ensure the longevity and optimal performance of your CAMECHO Reverse Camera, follow these maintenance guidelines:

• Neteja regular: Netegeu periòdicament la lent de la càmera amb un drap suau i sec.amp drap per eliminar la brutícia, la pols o les taques d'aigua que puguin obstruir viewEviteu els productes de neteja abrasius.
• Inspeccioneu el cablejat: Occasionally check the visible wiring for any signs of wear, damage, or loose connections. Address any issues promptly.
• Eviteu el rentat a alta pressió: While the camera is IP67 waterproof, direct high-pressure water jets at close range should be avoided, as they can potentially compromise seals over time.
• Consideracions ambientals: The camera is designed for outdoor use. Extreme temperatures or prolonged exposure to harsh chemicals should be avoided.

7. Solució De Problemes

If you encounter issues with your reverse camera, refer to the following troubleshooting steps:

7.1 Notes de compatibilitat

Please note the following specific compatibility limitations:

• Android Auto does not support Huawei phones.
• Mirror Link functionality does not support Samsung models.

8. Especificacions

9. Garantia i Suport

For warranty information and technical support, please refer to the documentation provided with your purchase or contact CAMECHO customer service through the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.
