Generic Smart Fingerprint Door Lock FOGLLQFZL User Manual

1. Introducció

This manual provides instructions for the installation, operation, and maintenance of the Generic Smart Fingerprint Door Lock, model FOGLLQFZL. This electronic keyless lock offers multiple access methods including fingerprint, password, M1 card, and mechanical key, designed for enhanced security and convenience in residential and commercial settings.

Imatge 1.1: Acabatview of the Smart Fingerprint Door Lock, highlighting its multiple unlocking methods: password, fingerprint, mobile app, M1 card, and traditional key.

The lock features a durable zinc alloy construction, a rechargeable lithium battery, and an integrated doorbell. It is suitable for various applications requiring secure and flexible access control.

2. Components del producte

Familiarize yourself with the main components of the Smart Fingerprint Door Lock:

Imatge 2.1: Detailed diagram illustrating the various parts of the Smart Fingerprint Door Lock, including the front and back panels with their respective functions and interfaces.

• Panell frontal: Fingerprint Area, Display Screen, Touch Keypad, Card Reading Area, Doorbell, Hidden Key Hole, Front Handle, USB Interface.
• Tauler posterior: Battery Box, Back Handle, One Touch Lock, One Touch Unlock, Manual Unlock Knob, Deadbolt.

3. Especificacions

Imatge 3.1: Product dimensions for the Smart Fingerprint Door Lock, indicating height, width, and handle extension.

4. Guia d'instal·lació

Proper installation is crucial for the optimal performance and security of your smart lock. It is recommended to consult a professional locksmith if you are unsure about any steps. Ensure your door meets the required dimensions for the lock body.

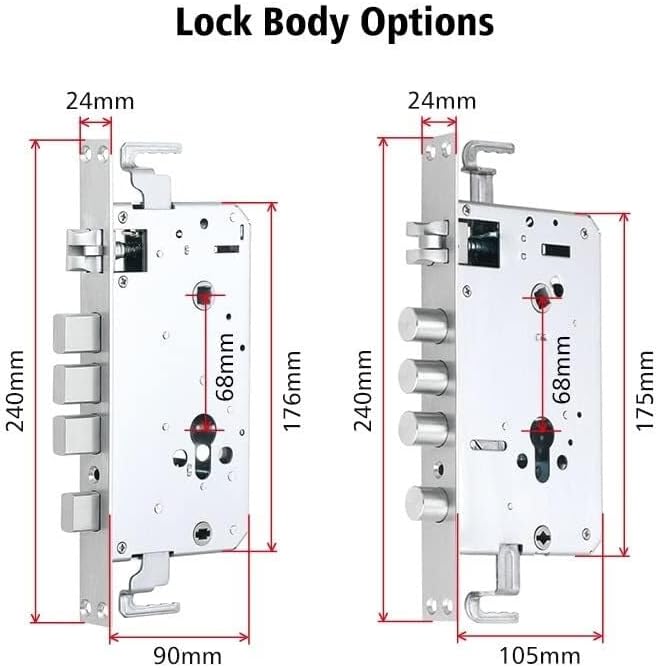

Imatge 4.1: Lock body options with detailed measurements, important for ensuring compatibility with your door.

Passos generals d'instal·lació:

1. Prepara la porta: Ensure the door is clean and the existing mortise (if any) is compatible with the new lock body. Refer to Image 4.1 for lock body dimensions.
2. Instal·leu la mortaixa: Insert the lock body (mortise) into the door edge and secure it with screws.
3. Instal·leu el panell frontal: Connect the necessary cables from the front panel through the door and position the front panel.
4. Instal·leu el panell posterior: Connect the cables to the back panel, ensuring proper alignment. Secure the back panel to the front panel using the provided screws.
5. Insereix la bateria: Open the battery box on the back panel and insert the rechargeable lithium battery.
6. Funcionalitat de prova: After installation, test all unlocking methods and the manual lock/unlock knob to ensure proper operation.

5. Instruccions de funcionament

The Smart Fingerprint Door Lock offers multiple convenient ways to access your property.

5.1. Fingerprint Unlocking

The lock uses semiconductor fingerprint recognition for fast and secure access. Ensure your registered fingerprint is clean and dry.

Imatge 5.1: Demonstrates the fingerprint unlocking process, highlighting the speed and security of semiconductor recognition.

1. Place your registered finger firmly on the fingerprint sensor located on the top of the front panel.
2. The lock will identify your fingerprint within approximately 0.8 seconds.
3. Once recognized, the lock will disengage, allowing you to open the door.

5.2. Password Unlocking (Virtual Password)

To enhance security, the lock supports virtual password unlocking, allowing you to enter random numbers before or after your actual password to prevent onlookers from guessing your code.

Imatge 5.2: Illustration of the virtual password feature, demonstrating how to input random numbers before and after the correct password for added security.

1. Toqueu el teclat numèric per activar-lo.
2. Enter any random numbers (optional).
3. Introduïu la vostra contrasenya registrada.
4. Enter any random numbers again (optional).
5. Press '#' to confirm. The lock will disengage if the password is correct.

5.3. M1 Card Unlocking

Use a registered M1 card for quick and convenient access.

Imatge 5.3: Demonstrates the M1 card unlocking method by placing the card near the designated reading area on the lock.

1. Hold your registered M1 card close to the card reading area on the front panel.
2. The lock will beep and disengage upon successful recognition.

5.4. Mechanical Key Unlocking

In case of battery depletion or electronic malfunction, the mechanical key provides a reliable backup access method.

Imatge 5.4: Illustrates the emergency unlocking methods, including using a mechanical key and the USB power supply interface for temporary power.

1. Locate the hidden keyhole on the front panel (refer to Image 2.1).
2. Insert the provided mechanical key into the keyhole.
3. Turn the key to unlock the door.

6. Manteniment

Un manteniment regular garanteix la longevitat i el funcionament fiable del vostre pany intel·ligent.

• Càrrega de la bateria: The lock is powered by a rechargeable lithium battery. When the battery level is low, the lock will provide an alert. Connect a power bank to the USB power supply interface (refer to Image 5.4) for emergency power or remove the battery for charging.
• Neteja: Netegeu la superfície del pany amb un drap suau i sec. Eviteu utilitzar productes de neteja abrasius o dissolvents que puguin danyar l'acabat o els components electrònics.
• Sensor d’empremta digital: Keep the fingerprint sensor clean and free of dirt or moisture for optimal performance.
• Forat de la clau: Ensure the mechanical keyhole remains unobstructed.

7. Solució De Problemes

Consulteu els següents problemes comuns i les seves possibles solucions:

• El pany no respon: Check battery level. If low, charge the battery or use the mechanical key. Ensure the lock is properly installed and all connections are secure.
• Empremta digital no reconeguda: Assegura't que el dit estigui net i sec. Prova de tornar a registrar l'empremta digital si el problema persisteix.
• La contrasenya no funciona: Verify the correct password is being entered. Ensure you are pressing '#' after the password. Try resetting the password if necessary.
• M1 Card not recognized: Ensure the card is correctly placed over the reading area. Verify the card is registered to the lock.
• Doorbell not working: Check connections to the doorbell component.

Per a problemes que no es cobreixin aquí, poseu-vos en contacte amb l'atenció al client.

8. Garantia i Suport

Per obtenir informació sobre la garantia, assistència tècnica o consultes sobre el servei, consulteu la documentació que s'inclou amb la compra o poseu-vos en contacte directament amb el fabricant. Conserveu el comprovant de compra per a reclamacions de garantia.

Fabricant: Genèric
