Introducció
This instruction manual provides essential information for the safe and effective use of your Keenso Universal Fit Digital Tire Pressure Gauge. Please read this manual thoroughly before operating the device and retain it for future reference. Regular monitoring of tire pressure is crucial for vehicle safety, optimal performance, and extending tire life.
Producte acabatview
The Keenso Digital Tire Pressure Gauge is designed for accurate and quick measurement of tire pressure across various vehicles.
Característiques:
- Digital LCD display for clear and easy readings.
- Supports four pressure units: PSI, BAR, KG/CM², and KPA.
- Funció d'apagada automàtica per estalviar la durada de la bateria.
- Constructed with durable Brass, Rubber, and Zinc Alloy materials.
- Large 60mm display gauge diameter for enhanced readability.
- Includes 2 tire cores for convenient use.
Components:
- Digital Tire Pressure Gauge unit
- Flexible hose with brass air nozzle
- 2 x CR2032 Battery Cells (pre-installed)
- 2 x Tire Cores

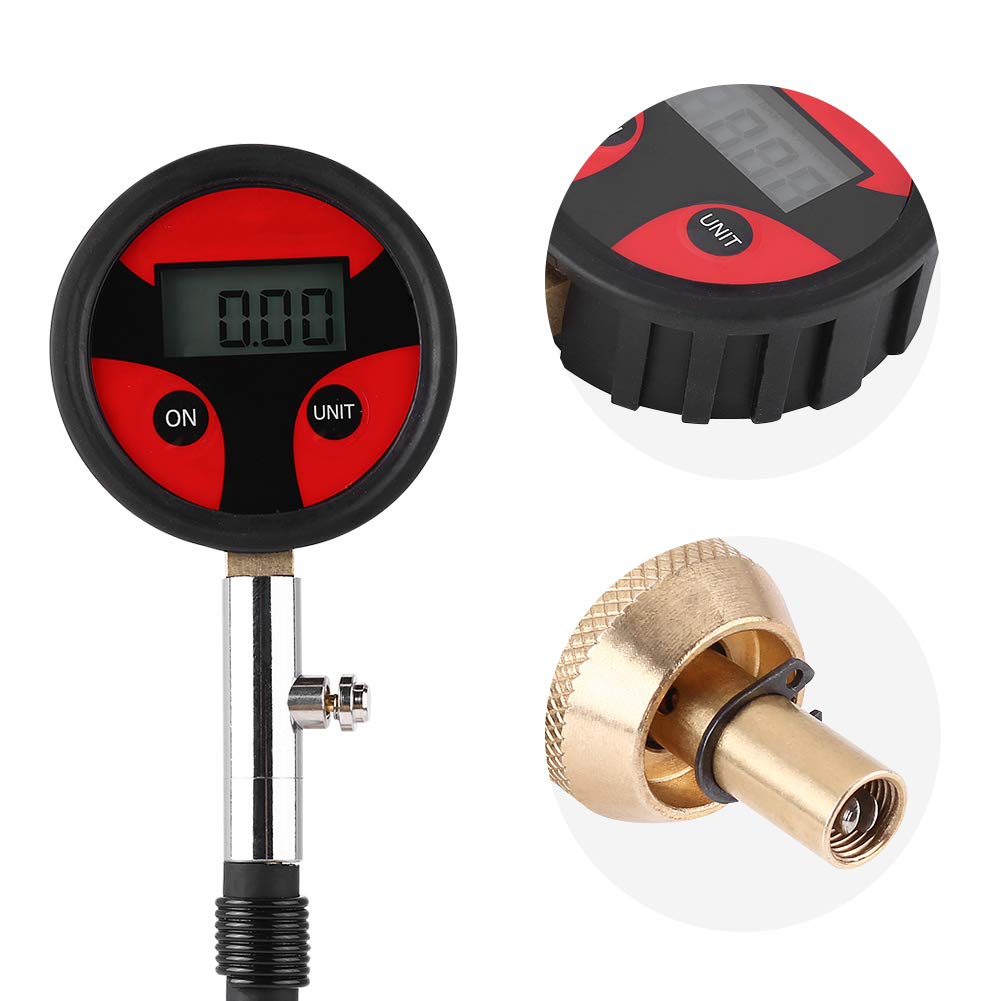

Figure 1: Keenso Digital Tire Pressure Gauge. This image shows the complete gauge unit, including the digital display, flexible hose, and brass air nozzle.
Configuració
- Instal·lació de la bateria: The gauge comes with two CR2032 battery cells pre-installed. If the display does not turn on, or appears dim, refer to the Maintenance section for battery replacement instructions.
- Encès: Press the "ON" button located on the gauge face to power on the device. The LCD display will illuminate.
- Selecció d'unitats: Press the "UNIT" button to cycle through the available pressure units: PSI, BAR, KG/CM², and KPA. Select your desired unit before taking a measurement. The selected unit will be displayed on the screen.
Instruccions de funcionament
Follow these steps to accurately measure your tire pressure:
- Ensure the gauge is powered on and the desired unit is selected.
- Traieu el tap de la vàlvula del pneumàtic.
- Firmly press the brass air nozzle of the gauge onto the tire's valve stem. Ensure a tight seal to prevent air leakage.
- Hold the gauge in place until the digital display shows a stable reading. The measurement will be displayed automatically and accurately.
- Traieu el manòmetre de la tija de la vàlvula. La lectura romandrà a la pantalla durant un curt període.
- Replace the valve cap on the tire.
- The gauge will automatically switch off after a few seconds of inactivity to save battery life. You can also press and hold the "ON" button to manually turn it off.
Figure 2: Digital Display. This image provides a close-up view of the LCD screen, showing the "ON" and "UNIT" buttons and the digital pressure reading area.
Manteniment
- Comprovacions periòdiques: It is recommended to measure your car tire pressure at least once a month for normal maintenance and safety.
- Neteja: Wipe the gauge with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.
- Emmagatzematge: Store the gauge in a cool, dry place away from direct sunlight and extreme temperatures.
- Substitució de la bateria: If the display becomes dim or does not turn on, the CR2032 batteries may need replacement. To replace, locate the battery compartment (usually on the back or side), open it, and replace the old batteries with new CR2032 cells, ensuring correct polarity.
- Tire Cores: The package includes two spare tire cores. These can be used to replace damaged or leaking valve cores in your tires. Use a valve core tool (not included) for replacement.
Figure 3: Gauge with Spare Tire Cores. This image displays the tire pressure gauge alongside the two included spare tire cores.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El mesurador no s'encén. | Bateries gastades o mal instal·lades. | Check battery polarity. Replace CR2032 batteries if necessary. |
| Lectures inexactes. | Poor seal with valve stem; gauge malfunction. | Ensure a firm, airtight connection to the valve stem. Re-test. If problem persists, the gauge may require replacement. |
| Air leaks when measuring. | Improper connection to valve stem; damaged valve stem. | Press the nozzle firmly and straight onto the valve stem. Inspect the tire's valve stem for damage; replace if necessary. |
Especificacions
| Número de model | Keensopaqc0w8r5n |
| Material del cos | Brass + Rubber |
| Material del cap | Aliatge de zinc |
| Tipus de bateria | 2 x CR2032 Battery Cells (Built-in) |
| Unitats disponibles | PSI, BAR, KG/CM², KPA |
| Air Nozzle Size | Approx. 85 x 8.5 mm (3.4'' x 0.3'') |
| Display Gauge Diameter | Approx. 60 mm (2.4'') |
| Pes de l'article | 212 g |
| Dimensions del paquet | 15 x 14 x 3 cm |
Garantia i Suport
This Keenso Digital Tire Pressure Gauge is covered by a manufacturer's warranty for 90 days from the date of purchase. Please retain your proof of purchase for warranty claims.
For technical support or warranty inquiries, please contact the retailer or manufacturer through their official channels. Refer to your purchase documentation for specific contact information.
