Dasaita Android 13 Double Din Car Stereo User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Dasaita Android 13 Double Din Car Stereo. Please read this manual thoroughly before using the product to ensure proper function and safety. This unit is designed to enhance your driving experience with advanced features like Apple CarPlay, Android Auto, and an off-road inclinometer.

2. Compatibilitat del vehicle

The Dasaita 7-inch double din universal head unit is specifically designed for OEM radios with a center console size of 200x100MM. It is compatible with the following Toyota models:

• Toyota 4Runner: 2003-2009
• Toyota Tundra: 2003-2006
• Toyota RAV4: 2001-2005
• Toyota FJ Cruiser: 2007-2024
• Toyota Highlander: 2001-2007
• Toyota Matrix: 2003-2010
• Pontiac Vibe: 2003-2008

This plug-and-play radio kit is designed to retain most of your vehicle's original functions, including Steering Wheel Controls (SWC), reverse camera, and JBL ampmés viu.

Figura 2.1: Acabatview of compatible Toyota OEM radio models and the Dasaita unit after installation.

Figura 2.2: Detallada view of the Dasaita head unit's dimensions (200x100mm) and its fitment within various Toyota OEM radio slots.

3. Configuració i instal·lació

The Dasaita head unit is designed for a plug-and-play installation in compatible vehicles. While specific installation steps may vary by vehicle model, the general process involves removing the existing OEM radio and connecting the new unit using the provided wiring harnesses.

3.1 Retaining Factory Features

This unit is engineered to integrate seamlessly with your vehicle's existing systems, preserving functionality such as:

• Steering Wheel Controls (SWC): Maintain control over audio functions directly from your steering wheel.
• Càmera de seguretat: If your vehicle has a factory backup camera, it will be supported.
• OEM Ampmés viu: Compatibility with your vehicle's original amplifier, including JBL systems.
• Informació sobre l'aire condicionat: Display of air conditioning information on the new screen.
• Door Open Hint: Visual indication of open doors.

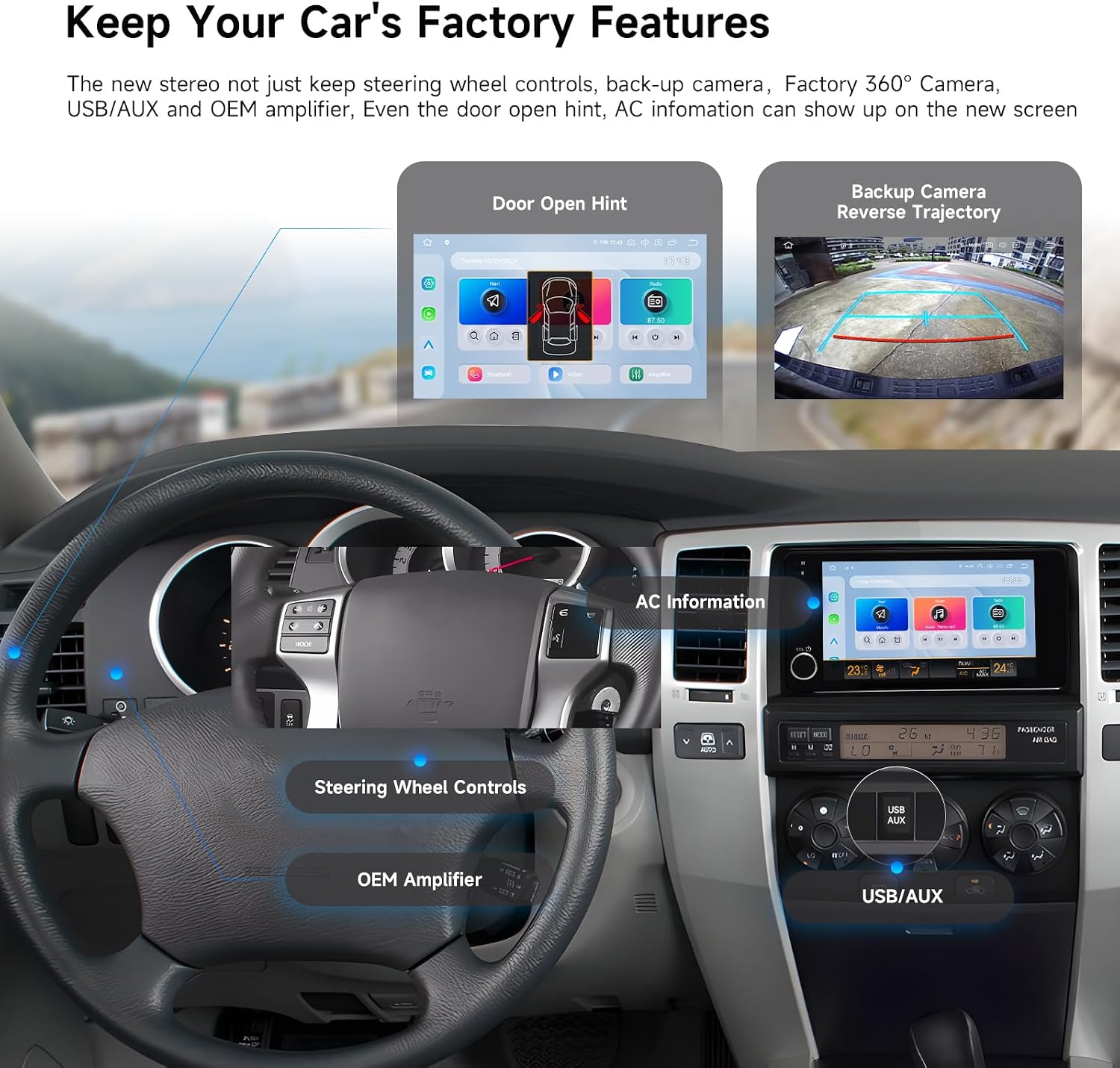

Figura 3.1: Illustration of the Dasaita head unit displaying various retained factory features, including door open hints, backup camera view, AC information, and connections for steering wheel controls, OEM amplifier, and USB/AUX.

3.2 Engegada i configuració inicials

Upon first power-up, the system will guide you through initial setup steps, including language selection, time zone, and network configuration. Ensure all connections are secure before powering on the unit.

4. Instruccions de funcionament

4.1 System Performance and Connectivity

The head unit operates on Android 13, powered by an eight-core Qualcomm 665 CPU with 8GB RAM and 256GB ROM, ensuring smooth and responsive performance. For internet access and software updates, you can insert a 4G SIM card into the dedicated slot.

Figura 4.1: Visual representation of the Dasaita head unit's internal components, highlighting the Qualcomm Snapdragon 665 processor, Android 13 operating system, 8GB RAM, 256GB ROM, and 4G LTE SIM card slot for enhanced performance and connectivity.

4.2 Apple CarPlay i Android Auto

Enjoy seamless smartphone integration with wireless Apple CarPlay and wired/wireless Android Auto via Bluetooth 5.0. This allows you to access your phone's navigation, make calls, send messages, and stream music directly from the head unit's display.

• CarPlay sense fil: Connect your iPhone wirelessly for a streamlined experience.
• Wired/Wireless Android Auto: Connect your Android phone via USB or wirelessly.
• Control de veu: Feu servir Siri o l'Assistent de Google per a un funcionament amb mans lliures.

Figura 4.2: The Dasaita head unit screen showing the Apple CarPlay and Android Auto interfaces, with various app icons and a visual representation of wireless and wired connectivity options.

4.3 Off-Road Inclinometer Functions

The built-in gyro sensor provides real-time monitoring of your vehicle's roll and pitch angles. An alarm will sound if these angles exceed preset safety values, enhancing driving safety, especially on challenging terrains.

• Monitorització en temps real: Displays uphill, downhill, left tilt, and right tilt angles.
• Safety Alarm: Alerts the driver when angles become critical.
• Improved Sensitivity: Free rotation feature enhances sensor accuracy.

Figura 4.3: The Dasaita head unit screen displaying the off-road inclinometer interface, showing real-time roll and pitch angles (uphill, downhill, left tilt, right tilt) and a vehicle driving on rugged terrain.

4.4 Audio System and DTS Sound Processor

The unit features a professional-grade TDA7808 amplifier chip (23W RMS/50 peak x 4 channels) with 4V audio output, delivering crisp highs and resonating lows. The DTS sound processor allows for precise audio customization, including delay time settings for an optimized listening experience.

• Alta Qualitat Ampmés viu: TDA7808 chip for superior sound.
• DTS Sound Processor: Advanced audio tuning options, including equalizer and delay settings.
• So personalitzable: Adjust audio output to personal preferences.

Figura 4.4: The Dasaita head unit screen displaying the DTS sound processor interface, showing detailed equalizer settings, delay adjustments, and volume controls, with a visual representation of sound waves in a car interior.

4.5 Backup Camera Configuration

The unit supports various backup camera configurations, including AHD (1080P) and CVBS signals. You can also customize guide lines and switch between rear and front camera modes.

• AHD/CVBS Support: Compatible with different camera signal types.
• Adjustable Guide Lines: Enable or disable parking guide lines.
• Front/Rear Camera: Configure for either rear or front view aplicacions.

Figura 4.5: A series of images demonstrating the DIY configuration options for the backup camera, including switching between AHD and CVBS signals, enabling/disabling guide lines, and setting the camera for rear or front view.

5. Manteniment

To ensure the longevity and optimal performance of your Dasaita car stereo, follow these maintenance guidelines:

• Neteja de pantalla: Use a soft, lint-free cloth to gently wipe the screen. Avoid abrasive cleaners or solvents.
• Actualitzacions de programari: Regularly check for and install system updates to ensure the latest features and security patches. These can be downloaded via the 4G SIM card or Wi-Fi connection.
• Eviteu temperatures extremes: No exposeu la unitat a temperatures extremes de calor o fred durant períodes prolongats.
• Connexions de cable: Comproveu periòdicament totes les connexions dels cables per assegurar-vos que estiguin ben fixades i que no estiguin danyats.

6. Solució De Problemes

If you encounter issues with your Dasaita car stereo, refer to the following common troubleshooting steps:

• Sense energia:
  • Comproveu totes les connexions d'alimentació i els fusibles.
  • Assegureu-vos que el contacte del vehicle estigui engegat.
• Sense so:
  • Verifiqueu les connexions dels altaveus.
  • Comproveu els nivells de volum i la configuració de silenci.
  • Ensure the OEM amplifier is correctly connected and functioning.
• CarPlay/Android Auto no es connecta:
  • Ensure Bluetooth is enabled on both the head unit and your smartphone.
  • Per a connexions amb cable, proveu un cable USB diferent.
  • Reinicieu tant la unitat principal com el telèfon intel·ligent.
• Problemes amb el senyal GPS:
  • Assegureu-vos que l'antena GPS estigui instal·lada correctament i que tingui una vista clara view del cel.
  • Check GPS settings within the unit.
• Retard/Bloqueig del sistema:
  • Tanca les aplicacions de fons innecessàries.
  • Realitzeu un reinici del sistema.
  • Si els problemes persisteixen, considereu un restabliment de fàbrica (nota: això esborrarà totes les dades de l'usuari).

For persistent issues, please contact Dasaita customer support.

7. Especificacions

8. Garantia i Suport

For warranty information and technical support, please refer to the documentation included with your product or visit the official Dasaita website. You may also contact Dasaita customer service directly for assistance with product inquiries, troubleshooting, or warranty claims.

Informació de contacte: Please refer to the contact details provided on the Dasaita official weblloc web o el vostre rebut de compra.
