Toputure TP4 Treadmill User Manual

1. Introducció i informació de seguretat

Thank you for choosing the Toputure TP4 Treadmill. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before first use and retain it for future reference.

Instruccions importants de seguretat

• Consulteu sempre amb un metge abans de començar qualsevol nou programa d'exercicis.
• Llegiu totes les instruccions d'aquest manual abans de fer funcionar la cinta de córrer.
• Mantingueu els nens i les mascotes lluny de la cinta de córrer durant el funcionament.
• Place the treadmill on a flat, stable surface with at least 0.6 meters (2 feet) of clear space around it.
• Porteu roba esportiva i calçat esportiu adequats. Eviteu la roba ampla que es pugui enganxar a les peces mòbils.
• Use the safety key at all times. Attach the clip to your clothing before starting your workout. In case of an emergency, the safety key will stop the treadmill.
• No feu servir la cinta de córrer si té el cable o l'endoll danyats o si no funciona correctament.
• No intenteu fer el manteniment de la cinta de córrer vosaltres mateixos. Poseu-vos en contacte amb personal de servei qualificat per a les reparacions.
• The maximum user weight for this treadmill is 130 kg (286 lbs).

2. Producte acabatview

The Toputure TP4 Treadmill is a versatile 4-in-1 fitness device designed for various exercise needs, from walking to running. Its compact and foldable design makes it suitable for home and office environments, allowing for easy storage and use under a standing desk or as a traditional treadmill.

Característiques clau

• Funcionalitat 4 en 1: Functions as a walking pad (1-8 km/h) and a running treadmill (8-12 km/h), adaptable for under-desk use or with the handrail.
• Manual 9% Incline: Features a single-level manual incline adjustment (4.3° or 9%) to increase workout intensity and calorie burn.
• Motor potent i silenciós: Equipped with a 2.5 HP motor for smooth operation, maintaining a noise level below 45dB.
• Pantalla LED dual: Two multi-function LED screens display real-time data including speed, distance, time, and calories.
• Comandament a distància: Conveniently adjust speed and mode via a remote control, which features magnetic storage on the handrail.

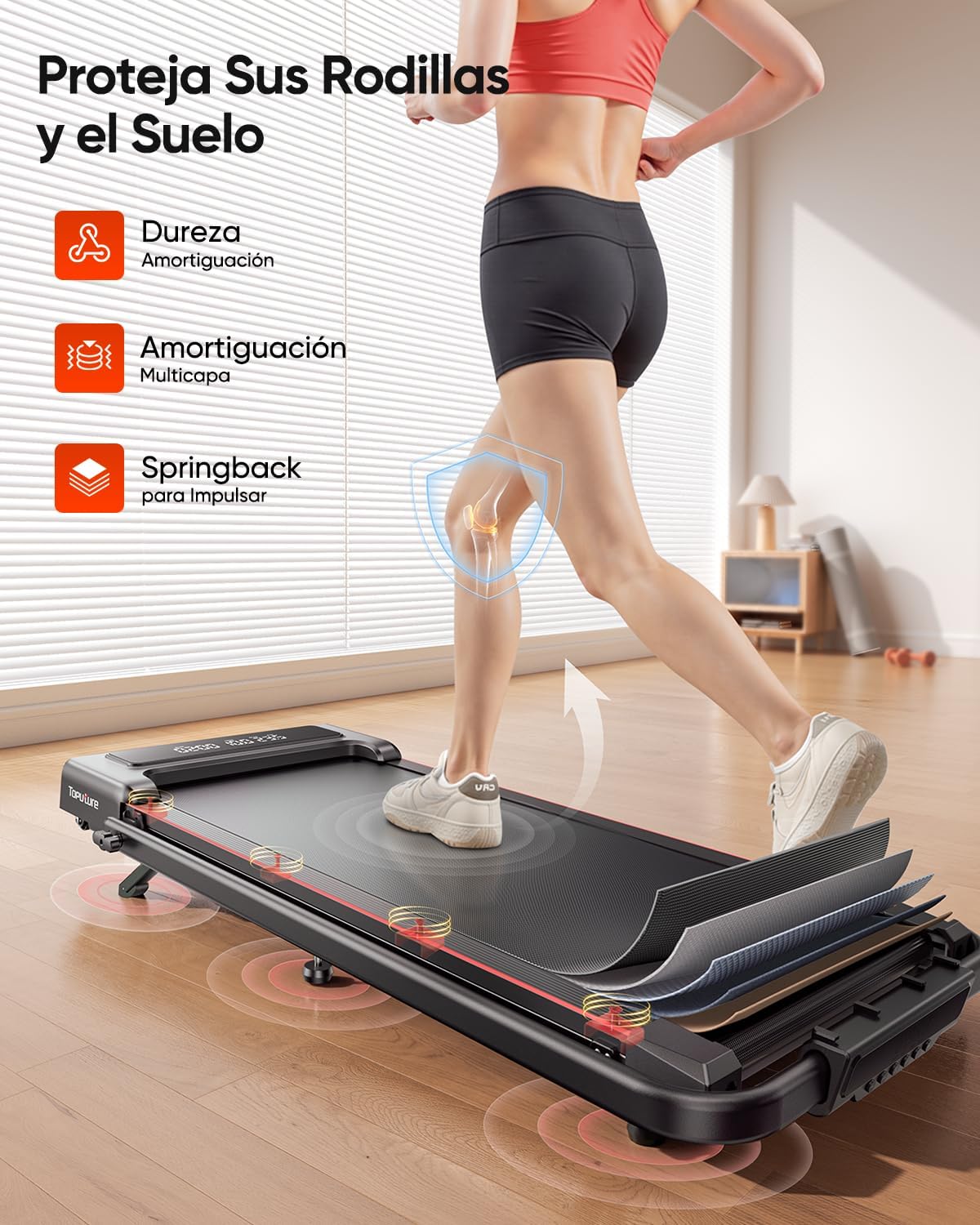

• Sistema d'absorció de xoc: Multi-layer running belt with internal silicone columns to absorb impact, protecting knees and joints.
• Disseny per estalviar espai: Foldable and portable with transport wheels for easy movement and storage under a sofa or table.
• Connectivitat de l'aplicació: Compatible with applications like FITSHOW for guided workouts and data tracking.

Contingut del paquet

• Toputure TP4 Treadmill
• Manual d'usuari (aquest document)
• Control remot
• Clau de seguretat
• Lubrication Oil (may be included separately or pre-applied)
• Tools for adjustment (e.g., Allen wrench for belt adjustment)

Diagrama del producte

3. Configuració i ús inicial

Desembalatge i col·locació

1. Traieu amb cura la cinta de córrer del seu embalatge.
2. Place the treadmill on a firm, level surface. Ensure there is adequate clear space around the unit for safe operation.
3. Connecteu el cable d'alimentació a una presa de corrent elèctrica amb terra.

No cal muntatge

The Toputure TP4 Treadmill features an advanced design that requires no complex assembly. Simply unfold the unit to prepare it for use.

Unfolding the Handrail

1. Lift the handrail into its upright position.
2. Secure the handrail by turning the locking buckle or mechanism until it clicks into place. Ensure it is firmly locked before use.

Adjusting the Manual Incline (9%)

The treadmill offers a fixed 9% manual incline to enhance your workout. To activate or deactivate the incline:

1. To engage incline: Locate the footrest at the rear of the treadmill. Unfold it and insert the provided pin to secure it in the elevated position. Adjust the central footrest for stability.
2. To disengage incline: Remove the pin and fold the footrest back into its flat position.

Always ensure the incline mechanism is securely set before starting your exercise.

4. Instruccions de funcionament

Tauler de control i control remot

The treadmill can be controlled via the integrated control panel or the wireless remote control. The remote control can be magnetically attached to the handrail for convenient access and storage.

Encès/Apagat

• Encès: Plug in the treadmill and press the power button on the control panel or remote.
• Apagar: Press the power button again or remove the safety key.

Using the Safety Key

The safety key is a critical safety feature. Attach the clip of the safety key to your clothing before starting any exercise. If the safety key is detached from the treadmill, the machine will immediately stop, preventing potential injury.

Començar un entrenament

1. Ensure the safety key is properly attached.
2. Premeu el botó COMENÇA button on the control panel or remote. The treadmill will begin at a low speed.
3. Gradually increase the speed to your desired level using the + or - botons.

Modes de velocitat

• Mode de caminada: Speed range of 1 to 8 km/h. Ideal for light exercise or under-desk use.
• Mode de funcionament: Speed range of 8 to 12 km/h. Suitable for more intense cardio workouts.

Funció de pausa

During your workout, press the PAUSA button to temporarily stop the treadmill without losing your current workout data. Press COMENÇA de nou per reprendre.

Pantalla LED dual

The two LED screens provide real-time feedback on your workout:

• Velocitat: Current speed in km/h.
• Distància: Distància total recorreguda.
• Hora: Durada del teu entrenament.
• Calories: Calories cremades estimades.

Programes predeterminats

The treadmill includes 12 pre-set programs. To select a program, press the MODE button on the control panel or remote. Each program offers varying speed and intensity profiles. Refer to the display for program details.

FITSHOW App Connectivity

The treadmill can connect to fitness applications like FITSHOW for enhanced workout tracking and guided sessions. Download the FITSHOW app from your device's app store and follow the in-app instructions to pair with your treadmill via Bluetooth.

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your Toputure TP4 Treadmill.

Lubrication of the Running Belt

The running belt requires periodic lubrication to reduce friction and wear. Use only silicone oil specifically designed for treadmills.

1. Apagueu i desconnecteu la cinta de córrer.
2. Loosen the rear roller bolts slightly to lift the running belt.
3. Apply a small amount of silicone oil evenly under the center of the running belt.
4. Estrenyeu els cargols del rodet posterior.
5. Plug in the treadmill and run it at a low speed (e.g., 3 km/h) for 5 minutes to distribute the lubricant.

Lubricate every 30-50 hours of use, or if the belt feels dry or makes excessive noise.

Neteja

• Netegeu les superfícies de la cinta de córrer amb anuncisamp drap després de cada ús. Eviteu productes de neteja abrasius.
• Aspireu periòdicament la pols que envolta la coberta del motor.

Ajust del cinturó de running

If the running belt slips or moves off-center, it may need adjustment.

1. Apagueu i desconnecteu la cinta de córrer.
2. For centering: If the belt drifts to the left, turn the left rear roller bolt clockwise in small increments. If it drifts to the right, turn the right rear roller bolt clockwise. Run the treadmill at a low speed to check alignment.
3. For tension: If the belt slips during use, turn both rear roller bolts clockwise in equal small increments to increase tension. Do not overtighten.

Emmagatzematge

The treadmill's foldable design allows for convenient storage.

1. Assegureu-vos que la cinta de córrer estigui apagada i desconnectada.
2. Fold down the handrail by releasing the locking mechanism.
3. Utilize the integrated transport wheels to move the treadmill to your desired storage location, such as under a sofa or against a wall.

6. Solució De Problemes

Si teniu problemes amb la cinta de córrer, consulteu els següents problemes i solucions habituals:

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

7. Especificacions

8. Garantia i Suport

Informació de la garantia

The Toputure TP4 Treadmill typically comes with a 2-year warranty. To ensure your warranty is active and for specific terms and conditions, it is recommended to register your product via email as instructed by the manufacturer or retailer at the time of purchase.

Atenció al client

For any questions, technical assistance, or warranty claims, please contact Toputure customer support through the retailer where you purchased the product or refer to the contact information provided with your purchase documentation.
