VASAGLE LLS135K01 5-Tier Storage Shelf Instruction Manual

Producte acabatview

The VASAGLE LLS135K01 is a versatile 5-tier storage shelf designed for quick and easy assembly without the need for tools. Its robust construction and modern aesthetic make it suitable for various living spaces, providing ample storage while occupying minimal floor space.

Les característiques clau inclouen:

• Muntatge sense eines: Designed for assembly in approximately 5 minutes using practical double-threaded screws.
• Spacious and Compact: Measures 23.8 x 38 x 139 cm, offering significant storage capacity with a small footprint.
• Robusta i estable: Constructed from reinforced steel tubes and quality engineered wood, supporting up to 6 kg per shelf (30 kg total). Features adjustable feet for enhanced stability.
• Disseny segur: Rounded shelf corners help prevent accidental injuries.
• Estil modern: Clean lines, rustic brown rectangular shelves, and a minimalist design complement various decor styles.

Informació important de seguretat

Si us plau, llegiu i enteneu totes les instruccions abans del muntatge i l'ús. Si no seguiu aquestes instruccions, podeu patir lesions o danys al producte.

• Capacitat de pes: Do not exceed the maximum load capacity of 30 kg for the entire unit, or 6 kg per individual shelf. Overloading can cause instability and collapse.
• Muntatge: Assegureu-vos que tots els components estiguin correctament muntats i ajustats segons les instruccions.
• Estabilitat: Always place the shelving unit on a flat, stable surface. Utilize the adjustable feet to compensate for uneven floors.
• Nens: Keep children away from the assembly area. Do not allow children to climb on or play with the shelving unit.
• Dispositiu anti-bolcada: If an anti-tip device is included, it is highly recommended to install it to prevent accidental tipping, especially in households with children or pets.

Contingut del paquet

Abans de començar el muntatge, verifiqueu que totes les peces que s'enumeren a continuació siguin presents i no estiguin danyades. Si hi ha alguna peça que falti o estigui danyada, poseu-vos en contacte amb el servei d'atenció al client.

• Shelf boards (5 pieces)
• Steel support tubes
• Double-threaded screws
• Peus ajustables
• Kit antivuelco (si s'inclou)
• Instruccions de muntatge

Refer to the assembly diagram for a visual representation of all components.

Instruccions de muntatge

This shelving unit is designed for quick and easy tool-free assembly. Follow these steps:

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge i col·loqueu-les sobre una superfície neta i suau per evitar ratllades.
2. Fixeu els peus ajustables: Screw the adjustable feet into the bottom of the lowest shelf board.
3. Assemble First Tier: Insert the steel support tubes into the designated holes on the lowest shelf board. Ensure they are firmly seated.
4. Add Subsequent Tiers: Place the next shelf board onto the top of the installed support tubes. Use the double-threaded screws to connect the tubes to the shelf board by simply twisting them into place. Repeat this process for all remaining shelf boards and support tubes.
5. Secure Top Shelf: Attach the final set of support tubes to the top shelf board using the double-threaded screws.
6. Ajustament final: Once all shelves are in place, gently tighten all connections by hand to ensure stability. Do not overtighten.
7. Position and Level: Move the assembled unit to its desired location. Adjust the feet as necessary to ensure the shelf is level and stable on the floor.
8. Install Anti-Tip Kit (Optional but Recommended): If an anti-tip kit is provided, follow its specific instructions to secure the unit to the wall. This is crucial for safety, especially in homes with children.

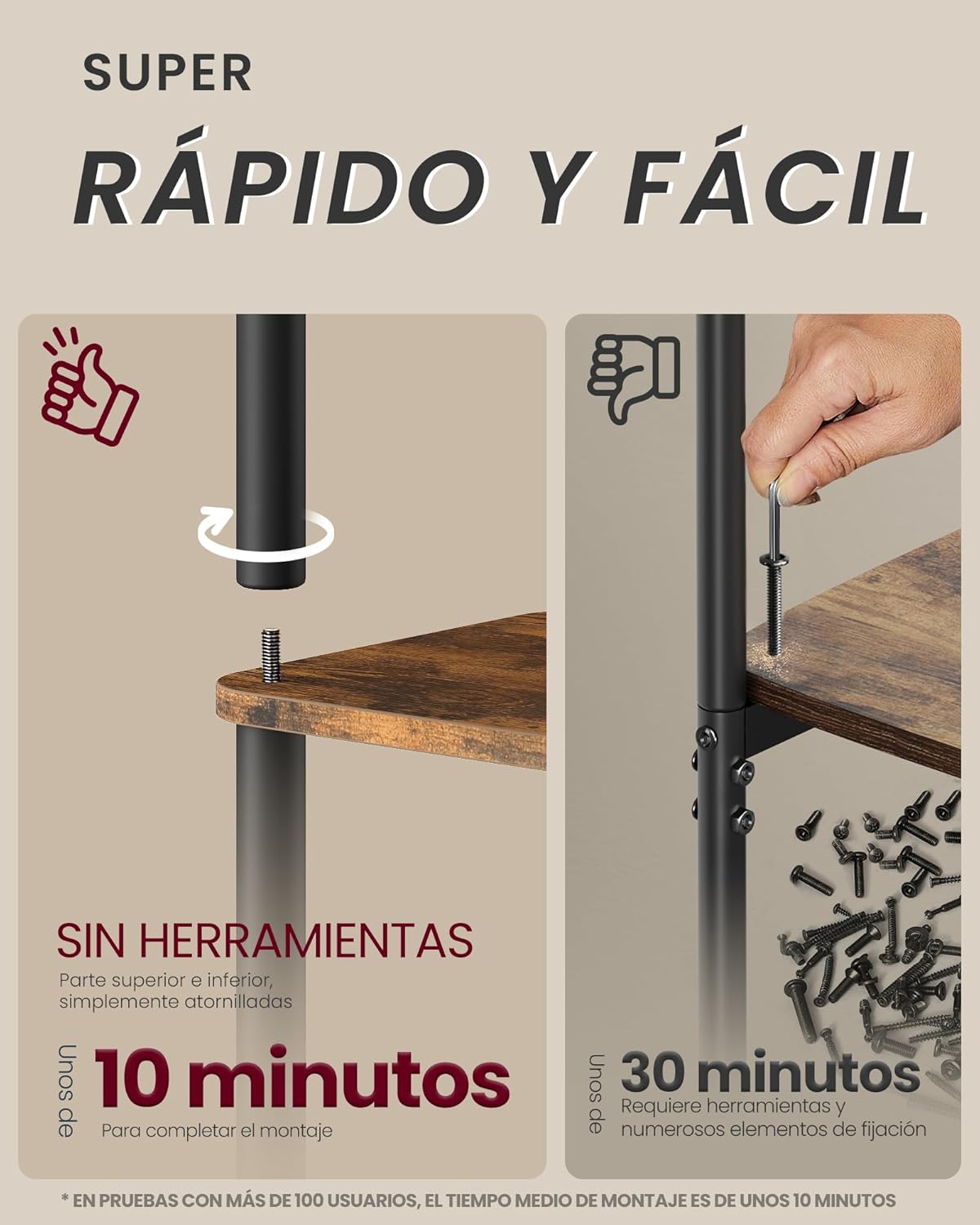

Figure 1: Visual guide to the tool-free assembly process.

Figure 2: Detail of the double-threaded screw mechanism for rapid assembly.

Pautes d'ús

The VASAGLE LLS135K01 5-Tier Storage Shelf is designed for organizing and displaying items in various indoor environments.

• Col·locació: Suitable for living rooms, bedrooms, studies, kitchens, and even covered balconies.
• Distribució de càrrega: Distribute weight evenly across the shelves. Avoid placing all heavy items on a single shelf or one side of the unit.
• Límits de pes: Each shelf can hold up to 6 kg. The total maximum weight capacity for the entire unit is 30 kg. Do not exceed these limits.
• Col·locació d'elements: Place heavier items on lower shelves to enhance stability.

Figura 3: Examples of the shelving unit in various room settings.

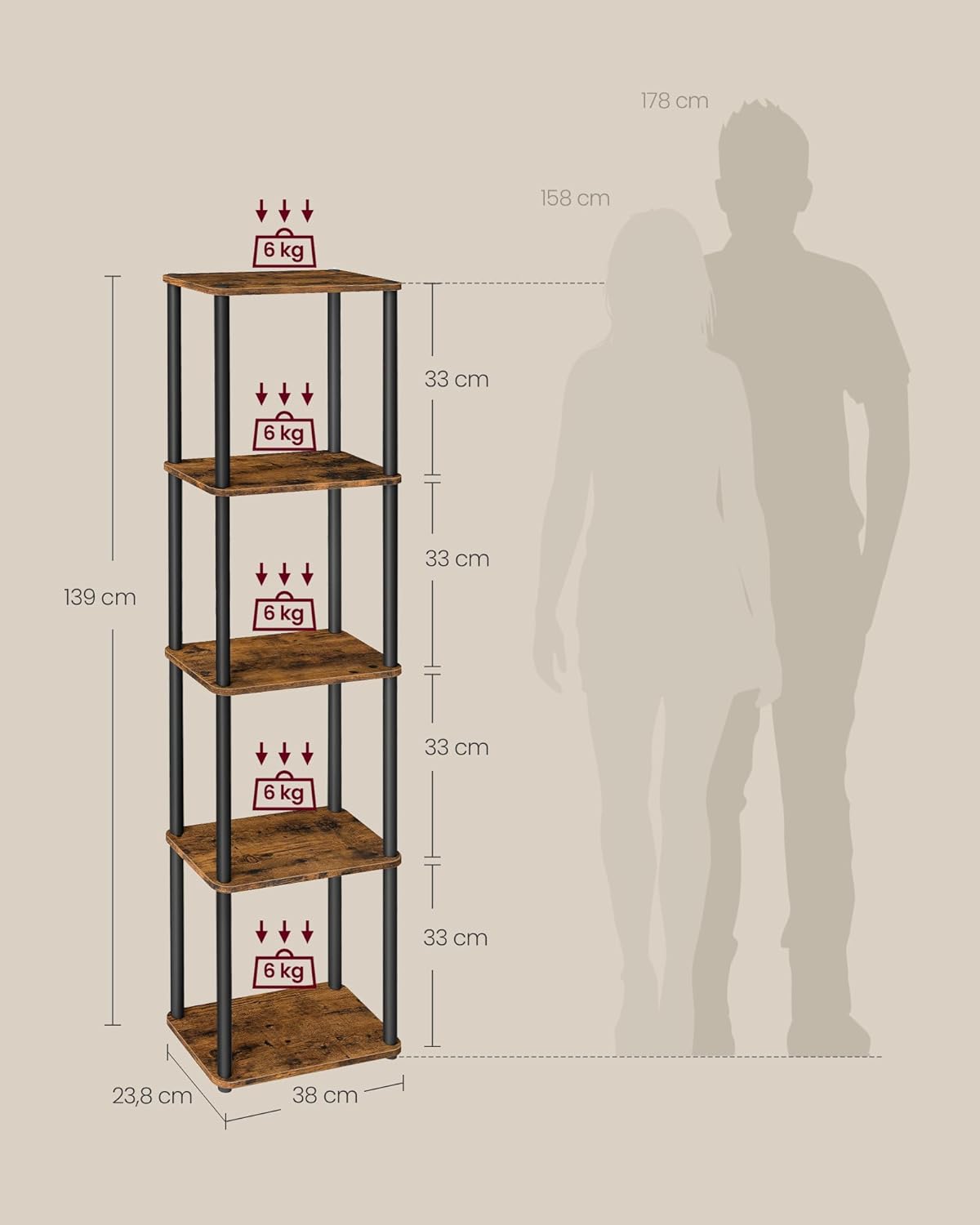

Figure 4: Product dimensions and individual shelf weight capacity.

Cura i Manteniment

• Neteja: Netegeu les superfícies amb un suau, damp drap. Eviteu utilitzar productes químics agressius o netejadors abrasius, que poden danyar l'acabat.
• Pols: Regularly dust the shelves to maintain their appearance.
• Vessaments de líquids: Promptly wipe up any liquid spills to prevent damage to the engineered wood.
• Inspecció: Periodically check all connections to ensure they remain tight. Retighten if necessary.
• Medi ambient: Avoid exposing the unit to direct sunlight or extreme humidity, which can affect the material's integrity.

Resolució de problemes

Unit feels unstable or wobbly:

Ensure the unit is placed on a flat, level surface. Adjust the leveling feet at the bottom of the unit until it is stable. Check that all screws and connections are securely tightened. If an anti-tip kit is installed, verify it is properly anchored to the wall.

Dificultat durant el muntatge:

Review the assembly instructions carefully. Ensure you are using the correct parts for each step. Do not force components together; if parts do not fit, re-check the orientation or contact customer support for assistance.

Peces que falten o danyades:

Before assembly, verify all parts against the package contents list. If any parts are missing or damaged upon arrival, do not proceed with assembly. Contact VASAGLE customer support immediately for replacement parts.

Especificacions del producte

Garantia i assistència al client

Els productes VASAGLE es fabriquen tenint en compte la qualitat i la satisfacció del client. Per obtenir detalls específics de la garantia, consulteu la documentació inclosa amb la vostra compra o visiteu el lloc web oficial de VASAGLE. weblloc.

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact VASAGLE customer support through their official channels. Please have your model number (LLS135K01) and purchase information ready when contacting support.

Podeu trobar més informació i dades de contacte a VASAGLE Brand Store.
