FITE ON USB Type C 45W Charger Instruction Manual

Introducció

Thank you for choosing the FITE ON USB Type C 45W Charger. This power supply adapter is designed to provide efficient and reliable charging for your FanttikRide C10 Pro Electric Scooter for Kids. This manual provides essential information for safe setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your charger.

Informació de seguretat

Please read all safety instructions carefully before using the charger. Failure to follow these instructions may result in electric shock, fire, or damage to the product or connected devices.

• Només per a ús interior: This charger is intended for indoor use in dry locations. Do not expose to rain, moisture, or extreme temperatures.
• Vol adequattage: Assegureu-vos que el volum de la presa de correnttage matches the charger's input voltage (100-240 V CA).
• Evita danys: Do not use the charger if the cable or plug is damaged. Avoid bending, twisting, or pulling the cable excessively.
• Ventilació: Ensure adequate ventilation around the charger during use. Do not cover the charger with cloths or other materials.
• Característiques de protecció: This charger is equipped with Over VoltagProtecció contra sobrecorrent (OVP), protecció contra sobrecorrent (OCP) i protecció contra curtcircuits (SCP) per protegir els vostres dispositius.
• Nens i animals de companyia: Mantingueu el carregador fora de l'abast dels nens i les mascotes.

This image illustrates the charger's built-in safety features, including protection against short circuits, overheating, electrostatic discharge, and overcurrent, ensuring a safe and stable charging process.

Contingut del paquet

Si us plau, verifiqueu que tots els elements siguin presents al paquet:

• 1 x FITE ON USB Type C 45W Charger (Model: XSD-2002250NUSD)

Configuració

Follow these steps to set up your FITE ON USB Type C 45W Charger:

1. Desembalar: Traieu amb cura el carregador del seu embalatge.
2. Connecteu-vos a la presa de corrent: Plug the AC power cord of the charger into a standard wall outlet (100-240VAC).
3. Connect to Scooter: Insert the USB Type C connector of the charger into the charging port of your FanttikRide C10 Pro Electric Scooter. Ensure the connection is firm and secure.
4. Verifica la connexió: Confirm that the charger is properly seated in both the wall outlet and the scooter's charging port.

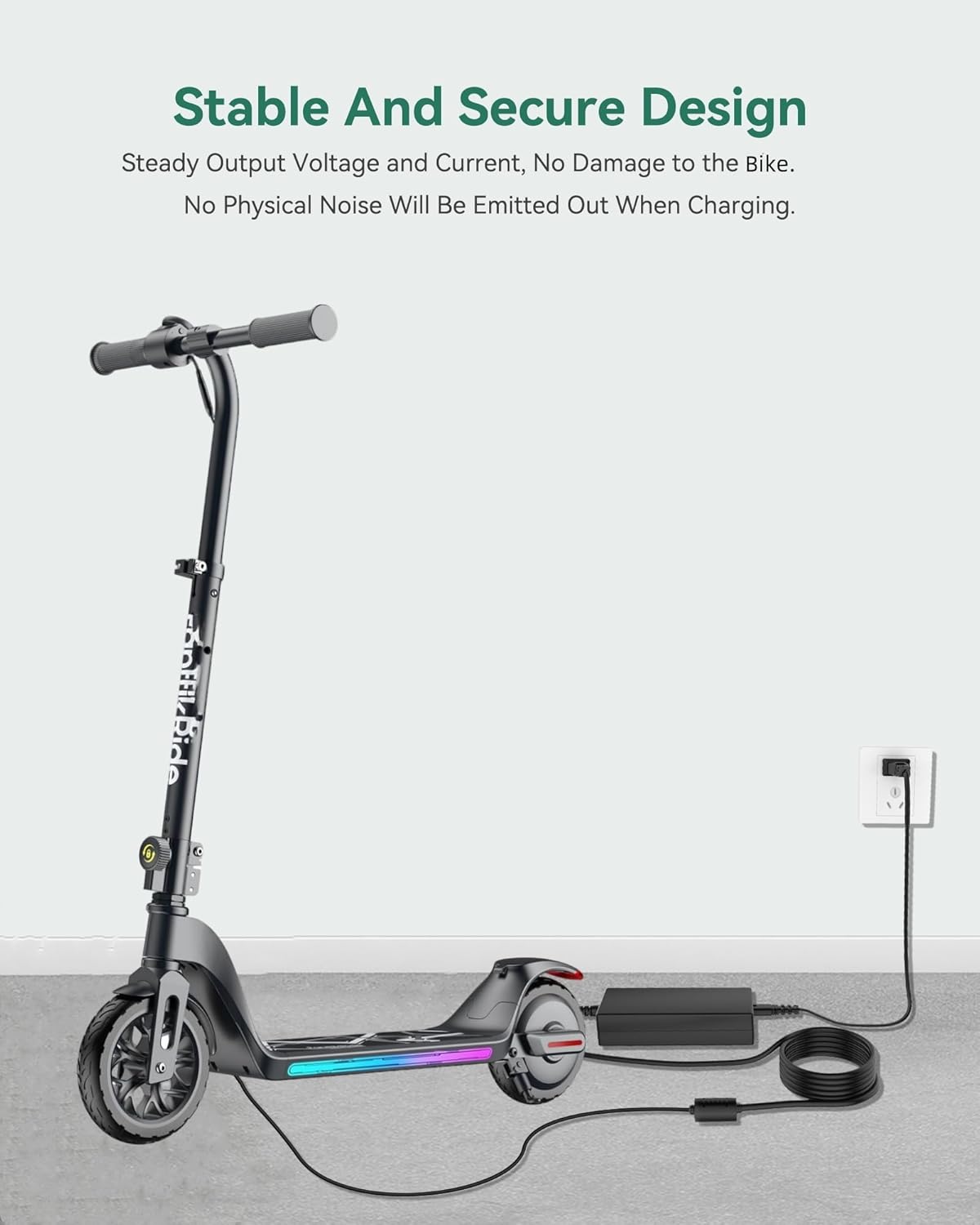

This image demonstrates the correct connection of the FITE ON charger to the FanttikRide C10 Pro Electric Scooter, illustrating a stable and secure charging setup.

Instruccions de funcionament

Once the charger is properly set up, it will begin charging your electric scooter automatically.

• Indicació de càrrega: Refer to your scooter's user manual for specific charging indicators (e.g., LED lights) that show the charging status.
• Temps de càrrega: Charging time will vary depending on the scooter's battery level and capacity.
• Desconnexió: Once charging is complete, disconnect the USB Type C connector from the scooter first, then unplug the charger from the wall outlet.

Manteniment

Un manteniment adequat garanteix la longevitat i el funcionament segur del carregador.

• Neteja: Disconnect the charger from all power sources before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or solvents.
• Cura del cable: The charger cable is designed for durability. Avoid sharp bends, kinks, or placing heavy objects on the cable. Use the included fastener tape to keep the cable neatly organized when not in use.
• Emmagatzematge: Guardeu el carregador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes quan no l'utilitzeu.

This image highlights key design elements of the FITE ON charger, such as its robust casing for durability, convenient fastener tape for cable organization, and the extended cable length for flexible use.

Resolució de problemes

Si teniu problemes amb el carregador, consulteu els següents problemes i solucions habituals:

• Charger Not Working / No Power:
  • Assegureu-vos que el carregador estigui ben connectat a una presa de corrent que funcioni.
  • Comproveu si la presa de corrent funciona connectant-hi un altre dispositiu.
  • Verify that the USB Type C connector is fully inserted into the scooter's charging port.
• Càrrega lenta:
  • Ensure the charger is connected directly to the wall outlet and not through a power strip or extension cord that might reduce power delivery.
  • Confirm that the scooter's charging port is clean and free of debris.
• Sobreescalfament:
  • Assegureu-vos que el carregador tingui una ventilació adequada i que no estigui tapat.
  • If the charger feels excessively hot, disconnect it immediately and contact support.

Especificacions

Garantia i Suport

Garantia: This FITE ON charger comes with a 2-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.

Atenció al client: For technical assistance, warranty claims, or any questions regarding your FITE ON product, please contact FITE ON customer service. You can find more information and contact details by visiting the FITE ON Store on Amazon.
