HNZXIB 7L Commercial Chocolate Tempering Machine

Introducció

Thank you for choosing the HNZXIB 7L Commercial Chocolate Tempering Machine with Vibration Table. This manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your new equipment. Please read these instructions thoroughly before using the machine and retain this manual for future reference.

Instruccions importants de seguretat

Per evitar lesions o danys a la màquina, seguiu sempre aquestes precaucions de seguretat bàsiques:

• Seguretat elèctrica: Ensure the machine is connected to a grounded 110V power outlet. Do not operate with a damaged power cord or plug. Keep the power cord away from hot surfaces.
• Superfícies calentes: The chocolate melting pot and dispensed chocolate will be hot. Use caution to avoid burns. Do not touch hot surfaces directly.
• Neteja: Always unplug the machine from the power outlet before cleaning. Allow the machine to cool completely before handling internal components. Do not immerse the main unit in water or other liquids.
• Ventilació: Ensure adequate ventilation around the machine during operation to prevent overheating. Do not block air vents.
• Nens i animals de companyia: Keep children and pets away from the machine during operation and when it is cooling down.
• Ús previst: Use this machine only for its intended purpose of tempering and dispensing chocolate. Any other use may cause damage or injury.
• Manteniment: Do not attempt to repair or modify the machine yourself. Refer all servicing to qualified personnel.

Producte acabatview

The HNZXIB 7L Commercial Chocolate Tempering Machine is designed for efficient chocolate processing, featuring an integrated vibration table and an automated dispenser system. Key components include:

• Chocolate Melting Pot: 7L capacity stainless steel pot for melting and tempering chocolate.
• Automated Dispenser: System for precise and consistent chocolate pouring.
• Vibration Table: Integrated table to ensure smooth mold filling and eliminate air bubbles.
• Panell de control digital: PLC-controlled interface with LCD screen for temperature and flow adjustments.
• Dual-Motor Design: Enhances durability and operational efficiency.
• Construcció d'acer inoxidable: Ensures hygiene and longevity.

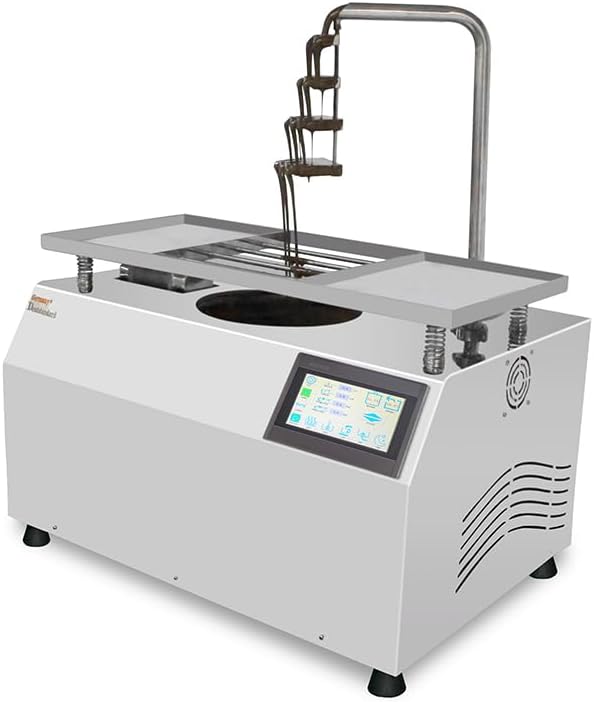

Figura 1: Frontal view of the HNZXIB 7L Commercial Chocolate Tempering Machine. This image shows the main unit, the chocolate dispenser arm, the vibration table, and the digital control panel on the front.

Figura 2: posterior view of the machine. This image highlights the cooling vents for heat dissipation and the drain valve for easy liquid removal.

Figura 3: lateral view of the machine. This perspective shows the compact footprint and the connection point for the dispenser arm.

Figura 4: Detallada view of machine components. This collage shows the spring mechanism of the vibration table, the interior of the chocolate melting pot, the base of the dispenser arm, and the drain valve assembly.

Configuració

Follow these steps for the initial setup of your chocolate tempering machine:

1. Desembalar: Traieu amb cura tots els components de l'embalatge. Inspeccioneu-ho per veure si hi ha danys durant l'enviament.
2. Col·locació: Place the machine on a stable, level, heat-resistant surface with adequate clearance for ventilation. Ensure it is away from water sources.
3. Assemble Dispenser: Attach the chocolate dispenser arm to its designated port on the machine. Ensure it is securely fastened.
4. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de terra de 110 V CA.
5. Neteja inicial: Before first use, clean all parts that will come into contact with chocolate according to the "Cleaning" section of this manual.

Instruccions de funcionament

This section details the steps for tempering and dispensing chocolate.

Tempering Process

1. Encès: Turn on the machine using the main power switch. The digital LCD screen will illuminate.
2. Temperatura establerta: Use the control panel to set the desired melting and tempering temperatures for your chocolate type. Refer to your chocolate manufacturer's recommendations for specific temperatures.
3. Add Chocolate: Place solid chocolate (callets, blocks, etc.) into the stainless steel melting pot. The machine will begin to heat and melt the chocolate.
4. Tempering Cycle: The machine will automatically follow the programmed tempering cycle (melting, cooling, re-heating to working temperature). Monitor the temperature on the display.
5. Dispensació: Once tempered, activate the dispenser function via the control panel. Adjust the flow rate as needed for your application.
6. Vibration Table: For mold filling, place molds on the vibration table and activate the vibration function. This helps remove air bubbles and ensures a smooth finish.
7. Mode nocturn: Utilize the night mode feature for extended holding times at a lower temperature, if available and desired.

Funcions del tauler de control

The digital LCD screen provides access to various settings:

• Control de temperatura: Adjust and monitor the chocolate temperature.
• Ajust del cabal: Control the speed and volume of chocolate dispensed.
• Modes preestablerts: Select from various pre-programmed tempering cycles for different chocolate types.
• Control de vibracions: Activate and deactivate the vibration table.
• Auger Rotation: The auger can rotate bidirectionally for efficient mixing and cleaning.

Cura i Manteniment

Regular cleaning and maintenance will ensure the longevity and optimal performance of your machine.

Neteja

1. Desconnectar: Always unplug the machine from the power outlet and allow it to cool completely before cleaning.
2. Empty Chocolate: Drain any remaining chocolate from the melting pot using the drain valve.
3. Desmuntar: Carefully remove the dispenser arm, auger, and melting pot components for cleaning.
4. Components de rentat: Wash removable parts with warm, soapy water. Rinse thoroughly and dry completely to prevent water spots or rust.
5. Neteja la unitat principal: Netegeu l'exterior de la unitat principal amb anuncisamp drap. No utilitzeu productes de neteja abrasius ni submergiu la unitat en aigua.
6. Torneu a muntar: Ensure all parts are dry before reassembling the machine.

Emmagatzematge

Store the machine in a clean, dry place when not in use. Protect it from dust and extreme temperatures.

Guia de resolució de problemes

Consulteu aquesta taula per veure els problemes habituals i les seves possibles solucions.

Especificacions tècniques

Garantia i assistència al client

Specific warranty information for this product was not provided in the available details. For warranty claims, technical support, or service inquiries, please contact the manufacturer or your point of purchase directly. Ensure you have your model number (7L Vibration Table Chocolate) and purchase date available when contacting support.
