KILOTECH TI-30 Integrator Retail Scale User Manual

1. Introducció

The KILOTECH TI-30 Integrator is a sophisticated retail scale designed for efficient and accurate weighing and labeling in commercial environments. Featuring a responsive touchscreen, intuitive software, and versatile label printing capabilities, this device streamlines operations by allowing for the display of nutritional information, allergen details, and customized product data. This manual provides essential information for the proper setup, operation, and maintenance of your TI-30 Integrator scale.

2. Informació de seguretat

• Col·loqueu sempre la bàscula sobre una superfície estable i anivellada per garantir lectures precises.
• Do not expose the scale to excessive moisture, extreme temperatures, or direct sunlight.
• Utilitzeu només l'adaptador d'alimentació subministrat amb el dispositiu.
• Avoid dropping or subjecting the scale to heavy impacts.
• Keep the touchscreen clean and free from sharp objects to prevent damage.
• Demaneu tot el servei a personal qualificat.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• KILOTECH TI-30 Integrator Scale Unit
• Pantalla tàctil
• Adaptador d'alimentació
• Roll of Printed Labels (initial supply)
• Manual d'usuari (aquest document)

4. Configuració

4.1 Desembalatge i col·locació

Carefully remove the scale from its packaging. Place the TI-30 Integrator on a flat, stable, and level surface, away from vibrations, drafts, and direct heat sources. Ensure adequate space around the unit for ventilation and operation.

4.2 Connexió d'alimentació

1. Connect the power adapter to the power input port on the rear of the scale.
2. Connecteu l'adaptador d'alimentació a una presa de corrent adequada.
3. The scale will power on automatically or can be turned on using the designated power button (if present).

4.3 Configuració inicial

Upon first power-up, the scale may guide you through an initial setup wizard on the touchscreen. This typically includes:

• Selecció de la llengua.
• Configuració de data i hora.
• Network (Wi-Fi) configuration for connectivity to a retail management system.
• Basic unit settings (e.g., default weighing unit: kg or lb).

Seguiu les indicacions de la pantalla per completar la configuració inicial.

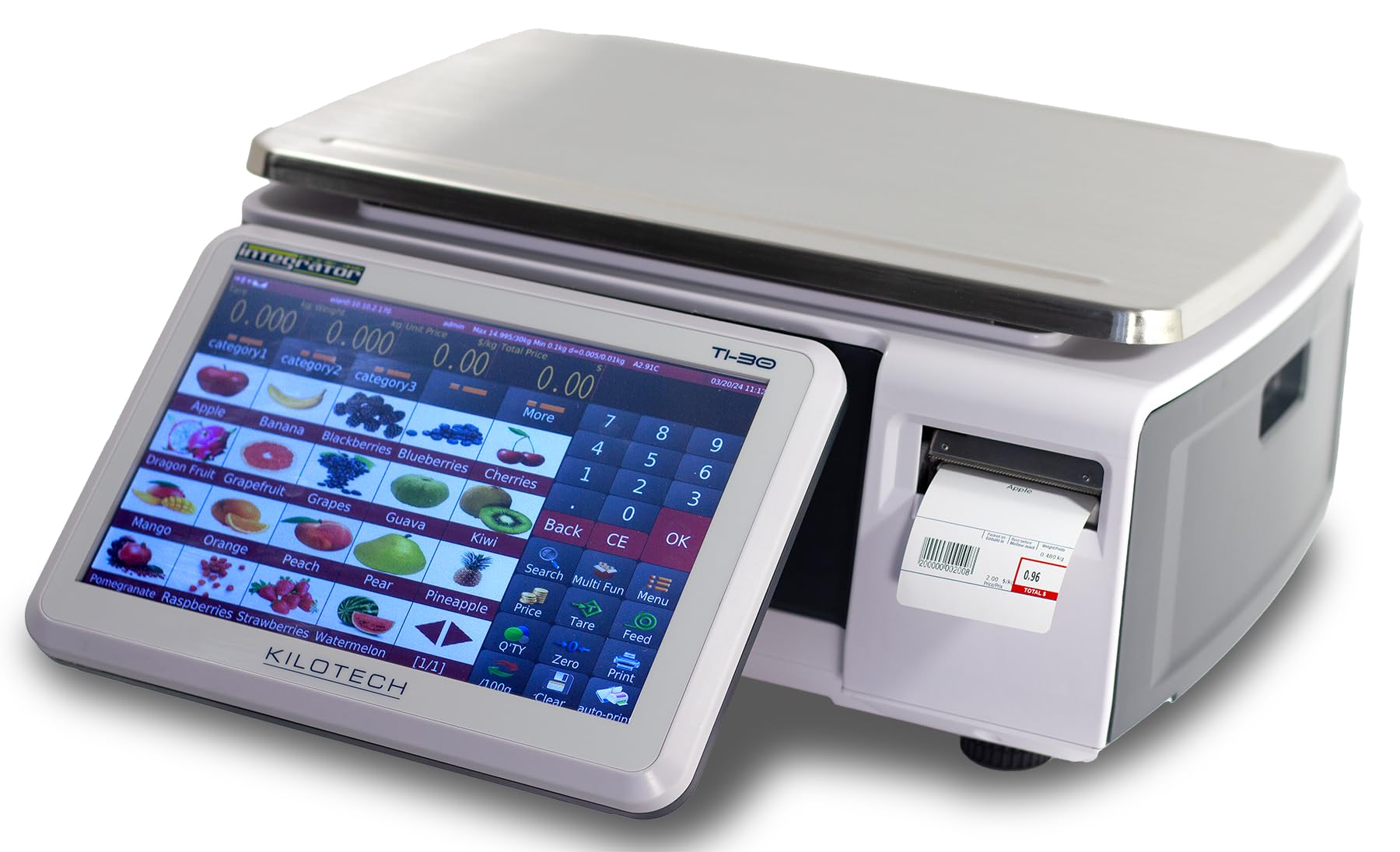

Figure 1: KILOTECH TI-30 Integrator Retail Scale with its touchscreen display angled for user interaction. The display shows weighing information and product images.

5. Instruccions de funcionament

5.1 Pesatge bàsic

1. Ensure the scale is powered on and the display shows '0.000' (or similar, depending on unit).
2. Carefully place the item to be weighed onto the weighing platter.
3. The weight will be displayed on the touchscreen.

5.2 Funció de tara

The tare function allows you to subtract the weight of a container, so only the net weight of the product is measured.

1. Place the empty container on the weighing platter.
2. Press the 'Tare' button on the touchscreen. The display will reset to '0.000'.
3. Add the product to the container. The display will show the net weight of the product.

5.3 Selecció d'unitats

To switch between weighing units (e.g., kilograms and pounds):

• Locate the 'Unit' button or setting on the touchscreen interface.
• Tap to cycle through available units (kg, lb).

5.4 Impressió d'etiquetes

The TI-30 Integrator supports various label types and customization.

1. After weighing an item, select the desired product from your database on the touchscreen.
2. Verify the unit price and total price displayed.
3. Press the 'Print Label' button. The scale will print a label with the product information, weight, unit price, and total price.
4. To customize label content (e.g., nutritional information, allergens), navigate to the 'Settings' or 'Label Design' menu on the touchscreen.

6. Característiques

The KILOTECH TI-30 Integrator offers a range of features designed to enhance retail operations:

• Digital Grocery/Shop Scale: Accurate and reliable for various retail environments.
• Interfície de pantalla tàctil: Intuitive and user-friendly for quick operations.
• Label Printing Scale: Integrated printer for on-demand product labels.
• Etiquetes personalitzables: Adaptable label options for displaying nutritional data, allergens, or other specific product information.
• Disseny elegant i modern: Estèticament agradableasing and functional for modern retail spaces.
• Retail Management System Integration: Designed to connect with existing retail systems for seamless data flow.
• Adjustable Screen Angle: The display can be angled for optimal viewcomoditat.
• Legal for Trade: Certified for commercial use, ensuring compliance with regulations.
• Connectivitat Wi-Fi: Enables wireless network integration.
• Fast Reload: Efficient operation for high-volume environments.

7. Manteniment

7.1 Neteja

Regular cleaning helps maintain the scale's accuracy and appearance.

• Disconnect the scale from the power source before cleaning.
• Wipe the weighing platter and exterior surfaces with a soft, damp drap. Si cal, feu servir un netejador suau i no abrasiu.
• For the touchscreen, use a screen-specific cleaner and a microfiber cloth. Do not spray cleaner directly onto the screen.
• Ensure no liquids enter the scale's internal components.

7.2 Comprovacions de calibratge

As a 'MC Certified' scale, the TI-30 Integrator is designed for accuracy. However, periodic checks with certified weights are recommended to ensure continued precision. Refer to local regulations for required calibration intervals. For re-calibration, contact KILOTECH customer support or an authorized service provider.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

For warranty information, technical support, or service inquiries, please contact KILOTECH Inc. directly:

• Fabricant: Kilotech Inc.
• Adreça: 2111 32e Avenue, Lachine, QC H8T 3J1, Quebec
• Telèfon: (514) 420-6020
• Correu electrònic: kiloservice47@gmail.com
