1. Introducció
Thank you for choosing the Alpicool MG9 Mini Portable Freezer. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and retain it for future reference.
The Alpicool MG9 is a compact and versatile portable freezer designed for various applications, including outdoor activities, camping, RV travel, and truck use. It offers reliable cooling and freezing performance with flexible power options.
Image 1: The Alpicool MG9 Mini Portable Freezer, a compact grey unit with a control panel on the front.
2. Instruccions de seguretat
- Assegureu-vos que la potència voltage matches the specifications before connecting the appliance.
- Do not operate the freezer if the power cord is damaged or if the appliance shows signs of malfunction. Contact customer support.
- Keep the freezer away from heat sources and direct sunlight to ensure optimal performance and prevent damage.
- Maintain adequate ventilation around the unit. Ensure at least 8-10 inches of clear space around all vents for proper airflow.
- Do not immerse the freezer in water or expose it to heavy rain.
- Avoid placing corrosive materials or liquids inside the freezer.
- Desconnecteu sempre l'alimentació abans de netejar o fer manteniment.
- Aquest aparell no està pensat per a ser utilitzat per persones amb capacitats físiques, sensorials o mentals reduïdes, llevat que estiguin supervisades o instruïdes.
3. Components del producte
The Alpicool MG9 Mini Portable Freezer package typically includes the following items:
- Alpicool MG9 Car Refrigerator x1
- DC Power Cord (12/24V) x1
- AC Power Cord + Adapter (100-240V) x1
- Manual d'usuari x1
Image 2: An illustration showing the Alpicool MG9 unit, a DC power cord, an AC power cord with adapter, and the user manual, indicating what is included in the package.
4. Configuració
4.1 Col·locació inicial
- Col·loqueu el congelador sobre una superfície plana i estable.
- Ensure proper ventilation by leaving at least 8-10 inches of space around all sides, especially near the vents.
- Eviteu col·locar la unitat sota la llum solar directa o a prop d'aparells que emeten calor.
4.2 Connexió d'alimentació
The Alpicool MG9 supports multiple power supply modes:
- CC 12/24V: Use the provided DC power cable to connect to a car cigarette lighter socket.
- AC 100-240V: Use the provided AC power cable and adapter to connect to a standard home outlet.
- Optional Power Station: The unit can also be connected to a portable power station or solar panel setup (cables for this may be sold separately).
Image 3: An illustration demonstrating the three power supply options: car cigarette lighter (DC 12/24V), home outlet (AC 100-240V), and an optional connection to a solar panel or battery station.
5. Instruccions de funcionament
5.1 Tauler de control acabatview
The control panel is located on the front of the unit and features a digital display and several buttons for operation.

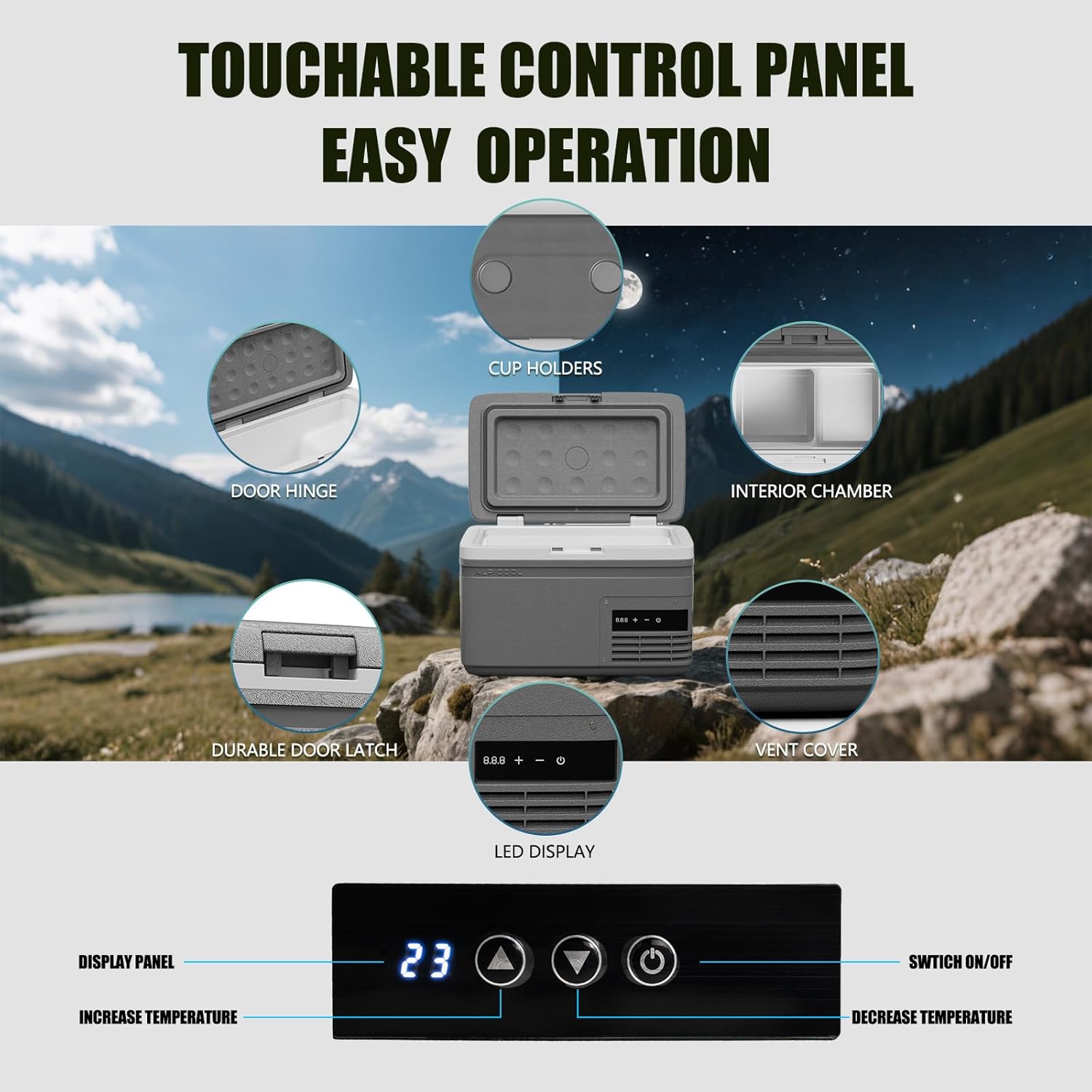

Imatge 4: Una imatge detallada view of the Alpicool MG9's control panel, showing the LED display, power button, and temperature adjustment buttons. Other features like cup holders, door hinge, interior chamber, durable door latch, and vent cover are also highlighted.
- Pantalla LED: Shows the current temperature and settings.
- Botó d'engegada (⑂): Premeu per encendre o apagar la unitat.
- Increase Temperature (+): Premeu per augmentar la temperatura objectiu.
- Decrease Temperature (-): Premeu per baixar la temperatura objectiu.
5.2 Configuració de la temperatura
- Turn on the freezer by pressing the Power button.
- Use the '+' and '-' buttons to adjust the desired temperature. The display will flash the target temperature and then return to the current internal temperature.
- The unit will automatically cool or heat to reach and maintain the set temperature. The cooling range is -4°F (-20°C) to 68°F (20°C).
5.3 Modes de refrigeració (MAX/ECO)
The Alpicool MG9 offers two cooling modes:
- Mode MAX: Provides fast cooling performance, ideal for quickly reaching the desired temperature. Power consumption is approximately 45W.
- Mode ECO: An energy-saving mode that reduces power consumption, suitable for maintaining temperature over longer periods. Power consumption is approximately 33W.
To switch between modes, press the 'Set' button (often the power button or a dedicated button, refer to specific model instructions if available, otherwise assume power button for simplicity).
Image 5: An illustration comparing MAX mode (45W, quick cooling) and ECO mode (33W, energy saving) for the Alpicool MG9, with a background of mountains and a forest.
5.4 Protecció de la bateria del cotxe
The unit features a 3-level car battery protection system to prevent your vehicle's battery from draining completely.
- H1 (Baix): Volum de tall més baixtage, suitable for most vehicles.
- H2 (Mitjà): Volum de retall mitjàtage.
- H3 (Alt): Volum de tall més alttage, recommended for sensitive vehicle batteries or when using the freezer for extended periods without the engine running.
To adjust the battery protection level, press and hold the 'Set' button (or power button) until the display shows the current battery protection level (H1, H2, or H3). Use the '+' or '-' buttons to select the desired level, then wait for the display to return to the temperature reading to confirm the setting.
Image 6: This image displays the dimensions of the Alpicool MG9 (16.2in x 9.8in x 11.1in) and a table detailing the voltage reference for the battery protection modes (L, M, H) for both DC 12V and DC 24V inputs, showing cut-out and cut-in voltages.
6. Manteniment
6.1 Neteja
- Desconnecteu sempre l'alimentació abans de netejar.
- Netegeu les superfícies interiors i exteriors amb un damp drap i un detergent suau. No utilitzeu productes de neteja abrasius ni dissolvents.
- The door is removable for effortless deep cleaning and hygiene. Gently detach the door as instructed in the diagram (if available, otherwise imply careful removal).
- Assegureu-vos que la unitat estigui completament seca abans de tornar a connectar l'alimentació.
Image 7: This image highlights the removable door feature for easy cleaning, the vent cover designed for optimal airflow, and the integrated handle for portability, all contributing to the freezer's functionality.
6.2 Ventilació
Regularly check that the ventilation vents are clear of dust and debris to ensure efficient operation and prevent overheating. Maintain clear space around the vents as specified in the setup section.
7. Solució De Problemes
If you encounter issues with your Alpicool MG9, please refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | Sense subministrament d'alimentació; Cable d'alimentació danyat; Fusible del vehicle fundit. | Check power connection; Inspect power cord for damage; Check vehicle fuse. |
| La unitat no refreda eficaçment | Insufficient ventilation; Door not sealed properly; Ambient temperature too high; Incorrect temperature setting. | Ensure clear vents; Check door seal; Move unit to cooler area; Adjust temperature setting. |
| La pantalla mostra el codi d'error | Error intern; baix volumtage. | Refer to specific error code in a more detailed manual (if available); Check power source voltage. |
| Soroll excessiu | Unit not level; Fan obstructed; Compressor issue. | Place on a level surface; Clear fan area; If noise persists, contact support. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb el servei d'atenció al client d'Alpicool per obtenir més ajuda.
8. Especificacions
Detailed technical specifications for the Alpicool MG9 Mini Portable Freezer:
Image 8: A graphic displaying the Alpicool MG9's specifications, including model name, capacity, cooling range, power source, dimensions, and net weight.
| Característica | Especificació |
|---|---|
| Nom del model | MG9 |
| Capacitat | 8.7 litres (9 quarts) |
| Gamma de refrigeració | -4 °F a 68 °F (-20 °C a 20 °C) |
| Font d'alimentació | CC 12/24V, CA 100-240V |
| Potència nominal | 45 W (mode MÀX), 33 W (mode ECO) |
| Dimensions del producte | 16.3 x 9.8 x 11.1 polzades (41.2 x 25 x 28.2 cm) |
| Pes net | 13.9 lliures (6.3 kg) |
| Sistema de descongelació | Automàtic |
| Nivell de soroll | Menys de 45 dB |
9. Garantia i Suport
Alpicool products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your purchase or visit the official Alpicool website. Typically, products come with a limited warranty covering manufacturing defects.
For technical support, troubleshooting assistance, or warranty claims, please contact Alpicool customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (MG9) and purchase details ready.
