Introducció
Thank you for choosing the Fanbulous 56-Inch Crystal Chandelier Ceiling Fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Designed for spacious rooms, this fan combines elegant crystal lighting with efficient air circulation, featuring a quiet reversible DC motor and convenient remote control. Please read this manual thoroughly before installation and use, and retain it for future reference.

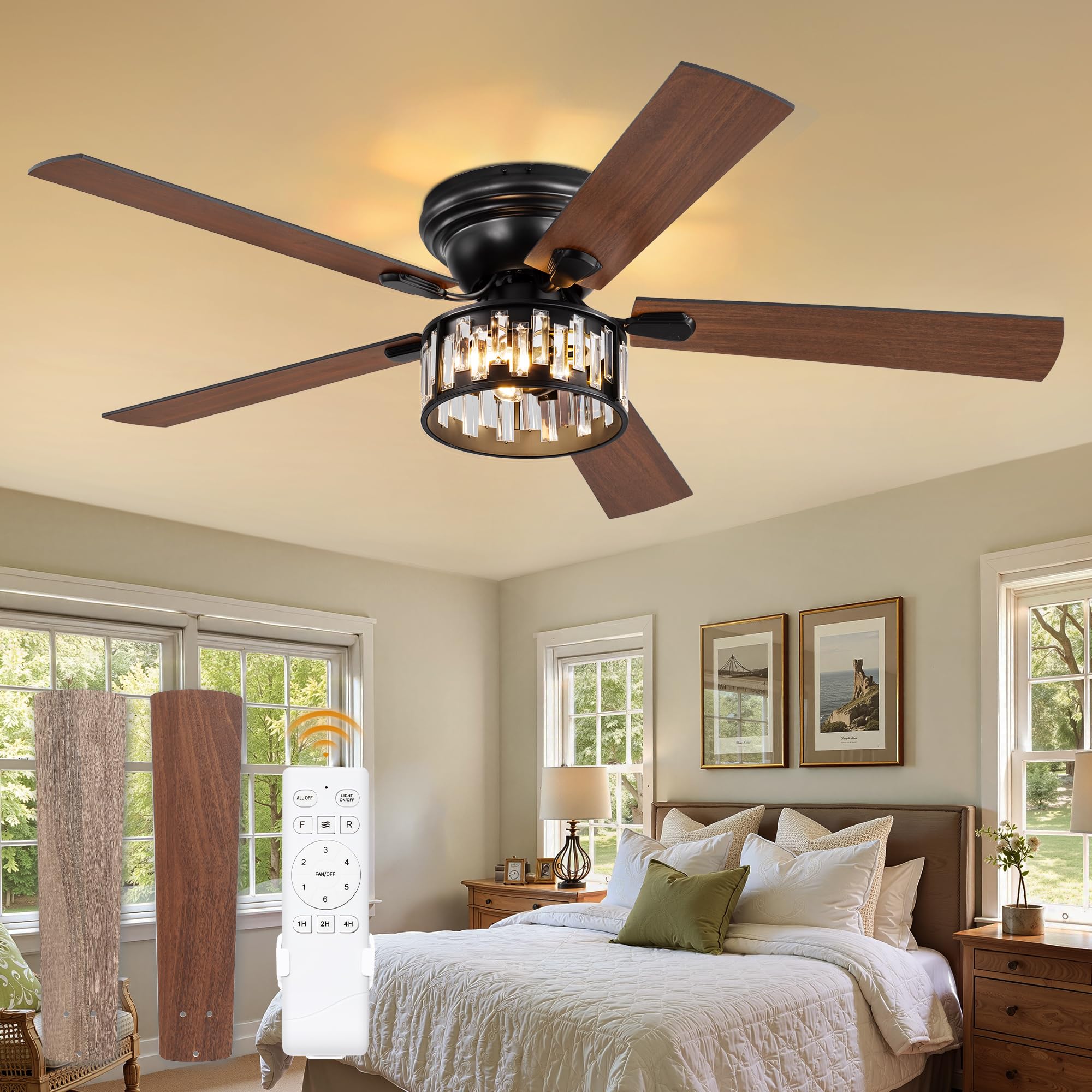

Image: The Fanbulous 56-inch Crystal Chandelier Ceiling Fan, showcasing its elegant design and crystal light fixture, installed in a modern living room setting.
Informació de seguretat
- Seguretat elèctrica: Always disconnect power at the circuit breaker before installation or servicing. Ensure all electrical connections comply with local codes and ordinances.
- Instal·lació professional: Installation should be performed by a qualified electrician to prevent electrical shock or fire.
- Muntatge: The ceiling fan must be mounted to a structure capable of supporting the fan's weight (minimum 35 lbs).
- Espai lliure de la fulla: Ensure fan blades are at least 7 feet (2.1 meters) from the floor and 30 inches (76 cm) from walls or other obstructions.
- Bombetes: Use only E12 base bulbs (not included) as specified. Do not exceed the maximum wattage indicat a l'aparell.
- Comandament a distància: Mantingueu el comandament a distància allunyat de l'aigua i de les temperatures extremes.
Contingut del paquet
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact customer service.
- Muntatge del motor del ventilador de sostre
- Pales de ventilador (5)
- Crystal Light Fixture (pre-assembled)
- Control remot
- Suport de muntatge
- Tija de subjecció (si escau)
- Paquet de maquinari (cargols, femelles, etc.)
- Manual d'instruccions
Especificacions
| Característica | Especificació |
|---|---|
| Marca | Fanbulós |
| Número de model | F-SN56XX-1X0X |
| Dimensions del producte | 56 "P x 56" W x 18.9" H |
| Color | Negre |
| Estil | Elegant |
| Font d'alimentació | DC |
| Voltage | 120 Volts |
| Wattage | 30 watts |
| Nombre de fulles | 5 |
| Longitud de la fulla | 22 polzades |
| Nombre de velocitats | 6 |
| Nivell de soroll | 35 decibels |
| Tipus de controlador | Control remot |
| Tipus de llum | LED (Requires 3 E12 base bulbs, not included) |
| Tipus d'habitació | Dormitori, sala d'estar |
| Tipus de muntatge | Muntatge d'escorredor |
| Ús interior/exterior | Interior |
Image: Detailed dimensions of the 56-inch Fanbulous Crystal Chandelier Ceiling Fan, including blade length, fixture width, and overall height.
Configuració i instal·lació
The Fanbulous ceiling fan is designed for straightforward installation, with pre-assembled crystal components to simplify the process. The entire installation can typically be completed in approximately 40 minutes.
- Preparació per a la instal·lació: Turn off power at the circuit breaker. Ensure the mounting surface is secure and can support the fan's weight.
- Instal·leu el suport de muntatge: Secure the mounting bracket to the ceiling junction box using the provided hardware.
- Muntar les aspes del ventilador: Attach the five fan blades to the motor housing.
- Connecteu el ventilador: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the full instruction manual. Use appropriate wire nuts.
- Muntar el ventilador: Carefully lift the fan assembly and attach it to the mounting bracket.
- Install Light Fixture: The crystal light fixture comes pre-assembled. Attach it to the bottom of the fan motor housing.
- Instal·leu bombetes: Insert three E12 base bulbs (not included) into the sockets within the crystal light fixture.
- Restaura l'alimentació: Un cop finalitzada la instal·lació i totes les connexions siguin segures, restableu l'alimentació a l'interruptor.
Imatge: Un primer pla view of hands attaching the pre-assembled crystal light fixture to the main body of the ceiling fan, highlighting the ease of installation.
Instruccions de funcionament
Your Fanbulous ceiling fan is operated using the included remote control, offering convenient access to all functions.
Funcions de control remot:
- Encès/apagat: Encén o apaga el ventilador i la llum.
- Velocitat del ventilador: Select from 6 adjustable speeds to control airflow. The DC motor operates quietly, maintaining sound output below 35dB.
- Llum encès/apagat: Controls the light fixture independently.
- Motor reversible: Change the direction of the fan blades for year-round comfort. Forward rotation delivers cool air in summer, while reverse rotation circulates warm air in winter.
- Temporitzador: Set a programmable countdown timer for 1, 2, or 4 hours.
Image: The remote control for the Fanbulous ceiling fan, showing buttons for power, fan speed (1-6), light control, reverse function, and timer settings (1H, 2H, 4H).
Reversible Airflow for Seasonal Comfort:
The fan's reversible DC motor allows you to optimize air circulation for different seasons:
- Mode d'estiu (flux d'aire descendent): Set the fan to rotate counter-clockwise to create a downward breeze, providing a cooling effect.
- Mode hivern (flux d'aire ascendent): Set the fan to rotate clockwise to draw warm air up towards the ceiling and circulate it downwards, helping to retain warmth.
Image: A visual representation of the fan's reversible function, showing cool air delivery in summer (forward rotation) and warm air circulation in winter (reverse rotation).
Funcionament silenciós:
The advanced DC motor ensures quiet operation, with a noise level below 35 decibels, making it suitable for bedrooms and living rooms where minimal disturbance is desired.
Image: An infographic illustrating the low noise level of the Fanbulous fan (35dB) compared to common sounds like a flower sound (10dB), library voice (25dB), normal conversation (45dB), and a crowded street (55dB).
Manteniment
Un manteniment regular ajuda a garantir la longevitat i el rendiment òptim del teu ventilador de sostre.
- Neteja: Periodically clean the fan blades and crystal light fixture with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or crystals.
- Pols: Dust the fan motor housing and blades regularly to prevent dust buildup, which can affect performance and balance.
- Apretar els cargols: Reviseu tots els cargols i elements de fixació periòdicament per assegurar-vos que estiguin ben ajustats. Les connexions soltes poden causar soroll o oscil·lacions.
- Substitució de bombetes: When replacing light bulbs, ensure the power is off. Use only E12 base bulbs.
Resolució de problemes
If you encounter issues with your Fanbulous ceiling fan, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | No hi ha alimentació al ventilador; Connexions de cables soltes; Pila del comandament a distància baixa. | Check circuit breaker; Verify all wire connections are secure (consult an electrician if unsure); Replace remote control battery. |
| La llum no funciona | Light bulb faulty; Loose wire connection; No power to the light. | Replace light bulb; Check light fixture wiring; Ensure power is on. |
| El ventilador fa soroll | Loose screws on motor housing or blades; Fan not properly balanced; Obstruction in fan's path. | Tighten all screws; Ensure blades are balanced (refer to full manual for balancing kit instructions); Remove any obstructions. |
| El ventilador trontolla | Loose mounting bracket; Unbalanced blades; Incorrect installation. | Ensure mounting bracket is securely fastened; Balance blades using a balancing kit; Recheck installation steps. |
| El comandament a distància no funciona | Battery low or dead; Remote not paired with fan; Obstruction between remote and receiver. | Replace battery; Re-pair remote with fan (refer to full manual); Ensure clear line of sight to fan receiver. |
For more detailed troubleshooting or issues not listed here, please refer to the complete instruction manual or contact Fanbulous customer service.
Garantia i Suport
Fanbulous stands behind the quality of its products. This ceiling fan comes with the following warranty:
- Garantia del motor: 5-year warranty on the fan motor.
- Crystal Light Fixture Warranty: 2-year warranty on the entire crystal light fixture.
For warranty claims, technical support, or any questions regarding your Fanbulous ceiling fan, please contact our customer service team. We offer 24-hour customer service to promptly address any issues you may encounter.
Please have your model number (F-SN56XX-1X0X) and purchase information ready when contacting support.
