1. Introducció
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your GEYA TUYA WIFI Smart Circuit Breaker, model GWS9-W. This device allows for remote control and monitoring of your electrical circuits via the Tuya application, offering advanced protection features and energy management capabilities.
2. Informació de seguretat
WARNING: Electrical shock hazard. Installation and servicing should only be performed by qualified personnel. Always disconnect power before working with electrical circuits.
- Ensure the main power supply is turned off before installation or maintenance.
- Verifiqueu que totes les connexions de cablejat siguin segures i correctes segons el diagrama de cablejat.
- No feu funcionar el dispositiu si sembla que està danyat.
- This device is designed for indoor use in dry environments.
- Respecteu tots els codis i regulacions elèctriques locals.
3. Producte acabatview
The GEYA GWS9-W is a smart WIFI circuit breaker designed for home automation and enhanced circuit protection. It integrates seamlessly with the Tuya app, providing remote control, energy monitoring, and various safety features.
Característiques principals:
- Control remot i supervisió: Manage your circuit breaker from anywhere using the Tuya app.
- Protecció integral: Includes protection against overvoltage, minvartage, overcurrent, and high temperatures.
- Adjustable Load Control: Customize current settings (1A-63A) and power (50W-11KW) for optimal energy management.
- Energy Efficiency Tracking: Monitor real-time energy consumption and power usage.
- Custom Scenarios: Define personalized switching states for various home automation needs.

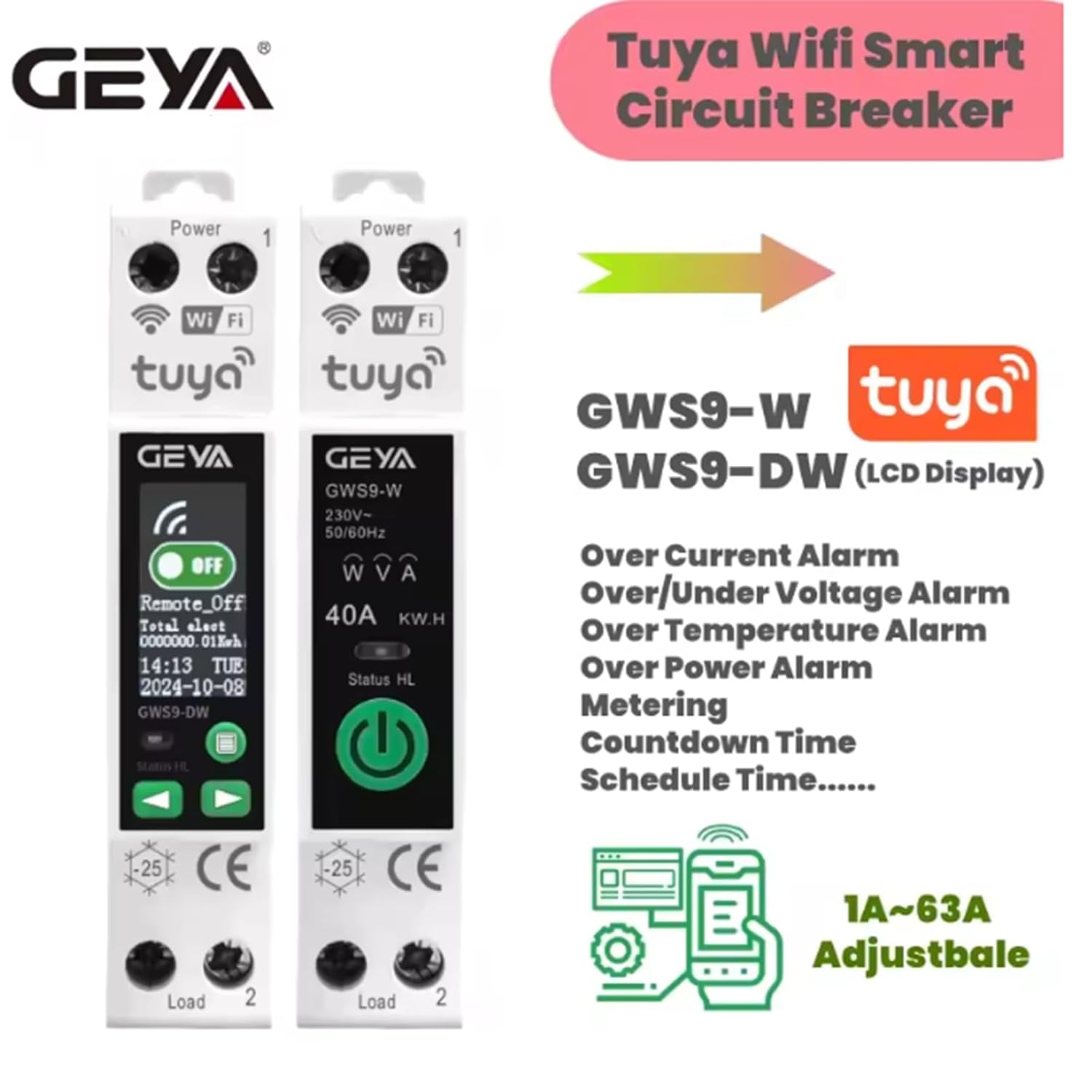

Imatge: Més deview of GWS9-W and GWS9-DW models, highlighting features like overcurrent, over/under voltage alarm, over temperature alarm, over power alarm, metering, countdown, and schedule time.
4. Especificacions
Image: Detailed product parameters for GWS9-W and GWS9-DW models, including voltage, current, and communication methods.
| Paràmetre | Valor |
|---|---|
| Voltage Rang | 90V-240V |
| Nombre de pols | 1P+N |
| Max Overcurrent | 63A (3-10s) |
| Corrent nominal | 1-63A ajustable |
| Mètode de comunicació | TUYA WiFi |
| Temperatura ambient de funcionament | -25°C~70°C |
| Ultimate Short-Circuit Capacity | 500A |
| Electrical Lifespan | ≥10000 d'operacions |
| Vida útil mecànica | ≥100000 d'operacions |
| Hora de tancament | <20 ms |
| Hora d'obertura | <20 ms |
| Pantalla de visualització | None (GWS9-DW has LCD) |
| Dimensions (aprox.) | 10.2 x 7.5 x 2.2 cm |
| Pes (aprox.) | 110 grams |
5. Instal·lació (Configuració)
The GWS9-W smart circuit breaker is designed for DIN rail mounting. Follow these steps for proper installation:
- Desconnecteu l'alimentació: Before starting any electrical work, ensure the main power supply to the circuit is completely disconnected at the main breaker or fuse box. Use a voltage tester to confirm no power is present.
- Muntar el dispositiu: Snap the GWS9-W onto a standard 35mm DIN rail in your electrical panel.
- Connexions de cablejat: Refer to the wiring diagram below. Connect the main power supply (Line and Neutral) to the input terminals (marked 'Power' or '1'). Connect the load (the device or circuit you want to control) to the output terminals (marked 'Load' or '2'). Ensure all connections are tight and secure.
- Verifiqueu el cablejat: Double-check all connections against the diagram to prevent short circuits or damage.
- Restaura l'alimentació: Once all connections are verified and secure, restore power to the circuit.
Image: Wiring diagram showing connections for main power supply, standby power supply, and load for the GWS9-W circuit breaker.
6. Instruccions de funcionament
6.1. Configuració i emparellament de l'aplicació
- Download the Tuya App: Cerca "Tuya Smart" or "Smart Life" in your smartphone's app store (iOS or Android) and download it.
- Registra't/Iniciar sessió: Obre l'aplicació i registra't per obtenir un compte nou o inicia la sessió amb un compte existent.
- Afegeix un dispositiu: Tap the "+" icon in the top right corner of the app to add a new device. Select "Electrical Engineer" > "Circuit Breaker (Wi-Fi)" or use the auto-scan feature.
- Introduïu els detalls del Wi-Fi: Ensure your phone is connected to a 2.4GHz Wi-Fi network. Enter your Wi-Fi password when prompted.
- Mode de sincronització: The circuit breaker should automatically enter pairing mode (Wi-Fi indicator light blinking rapidly). If not, press and hold the reset button on the device for 5-10 seconds until the Wi-Fi indicator blinks rapidly.
- Maridatge complet: Follow the on-screen instructions in the app to complete the pairing process. Once connected, the Wi-Fi indicator light will become solid.
Image: Tuya app interface displaying real-time monitoring of voltage, current, power, and total consumption, along with settings for voltage (90V-240V) and current (1A-63A).
6.2. Daily Operation and Advanced Settings
- Comandament ON/OFF: Use the main switch icon in the Tuya app to remotely turn the circuit breaker ON or OFF.
- Monitorització energètica: View vol en temps realtage, current, active power, and total energy consumption within the app.
- Configuració de protecció: Access the device settings in the app to configure protection parameters such as overvoltage, minvartage, overcurrent, and high-temperature thresholds. You can set these to trigger a trip or an alarm.
- Programació i temporitzadors: Set schedules for automatic ON/OFF operations at specific times or create countdown timers.
- Custom Scenarios: Create smart scenes to automate actions based on conditions like time, weather, or other smart devices.
Image: Tuya app interface demonstrating how to add schedules for automatic operation and configure various protection functions like over voltage, sota voltage, over load, high power, and high temperature.
Image: Visual representation of the key benefits: remote control via smartphone, comprehensive circuit protection, and timing control for connected devices.
7. Manteniment
The GEYA GWS9-W smart circuit breaker requires minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:
- Neteja regular: Netegeu periòdicament l'exterior del dispositiu amb un drap sec i suau. No utilitzeu productes de neteja abrasius ni dissolvents.
- Inspeccionar connexions: Annually, or if you suspect an issue, have a qualified electrician inspect the wiring connections to ensure they remain tight and free from corrosion.
- Actualitzacions de firmware: Keep the Tuya app updated to the latest version to receive any firmware updates for the device, which may include performance improvements or new features.
- Condicions ambientals: Ensure the device operates within its specified ambient temperature range (-25°C to 70°C) and avoid exposure to excessive moisture or dust.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no s'encén. | No power to the circuit breaker; incorrect wiring. | Check main power supply. Verify wiring connections according to the diagram. |
| Wi-Fi indicator not blinking during pairing. | El dispositiu no està en mode de vinculació. | Press and hold the reset button for 5-10 seconds until the Wi-Fi indicator blinks rapidly. |
| Cannot connect to Tuya app. | Incorrect Wi-Fi password; 5GHz Wi-Fi network; poor signal. | Ensure correct 2.4GHz Wi-Fi password. Move device closer to router. Disable 5GHz band temporarily if necessary. |
| L'interruptor automàtic salta amb freqüència. | Sobrecàrrega, sobrevoltage, or other protection triggered. | Check connected load for excessive current draw. Verify voltage stability. Adjust protection thresholds in the app if appropriate, or consult an electrician. |
| El comandament a distància no respon. | No hi ha connexió a Internet; problema amb l'aplicació; dispositiu fora de línia. | Check home Wi-Fi and internet connection. Restart the Tuya app. Check if the device is showing as 'offline' in the app. |
9. Garantia i Suport
GEYA products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or contact GEYA customer support directly. Keep your purchase receipt as proof of purchase.
For technical support or further assistance, please visit the official GEYA weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Normalment, les dades de contacte es troben a l'embalatge del producte o a la fitxa del fabricant. weblloc.
