Refrigerator Logic Board Inverter Accessory Board User Manual

Introducció

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the ZHE3201HGA 0321802797B W19-59 01E Refrigerator Logic Board Inverter Accessory Motherboard. This component is designed to replace the mainboard in compatible Electrolux refrigerators, ensuring optimal performance and longevity of your appliance.

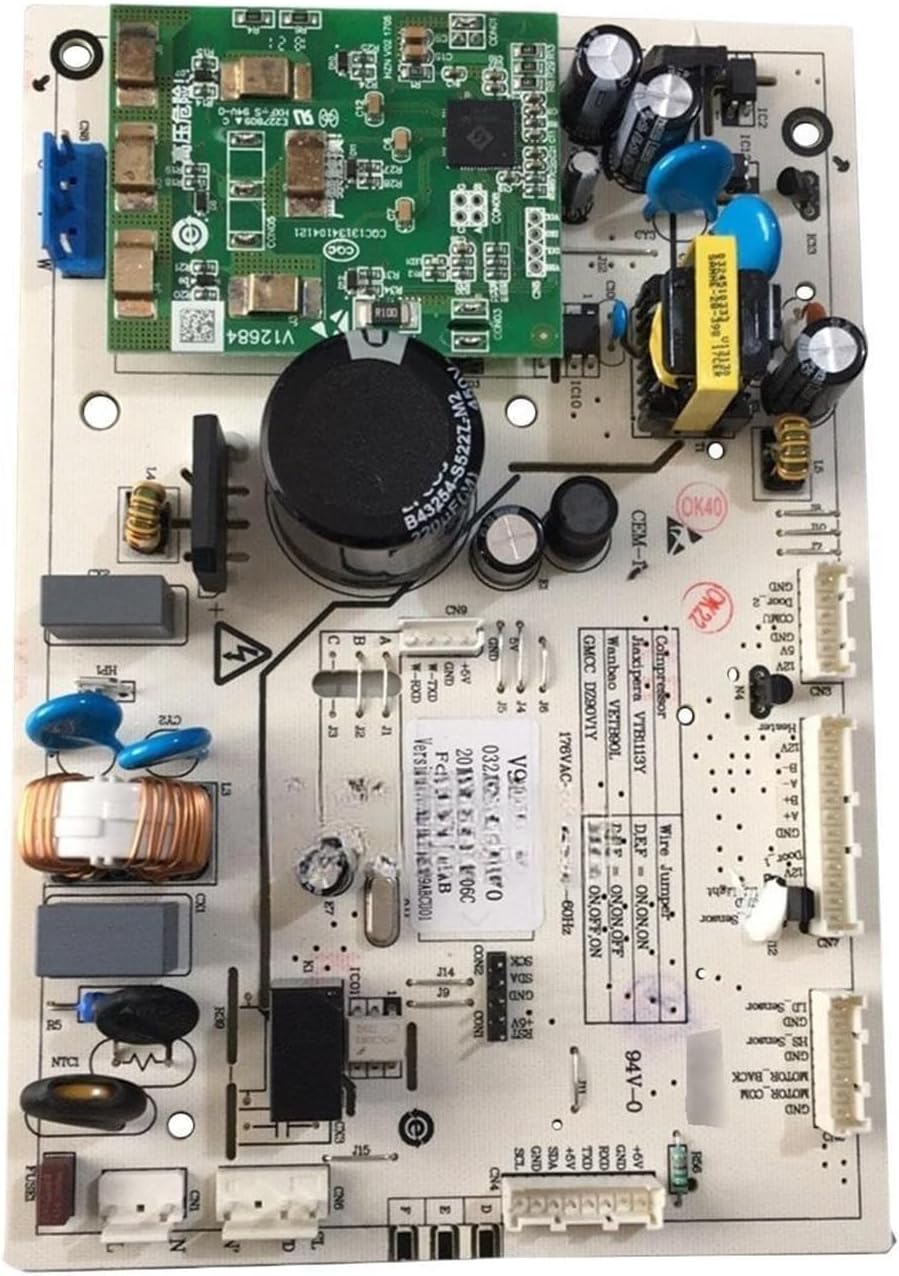

Figura 1: Mésview of the Refrigerator Logic Board.

Informació de seguretat

Seguiu sempre les següents precaucions de seguretat per evitar lesions o danys a l'aparell:

• Desconnecteu l'alimentació: Before attempting any installation, maintenance, or repair, ensure the refrigerator is completely disconnected from the power supply. Failure to do so can result in electric shock or serious injury.
• Instal·lació professional recomanada: Installation of this component should ideally be performed by a qualified technician. If you are not experienced with appliance repair, seek professional assistance.
• Manejar amb cura: Electronic components are sensitive. Avoid touching circuit board traces and components directly. Use anti-static precautions if possible.
• Verificar la compatibilitat: Ensure this board is the correct replacement part for your specific refrigerator model before installation.

Producte acabatview i Components

The ZHE3201HGA logic board serves as the central control unit for your refrigerator, managing various functions including temperature regulation, compressor operation, and defrost cycles. It integrates an inverter accessory board for efficient power management.

Figura 2: Detallada view of the board's main components and connectors.

Figure 3: Another perspective of the board, illustrating component layout.

Figura 4: Pro lateralfile of the logic board.

Figura 5: posterior view of the logic board, displaying the circuit pathways.

Configuració i instal·lació

Follow these steps carefully for proper installation of the replacement logic board:

1. Desconnexió d'alimentació: Unplug the refrigerator from the wall outlet to ensure no power is supplied to the unit.
2. Access the Board: Locate the existing logic board compartment, typically found at the back or top of the refrigerator. Refer to your refrigerator's specific service manual for exact location and access instructions.
3. Connexions de documents: Before disconnecting any wires, take clear photos or make a diagram of all wire connections to the old board. This will serve as a reference for reconnecting wires to the new board.
4. Desconnectar els cables: Carefully disconnect all wiring harnesses and individual wires from the old logic board. Note any specific locking mechanisms on connectors.
5. Treure la placa antiga: Unscrew or unclip the old logic board from its mounting brackets.
6. Instal·lar la placa nova: Position the new ZHE3201HGA board in the same location and secure it using the original screws or clips.
7. Reconnectar els cables: Using your documented photos or diagrams, carefully reconnect all wiring harnesses and individual wires to the corresponding ports on the new board. Ensure all connections are secure and properly seated.
8. Compartiment segur: Close and secure the logic board compartment cover.
9. Restaura l'alimentació: Plug the refrigerator back into the wall outlet.
10. Prova de funcionament: Allow the refrigerator to power on and observe its operation. Verify that cooling functions, lights, and other features are working correctly.

Principis de funcionament

The ZHE3201HGA logic board is designed to enhance the refrigerator's performance through several key functions:

• Fiabilitat: Utilizing robust electronic components, the board is engineered to operate stably under prolonged and high-load conditions, contributing to the refrigerator's long-term reliability.
• Control de temperatura: The board receives signals from temperature sensors, continuously monitoring internal and external temperatures. This enables precise control of the compressor and other cooling components, maintaining stable temperatures within the freezer and refrigerator compartments.
• Ajust d'humitat: Equipped with a humidity detection function, the board can automatically adjust humidity levels inside the refrigerator. This feature helps prevent food spoilage due to excessive or insufficient humidity, thereby extending food preservation.
• Millora del rendiment: Installation of this replacement board can optimize the refrigerator's cooling efficiency, temperature control accuracy, and overall operational performance, leading to more stable and efficient appliance use and potentially extending its service life.

Manteniment

To ensure the continued optimal performance and longevity of your refrigerator logic board, consider the following maintenance guidelines:

• Mantenir net: Periodically inspect the board compartment for dust or debris accumulation. Gently clean with a soft, dry brush or compressed air if necessary, ensuring the refrigerator is unplugged.
• Eviteu la humitat: Ensure the board and its compartment remain dry. Moisture can cause short circuits and damage electronic components.
• Inspecció periòdica: During other refrigerator maintenance (e.g., cleaning condenser coils), visually inspect the board for any signs of damage, such as burnt components or loose connections.

Resolució de problemes

If you experience issues after installing the logic board, consider the following basic troubleshooting steps:

• No Power/No Operation: Double-check all wire connections to ensure they are secure and correctly seated. Verify that the refrigerator is properly plugged into a working power outlet.
• Codis d'error/operació incorrecta: If the refrigerator exhibits unusual behavior or displays error codes, refer to your refrigerator's specific service manual for diagnostic information related to those codes. Ensure the board is correctly installed and compatible with your model.
• Consulteu un professional: If issues persist after basic checks, it is highly recommended to contact a qualified appliance repair technician for further diagnosis and repair.

Especificacions

Informació de la garantia

Specific warranty terms for this replacement part may vary depending on the seller and region. Please refer to the purchase documentation or contact your point of sale for detailed warranty information. Keep your proof of purchase for any warranty claims.

Suport

For technical assistance, installation queries, or troubleshooting beyond the scope of this manual, please contact the seller or manufacturer directly. Provide your product model number and purchase details when seeking support.
