1. Producte acabatview
Aquest manual proporciona informació essencial per a la instal·lació, el funcionament i el manteniment del Generic 4B5-81890-00-00 Starter, designed for Yamaha Scooter XP500 TMAX 499cc models from 2009-2011 and 2015. This 12-volt starter features a 9-spline clockwise rotation, ensuring reliable performance for your vehicle's starting system.

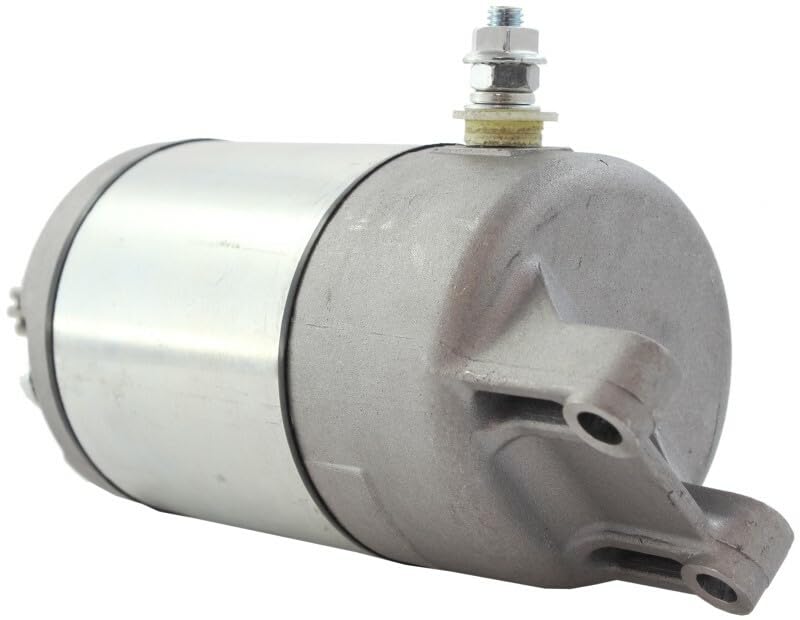

Figura 1: lateral view of the 4B5-81890-00-00 Starter, showing the main casing and terminal post.

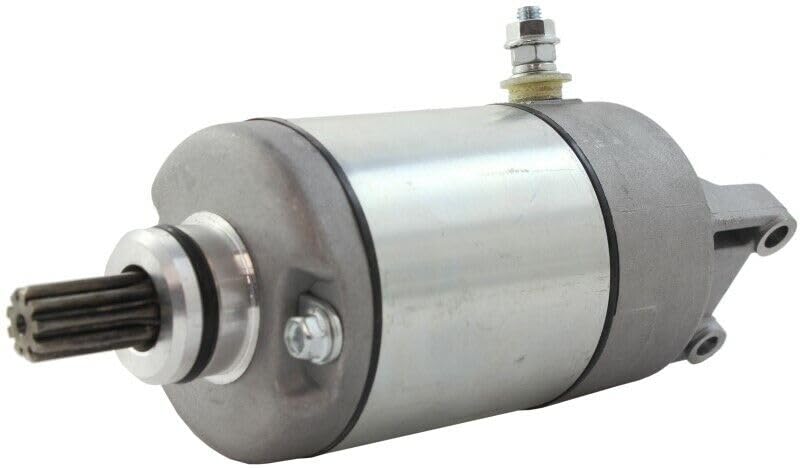

Figura 2: Frontal view of the 4B5-81890-00-00 Starter, highlighting the 9-spline drive gear.
2. Informació de seguretat
Always observe the following safety precautions when handling or installing the starter motor:
- Disconnect the vehicle's battery before beginning any installation or maintenance work to prevent electrical shock or short circuits.
- Utilitzeu l'equip de protecció individual (EPI) adequat, incloent-hi ulleres i guants de seguretat.
- Ensure the vehicle is stable and properly supported before working underneath it.
- Refer to your vehicle's specific service manual for detailed instructions on starter removal and installation procedures.
- Do not attempt to disassemble the starter motor. There are no user-serviceable parts inside.
3. Guia d'instal·lació
This section provides general guidelines for installing the starter motor. Always consult your Yamaha Scooter XP500 TMAX service manual for precise, model-specific instructions.
- Preparació: Ensure the vehicle is turned off and the ignition key is removed. Disconnect the negative (-) terminal of the battery, followed by the positive (+) terminal.
- Localitza l'arrencador antic: Identify the existing starter motor on your Yamaha Scooter XP500 TMAX. It is typically located near the engine, often on the side or bottom.
- Desconnecteu el cablejat: Carefully disconnect all electrical connections from the old starter, including the main battery cable and the solenoid wire. Note their positions for reinstallation.
- Treure els cargols de muntatge: Loosen and remove the mounting bolts securing the old starter motor to the engine block or transmission housing. Support the starter as you remove the last bolt to prevent it from falling.
- Instal·la un nou arrencador: Position the new 4B5-81890-00-00 starter motor into place. Align the mounting holes and hand-tighten the mounting bolts. Ensure the starter is seated correctly.
- Cargols de muntatge segurs: Tighten the mounting bolts to the torque specifications provided in your vehicle's service manual. Overtightening can damage the starter or engine housing.
- Reconnectar el cablejat: Reconnect the electrical wires to the new starter. Ensure the main battery cable is securely fastened to the large terminal and the solenoid wire to the smaller terminal. Verify all connections are tight and free from corrosion.
- Torneu a connectar la bateria: Reconnect the positive (+) battery terminal first, then the negative (-) battery terminal.
- Funcionalitat de prova: Attempt to start the scooter to confirm the new starter is functioning correctly. Listen for proper engagement and engine cranking.
Nota: This starter is designed for 12-volt systems and features a 9-spline clockwise rotation. Ensure these specifications match your vehicle's requirements.
4. Principis de funcionament
The starter motor is an electric motor that rotates the engine's flywheel to initiate the combustion process. When the ignition key is turned to the "start" position, electrical current flows from the battery to the starter solenoid. The solenoid then engages the starter's drive gear with the engine's flywheel and simultaneously sends power to the starter motor. The motor spins, cranking the engine until it starts. Once the engine begins to run, the starter's drive gear disengages from the flywheel to prevent damage from over-speeding.
This specific starter is engineered for reliable performance, having been tested for quality to ensure proper function and durability under typical operating conditions for Yamaha Scooter XP500 TMAX models.
5. Manteniment
Starter motors are generally low-maintenance components. However, regular checks of related systems can prolong its life and ensure reliable starting:
- Salut de la bateria: Ensure your vehicle's battery is fully charged and in good condition. A weak battery can put excessive strain on the starter motor.
- Connexions de cable: Periodically inspect the battery cables and starter motor connections for corrosion, looseness, or damage. Clean any corrosion and ensure connections are tight.
- Connexions a terra: Verify that the engine and chassis ground connections are clean and secure. Poor grounds can impede current flow to the starter.
- Avoid Prolonged Cranking: Do not crank the engine for more than 10-15 seconds at a time. Allow the starter to cool for at least 30 seconds between attempts to prevent overheating.
6. Solució De Problemes
If you experience issues with your vehicle's starting system, consider the following common problems and solutions:
| Símptoma | Causa possible | Solució |
|---|---|---|
| Engine does not crank or cranks slowly. | Weak or dead battery; corroded battery terminals; loose battery cables; faulty starter solenoid; faulty starter motor. | Check battery charge and terminals. Clean and tighten connections. Test battery. If battery is good, test starter solenoid and motor. |
| Clicking sound when attempting to start. | Vol de bateria baixatage; faulty starter solenoid; poor connection at starter. | Charge or replace battery. Check and tighten all electrical connections to the starter and battery. Test solenoid. |
| L'arrencador gira però el motor no fa de martellar. | Faulty starter drive (bendix) gear; damaged flywheel teeth. | Inspect starter drive gear for damage. Inspect flywheel teeth. Replacement of starter or flywheel may be necessary. |
| Burning smell or smoke from starter. | Overheated starter motor due to prolonged cranking or internal short. | Stop cranking immediately. Allow starter to cool. If problem persists, starter may need replacement. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified mechanic or contact customer support.
7. Especificacions
- Model: 4B5-81890-00-00
- Compatibilitat: Yamaha Scooter XP500 TMAX 499cc (2009-2011, 2015)
- Voltage: 12 Volts
- Recompte de splines: 9 Spline
- Rotació: En sentit horari
- Fabricant: Alternator-MAT-2690
- País d'origen: Xina
- ASIN: B0F89MHVTL
- Data de primera disponibilitat: 11 de maig de 2025
8. Garantia i Suport
This product is tested for performance and reliability. For any questions regarding this product, please contact the seller or manufacturer directly. Refer to your purchase documentation for specific warranty terms and conditions.
If you have any questions about this product, please contact us. We will be happy to help.
