UNIWEIGH Digital Crane Scale UN-ADH User Manual

1. Introducció

Welcome and thank you for choosing the UNIWEIGH Digital Crane Scale UN-ADH. This manual provides essential instructions for safe and effective operation, maintenance, and troubleshooting. Please read it thoroughly before using the device to ensure optimal performance and longevity.

2. Informació de seguretat

• Ensure the scale is securely hung from a stable support before weighing any items.
• Keep clear of goods during weighing to prevent personal injury or damage to items.
• Avoid striking or impacting the scale, as this can affect its accuracy and durability.
• Remove batteries if the scale will not be used for an extended period to prevent leakage and potential circuit damage.
• Do not exceed the maximum weighing capacity of 300 kg (660 lb). Overloading can damage the scale and void the warranty.

3. Contingut del paquet

• 1 x UNIWEIGH Digital Crane Scale (Model: UN-ADH)
• 2 x piles AAA
• 1 x Manual d'usuari

4. Producte acabatview

The UNIWEIGH Digital Crane Scale UN-ADH is a high-precision, portable weighing device designed for various applications including industrial, agricultural, domestic, luggage, parcels, fishing, and hunting. It features a large LCD display, durable construction, and multiple weighing units (kg, lb, N).

An image showing the UNIWEIGH Digital Crane Scale, highlighting its compact design, large hook, and clear display.

5. Configuració

5.1. Instal·lació de bateries

1. Localitzeu el compartiment de la bateria a la part posterior de la bàscula.
2. Obriu la tapa de la bateria fent-la lliscar o desenganxant-la.
3. Insert 2 AAA batteries, ensuring correct polarity (+ and - terminals match the markings inside the compartment).
4. Tanqueu la tapa de la bateria amb seguretat.

5.2. Ús inicial

The UNIWEIGH Digital Crane Scale is designed for quick and easy setup. No complex assembly is required. Simply install the batteries as described above, and the scale is ready for immediate use.

6. Instruccions de funcionament

6.1. Encendre/apagar

• Per encendre: premeu el botó ON/OFF button once. The display will light up.
• Per apagar: premeu i manteniu premut el botó ON/OFF button until the display turns off. The scale also features an energy-saving auto shut-off function after a period of inactivity.

6.2. Conversió d'unitats

• Amb la bàscula engegada, premeu el botó MODE button repeatedly to cycle through the available weighing units: kilograms (kg), pounds (lb), and Newtons (N). The selected unit will be displayed on the LCD.

6.3. Funció de tara

The Tare function allows you to subtract the weight of a container or an initial item, so you can accurately weigh additional items placed within or on it.

1. Hang the empty container or initial item on the scale's hook.
2. Espereu que la lectura del pes s'estabilitzi.
3. Premeu el botó TARA button. The display will reset to zero, indicating the container's weight has been tared.
4. Place the item(s) to be weighed into the container or add them to the initial item. The display will now show only the net weight of the added item(s).

A two-panel image demonstrating the TARE function. Panel 1 shows the scale displaying 0.00kg with an empty sling. Panel 2 shows the scale displaying 5.00kg after an item has been placed in the sling, indicating the net weight after taring the sling.

6.4. Funció Hold

The Hold function freezes the displayed weight once it stabilizes, allowing you to read the measurement easily even after removing the item from the hook.

• Hang the item to be weighed on the hook.
• Espereu que la lectura del pes s'estabilitzi.
• The scale will automatically hold the reading (often indicated by an 'AT/H' icon or similar on the display).
• To clear the held reading and return to live weighing, press the AT/H button (if available) or the ON/OFF botó breument.

7. Manteniment

• Netegeu la bàscula amb un suau, damp cloth. Do not use abrasive cleaners, solvents, or immerse the scale in water.
• Store the scale in a dry environment, away from extreme temperatures, humidity, and direct sunlight.
• If the scale is not used for an extended period (e.g., several months), remove the batteries to prevent potential corrosion and damage to the electronic components.
• Regularly inspect the stainless steel hook and pull ring for any signs of wear, bending, or damage. Replace if necessary to ensure safe operation.

8. Solució De Problemes

9. Especificacions

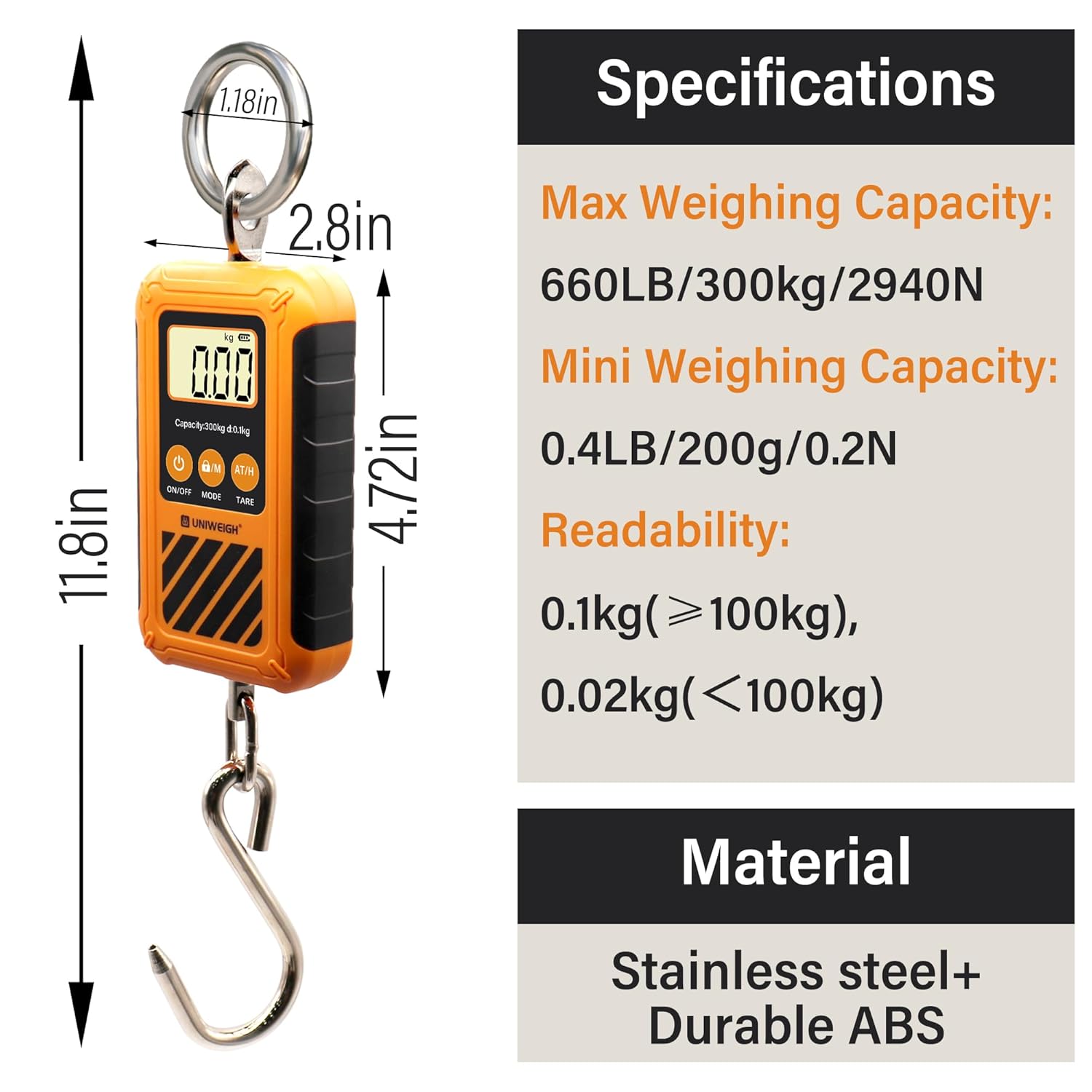

An image detailing the physical dimensions and key technical specifications of the UNIWEIGH Digital Crane Scale, including maximum capacity, mini capacity, readability, and material.

• Número de model: UN-ADH
• Capacitat màxima de pes: 300 kg / 660 lb / 2940 N
• Mini Weighing Capacity: 0.2 kg / 0.4 lb / 0.2 N
• Llegibilitat: 0.1 kg (for weights ≥100kg), 0.02 kg (for weights <100kg)
• Unitats de pes: kg, lliures, N
• Visualització: Gran LCD retroil·luminat
• Font d'alimentació: 2 piles AAA (incloses)
• Material: ABS Engineering Plastic Shell, Stainless Steel Hook and Loop
• Característiques especials: Auto Weight Hold Function, Tare Function, Low Battery Indication, Overload Indication, Energy-saving Auto Shut-off
• Approximate Dimensions (Body): 12 cm (4.72 in) length, 7.1 cm (2.8 in) width
• Overall Length (with hook and ring): 30 cm (11.8 polzades)

10. Garantia i assistència

For warranty information or technical support regarding your UNIWEIGH Digital Crane Scale UN-ADH, please contact UNIWEIGH customer service. Refer to the product packaging or the official UNIWEIGH weblloc web per obtenir les dades de contacte més actualitzades.
