UNIWEIGH Digital Hanging Scale UN-ADH User Manual

Introducció

Thank you for choosing the UNIWEIGH Digital Hanging Scale, Model UN-ADH. This versatile and durable scale is designed for precise weighing in various environments, from industrial and agricultural settings to household, luggage, fishing, and hunting applications. Its robust construction and user-friendly features ensure reliable performance.

This image compares the compact and lightweight design of the UNIWEIGH scale with a larger, heavier crane scale, emphasizing its portability.

Informació de seguretat

• Avoid strong shock or vibration during operation to ensure accurate readings.
• Do not use corrosive liquids (such as benzene, nitro solvent, or caustic soda) for cleaning. Use a soft cloth with water or a mild cleaner essence.
• If the scale is not in use for an extended period, remove the batteries to prevent leakage and damage.
• Do not disassemble the scale. For non-human fault issues, please contact the manufacturer for service.

Producte acabatview

The UNIWEIGH Digital Hanging Scale features a high-strength ABS engineering plastic housing and a high-quality stainless steel hook, designed for durability and ease of use.

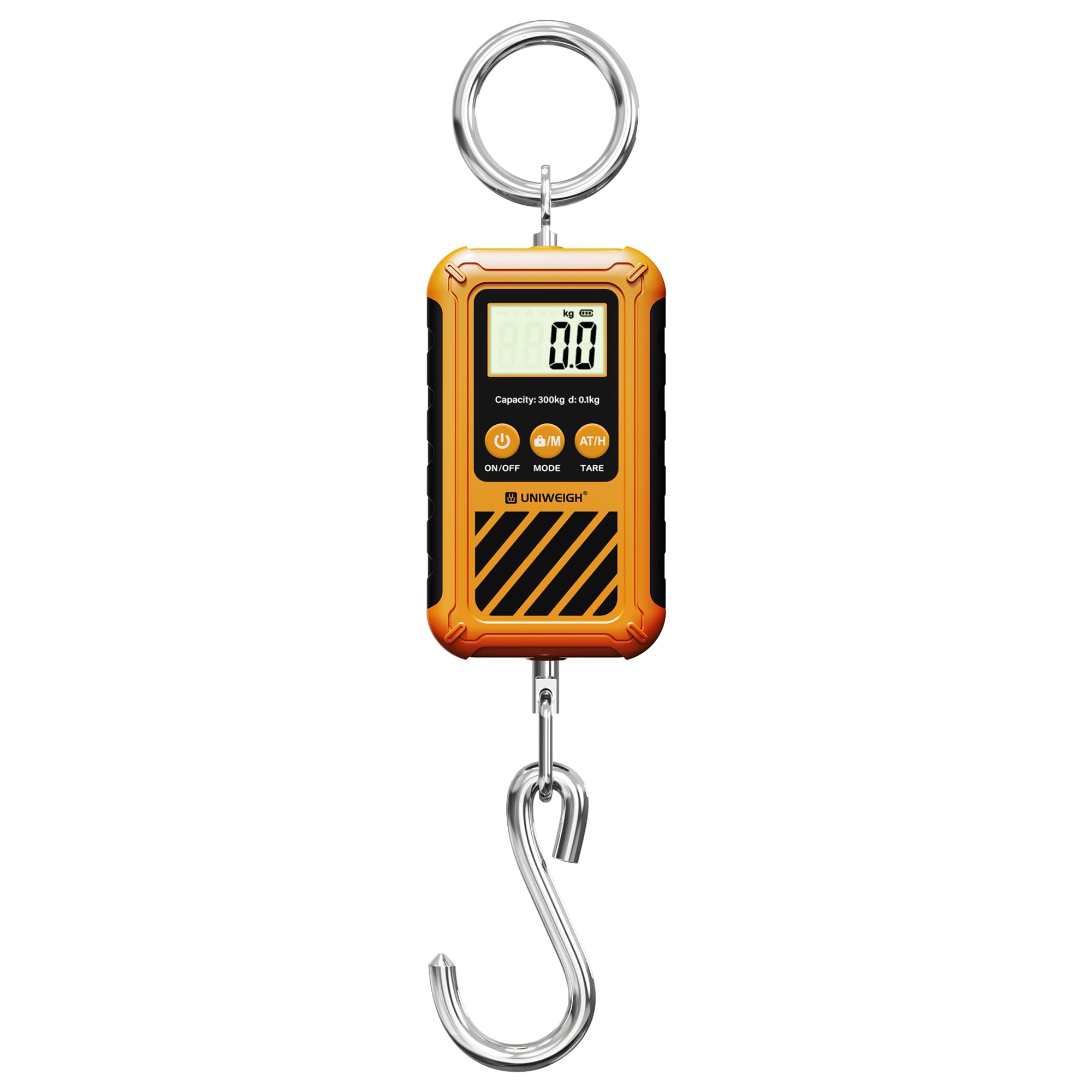

This image displays the front of the UNIWEIGH Digital Hanging Scale, highlighting its clear LCD screen and user-friendly control buttons for power, mode, and tare functions.

Components:

• Pantalla LCD: Large, backlit screen for clear readings.
• Botó ON/OFF: Encén o apaga la bàscula.
• Botó MODE: Cycles through weighing units (kg, lb, N).
• Botó TARE: Activates the tare function for net weight measurement.
• Stainless Steel Hook: Durable hook for attaching items to be weighed.
• Sturdy Handle/Ring: For secure holding or hanging.

Configuració

1. Instal·lació de la bateria

The scale requires 2 AAA batteries (included). To install:

1. Localitzeu el compartiment de la bateria a la part posterior de la bàscula.
2. Obriu la tapa del compartiment de la bateria.
3. Introduïu 2 piles AAA, assegurant-vos de la polaritat correcta (+/-).
4. Tanqueu bé la tapa del compartiment de la bateria.

La part posterior view of the scale, illustrating the battery compartment cover. Ensure batteries are correctly inserted for operation.

2. Attaching Hooks/Rings

The scale comes with a high-quality stainless steel hook and a circular ring. Ensure both are securely attached to the scale's designated attachment points before use.

Instruccions de funcionament

1. Encendre/apagar

• Premeu el botó ON/OFF botó per encendre la bàscula.
• Per apagar, premeu i manteniu premut el botó ON/OFF button for a few seconds, or the scale will automatically power off after a period of inactivity (auto shut-off feature).

2. Conversió d'unitats

• Amb la bàscula engegada, premeu el botó MODE button to cycle through the available weighing units: kilograms (kg), pounds (lb), and Newtons (N).

3. Funció de tara

The tare function allows you to subtract the weight of a container to measure only the net weight of its contents.

• Hang the empty container or item you wish to tare onto the hook.
• Espereu que la lectura s'estabilitzi.
• Premeu el botó TARA botó. La pantalla es reiniciarà a zero.
• Now, place the items to be weighed into the container. The display will show the net weight.

4. Funció Hold

The scale features an automatic lock function that holds the stable reading on the display.

• Once an item is hung and the weight stabilizes, the display will automatically lock the reading.
• A 'HOLD' indicator may appear on the screen.
• You can then remove the item and view the locked weight.

5. Pesar objectes

1. Ensure the scale is powered on and set to your desired unit.
2. Hold the scale by its handle or hang it from a stable support.
3. Carefully attach the item to be weighed to the stainless steel hook.
4. Wait for the display to stabilize and lock the reading.

The digital hanging scale in action, accurately weighing a fish. This illustrates its suitability for fishing and outdoor activities.

This image shows the scale being used to weigh a suitcase, highlighting its portability and utility for travel and luggage weight management.

Vídeo de l'operació:

Manteniment

• Neteja: Netegeu la bàscula amb un suau, damp drap. No utilitzeu productes de neteja abrasius ni submergiu la bàscula en aigua.
• Emmagatzematge: Store the scale in a dry place at room temperature. If storing for a long period, remove the batteries to prevent corrosion.
• Substitució de la bateria: Replace batteries promptly when the low-battery indicator appears on the display to ensure continuous accurate operation.

Resolució de problemes

• "Lo" or Low Battery Indicator: Substituïu les piles AAA per unes de noves.
• "O-Ld" or Overload Indicator: The item being weighed exceeds the maximum capacity of 300 kg (660 lb). Remove the item immediately to prevent damage to the scale.
• Lectures inexactes: Ensure the scale is held steadily and the item is not swinging. Check that the hook is properly attached and there are no obstructions.
• La pantalla no s'encén: Comproveu la instal·lació de les bateries i assegureu-vos que no s'hagin esgotat.

Especificacions

A visual representation of the scale's physical dimensions and a summary of its technical specifications, including maximum capacity and readability.

Garantia i suport

The UNIWEIGH Digital Hanging Scale comes with a 2 anys de garantia des de la data de compra.

For any product inquiries, technical support, or warranty claims, please contact UNIWEIGH directly. Do not attempt to repair the scale yourself, as this may void the warranty.

Informació de contacte del fabricant: UNIPESES
