DEVAISE 2-Drawer Farmhouse File Cabinet (Model AWJG012HX) - Instruction Manual

1. Introducció

Thank you for choosing the DEVAISE 2-Drawer Farmhouse File Cabinet. This lateral filing cabinet is designed to provide functional storage with a distinctive farmhouse aesthetic, suitable for various home and office settings. It features two spacious drawers, a lockable top drawer for security, and a sturdy top surface capable of supporting a printer. This manual provides essential information for assembly, safe operation, and maintenance to ensure long-lasting use of your product.

2. Informació de seguretat

Si us plau, llegiu i comprengui totes les instruccions de seguretat abans del muntatge i l'ús. Si no segueix aquestes instruccions, pot patir lesions o danys al producte.

• Anti-Tilting Device: The cabinet is equipped with an interlocking safety mechanism that allows only one drawer to open at a time. This prevents the cabinet from tipping forward. Always ensure this mechanism functions correctly.
• Wall-Mounted Hardware: For maximum safety, it is highly recommended to install the provided wall-mounted hardware to secure the cabinet to a wall, especially in households with children or pets.
• Límit de pes: The top shelf can hold up to 110 pounds (50 kg). Do not exceed this weight limit to prevent structural damage or tipping.
• Etiqueta de seguretat: A safety label is affixed to the product to meet anti-tip regulations. This label is applied with strong adhesive. If removal is necessary, gently warm the edges with a hairdryer and peel slowly to minimize potential surface damage. This is not a product quality issue.
• Mantingueu les peces petites i els materials d'embalatge fora de l'abast dels nens durant el muntatge.

3. Contingut del paquet

Before beginning assembly, verify that all components and hardware are present and undamaged. If any parts are missing or damaged, please contact DEVAISE customer support.

• Cabinet panels (top, bottom, sides, back, drawer fronts)
• Guies i guies de calaix
• Nanses
• Mecanisme de pany i claus
• Ferramenteria de muntatge (cargols, espigues, panys de lleva, etc.)
• Anti-tip wall-mounting hardware
• Manual d'instruccions

4. Instruccions de muntatge

Assembly typically requires two people and basic tools (screwdriver, hammer). Follow the step-by-step diagrams provided in your physical assembly guide. The general process involves:

1. Desempaquetar i identificar: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify each part using the labels.
2. Muntar el marc: Connect the side panels to the top and bottom panels using the provided hardware. Do not fully tighten screws until the entire frame is aligned.
3. Instal·leu les guies del calaix: Attach the drawer slides to the cabinet frame and the drawer boxes according to the instructions. Ensure they are level and aligned for smooth operation.
4. Muntar calaixos: Construct the drawer boxes, attach the drawer fronts, and install the handles.
5. Inserir calaixos: Carefully insert the assembled drawers into the cabinet frame. Test for smooth operation.
6. Install Lock: Attach the lock mechanism to the top drawer as indicated in the instructions.
7. Connecteu el dispositiu antivuelco: Secure the anti-tip wall-mounting hardware to the back of the cabinet and to a wall stud.

Figure 4.1: Cabinet and Drawer Dimensions. This image provides an overview of the cabinet's size, which is crucial for planning placement and understanding the scale of components during assembly.

Figure 4.2: Full-Extension Drawer Mechanism. This image illustrates the drawer's full extension capability, which is achieved through proper installation of the drawer slides during assembly.

5. Instruccions de funcionament

• Funcionament del calaix: The drawers feature full-extension slides for easy access to contents. Pull the metal handles to open and push to close.
• Mecanisme de bloqueig: The top drawer is equipped with a lock. Insert the key into the lock on the top drawer and turn to secure or unlock. Always remove the key after locking.
• Sistema d'enclavament antivuelco: Due to the integrated safety mechanism, only one drawer can be opened at a time. Attempting to open both drawers simultaneously will engage the interlock, preventing the second drawer from opening. This is a safety feature, not a malfunction.
• File Organització: The drawers are designed to accommodate Legal, Letter, and A4 size files. Adjust the hanging file frames as needed for your document sizes.

Figure 5.1: Anti-Tip Interlock System. This diagram visually explains how the safety mechanism prevents tipping by restricting simultaneous drawer opening and emphasizes the importance of wall-mounting.

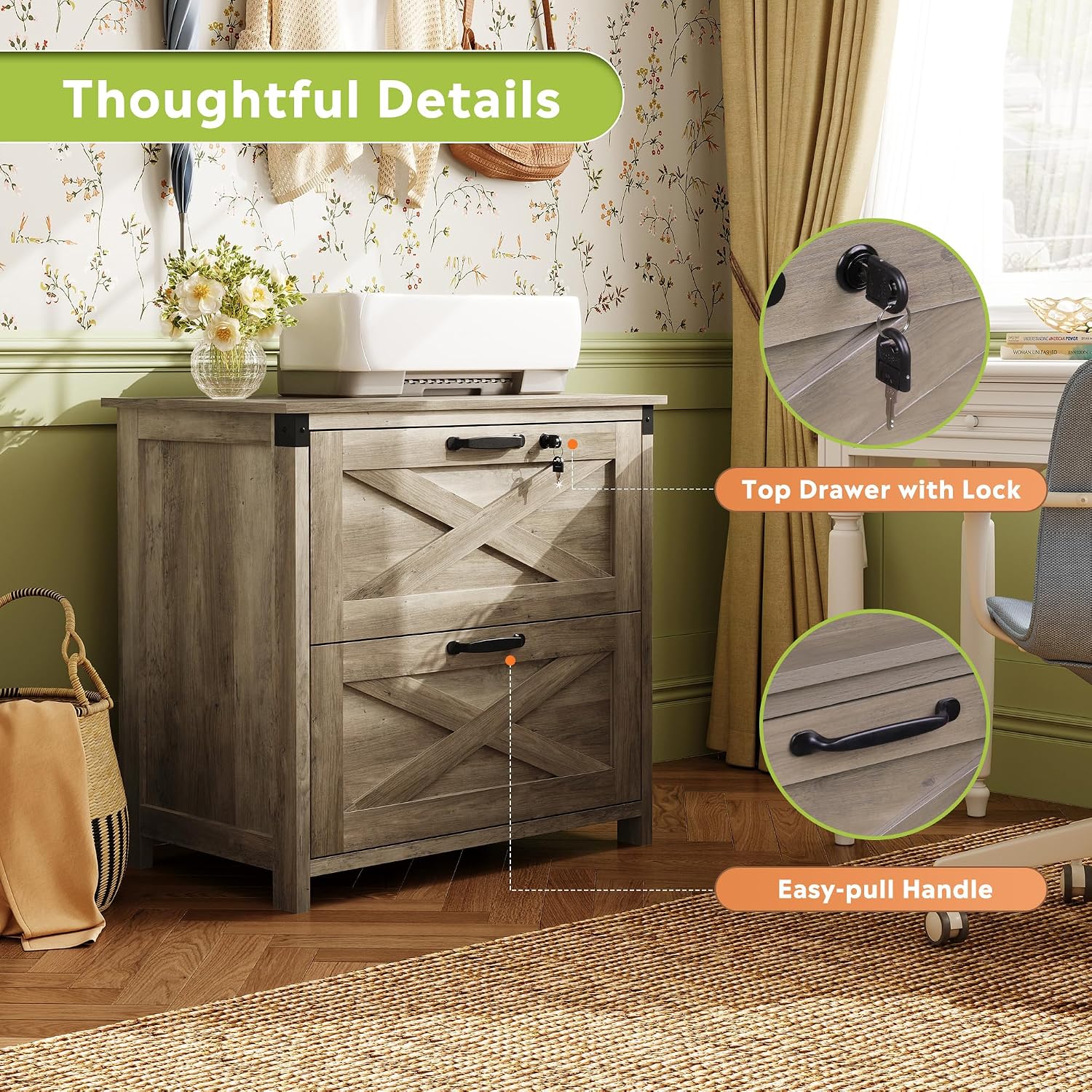

Figure 5.2: Lockable Top Drawer and Handles. This image details the locking mechanism for the top drawer and the design of the metal pull handles for easy operation.

Figure 5.3: Multi-functional Storage. This image illustrates the cabinet's adaptability for various storage needs, from different file sizes to general household items.

6. Manteniment

• Neteja: Netegeu les superfícies de l'armari amb un drap suau iamp drap. Eviteu utilitzar productes químics agressius o netejadors abrasius, que poden danyar l'acabat.
• Pols: Regularly dust the cabinet to maintain its appearance.
• Comprovació de maquinari: Reviseu periòdicament tots els cargols i elements de fixació per assegurar-vos que estiguin ben ajustats. Torneu a apretar-los si cal.
• Diapositives del calaix: If drawers become stiff, a small amount of silicone lubricant can be applied to the drawer slides.

7. Solució De Problemes

• Els calaixos no llisquen suaument:
  • Ensure drawer slides are correctly installed and aligned.
  • Comproveu que tots els cargols que subjecten les corredisses estiguin ben ajustats.
  • Verify that the cabinet frame is square and not warped. Loosen frame screws slightly, adjust, then retighten.
• El gabinet tremola:
  • Assegureu-vos que tots els cargols de muntatge estiguin completament apretats.
  • Verify the cabinet is placed on a level surface.
  • Install the wall-mounted anti-tip hardware for added stability.
• Safety label residue after removal:
  • As mentioned in Safety Information, gently warm the label with a hairdryer before peeling. Any remaining residue can often be removed with a small amount of rubbing alcohol or a specialized adhesive remover, applied carefully to an inconspicuous area first.

8. Especificacions

9. Garantia i Suport

DEVAISE stands behind the quality of its products. For any questions regarding assembly, missing parts, or product issues, please contact DEVAISE customer support directly. Please refer to your purchase documentation for specific warranty terms and contact information.

For assistance, please visit the official DEVAISE store on Amazon or contact their customer service through the platform where you made your purchase.
