Introducció
This document provides instructions for the Generic replacement infrared (IR) remote control, designed for use with specific portable air conditioner models, including Goodhome Malay fdp26-3032zpr5, Euker 12000BTU-EK-1, and Euker 8000BTU-EK-2. This remote is intended as a direct replacement for your original remote control. Please ensure your current remote matches the appearance of the remote shown in this manual for compatibility.

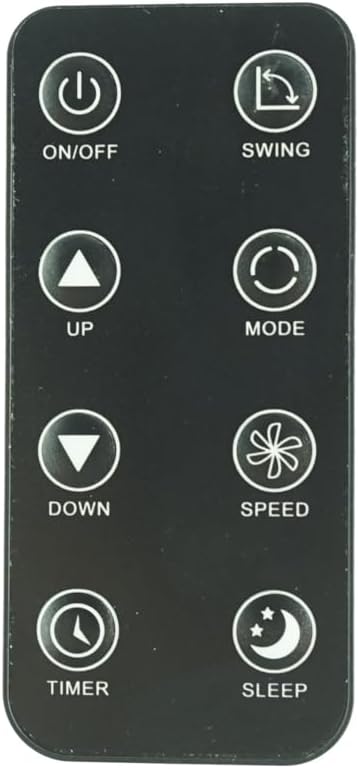

Figura 1: Frontal view of the Replacement Remote Control. This image displays the remote's layout, including buttons for ON/OFF, SWING, UP, DOWN, MODE, SPEED, TIMER, and SLEEP.
Configuració
Instal·lació de la bateria
The remote control requires two nonstandard batteries (CR2025 type, typically). Follow these steps to install or replace the batteries:
- Localitzeu el compartiment de la bateria a la part posterior del comandament a distància.
- Gently push the release tab or slide the battery cover open as indicated on the remote. Refer to Figure 2 for guidance.
- Insert two CR2025 batteries, ensuring the positive (+) side of the battery faces upwards, as marked inside the compartment.
- Tanqueu la tapa de la bateria de manera segura fins que encaixi al seu lloc.
Figura 2: Esquena view of the remote control, illustrating the battery compartment and instructions for inserting the CR2025 battery. The image shows the "OPEN" and "PUSH" indicators for battery removal/insertion.
Comprovació de compatibilitat
This remote is an infrared replacement. It does not require pairing. For proper functionality, it is crucial that your original remote control is identical in appearance to this replacement. If your air conditioner model is not explicitly listed in the product title, or if your original remote differs, this replacement may not be fully compatible or may not offer all original functions.
Instruccions de funcionament
Point the remote control directly at the infrared receiver on your portable air conditioner. Ensure there are no obstructions between the remote and the air conditioner.
- Botó ON/OFF: Premeu per encendre o apagar l'aire condicionat.
- Botó SWING: Activates or deactivates the automatic swing function of the air conditioner's louvers.
- UP (▲) Button: Increases the temperature setting or adjusts other parameters upwards.
- Botó BAIX (▼): Decreases the temperature setting or adjusts other parameters downwards.
- Botó MODE: Cycles through available operating modes (e.g., Cool, Fan, Dry, Heat - depending on AC model).
- Botó SPEED: Ajusta la velocitat del ventilador (per exemple, Baixa, Mitjana, Alta, Automàtica).
- Botó TIMER: Sets the timer for automatic on/off operations. Refer to your air conditioner's manual for specific timer programming.
- Botó SLEEP: Activates the sleep mode, which typically adjusts temperature and fan speed for comfortable sleep.
Manteniment
Neteja del comandament a distància
To clean the remote control, wipe it gently with a soft, dry cloth. Do not use liquid cleaners, sprays, or abrasive materials, as these can damage the remote's surface or internal components.
Cura i substitució de la bateria
- Replace batteries when the remote's range decreases or buttons become unresponsive.
- Always replace both batteries at the same time with new ones of the correct type (CR2025).
- No barregeu piles velles i noves, o diferents tipus de piles.
- Si no heu d'utilitzar el comandament a distància durant un període prolongat, traieu-ne les piles per evitar fuites i possibles danys.
- Eliminar les bateries usades d'acord amb la normativa local.
Emmagatzematge
Store the remote control in a cool, dry place, away from direct sunlight, high temperatures, and excessive humidity. Avoid dropping the remote or exposing it to strong impacts.
Resolució de problemes
- El comandament a distància no respon:
- Ensure the remote is pointed directly at the air conditioner's receiver.
- Check if there are any obstructions between the remote and the air conditioner.
- Substituïu les piles per unes de noves, assegurant la polaritat correcta.
- Verify that the air conditioner is powered on and plugged in.
- Algunes funcions no funcionen:
- This replacement remote may not support all functions of your original air conditioner remote, especially if your original remote had advanced features not present on this replacement.
- Confirm that your air conditioner model is listed as compatible.
- Remote range is poor:
- Substituïu les piles.
- Ensure the remote's infrared emitter (at the top) is clean and unobstructed.
Especificacions
| Característica | Detall |
|---|---|
| Tipus de producte | Replacement Infrared (IR) Remote Control |
| Marca | Genèric |
| Dispositius compatibles | Portable Air Conditioners (Goodhome Malay fdp26-3032zpr5, Euker 12000BTU-EK-1, Euker 8000BTU-EK-2) |
| Font d'alimentació | 2 x CR2025 Nonstandard Batteries (required) |
| Color | White (buttons) / Black (body) |
| Característica especial | Ergonomic design, direct replacement |
| Fabricant | SZHKHXD |
| País d'origen | Xina |
| ASIN | B0F8N5978L |
Suport
For any questions, concerns, or issues regarding this replacement remote control, please contact the seller directly through the platform where you purchased the product. It is recommended to provide your order details and a clear description of the issue for prompt assistance.
Note: This product is a replacement remote and may not come with a separate manufacturer's warranty. Please refer to the seller's return policy for details on returns or exchanges.
