1. Introducció
Thank you for choosing the TAZPI 30-inch 600 CFM Under Cabinet Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your new kitchen appliance. Please read these instructions thoroughly before installation and use, and retain them for future reference.
Image: The TAZPI 30-inch 600 CFM Under Cabinet Range Hood, showcasing its powerful suction over a stovetop.
2. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació. Si falta alguna peça o hi ha alguna peça danyada, poseu-vos en contacte amb el servei d'atenció al client.
- Unitat de campana extractora
- Telecontrol (Remote Control)
- Carbon Filters (2, for ductless use)
- Aluminum Mesh Filters (2)
- Air Outlet Caps (2)
- Endoll de 3 puntes
- Manual d'usuari
- Maquinari de muntatge (cargols, ancoratges, etc. - normalment inclosos)

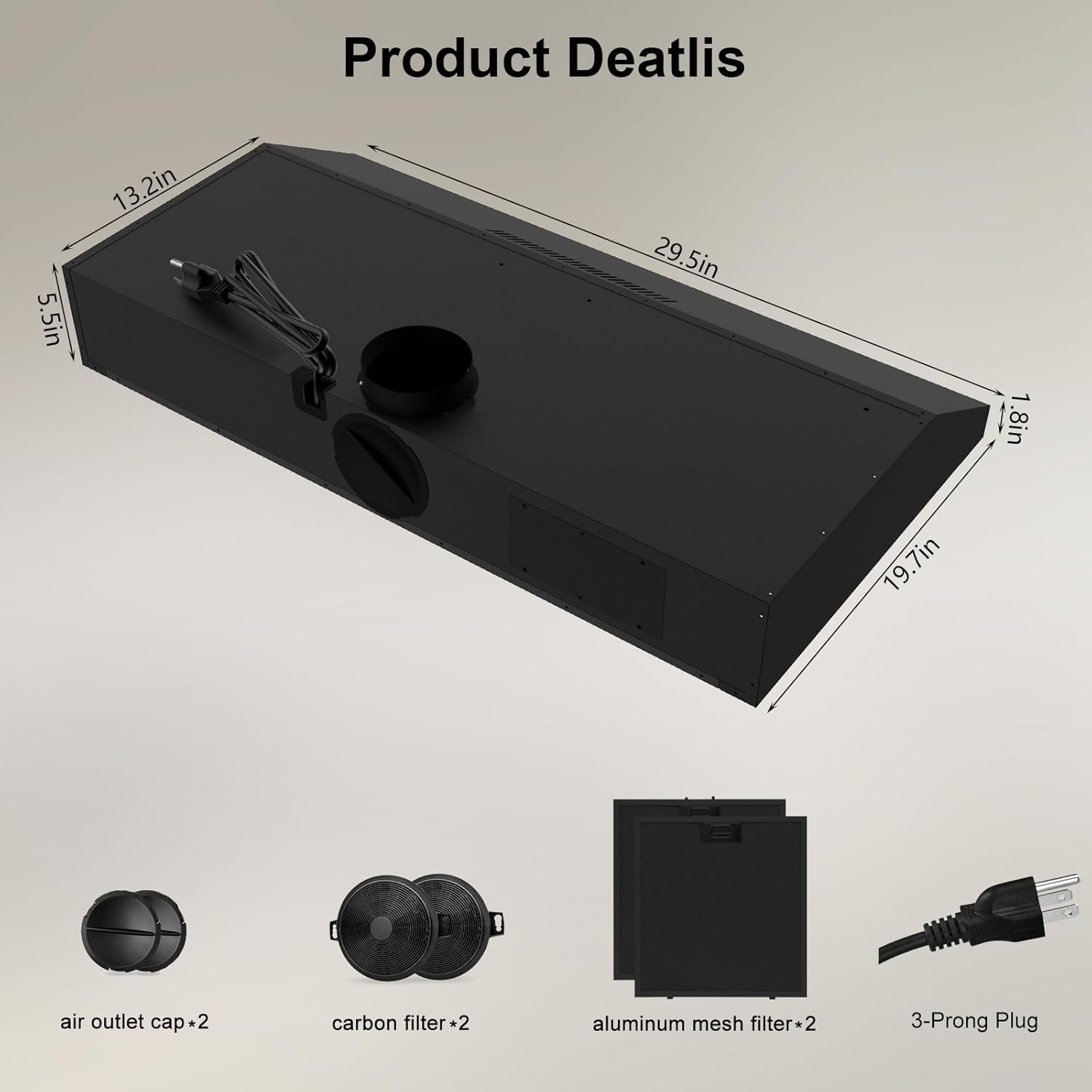

Imatge: Detallada view of the range hood and its components, including dimensions and accessories.
3. Especificacions
| Característica | Detall |
|---|---|
| Marca | TAZPI |
| Número de model | KMJ01-30BK |
| Dimensions del producte (P x A x A) | 19.7 "P x 29.5" W x 5.5" H |
| Color | Negre |
| Tipus de material | Acer inoxidable |
| Capacitat de cabal d'aire | 600 peus cúbics per minut (CFM) |
| Nivell de soroll | 55 decibels (màx.) |
| Tipus de muntatge | Sota el muntatge del gabinet |
| Tipus de controls | Remot |
| Voltage | 120 Volts |
| Nombre de velocitats | 3 |
| Font de llum | LED |
| Tipus de filtre | Deflector |
| Tipus de ventilació | Ductless/Recirculating, Ducted |
| Pes de l'article | 26 lliures |
4. Configuració i instal·lació
The TAZPI range hood can be installed in either ducted (vented to the outside) or ductless (recirculating) configurations. It is suitable for under-cabinet or wall-mount installation. For electrical wiring, it is recommended to consult a qualified professional.
4.1 Ducted vs. Ductless Installation
This range hood supports both ducted and ductless setups. For ducted installation, an exhaust pipe is required to vent air outside. For ductless (recirculating) installation, the included carbon filters must be installed to purify the air before it is returned to the kitchen.
Image: Visual guide for ducted and ductless ventilation modes, showing air flow paths and filter locations.
4.2 Muntatge
The range hood is designed for under-cabinet mounting. Ensure the mounting surface is sturdy and capable of supporting the unit's weight. Detailed mounting instructions and hardware are provided in the full user manual (not included in this summary).
5. Instruccions de funcionament
The TAZPI range hood features intuitive controls for fan speed and lighting, accessible via the control panel or the included remote control.
5.1 Funcionament del ventilador
The exhaust fan offers 3 speed settings (Low, Mid, High) to accommodate various cooking needs, from light simmering to heavy frying. The powerful 600 CFM motor efficiently removes smoke, grease, and odors.
Image: Visual representation of the 3-speed fan settings and their recommended uses.
Per ajustar la velocitat del ventilador:
- Premeu el botó d'encesa per encendre el ventilador.
- Press the fan speed buttons (typically indicated by fan icons) to cycle through Low, Mid, and High settings.
- Press the power button again to turn off the fan.
Video: Demonstration of the range hood's fan and light operation, showing the different speed settings.
Video: Customer real-shot footage demonstrating the range hood's effectiveness in extracting cooking fumes.
5.2 Lighting Operation
The range hood is equipped with two bright, energy-saving LED lights to illuminate your cooking area.
Image: Close-up of the 3W built-in LED lights providing illumination over the cooking surface.
To turn the lights on/off, press the light button on the control panel or remote control.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil de la campana extractora.
6.1 Cleaning the Baffle Filters
The 5-layer baffle filters are designed to capture grease effectively and are easy to clean. It is recommended to clean them regularly, depending on cooking frequency.
- To remove: Gently push the latch on the filter and pull downwards.
- Cleaning: Wash filters with warm, soapy water or place them in a dishwasher.
- To reinstall: Align the filter with the slots and push upwards until it clicks into place.
Image: Illustration of how to remove and clean the baffle filters.
6.2 Replacing Carbon Filters (Ductless Mode Only)
If using the range hood in ductless (recirculating) mode, the carbon filters need to be replaced periodically (typically every 3-6 months, depending on usage) to maintain odor absorption efficiency.
- Refer to the full user manual for specific carbon filter replacement instructions.
6.3 Neteja exterior
Netegeu l'exterior d'acer inoxidable amb un drap suau i un netejador d'acer inoxidable no abrasiu. Eviteu productes químics agressius o esponges abrasives que puguin ratllar la superfície.
7. Solució De Problemes
Abans de contactar amb l'atenció al client, review els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no funciona | No power; fan switch off; motor malfunction. | Check power supply; ensure switch is on; contact support if motor is faulty. |
| Els llums no funcionen | Bulb failure; loose connection; light switch off. | Check light switch; ensure bulbs are properly seated; replace bulbs if necessary. |
| Mala succió | Clogged filters; incorrect installation (e.g., duct blockage); fan speed too low. | Clean or replace filters; check ductwork for obstructions; increase fan speed. |
| Soroll excessiu | Loose parts; fan obstruction; motor issue. | Check for loose components; remove any obstructions; contact support for motor issues. |
If the problem persists after attempting these solutions, please contact TAZPI customer support.
8. Garantia i assistència
8.1 Garantia del fabricant
This TAZPI range hood comes with a 1 any de garantia del fabricantSi us plau, conserveu el comprovant de compra per a reclamacions de garantia. La garantia cobreix defectes de materials i fabricació en condicions d'ús normal.
For detailed warranty terms and conditions, refer to the documentation included with your product or contact TAZPI customer service.
8.2 Atenció al client
For any questions, technical assistance, or warranty claims, please contact TAZPI DIRECT customer service. Our professional team is available to provide efficient and timely after-sales service.
Contact information can typically be found on the TAZPI official weblloc web o a través de la vostra plataforma de compra.
